Характеристики
Product Description
Specification

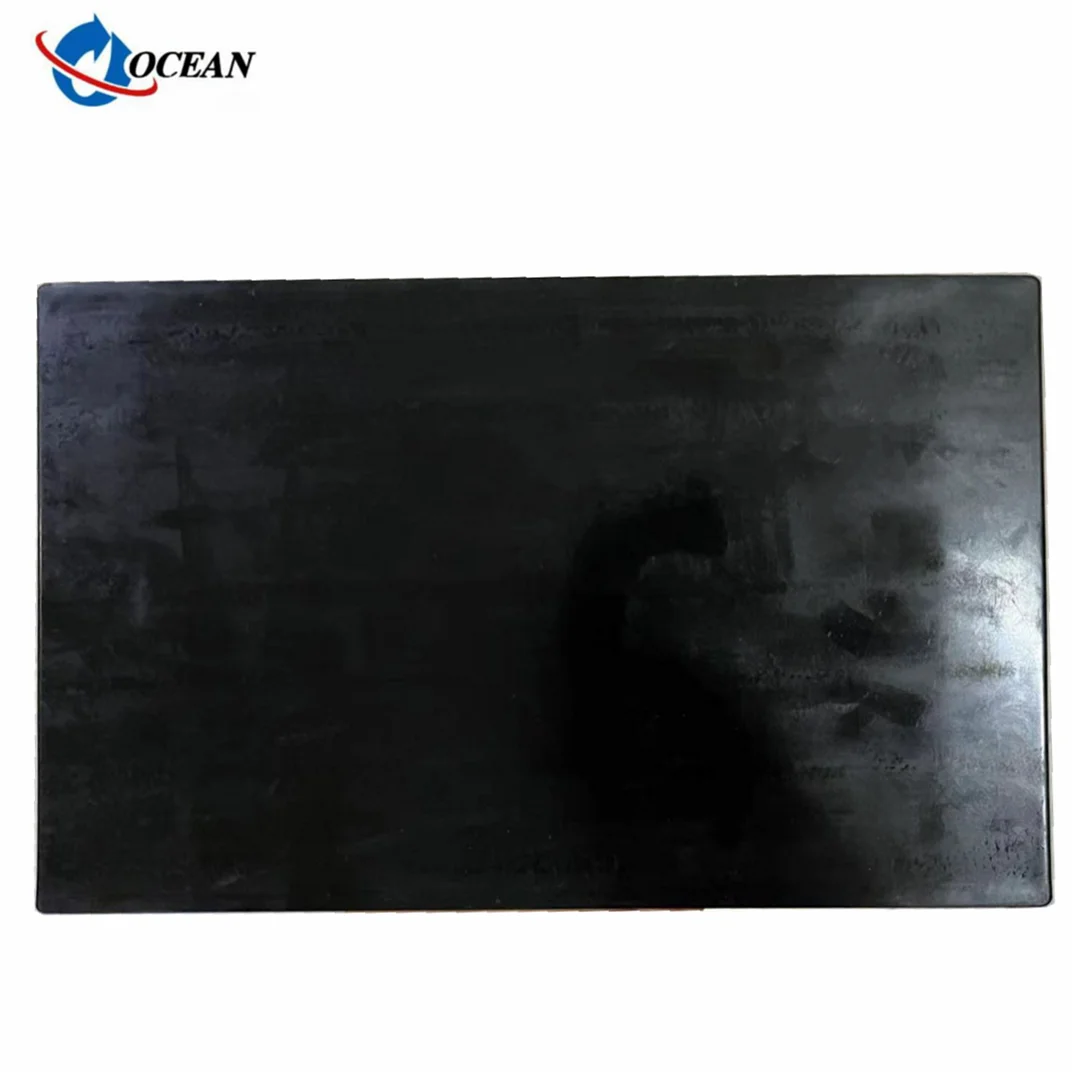

GSR DRS-PAD
For Discontinuous Rail Support
For Discontinuous Rail Support

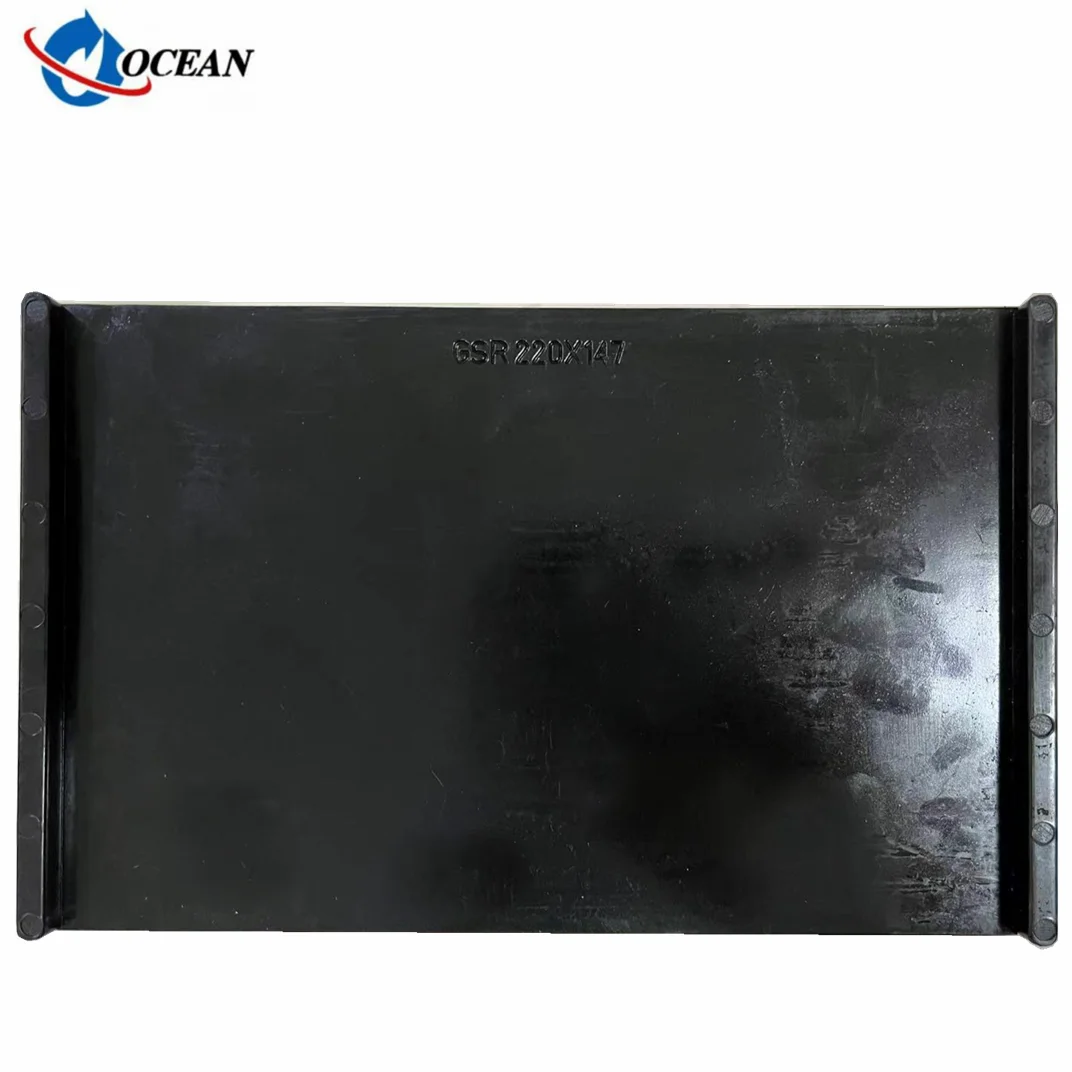

GSR-DRS Crane rail pads have been specially designed for installations where rails are mounted on individual sole plates. Front and back lips sit over the sole plate to prevent pad displacement. The pad is cut to 3~5mm less than the width of the rail bottom lange.
GSR-DRS PADS:
• Eliminate load concentrations and resultant fatigue stresses in the rail mounting;
• Protect the crane mechanism and increase rail, wheel, bearing and axle life;
• Reduce the wear of rail and support surfaces by eliminating fretting erosion;
• Reduce stresses in the rail, grout and concrete below the sole plate;
• Allow the rail to rotate small amounts so that it conforms to the crane wheel;
• Distribute wheel loads onto the supporting structure;
• Are specially resistant to wear, shear, crushing, oils, greases, ozone and oxygen, as well as ultra- violet rays.
Material characteristics:
• Composition : EVA copolymer.
• Shore hardness : 95°A (ISO 868 A scale).
• Tensile strength : 16 N/mm minimum (ISO R527).
• Elongation : 250 % minimum (ISO R527).
• Recommended maximum compressive stress (dependent on temperature) : 20 N/mm2
• Service temperature : from -25°C up to +75°C. For other temperatures, please consult us.
Permissible soleplate load:
The maximum permissible load per soleplate can be calculated and is a function of rail and soleplate dimensions and the acceptable working stress for the GSR-DRS pads. The design load calculation should also consider grout and concrete strengths and fatigue.
Designation and dimensions:
GSR-DRS-L x W PAD
L = dimension of the soleplate in the rail axis.
W= reduced width, always 3 to 5 mm shorter the rail foot width.
INSTALLATION INSTRUCTIONS:
The installation method should ensure that the soleplates are level with the base of the rail. This is best achieved by levelling the rail and then bringing the sole plate plus pad up to meet the bottom surface of the rail over its full area. For further information please contact our Technical Department.
• Eliminate load concentrations and resultant fatigue stresses in the rail mounting;
• Protect the crane mechanism and increase rail, wheel, bearing and axle life;
• Reduce the wear of rail and support surfaces by eliminating fretting erosion;
• Reduce stresses in the rail, grout and concrete below the sole plate;
• Allow the rail to rotate small amounts so that it conforms to the crane wheel;
• Distribute wheel loads onto the supporting structure;
• Are specially resistant to wear, shear, crushing, oils, greases, ozone and oxygen, as well as ultra- violet rays.
Material characteristics:
• Composition : EVA copolymer.
• Shore hardness : 95°A (ISO 868 A scale).
• Tensile strength : 16 N/mm minimum (ISO R527).
• Elongation : 250 % minimum (ISO R527).
• Recommended maximum compressive stress (dependent on temperature) : 20 N/mm2
• Service temperature : from -25°C up to +75°C. For other temperatures, please consult us.
Permissible soleplate load:
The maximum permissible load per soleplate can be calculated and is a function of rail and soleplate dimensions and the acceptable working stress for the GSR-DRS pads. The design load calculation should also consider grout and concrete strengths and fatigue.
Designation and dimensions:
GSR-DRS-L x W PAD
L = dimension of the soleplate in the rail axis.
W= reduced width, always 3 to 5 mm shorter the rail foot width.
INSTALLATION INSTRUCTIONS:
The installation method should ensure that the soleplates are level with the base of the rail. This is best achieved by levelling the rail and then bringing the sole plate plus pad up to meet the bottom surface of the rail over its full area. For further information please contact our Technical Department.
Packing & Delivery
Company Profile
Tianjin Ocean Mechanical & Electrical Equipment Co., Ltd
We, as a council member of China Port Association and Chinese Machinery Association of port machinery branch, also is the exclusive agent of British GSR crane rail system products in China. It is a professional technological company specializing in designing, manufacturing, sales and installation of rail fixing systems for cranes and other transport machinery and rail related products.
Our business scopes:
1. Supply GSR clips/pads, it is equivalent to the clips and pads of other brands.
2. Supply all series of cements and epoxy grout and repair materials.
3. Supply various domestic and international rails and service for rail cutting, drilling and bending.
4. Supply rail aluminum heat welding materials and aluminum heat welding service for rails.
5. Process and make all kinds of rail fittings, soleplates, anchor bolts and rubber pads.
6. Supply anchorage connection device for small steel structure and steel structure crane beam.
7. Supply Anchor box,compressible joint filler,force transmission plate,jacking points,storm pin.
8. Supply bollard, cable trench, rubber fenders, buffer stops and a variety of embedded parts for wharves.
9. Supply all kinds of stainless steel products.
10.Technical service for rail systems design and installation.
Major Projects
15500 meters of the rails:
adopted GSR adjustable chairs and provided 15,500 meters of rail installation.
Contact Details
If you have any other questions, pls feel free to contact us as below:
Company name: Tianjin Ocean Mechanical & Electrical Equipment Co., Ltd.
Address: 2-1207 Boling Building No.108 Dazhigu Mid Road Hedong District, Tianjin, China.
Tel: 0086 22 24387905
Fax: 0086 22 24387909
Ckype/WhatsApp/WeChat: 86 131 32559262（Amy Guo）
