Цифровой ультразвуковой кабельный измеритель высоты AR600E для строительных площадок промышленных электрических
- Категория: Height Measuring Instruments >>>
- Поставщик: Henan,Liangfei,Mechanical,And,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.50 $* | 0.5 $* |
| Aug-16-2025 | 0.98 $* | 0.67 $* |
| Jul-16-2025 | 0.72 $* | 0.48 $* |
| Jun-16-2025 | 0.96 $* | 0.89 $* |
| May-16-2025 | 0.53 $* | 0.5 $* |
| Apr-16-2025 | 0.45 $* | 0.27 $* |
| Mar-16-2025 | 0.53 $* | 0.55 $* |
| Feb-16-2025 | 0.34 $* | 0.45 $* |
| Jan-16-2025 | 0.67 $* | 0.24 $* |
Характеристики
Specification
Technical parameter | Techical Specifications |
Range (25mm cable mini) | 3~23m |
Range (12mm cable min) | 3~15m |
Range ( 5.5mm cable min) | 3~12m |
Range ( 2.5mm cable min) | 3~10m |
Horizontal measuring range | 3~18m |
Operating temperature range | -10~40C |
Resolution(range<10m) | 5mm |
Resolution(range > 10m) | 10mm |
Measuring accuracy | 0.5%+-2d |
Minimum gap between wires | 150mm |
BOT mode: measuring the height of the most lower 6 cables | V |
Top mode: measuring the height of the most higher 6 cables | V |
Auto power off delay | 120s |
Low battery alarm | 7.2v+-0.2V |
Imperial & metric unit transition | V |
Displays real time temperature | V |
Operating voltage | 9V 6F22 |
Product Dimision | 75 x72 x 200mm |
Product Net Weight | 205g |

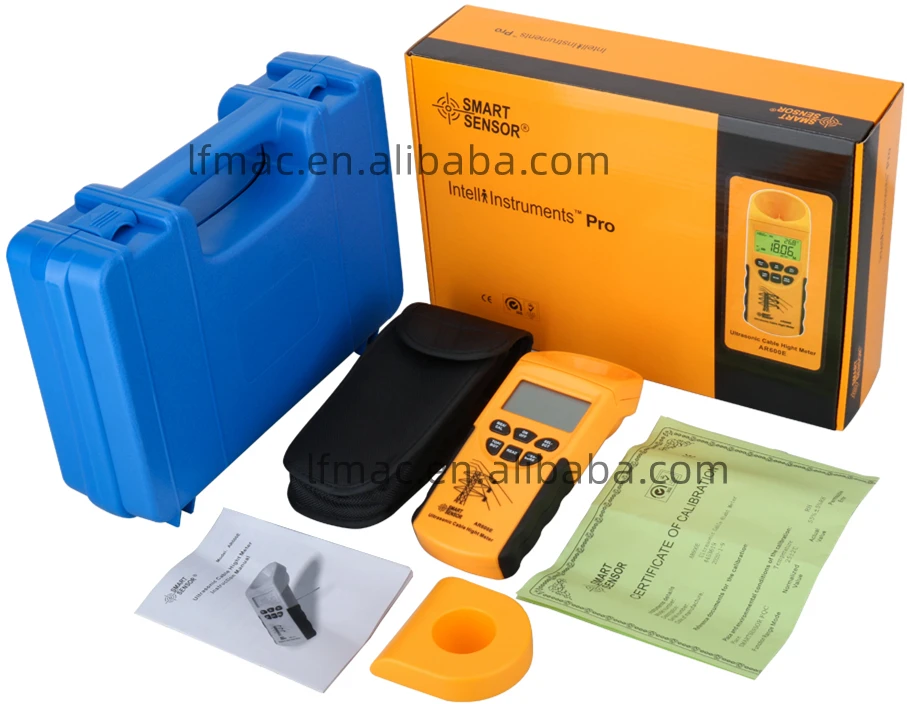

Packing | Gift box |
Packing Contents: | 1 x English Manual |
1 x Accessory Bracket (Horizontal Distance Measurement Only) | |
1 x Black Pouch | |
1 x Carry Case | |
1 x Ultrasonic Cable Height Meter |

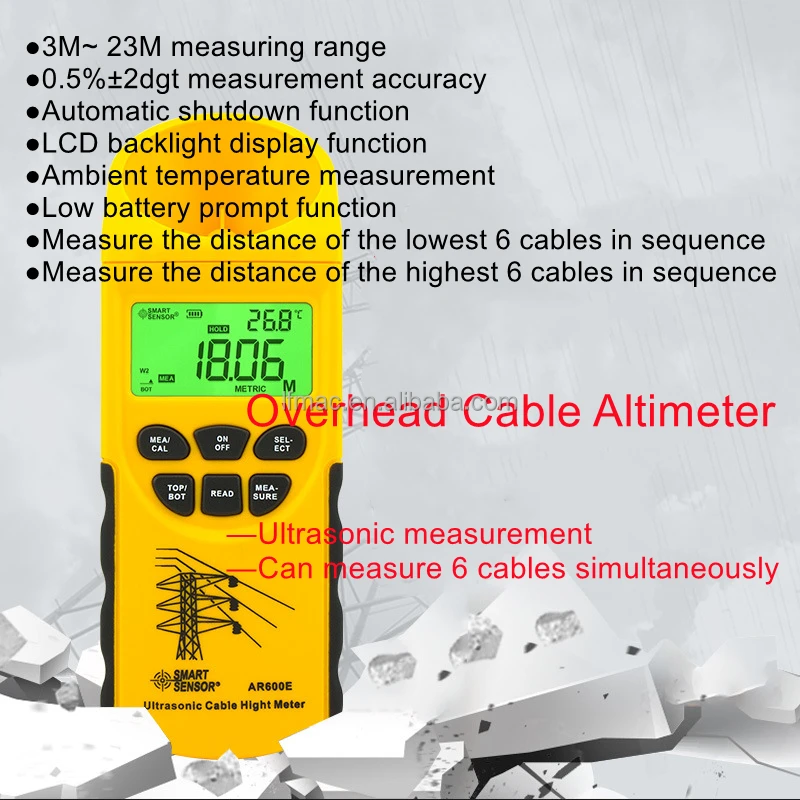

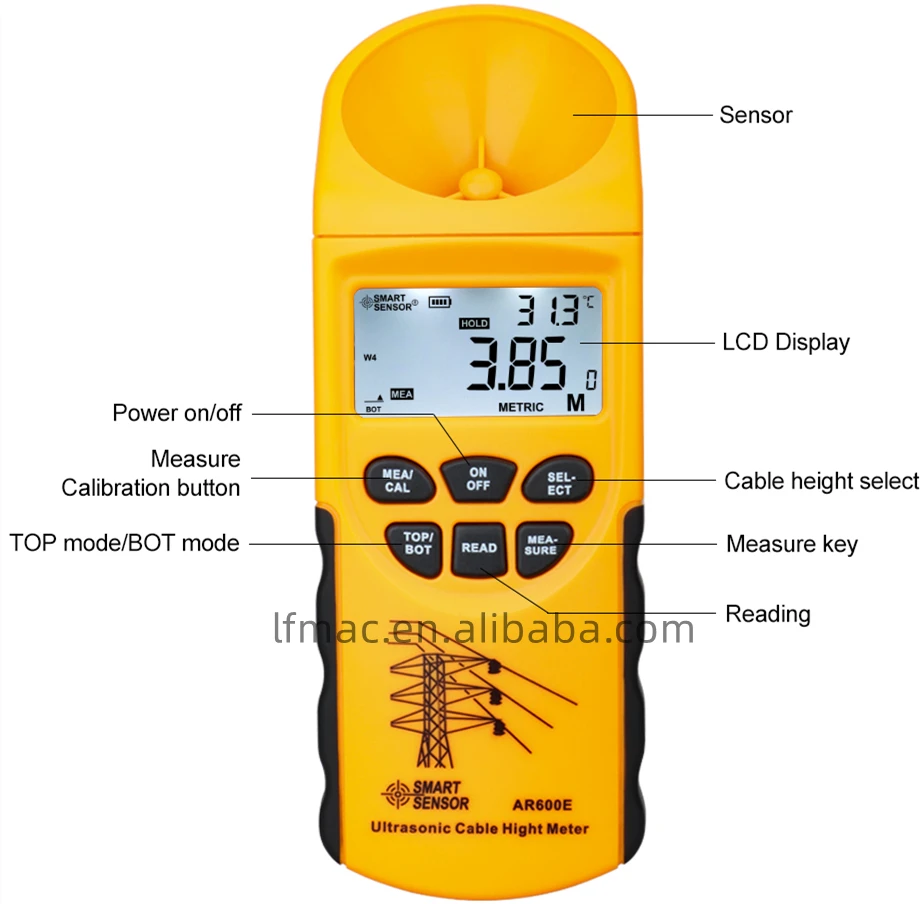

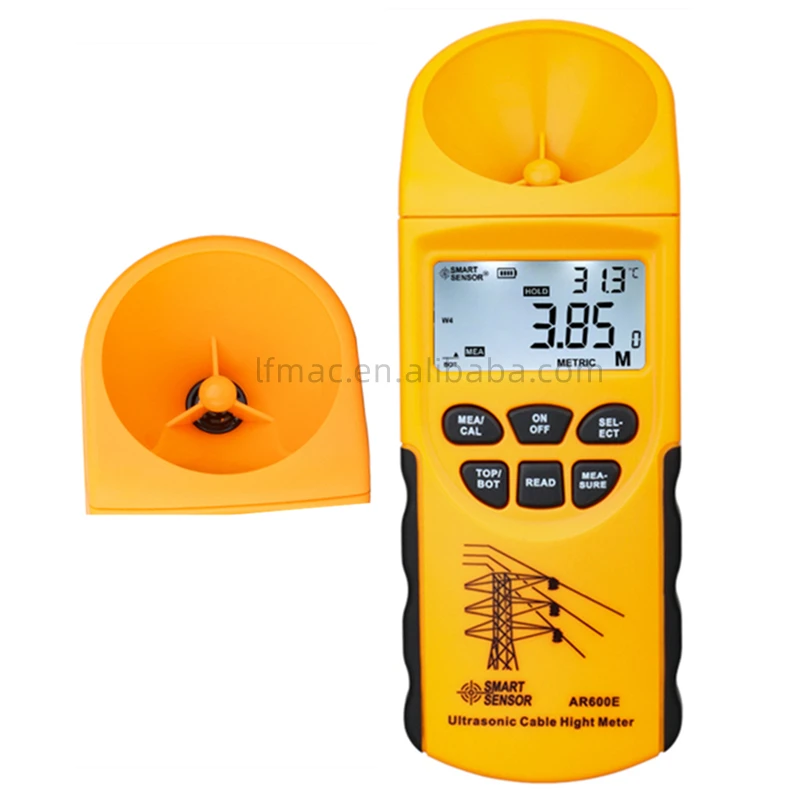

This Ultrasonic Cable Height Meter is a user friendly and easy-to-operate instrument. A circuit maintenance can make measurement of cable height. The AR600E with the Horizontal Adapter can be used for depth measurement, (examples: An elevator shaft or well) provided there is sufficient width to permit a proper ultrasonic reflection.
Typical Measurement Applications: Electrical, Forestry, Industrial, Mining, Overhead cables, Tree branches, Elevator shafts, Depth of Wells.
Typical Measurement Applications: Electrical, Forestry, Industrial, Mining, Overhead cables, Tree branches, Elevator shafts, Depth of Wells.
1. For measuring the height up to 6 cables together
2. Convenient to take measurement, easy to aim at the measuring position and to read measuring results.
3. For measuring the distance between wire and wire
4. Be applicable to different use of cables
5. Uses large measuring sensor, higher accuracy than existing cable height meter in market
6. Compact and easy to take along.
7. For measuring dimension of house and distance between objects
8. The temperature compensation function enables the unit compensates error automaticlly under the temperature of -10C+40c, and ensures the measuring accuracy on different temperature conditions
2. Convenient to take measurement, easy to aim at the measuring position and to read measuring results.
3. For measuring the distance between wire and wire
4. Be applicable to different use of cables
5. Uses large measuring sensor, higher accuracy than existing cable height meter in market
6. Compact and easy to take along.
7. For measuring dimension of house and distance between objects
8. The temperature compensation function enables the unit compensates error automaticlly under the temperature of -10C+40c, and ensures the measuring accuracy on different temperature conditions
