Оборудование для золотого покрытия ювелирных изделий/машина изготовления золотых пластин изделий колец
- Категория: >>>
- Поставщик: Foshan,Foxin,Vacuum,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 152320.99 $* | 159936.47 $* |
| Aug-18-2025 | 151040.28 $* | 158592.75 $* |
| Jul-18-2025 | 126720.60 $* | 133056.66 $* |
| Jun-18-2025 | 148480.29 $* | 155904.1 $* |
| May-18-2025 | 129280.10 $* | 135744.81 $* |
| Apr-18-2025 | 145920.74 $* | 153216.21 $* |
| Mar-18-2025 | 144640.53 $* | 151872.38 $* |
| Feb-18-2025 | 143360.42 $* | 150528.95 $* |
| Jan-18-2025 | 142080.60 $* | 149184.61 $* |
Характеристики
Products Description

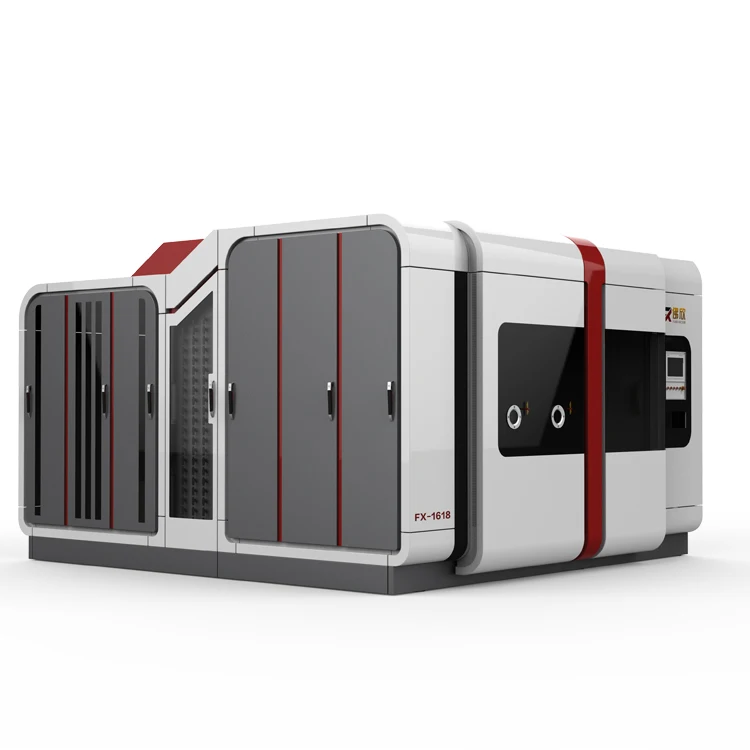

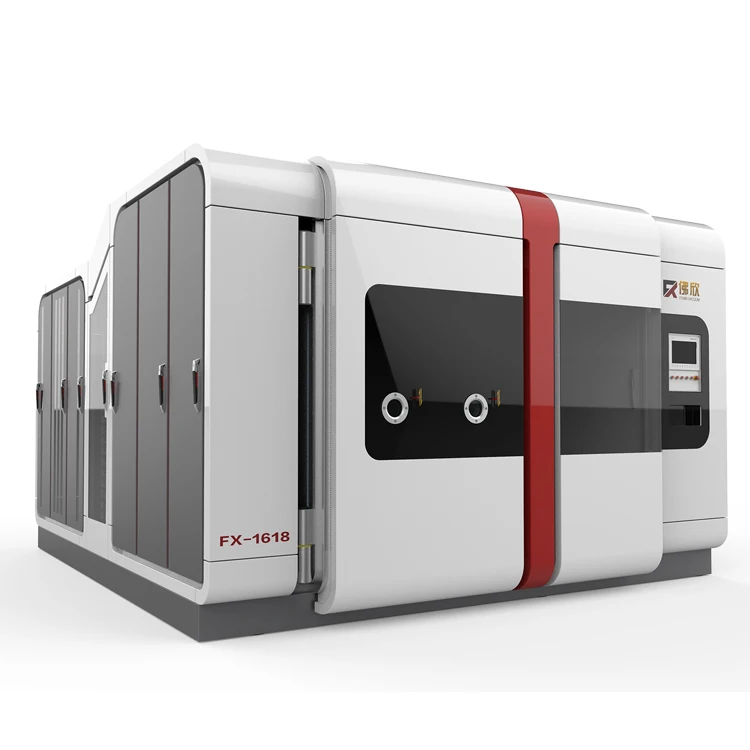

FOXIN-IP Series Multi-Arc Magnetron Coating Equipment Model(Height ≤ 1.3m) | ||||||||||||
Model | TG-1418 | TG-1620 | TG-1820 | TG-2020 | TG-2023 | TG-2030 | ||||||
Vacuum chamber | Ф1400×H1800mm | Ф1600×H2000mm | Ф1800×H2000mm | Ф2000×H2000mm | Ф2000×H2300mm | Ф2000×H3000mm | ||||||
Application | hardware industry, sanitary appliance industry, decoration industry | |||||||||||
Faucet,stair handrail, household appliances ,LOGO signs ,stainless steel frame ,parts and sheet | ||||||||||||
Coating Film | Ti-Gold, Rose Gold, Champagne Gold, Japanese Gold, Bright Silver, Rainbow, Jewelry Blue, Rose Red, Black, etc. | |||||||||||
Vacuum | Vertical door structure, equip with air pumping system and water cooling system | |||||||||||
Vacuum system | Sustaining Pump + Mechanical Pump + Roots Pump + Diffusion Pump or Molecule Pump(specific model according to customers' requirements) | |||||||||||
Vacuum | 1 set pirani, 1 set cold cathode, 1 set diaphragm gauge | |||||||||||
Supply Type | DC power, MF power, pulse power(bias power, arc power) | |||||||||||
Ultimate | 1.0- 6.0×10-4Pa, Non-loading cooling | |||||||||||
Arc Source | 16-24set | 16-24 set | 18-26set | 18-26 set | 22-28 set | 22-32 set | ||||||
200A-300A | 200A-300A | 200A-300A | 200A-300A | 200A-300A | 200A-300A | |||||||
Bias Power | 40KW/1 set | 40KW/1 set | 40KW/1 set | 40KW/1 set | 40KW/1 set | 60KW/1 set | ||||||
Magnetron Power Supply | 1-2 set | 1-2 set | 2-3 set | ---- | ----- | ----- | ||||||
Rotation | Multi-axis planetary with frequency control(can be controlled and adjusted) | |||||||||||
Baking Temperature | Normal temperature～300℃ to 450℃ ～600℃ can be controlled and adjusted(PID temperature control) | |||||||||||
Gas | 3 or 4 ways working gas flow control and display system matched with auto gas adding system | |||||||||||
Ar, N2, O2, C2H2,etc. | ||||||||||||
Cooling Method | Water cooling circulation, equip with industrial cooling tower or industrial water chiller(refrigerating machine) ,or cryogenic system.(customers provide) | |||||||||||
Controlling | Manual, half-auto, auto, touch screen operation, PLC or computer controlled | |||||||||||
Air Pressure | 0.5-0.8MPa | |||||||||||
Water | ≤25℃ ≥0.2MPa | |||||||||||
Warning | Alarming system will work when hydropenia, over-voltage, circuit break such abnormal situation happens and carry out related protect | |||||||||||
Total Power | 100~125KW | 125~145KW | 145~165KW | 165~185KW | 185~200KW | 200KW | ||||||
Output | Voltage 380V，Frequency 50Hz(equip as customers' national electricity standard) | |||||||||||
Occupation | 15~50m² | 15~50m² | 25~55m² | 25~55m² | 35~55m² | 35~55m² | ||||||
Remark | Design and produce special machine according to customers' require, can add magnetron sputtering target,MF twins target,etc. | |||||||||||
Our Advantage
Double layer Vacuum Chamber
Foxin use double layer of stainless steel 304 to manufacture the vacuum chamber , with advanced welding technology and ensure the air tightness of the chamber . better vacuum pressure protection capability ,higher ultimate vacuum , More durable service life.
and built in high power heater and ensure the temperature inside the chamber .
Excellent vacuum pumping system
Foxin choose the famous Chinese brand pump for the vacuum pumping system . its Vacuum is fast and steady .to obtain high efficiency coating cycle time , greatly reduces the vibration frequency and energy consumption of the equipment .
Foxin offer the import brand pump service if the customer required .Such Leybold ,Osaka, Shimadzu ,Pfeiffer etc .
Foxin’s 10th Arc Source and the Parts
Equipped with Foxin’s 10th generation high-performance arc power supply and cathode arc source device , it means more uniform coating film , leading reliable performance of continuous coating
Foxin keep the technology R&D , so the technology are progressing .
Control System and Famous Electrical Production
Foxin use the international cutting-edge brand s of the electrical production , such as Siemens , Mitsubishi . Especially the PLC .
Foxin use the touch screen , easy to control the machine . Automatic system coating system , Foxin will base on the customer's products to set the program . the machine can be finish from pumping to coating automatically.
Gold head with IP color
IP black , IP gold etc
it is mean the high level quality color .so you can make your products become the high quality and high grade
we will build in the magnetron sputtering target
Tableware with gold color
After PVD coating , your tableware can be more glistening and sold with high price .
our multi arc target can do for this and with a suitable size . the coating is hardness and high firmness
Furniture with gold color
the furniture with gold color is appropriate for the hotel . that make your hotel with high level .. and can use in the home . .
the coating can be kept more than 10 years .
Company Profile
About Foxin and PVD coating machine
Foshan Foxin Vacuum Technology Co., Ltd specializes in the R&D,production and sales of various vacuum applications. Committed to providing customized process technology and solutions according to customer needs. including unbalanced magnetron , medium frequency magnetron sputtering ,multi arc-ion sputtering ,multi arc-ion and magnetron ion sputtering,arc evaporation sources equipment and other coating equipment. Widely used in tool cutting tools, military, automotive, lighting, mobile phones, hardware watches, jewelry, ceramics, stainless steel plates, stainless steel products and other industries.
Welding on the workshop
Advanced welding technology ensures the air tightness of the chamber .and after careful calculation and detailed operation . Adopt real material to make the pipes . Automation technology ensures the accuracy of welding process .
In the factory the debugging
In order to ensure the normal operation of equipment , we conducts equipment debugging in the factory .Foxin machine will be provided the video test and online test . separate before the shipment and send the installation worker for installing and training .
Shear the stainless steel on the workshop
Digital controlled lathe on the workshop
Install and test on the workshop
Certifications
Customer Photos
FAQ
Q1. How about the quality control about your products?
We have the ISO9001 QMS , CE certification.
We have the ISO9001 QMS , CE certification.
All machine will past the internal quality test and field testing.
Q2. Does your company provide after-sale service ?
Yes. We have the field engineer to set-up and debug the machine .
Q2. Does your company provide after-sale service ?
Yes. We have the field engineer to set-up and debug the machine .
After the machine is fully running . we have one year of quality warranty and full-life maintenance service .
Q3. Can you provide technical support about my work-flow?
Yes . The Foxin have more than 20 years of experience in Vacuum coating territory.
We also have an independent R&D department ,which will solve your production issue.
Q4. Do you provide the second-hand machine ?
No. All machine in Foxin are new .
We don't manufacture the second-hand machine .
Q5. Does your company supply accessories for our spare parts after we bought your products ?
Yes . We can supply you all the accessories especially for some consumable material .
Yes . The Foxin have more than 20 years of experience in Vacuum coating territory.
We also have an independent R&D department ,which will solve your production issue.
Q4. Do you provide the second-hand machine ?
No. All machine in Foxin are new .
We don't manufacture the second-hand machine .
Q5. Does your company supply accessories for our spare parts after we bought your products ?
Yes . We can supply you all the accessories especially for some consumable material .
