Характеристики
Product Description
Q355P Mini PC Main Features
• IIntel Core i5 5200U Dual Core Processor
• Intel HD Graphics
• 2 x HD, 1xVRA Video Output
• 6 x RS232 COM
• 4 x USB 3.0, 2 x USB 2.0, 1 x SATA 3
• 1 x Mini-PCIe, 1 x mSATA
• 2 x Intel I211-AT Gigabit LAN
Category | Descriptions | ||
Model | No. | Q355P Mini PC | |
Processor System | CUP | Intel Core i5 5200U Dual Core Processor, 2.2GHz-2.7GHz, 3M Cache | |
CUP TDP | 15W | ||
Memory | 1 x DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz） | ||
Chipset | By CPU | ||
Graphics | Intel® HD Graphics 5500 | ||
LAN Chipset | 2 x Intel I211-AT Gigabit LAN | ||
Audio | Realtek ALC662 HD Audio | ||
Watch Dog | Yes | ||
Front I/0 | Power Button | 1 | |
LED | 1 x Power LED,1 x HDD LED | ||
Serial Port | 2 x RS-232 (COM5, COM6) | ||
USB | 2 x USB2.0, 2 x USB3.0 | ||
Rear I/O | Power | 1 x DC Jack | |
LAN | 2 x RJ-45 Port for Gigabit LAN | ||
Video Output | 2 x HD, 1 x VGA (Option) | ||
Audio | 1 (Mic-in, Line-out) | ||
USB | 2 x USB 3.0 | ||
Serial Port | 4 x RS-232 (COM1, COM2, COM3, COM4) | ||
1 x 2.5-inch HDD/SSD | |||
1 x Mini PCIe for mSATA SSD | |||
Expansion | mSATA | 1 x Full-length Mini PCIe for SSD | |
Mini PCIe | 1 x Mini PCIe Full-length for 4G, Half-length for Wi-Fi | ||
GPIO | 1 x 2.0 Pitch Header (Option) | ||
SIM Card Slot | 1 | ||
Automatically Boot Jumper | 1 | ||
DC-in | Header (Option) | ||
VGA | COM3 can be set up as VGA (Factory Setting) | ||
RS-485 | COM2 can be set up as RS-232/RS-485 (Factory Setting) | ||
Power Requirement | Power Adapter | 12V3A | |
DC Jack | 5.5mm, 2.5mm | ||
Environmental | Operating Temp | 0°C~50°C | |
Non-Operating Temp | -20°C~80°C | ||
Humidity | 10%~90% | ||
Mechanical | Material | Aluminium Alloy | |
Dimension | 187 x 111 x 50mm | ||
Weight | 1.1kg | ||
Mounting | VESA Mounting Bracket | ||
Packaging Dimension | 261 x 218 x 75mm | ||
Kensington Lock | Support | ||
Cooling Mode | Fanless Design | ||
OS Support | Windows 7, Windows 8, Windows 10, Linux | ||
Detailed Images

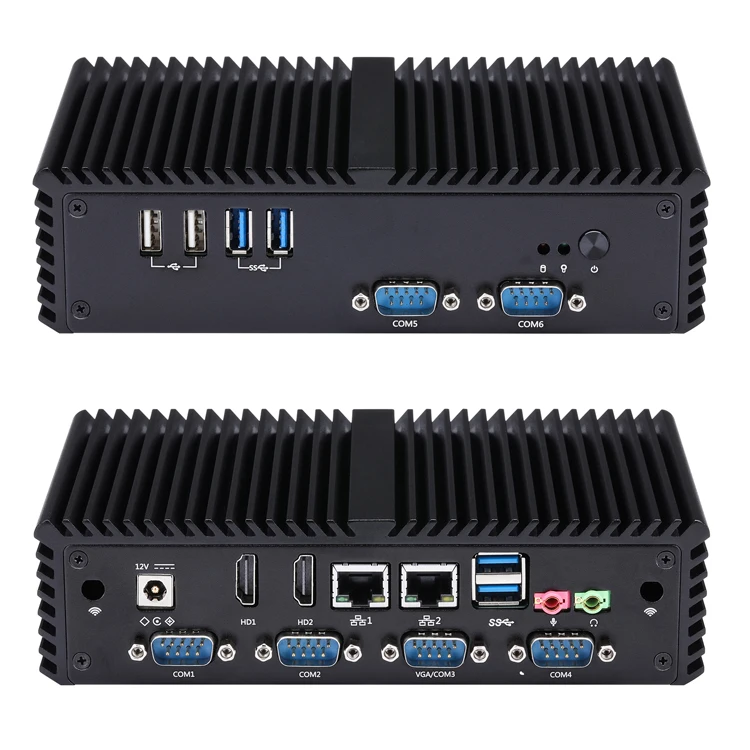

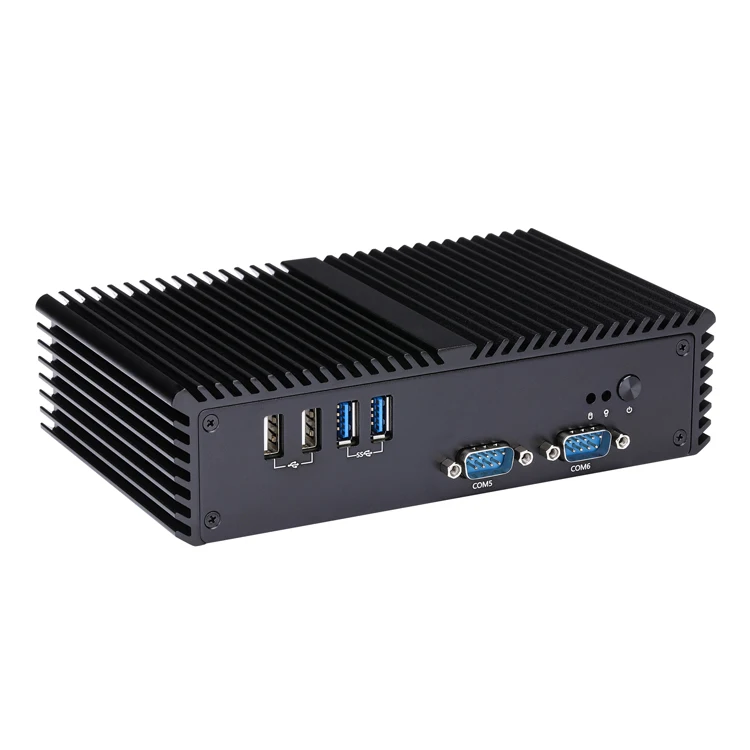

Mini PC Router Front I/O
1 x Power Button
1 x Power LED
2 x USB 3.0
2 x USB 2.0
2 x RS-232 (COM5, COM6)

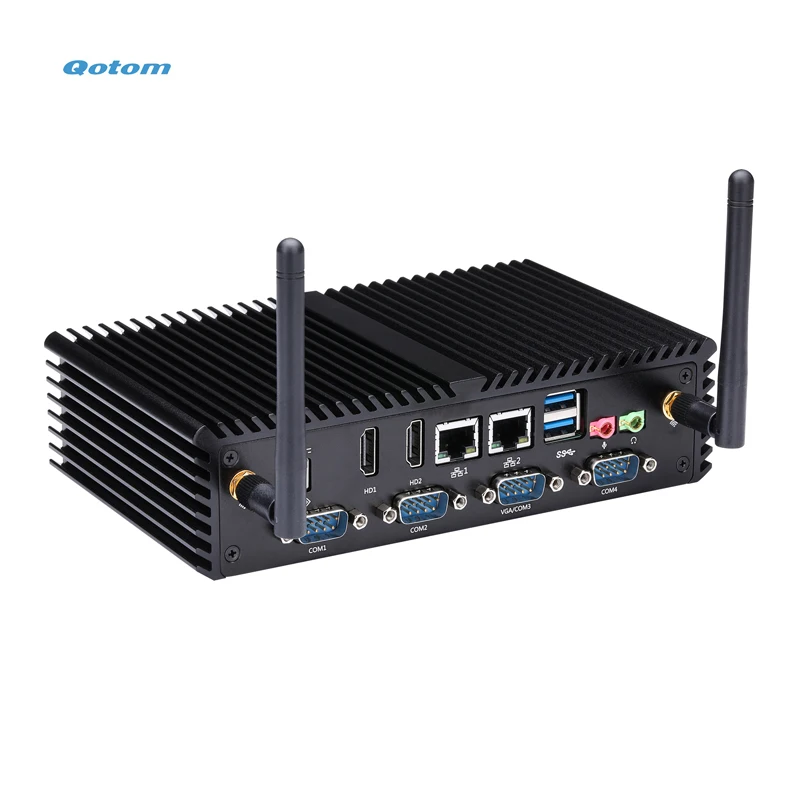

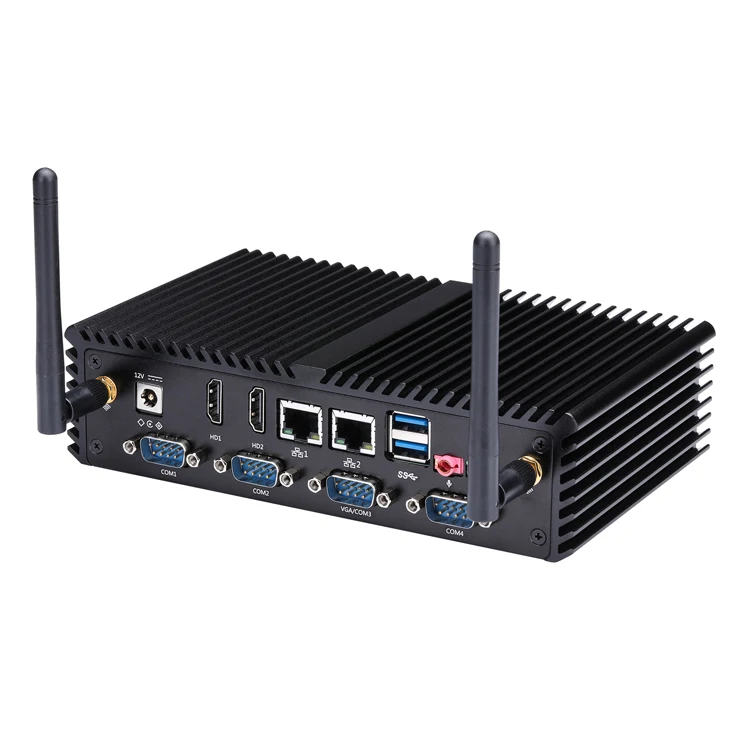

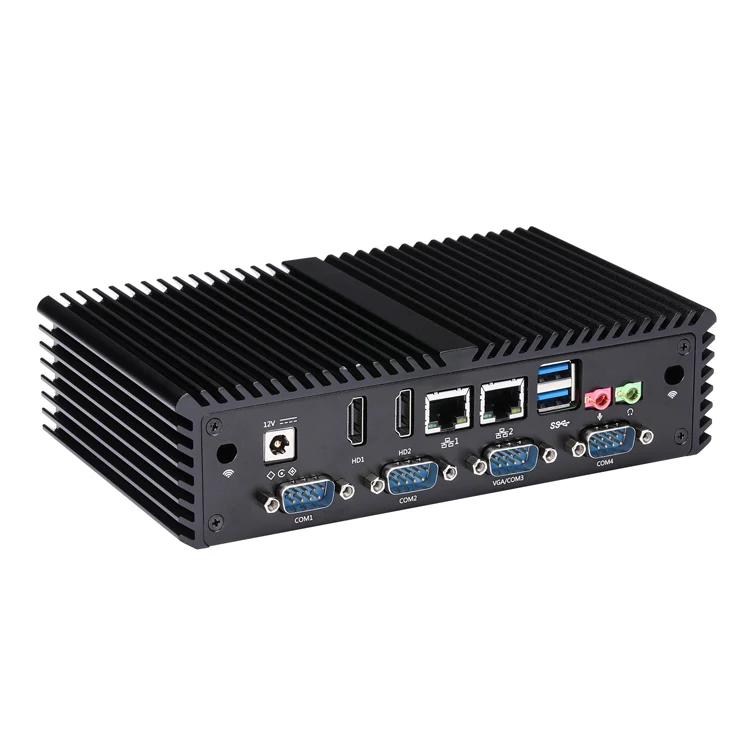

Mini PC Router Rear I/O
1 x DC Jack
2 x HD, 1 x VGA (Option)
2 x RJ-45 Port for Gigabit LAN
2 x USB 3.0
1 (Mic-in, Line-out)Audio

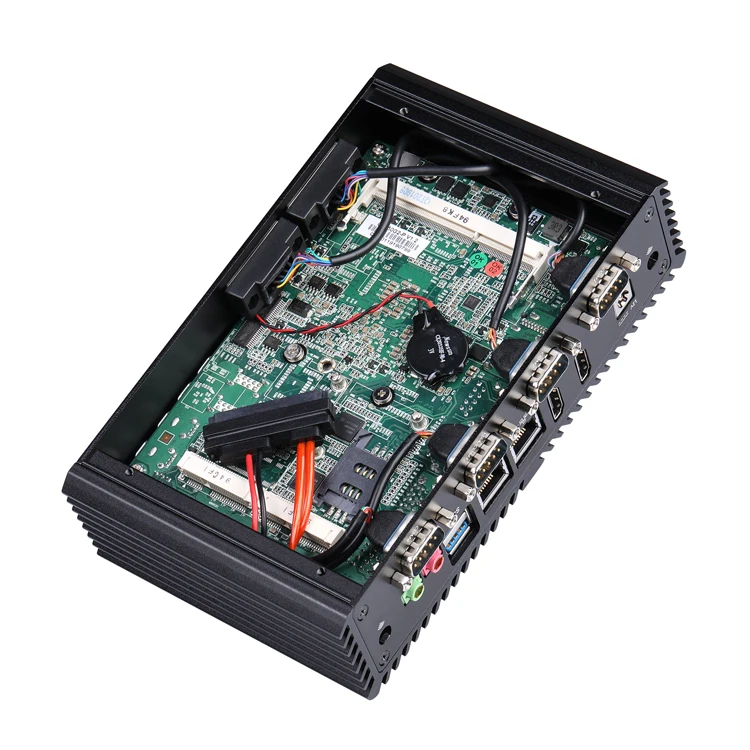

Expansion
1 x Full size Mini-PCIe for mSATA SSD
1 x Mini-PCIe for Option
1 x SIM Card Slot, 1 x DC-in Header
1 x Automatically Boot Jumper
1 x 2.0 Pitch Header (GPIO)
1 x 2.0 Pitch Header (VGA)
"COM2" can be set up as RS-232/RS-485 (Factory Setting)
"COM3 " can be set up as VGA (Factory Setting)
Packing & Delivery
Packing List:
1 x Device
1 x 12V3A Power adapter with cable
1 x VESA mouting bracket
1 x Screws
Packing:
We use good quality paper packing box and EPE to protect the product. It's a black color box without company logo.
(OEM packing can be acceptable, MOQ500pcs/times)
