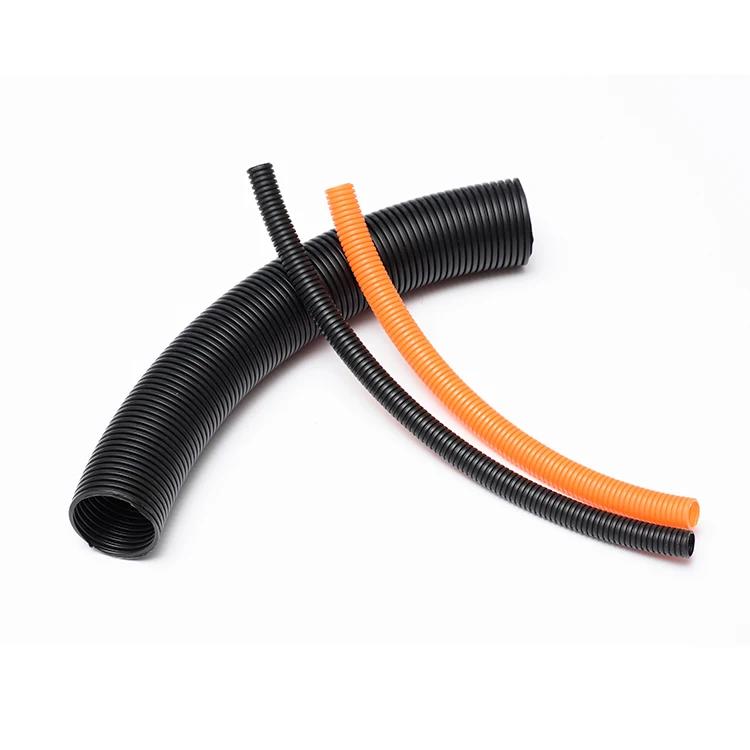

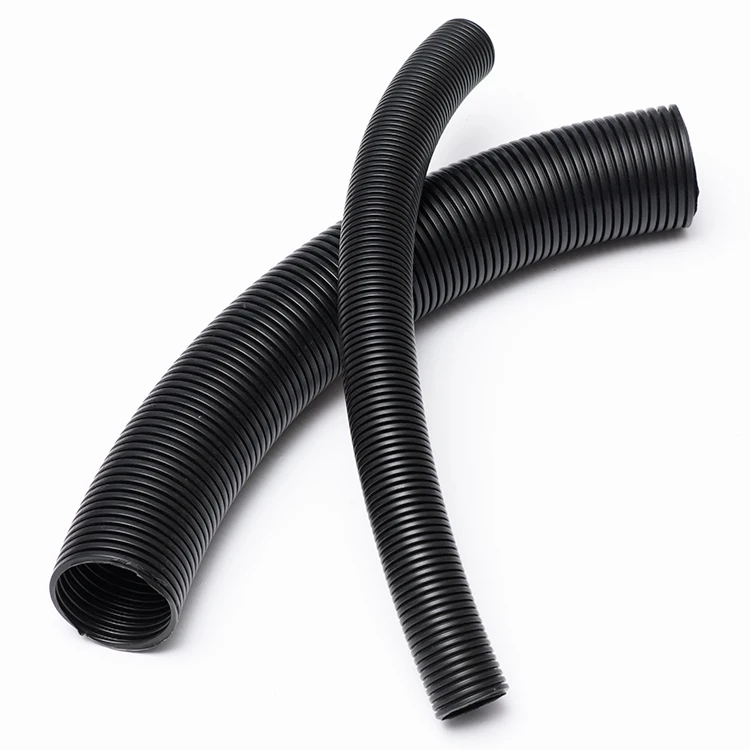

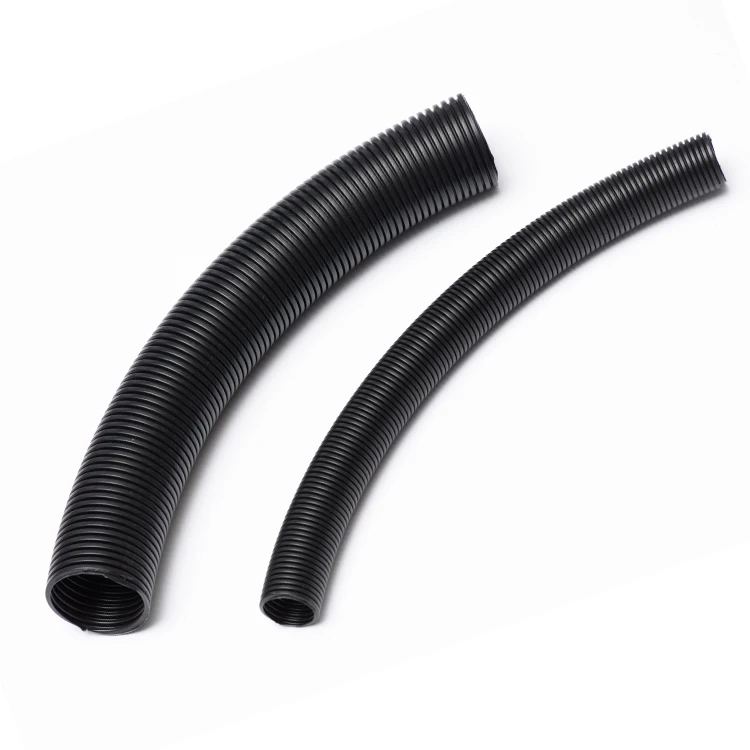

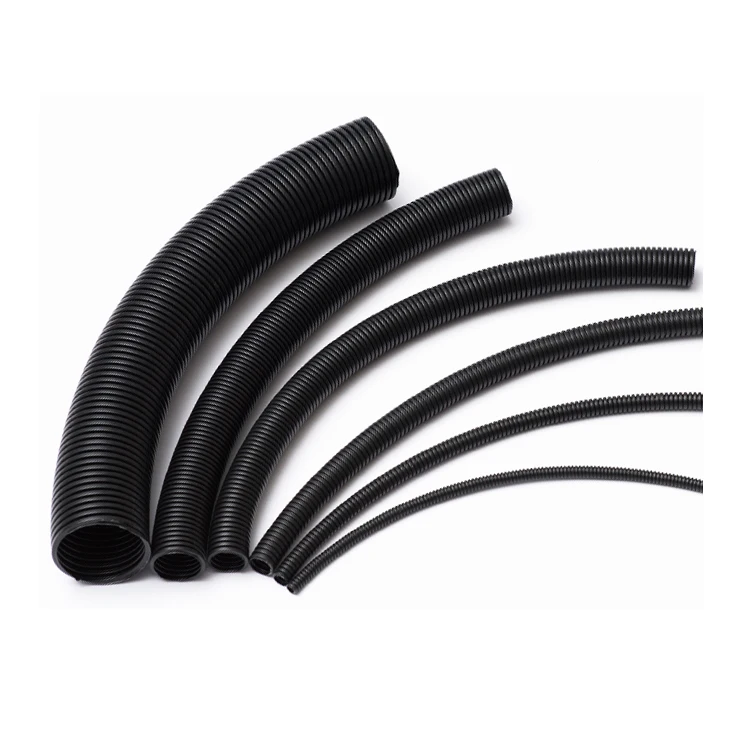

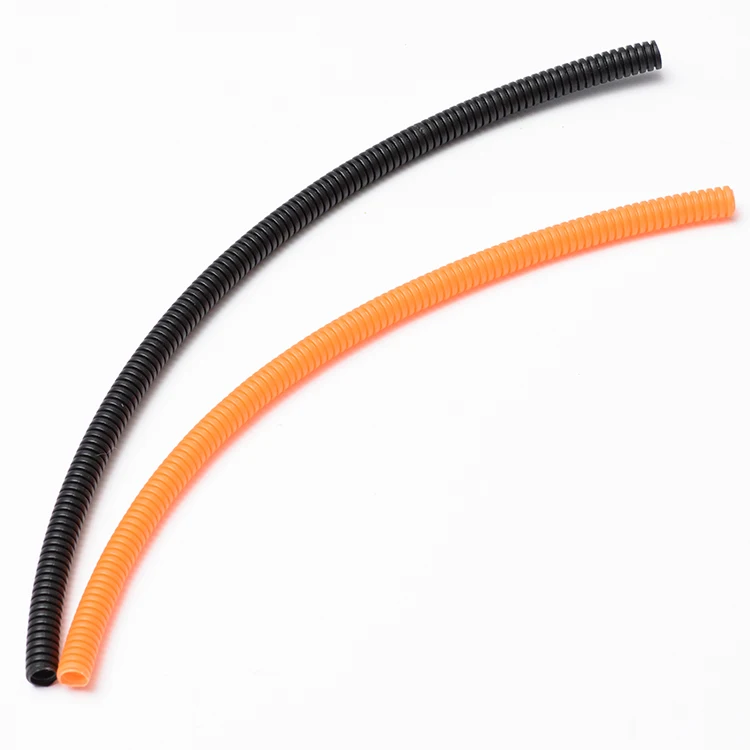

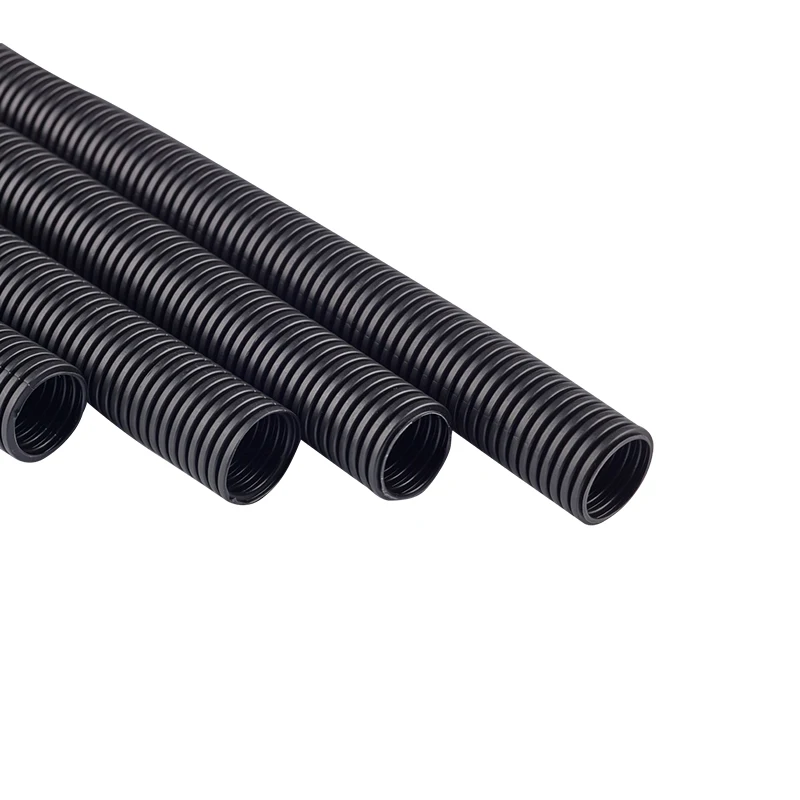

Гибкий кабель трубопровод гофрированный разделенный провод
- Категория: >>>
- Поставщик: Dongguan,Zhonghe,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.53 $* | 0.52 $* |
| Aug-20-2025 | 0.76 $* | 0.98 $* |
| Jul-20-2025 | 0.84 $* | 0.38 $* |
| Jun-20-2025 | 0.79 $* | 0.36 $* |
| May-20-2025 | 0.50 $* | 0.16 $* |
| Apr-20-2025 | 0.30 $* | 0.3 $* |
| Mar-20-2025 | 0.8 $* | 0.14 $* |
| Feb-20-2025 | 0.66 $* | 0.6 $* |
| Jan-20-2025 | 0.26 $* | 0.47 $* |
Характеристики
Products Description
Material | PP PA PE |
Color | Black |
Working Temperature | -40℃ ~ 135℃ |
Fire Rating | UL94-V0 |
Certification | CE,RoHS, REACH More >> |
Specification ID*OD | Id(MM) | OD(MM) | Wall thickness H(MM) | Wave spacing A(mm) | Wave width a(mm) | Packing (M/roll) |
4.5*7 | 4.6±0.3 | 7.0±0.3 | 0.27±0.05 | 2.1 | 1.45 | 400 |
5.2*7.2 | 5.2±0.3 | 7.4±0.3 | 0.27±0.05 | 2.1 | 1.45 | 400 |
5.5*8 | 5.5±0.3 | 8.0±0.3 | 0.27±0.05 | 2.1 | 1.45 | 400 |
6*9 | 6.0±0.3 | 9.0±0.3 | 0.27±0.05 | 2.5 | 1.75 | 200 |
7*10 | 7.0±0.3 | 10.0±0.3 | 0.27±0.05 | 2.7 | 1.95 | 200 |
7.5*10.5 | 7.7±0.3 | 10.7±0.3 | 0.27±0.05 | 2.7 | 1.8 | 200 |
8.5*11.5 | 8.5±0.3 | 11.7±0.3 | 0.30±0.05 | 2.7 | 1.95 | 200 |
9*12 | 9.2±0.3 | 12.0±0.3 | 0.30±0.05 | 2.7 | 1.95 | 200 |
10* 13 | 10.2±0.3 | 13.0±0.3 | 0.30±0.05 | 2.7 | 1.95 | 200 |
11*14 | 11.2±0.3 | 14.0±0.3 | 0.30±0.05 | 2.7 | 1.95 | 200 |
12*15.8 | 12.0±0.3 | 15.8±0.3 | 0.30±0.05 | 3.2 | 2.3 | 200 |
12.9*16 | 12.9±0.3 | 16.0±0.3 | 0.30±0.05 | 3.2 | 2.15 | 200 |
13*17 | 13.2±0.3 | 17.0±0.3 | 0.35±0.05 | 3.2 | 2.3 | 200 |
14.3*18.5 | 14.5±0.4 | 18.5±0.4 | 0.35±0.05 | 3.2 | 2.3 | 200 |
15.1*19.7 | 15.1±0.4 | 19.7±0.4 | 0.35±0.05 | 3.2 | 2.3 | 200 |
15.2*18.7 | 15.2±0.4 | 18.7±0.4 | 0.35±0.05 | 3.2 | 2.35 | 200 |
... | ... | ... | ... | ... | ... | ... |
91*106 | 91±1.0 | 106±1.0 | 0.7±0.15 | 8.5 | 5.2 | 10 |
Material: PP, PA6 nylon
Working Temperature: -40℃ ~ 135℃
Fire Rating:UL94-V0
Certification:CE,RoHS, REACH
Available size:
4.5mm ID to 91mm ID
4.5mm ID to 91mm ID
Application field:Automation, Automobile,
Wire Protection
Feature
Flame retardant
High mechanical strength
Flexible & Resistance bend
Abrasion, oil, acid, alkali, ultraviolet
Q1 : Why Choose us?
A: 1.We have more than 12 years of experience in this industry!2.Research and development capacity- We have one of technical teamwho can develop and design the product according to the requirementsof customers!
3.We have a professional sales team to provide excellent service for you!
Q2: what's the MoQ for your production?
A: We accept both large and small order, please contact us for details.
03 : Can I expect to get the sample? How long can I expect to get it?
A: Sure, Free samples can sent to you for test. About 4-6 days.
Shipment according to distance and courier company.
Q4 : Can you do the design for us?
A: Yes, We are a professional manufacturer who can design for you.
Q5 : What's your payment term?
A: 1.We have more than 12 years of experience in this industry!2.Research and development capacity- We have one of technical teamwho can develop and design the product according to the requirementsof customers!
3.We have a professional sales team to provide excellent service for you!
Q2: what's the MoQ for your production?
A: We accept both large and small order, please contact us for details.
03 : Can I expect to get the sample? How long can I expect to get it?
A: Sure, Free samples can sent to you for test. About 4-6 days.
Shipment according to distance and courier company.
Q4 : Can you do the design for us?
A: Yes, We are a professional manufacturer who can design for you.
Q5 : What's your payment term?
A: 30% T/T Deposit +Balance before Shipment.
Q6 :What's the list of certificates you hold?
A:IATF16949,Rohs,CE,EN45545 Test Report, ELV Test report
Q6 :What's the list of certificates you hold?
A:IATF16949,Rohs,CE,EN45545 Test Report, ELV Test report
