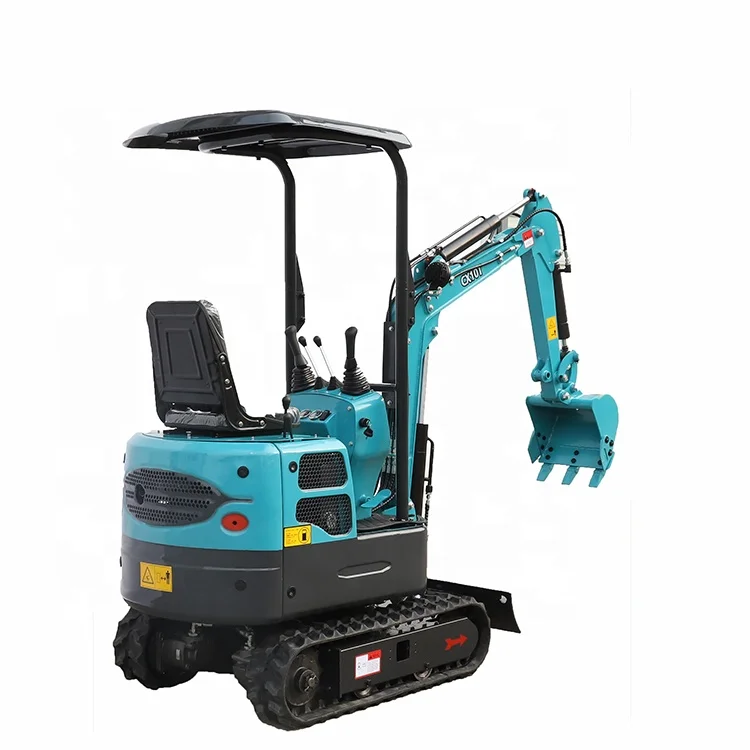

Chuangxin CX10T Mini Excavators 1 Ton Digger Small Crawler Bagger Excavadora CE/EPA Certificate Earth-moving
- Категория: Excavators >>>
- Поставщик: Ningbo,Yinzhou,Chuangxin,Construction,Machinery,Co.,Ltd.Ningbo,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 4284.25 $* | 4498.91 $* |
| Aug-20-2025 | 4248.3 $* | 4460.24 $* |
| Jul-20-2025 | 3564.24 $* | 3742.68 $* |
| Jun-20-2025 | 4176.21 $* | 4385.75 $* |
| May-20-2025 | 3636.71 $* | 3818.93 $* |
| Apr-20-2025 | 4104.58 $* | 4309.91 $* |
| Mar-20-2025 | 4068.77 $* | 4271.20 $* |
| Feb-20-2025 | 4032.24 $* | 4234.74 $* |
| Jan-20-2025 | 3996.78 $* | 4196.76 $* |
Характеристики
Model: | CX10T | |
Operating Weight (kg) | 1020 KGS | |
Bucket Capacity(CBM) | 0.03 | |
Width of Bucket (mm) | 380 | |
Length of Swing Arm (mm) | 1480 | |
Length of Bucket Arm(mm) | 793 | |
Oil capacity | ||
Fuel Tank (L) | 7.6 | |
Hydraulic Oil Tank (L) | 12 | |
Engine Oil Change (L) | 1.5 | |
Coolant Liquid (L) | No | |
Performance | ||
Rotation Speed (rpm) | 10 | |
Travel Speed (Km/h) | 2.6 | |
Ground Specific Pressure (Kpa) | 25 | |
Bucket Digging Force (kN) | 9.6 | |
Bucket Arm Digging Force (kN) | 8.5 | |
Engine | ||
Model of Engine | KOOP KD192F | |
Rated Powder (Kw/rpm) | 7.6/3000 | |
Type of Cooling | Air Cool | |
Fuel Consumption Rate (g/kw.h) | 275 | |
Working Area | ||
Maximum Digging Radius (mm) | 2890 | |
Maximum Digging Depth (mm) | 1550 | |
Maximum Digging Height (mm) | 2600 | |
Maximum Discharge Height (mm) | 1890 | |
Width of Bulldozer Plate × Height (mm) | 930*205 | |
To Lift or Push Deep (mm) | 135/255 | |
Arm Rotation Angle (°) | No | |
Main Size | ||
Total Length of Transport (mm) | 2750 | |
Total Width of Transport (mm) | 930 | |
Total Height of Transport (mm) | 2140 | |
Width of Bus (mm) | 840 | |
Counterweight Clearance Above Ground | 360 | |
Track Grounding Length (mm) | 900 | |
Total Length of Track (mm) | 1220 | |
Width of Track Plate (mm) | 180 | |
Total Width of Track (mm) | 930 | |
track (mm) | 897 | |
Minimum Ground Clearance (mm) | 110 | |
Minimum Turning Radius of the Front Working Device (mm) | 1350 | |
Tail Radius of Turn (mm) | 780 | |
