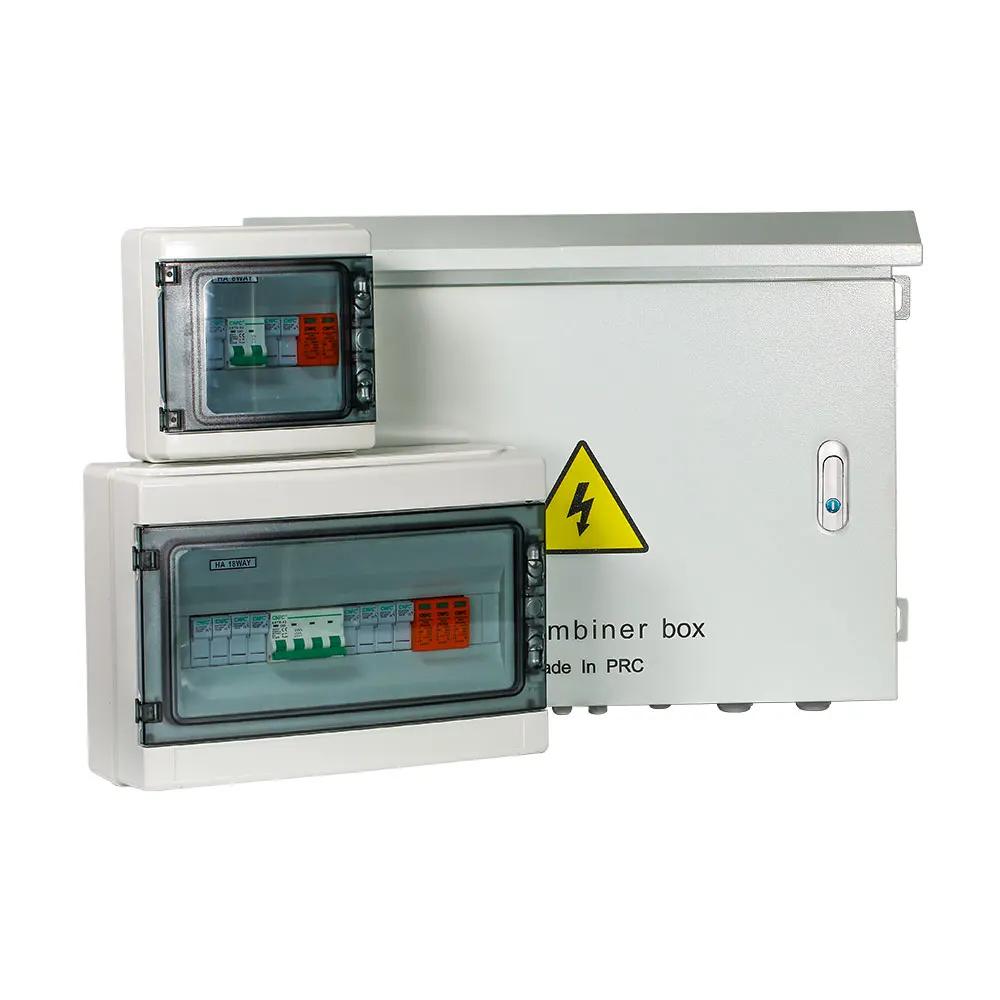

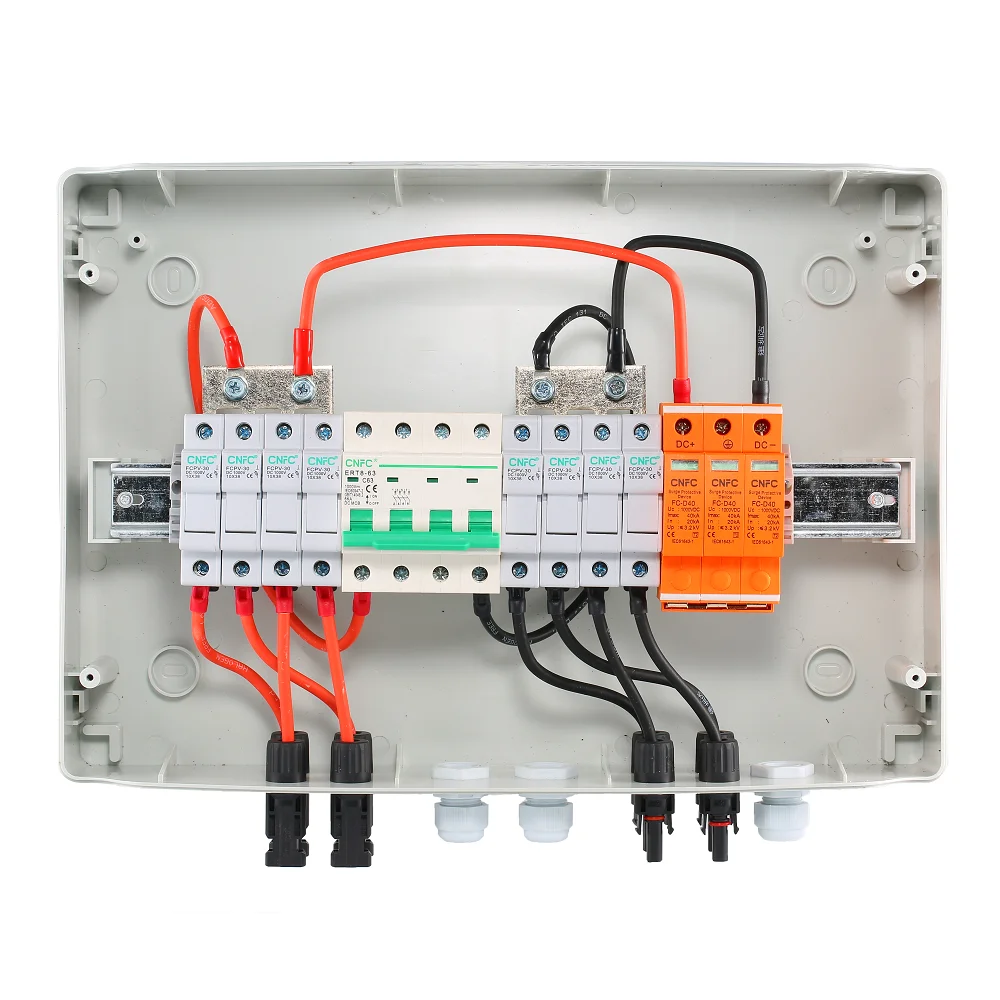

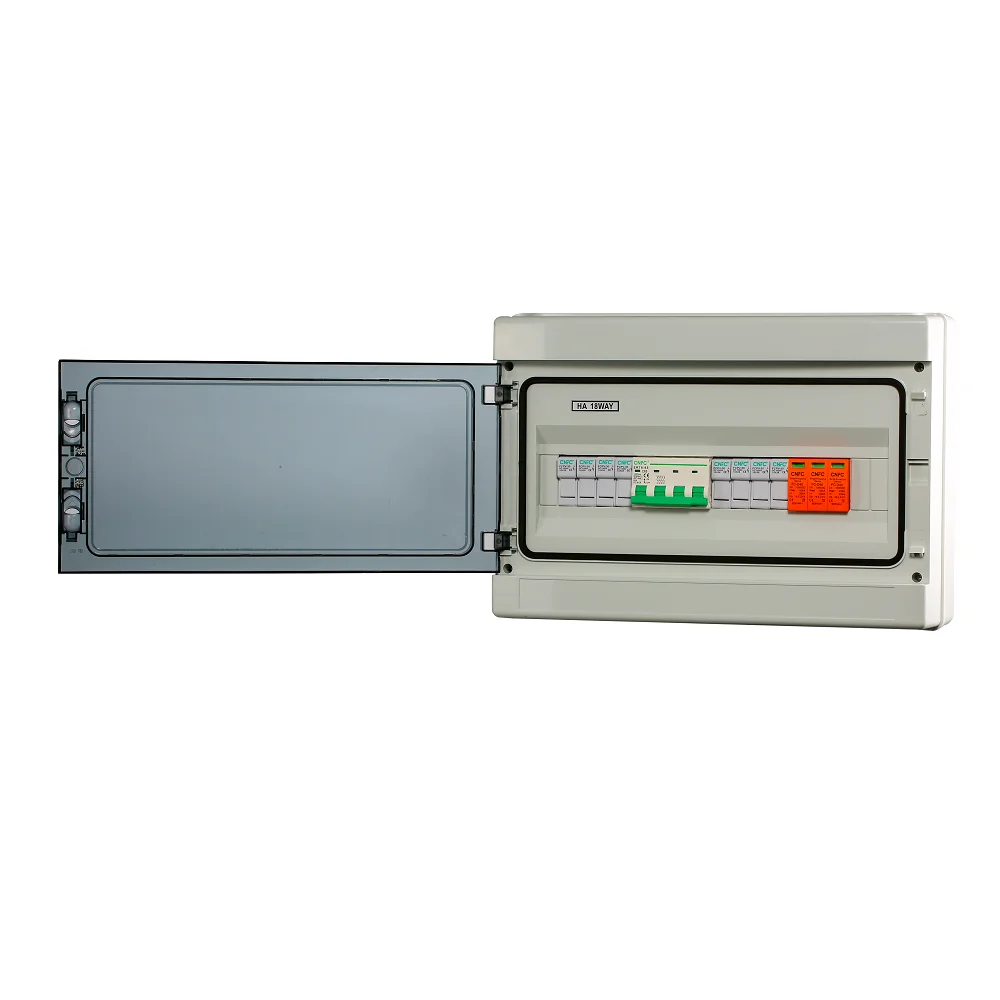

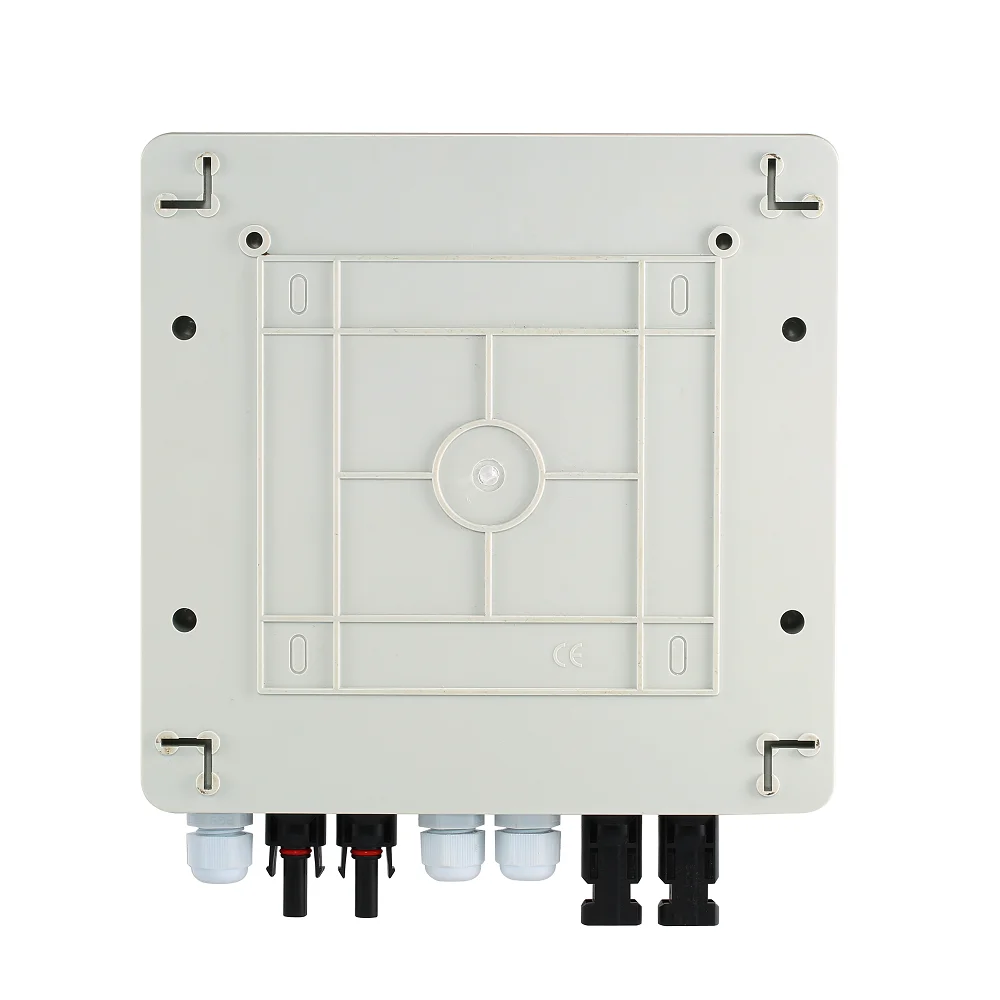

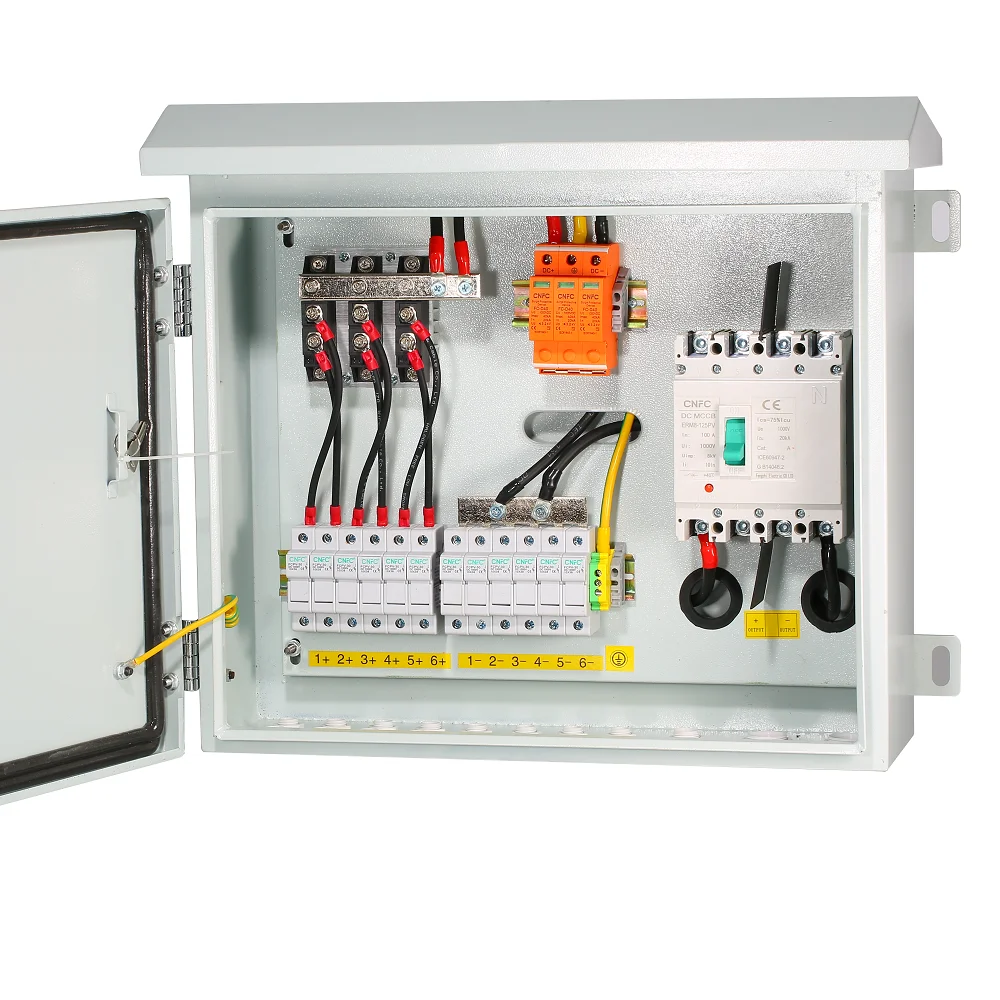

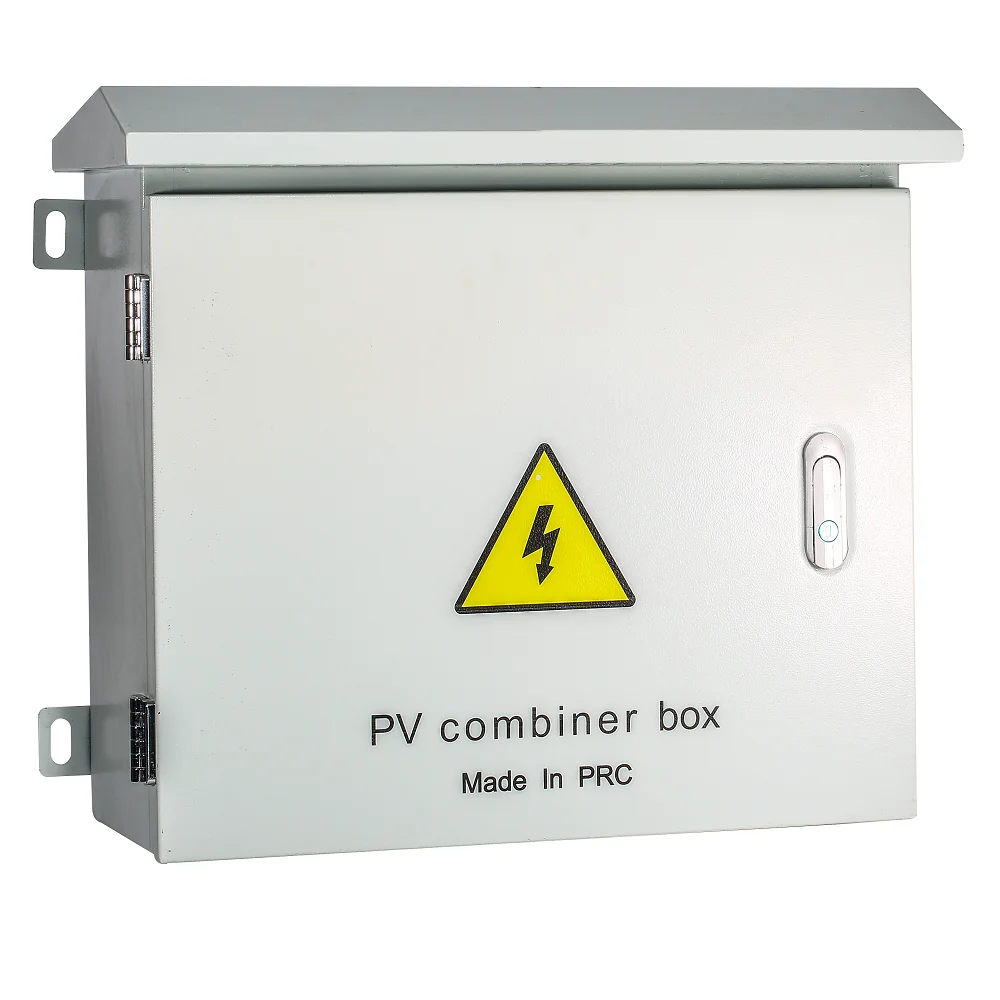

Солнечная система PV уличная солнечная энергия DC 1000 В 6 струн IP65


Поделиться:


Цена:40,00 $ - 50,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 48.73 $* 50.31 $*
Aug-17-2025 47.44 $* 49.90 $*
Jul-17-2025 40.58 $* 42.86 $*
Jun-17-2025 46.64 $* 48.8 $*
May-17-2025 40.98 $* 42.23 $*
Apr-17-2025 46.25 $* 48.61 $*
Mar-17-2025 45.93 $* 47.95 $*
Feb-17-2025 45.19 $* 47.36 $*
Jan-17-2025 44.89 $* 46.1 $*

Характеристики


Product Description






Specification




































































































Name



SHLX-PV4/1


System maximum dc voltage


500


1000


Maximum input current for each string


15A


Maximum input strings


4


Maximum output switch current


50A/63A


Number of inverter MPPT


1


Number of Output strings


1


Category of test


II grade protection


  Nominal discharge current


20ka


Maximum discharge current


40KA


Voltage protection level


2.8kv


3.8kv


Maximum continuous operating voltage Uc


630V


1050A


Poles


2P


3P


Structure characteristic


Plug-push module


Protection grade


IP65


Output switch


DC isolation switch(standard)/DC circuit


DC MC4/DC FUSE/DC Surge Protector


Standard


Monitoring module/Preventing diode


Optional


Installation method


Wall mounting type


Operating Temperature


-25℃--+55℃


Elevation of temperature


2km


Width*High*Depth


300*260*140





Application


.jpg





.jpg


.jpg


.jpg
