1-Hydraulic shisha charcoal cubic briquettes making press machine

Automatic charcoal briquette making machine can be used to compress the charcoal powder material into shisha tablet, it is now the urgently needed equipment in the world.

Our company with 30 years of hookah making machine research and design experience, adopts low cost high efficiency manufacturing rules, greatly benefited the Arab shisha charcoal equipment.

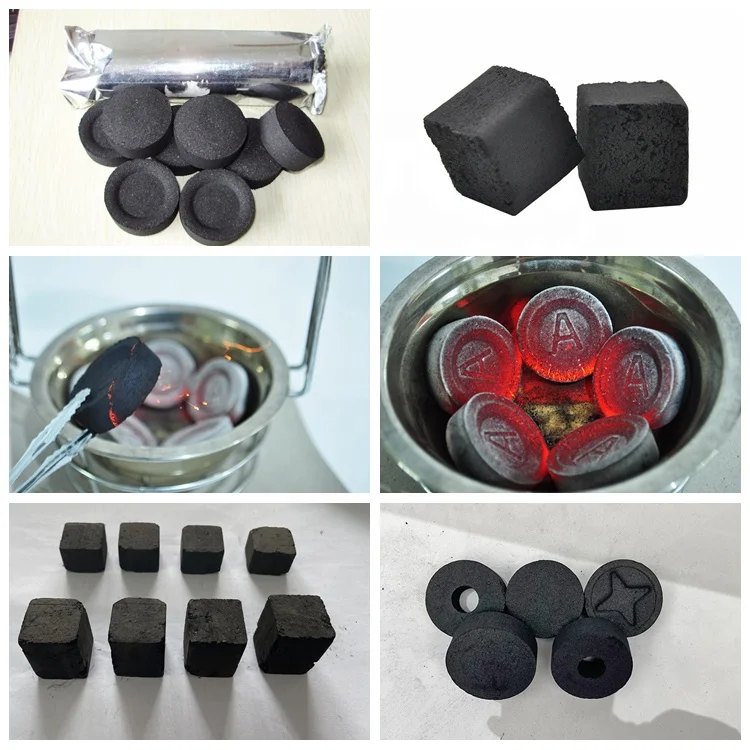

2-Mold And Prodcts for  Hydraulic shisha charcoal cubic briquettes making press machine
Mould shape: cubic, round tablets, cylinder, hexagonal, etc.
Mould size: 22*22m, 23*23mm, 25*25mm, 30mm, 33mm, 35mm, etc.

Mould material: professional mould steel material, stainless steel material, etc.

Shisha charcoal sample shape and size both can be customized according to customer requirements, for example special shape,special logo, etc.

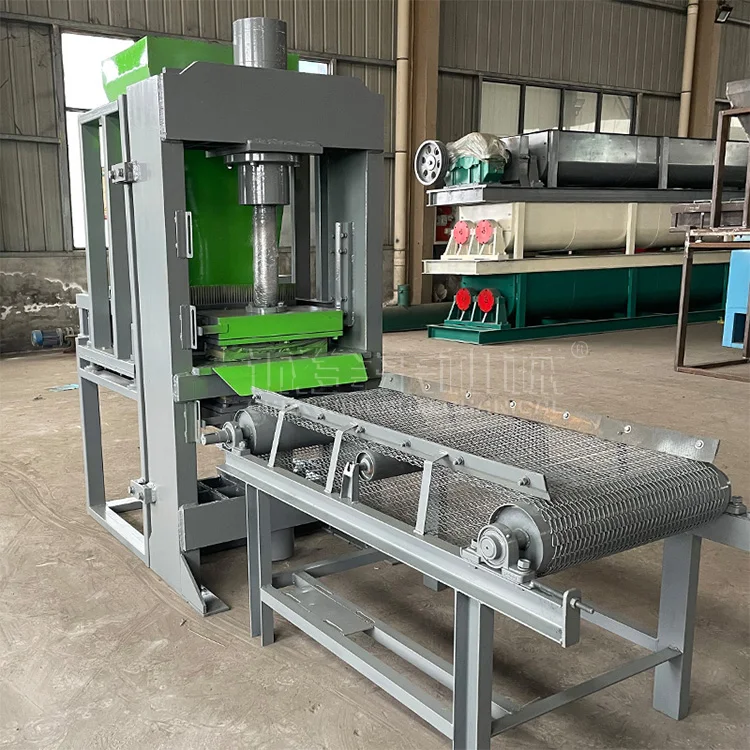

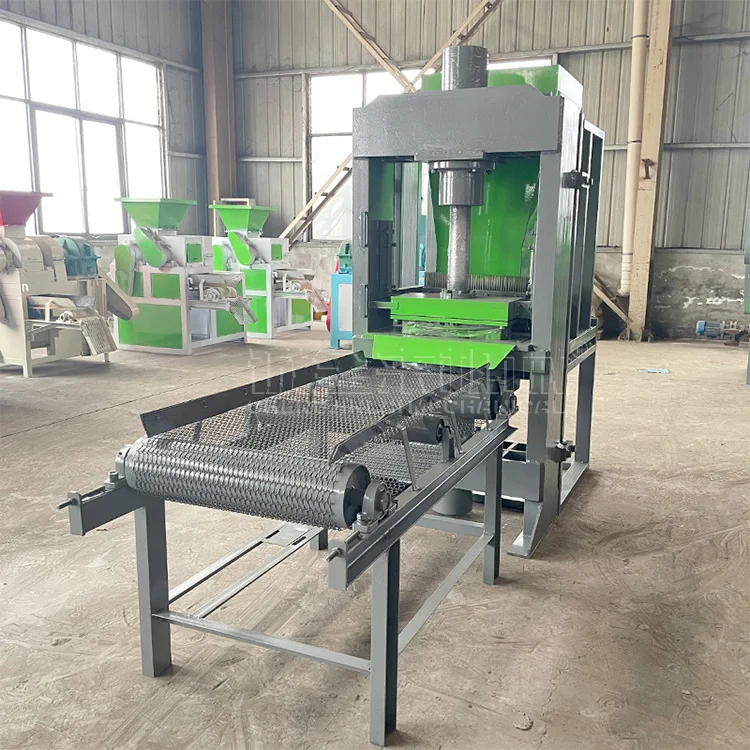

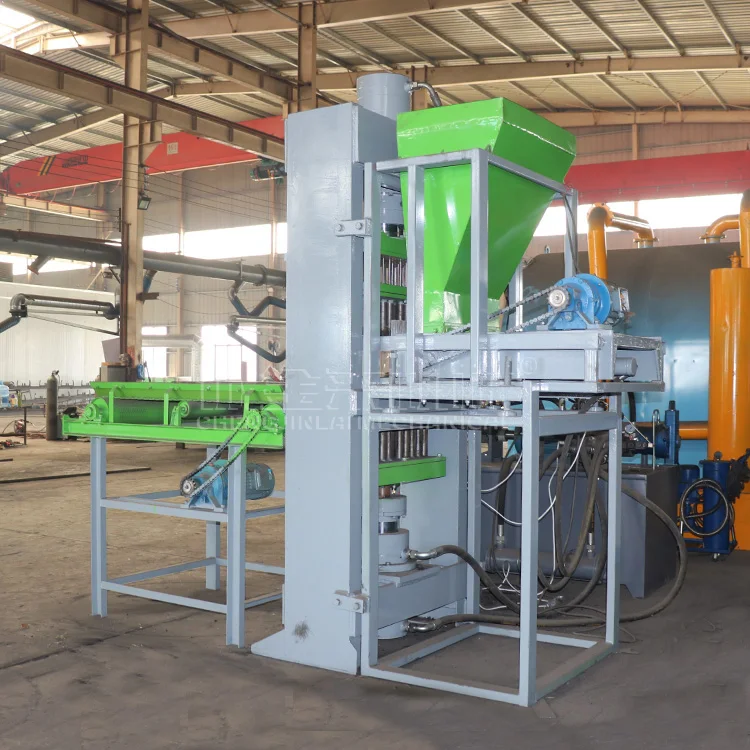

 3- Machine Display For Hydraulic shisha charcoal cubic briquettes making press machine

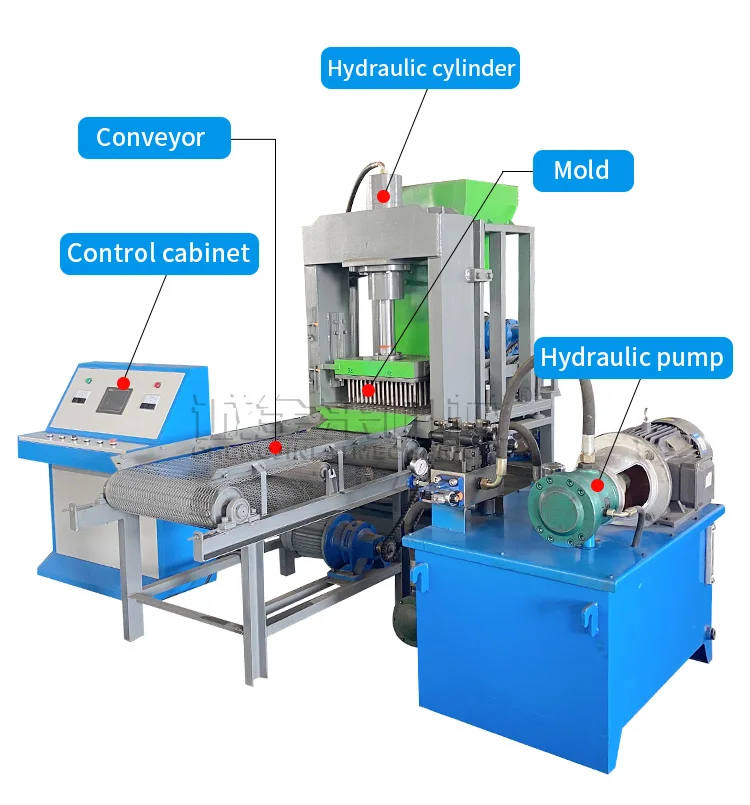

Hydraulic pump station

Owing to shisha charcoal briquette making machine use hydraulic type, so it have hydraulic pressure station. Pressure can reach 100-200 tons. And have pressure gage on the hydraulic station. Also there have pump outside, can ensure the safety, with cooling system.

PLC system

The PLC system enable hookah making machine work automatically or manually, the pressure and pressing times can also be adjusted.

Mould

Mould shape can be cubic, round, hexagonal, finger shape or customized. Also you can use this machine with different mould for different shape of briquette.

Hydraulic cylinder

This part is used to offer pressure, so that final briquette will have high density and very hardness.

 4-Main Parameter For Hydraulic shisha charcoal cubic briquettes making press machine

 5-Packaging and Shipping for Hydraulic shisha charcoal cubic briquettes making press machine

Packing

* All the shisha charcoal briquette machine will be wrapped up with plastic film first (including the motor).

* The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)

* The shisha charcoal machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.

Payment

30% down payment, balance payoff before delivery.

 6-Product Line for Hydraulic shisha charcoal cubic briquettes making press machine

About Hydraulic shisha charcoal cubic briquettes making press machine production line, we often design different project for customer, it is according to customer requirement, like various material, capacity, invest, we all can according to these conditions to design, now you can see this roughly production line, exact production line is according to your requirement.

1). Make your coconut shell become charcoal by carbonizing.
2). Then crush the coconut shell charcoal into powder less than 2mm.
3). Owing to charcoal powder have no stickness, so you need to add some binder into it and mix.
4). Use electric charcoal briquette making machine to press mixed charcoal into different shape and sizes.
5). The last but not least is drying, put final product dry by dryer, then finished.
