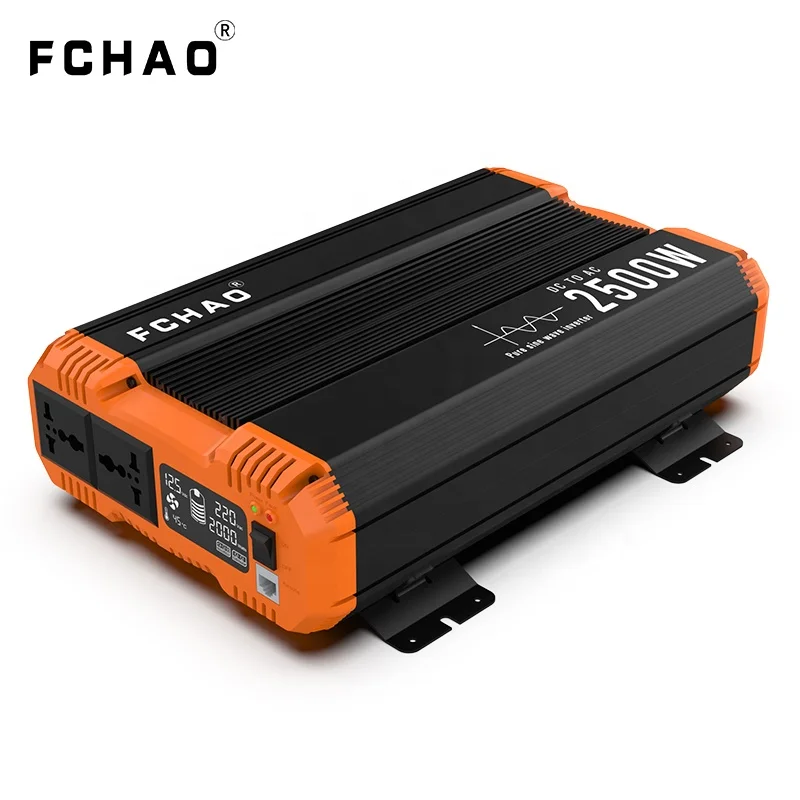

FCHAO 2500 Вт пиковая мощность 5 кВт инвертор 12 в 24 48 В до 220 230 солнечный с ЖК-дисплеем пульт дистанционного управления для


Поделиться:


Цена:150,71 $ - 158,64 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 179.71 $* 188.69 $*
Aug-15-2025 177.0 $* 186.74 $*
Jul-15-2025 149.87 $* 156.89 $*
Jun-15-2025 174.28 $* 183.57 $*
May-15-2025 152.39 $* 160.38 $*
Apr-15-2025 171.19 $* 180.54 $*
Mar-15-2025 170.48 $* 179.51 $*
Feb-15-2025 168.98 $* 176.20 $*
Jan-15-2025 167.5 $* 175.42 $*

Характеристики



Product Description




Specification


KSC-2500W
Output
Rated power(Wt)
2500W
Peak power(Wt)
5000W
AC Voltage (AC)
AC220V/230V/240V ±10%
Frequency(Hz)
50Hz/60Hz±1Hz
Wave Form
Pure sine wave(THD<3%)

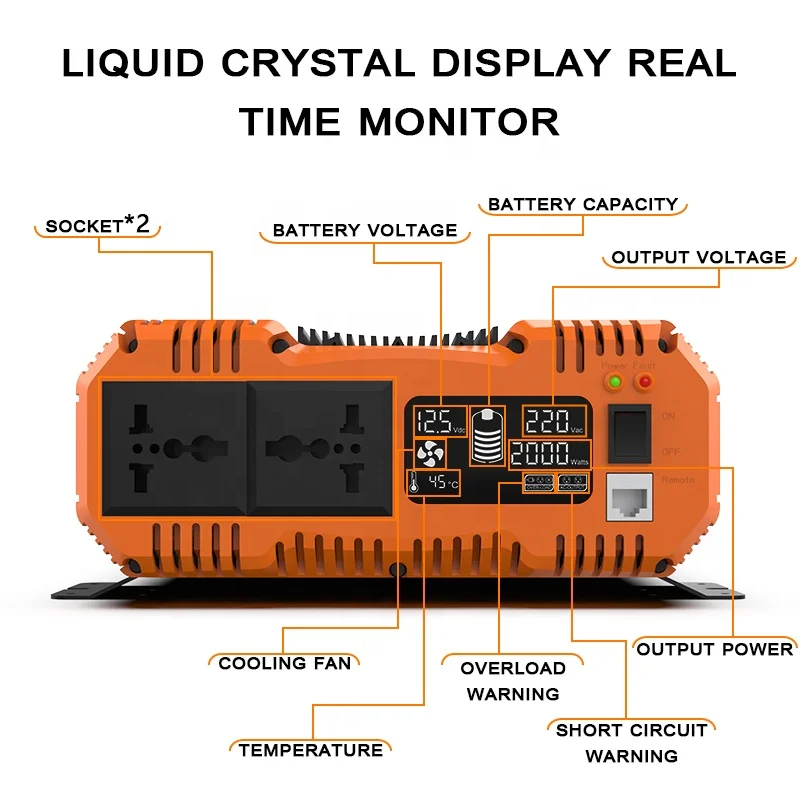

Panel LCD show
Isolated LCD digital color screen:Battery power % ratio,Battery voltag,AC voltage, AC power, Temperature
Input
Battery Voltage(V)
12V
24V
48V
Voltage Rrange(V)
DC10-15V
DC20-30V
DC40-60V
DC Current(I)
250A
125A
62.5A
No load Current Draw(W)
≤10W
Efficiency
88%~92%
Battery Type
Open&sealed lead-acid battery(Customized lithium battery parameter )
Battery Input Protection
Internal Fuse
40A*8
40A*4
40A*4
Low voltage alarm
Yes
Yes
Yes
Low voltage cutoff
10V±4%
20V±4%
40V±4%
Battery reverse polarity protection
By blowing the internal fuse

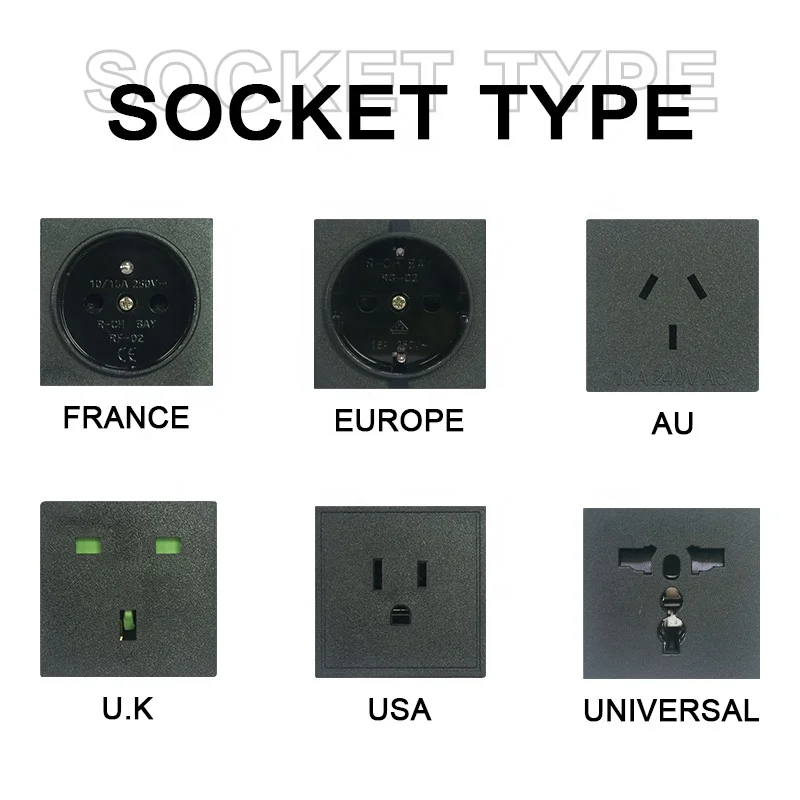

SOCKET TYPE
FRANCE
EUROPE
AU
U.K
USA
UNIVERSAL












Details Images




Output Protection
Over temperature protection
When the temperature is ≥ 85℃, the AC output will be turned off, and the alarm will
sound 5 (continuously)
Temperature ≤ 75℃ automatic recovery
Overload protection
Rated load > 110%~130%,alarm 15sec and turnoff, recovery by the reset switch
Rated load > 130%~150%,alarm 5sec and turnoff, recovery by the reset switch
Rated load > 150%,alarm 2sec and turnoff, recovery by the reset switch
Short circuit protection
Turn off within 2 seconds, recovery after resetting the switch
Environment
Working temperature
-25° +80°
Working Environment
-25° +45°
Working humidity
30%~90% RH,No condensation
Storage temperature
﹣20℃ ~ +70℃
Vibretion resistance
10~500HZ 2G 10min/cycle,X、Y、Z axis 60min respectively
Cooling method
Load power > 50%, FAN ON/ <35%, Fan Off. Temperature > 50±5℃, Fan On / < 45±5℃ Fan Off
Safety Electromagnetic Compatibility
Safety Specification
CE/CB
Pressure Resistance
Bat-PG:500VAC Bat-AC:1.5KVAC AC-FG:1.5KVAC
Insulation Resistance
Bat-PG,AC -FG:100M Ohms/500VDC/25℃/70%RH


Packing & Delivery




Package

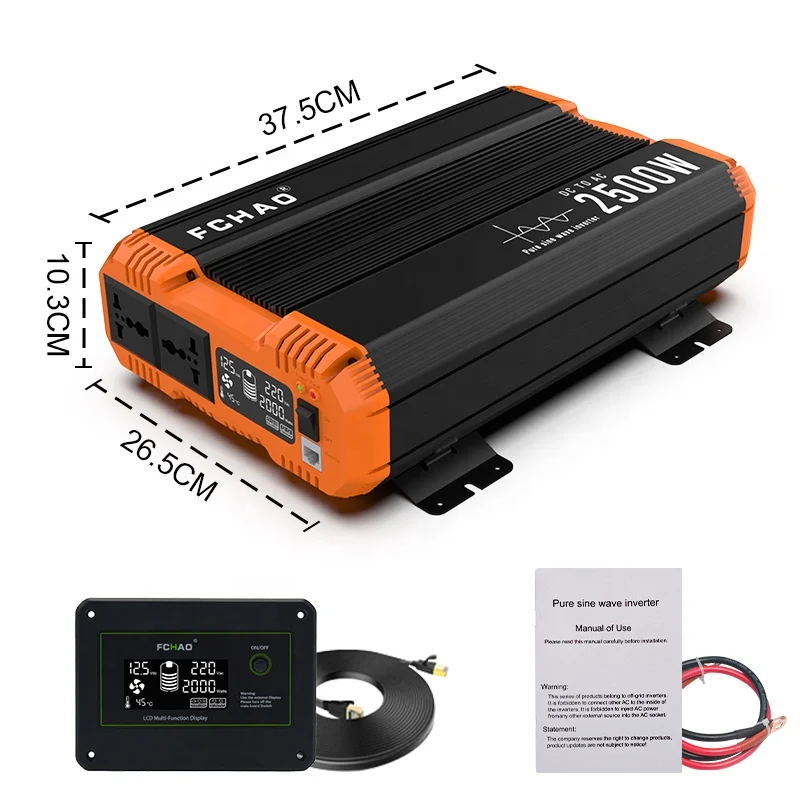

Product Size
37.5*26.5*10.3CM
Product N.W.
4.38kg
Inner Box Size
42.5*32.5*18.3CM
Outer Box Size
44*34*39.6CM
Piece/Carton
2Piece/Carton
Gross Weight
11.5kg


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Other
1. Efficiency test: (12.8V/25.6V/51.2V) DC input voltage, 60% power measured.
2. All parameters not specified above are measured at rated load, 25℃ ambient Temperature
3. Output derating curve refer Figure 1(Base on environment temperature)
4. Output derating curve refer Figure 2(Base on battery voltage and load power)
