Automatic Balloon Making Machine Latex Balloon Production Line



Product Description:

The natural latex balloon production line adopts continuous production method and direct immersion method. The latex film is uniform and the color is bright. Various specifications and special-shaped balls can be produced online at the same time, and 8 kinds of color balloons can be produced at the same time. Screen printing; the length of the production line is 30 meters, 46 meters, 60 meters, 80 meters and other specifications, automatic demoulding, high output, no sag. The production line can also be designed and installed according to the customer's production site.



Parameter:

model	YG-QQ60	YG-QQ70	YG-QQ80	YG-QQ100	YG-QQ120
Machine size(mm)	60000*1400*4500	70000*1400*4500	80000*1400*4500	100000*1400*4500	120000*1400*4500
Weight(T)	60	70	80	100	120
Workshop (mm)	80000*4500*5700	90000*4500*5700	100000*4500*5700	120000*4500*5700	120000*4500*5700
Capacity(24h)	Dry Balloon 1T	Dry Balloon 1.5T	Dry Balloon 2T	Dry Balloon 2.5T	Dry Balloon 3T
Workers	5	5	6	7	7
Power(kw)	65	70	75	90	100
Water(ton)	25	30	40	50	60
natural Gas consumption(m³)	700	1000	1400	1600	1800
Usage of Latex (T)	1.7	2.5	3.4	4.1	5
Chain length(m)	240	280	320	400	480



 Automatic Ballon Production Line

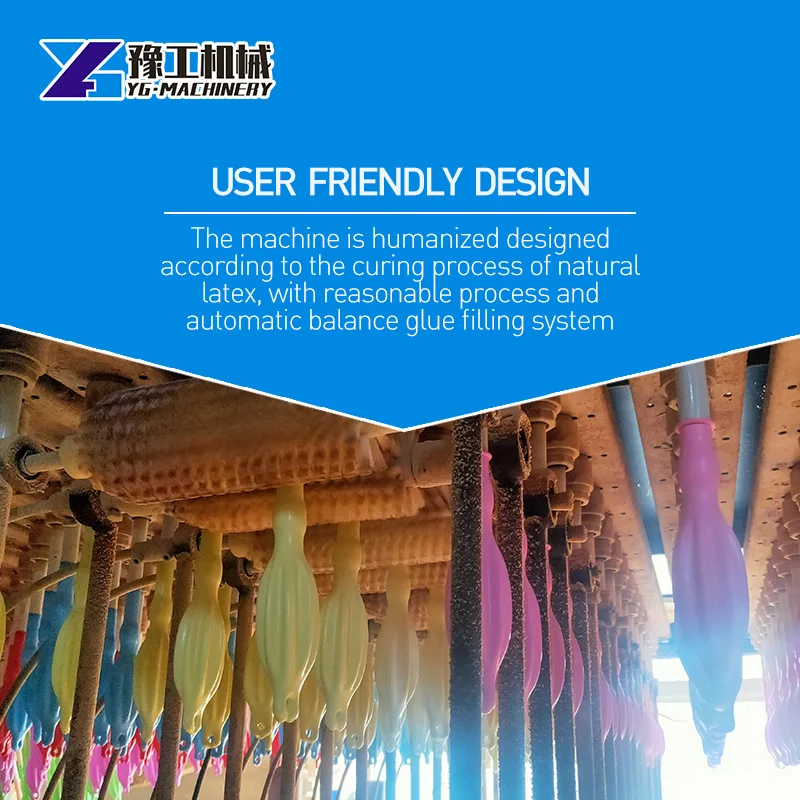

1. The equipment is designed according to the chemical performance of raw materials and the requirements of balloon forming process, with compact process and reasonable structure.

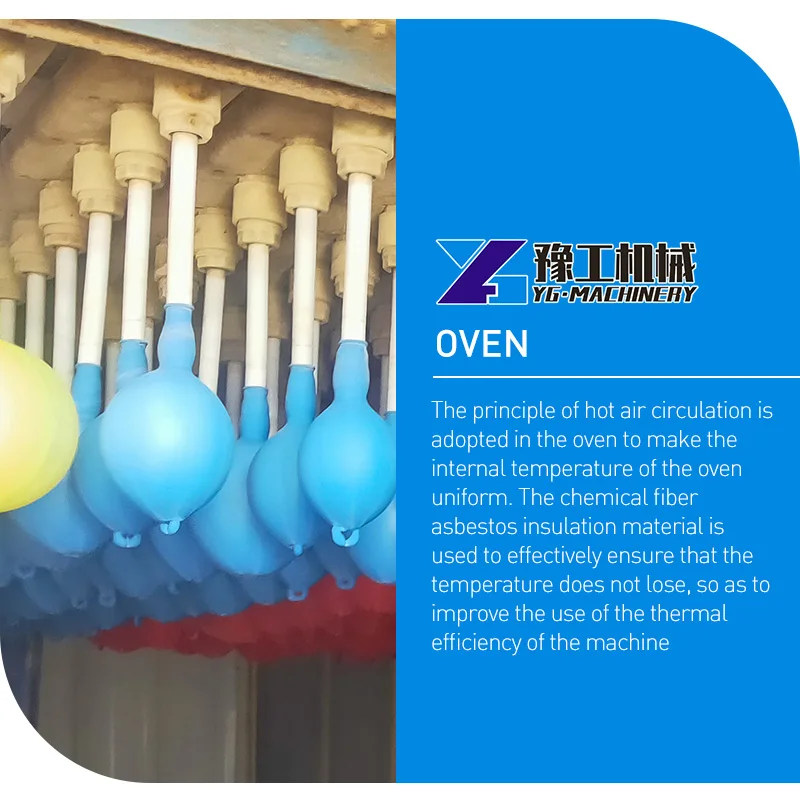

2. The drying box adopts the tunnel drying method, the principle of hot air rising, and the recycling of hot air circulating stirring, so that the machine can get the best effect under the minimum power.
3. The machine makes great use of the effective heating space in the design process, adopts the hot air circulation principle and intelligent PID temperature control system, and the temperature control is accurate, enabling the machine to achieve the best energy saving effect and reduce the cost expenditure;
4. High output, unique design of live joint, simple operation of changing mould, and faster circulation;
5. The automatic vibrating droplet and homogenization system make the finished balloon better in quality.
6. Adopt special high-temperature resistant chain and co-extrusion method to speed up production and increase output.



 Ballon Making Machine

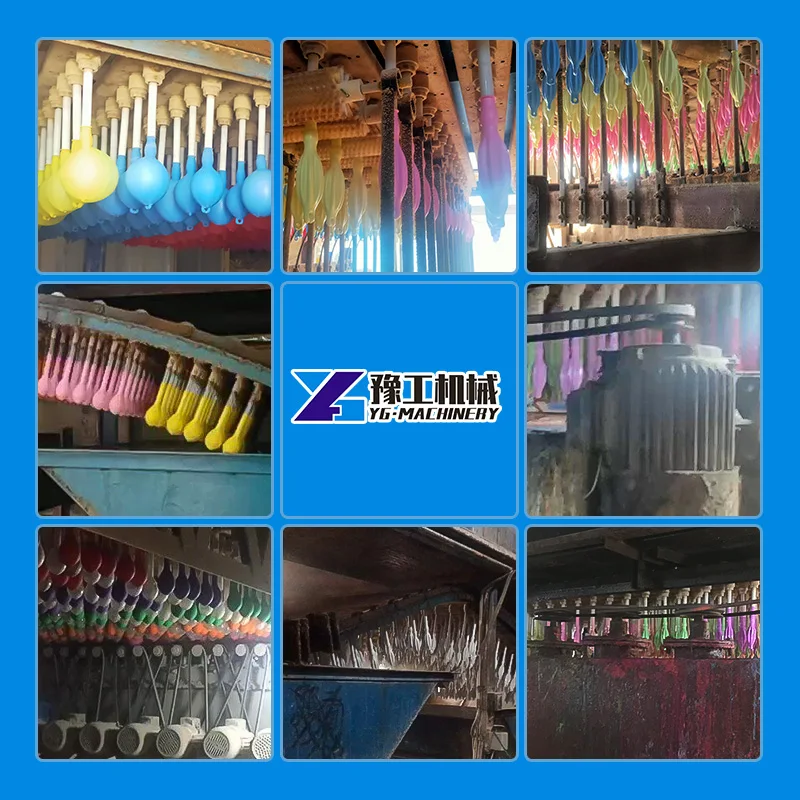

The craftworrk flow of Latex dipping balloon manufacturing machine uses the coagulant dipping method.The main craftwork flow is:-Milling,-Vulcanization,-Stripping Off ,-Acid Wash ,-Brush Wash ,-Hot Water Wash,-Dipping Coagulant, -Dipping Latex, -Drying ,-Beading ,-Drying, -Add Slurry.The system realized communication controlled by humanity-machine interface. They raise the digitized level of the system having it steady. Industry level modularization design, simple humanity-machine dialog and main speed and every section temperature can be shown in the screen. Each oven's temperature can be controlled automatically by the temperature controller.
