2022 трубчатый ребристый адиабатический охладитель серии D1 с воздушным охлаждением гликоля-воды/погружная система
- Категория: Other Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Shanghai,Venttech,Refrigeration,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 3570.21 $* | 3749.46 $* |
| Aug-18-2025 | 3540.28 $* | 3717.59 $* |
| Jul-18-2025 | 2970.14 $* | 3119.93 $* |
| Jun-18-2025 | 3480.27 $* | 3654.45 $* |
| May-18-2025 | 3030.25 $* | 3182.21 $* |
| Apr-18-2025 | 3420.62 $* | 3591.15 $* |
| Mar-18-2025 | 3390.15 $* | 3560.37 $* |
| Feb-18-2025 | 3360.23 $* | 3528.26 $* |
| Jan-18-2025 | 3330.45 $* | 3497.25 $* |
Характеристики
Product Description

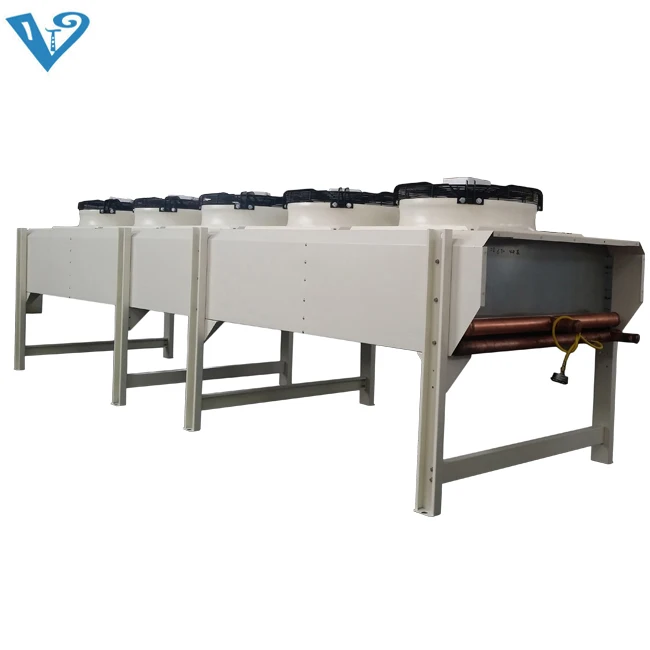

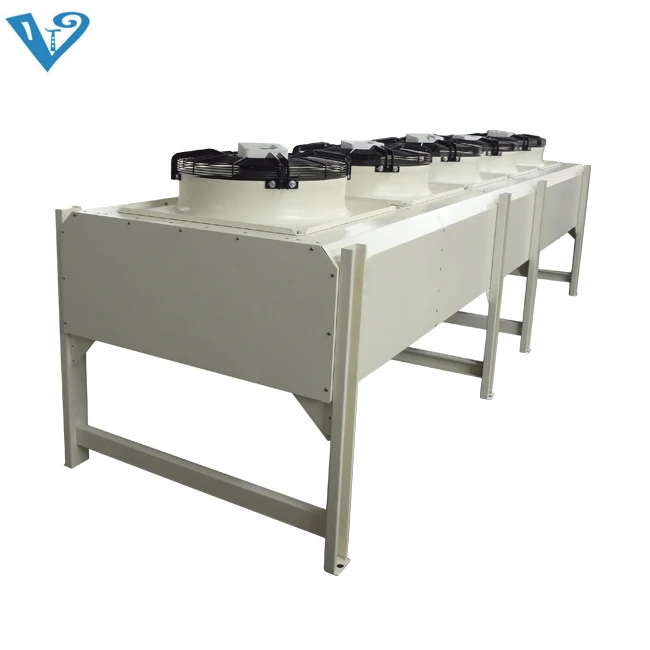

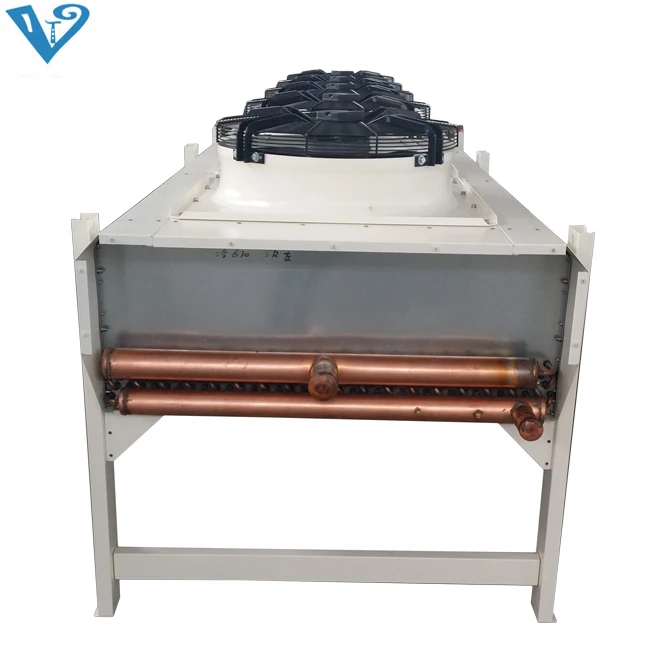

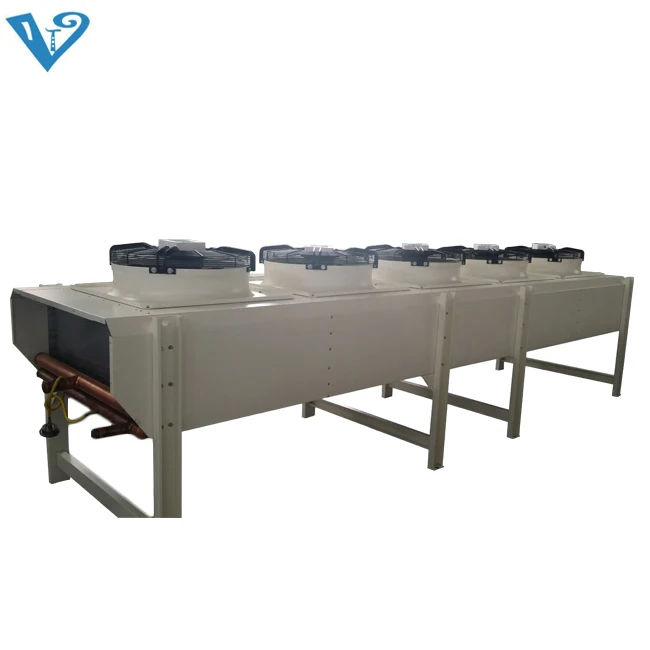

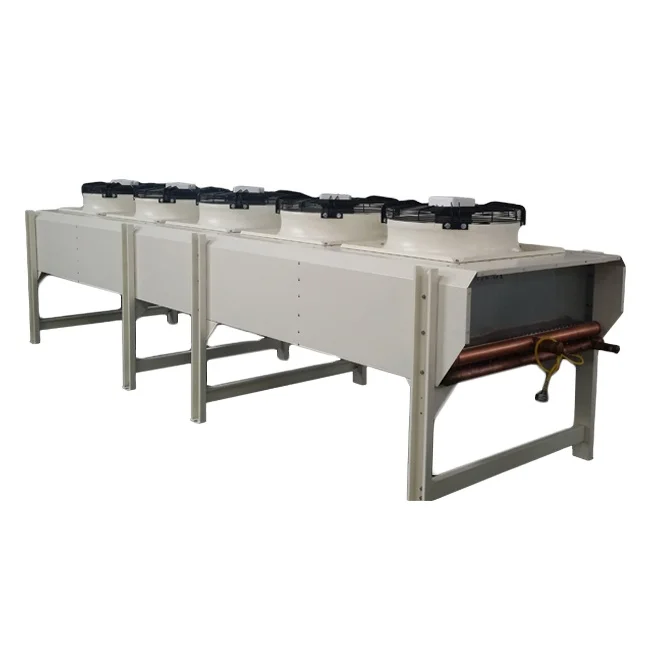

Dry Air Cooler
Venttech 4kW 4MW air dry cooler condenser for immersion cooling system
• Unique floating coil design avoids leakage caused by thermal expansion and contraction.• Staggered fin pattern design and corrugated fin enhance air flow turbulence
• Inner-grooved copper tube increase heat transfer area and enhance heat transfer
• Optimized flow pass design ensure fully heat exchange with refrigerant
• Equipped with 2nd generation owl-wing fan motor as standard. It features with low noise level, large volume flow and low energy consumption. Ready for dual speed connection.
• Outdoor type powder coated casing made of galvanized sheet metal and stainless steel bolts provide a high resistance to corrosion.
• Optional features:
• EC variable speed fan motor, to save great energy
• ZAplus/AxiTop for greater volume flow and extreme silence
• Adiabatic system significantly reduce energy consumption in summer
• Epoxy coated or hydrophilic aluminum fin suitable for coastal or high corrosion area
• Fluid dry cooler
• Clean stainless steel tube and aluminum fin coil for cooling deionized water.
Size Information
D1 system Model | D1-166 -4x630 | D1-211-6x630 | D1-247-6x630 | D1-286-8x630 | D1-334-8x630 | |
Heat capacity | kW | 165.92 | 211.36 | 247.30 | 286.15 | 334.49 |
Water flow rate | m3/h | 29 | 37 | 43 | 50 | 58 |
Air flow | m3/h | 67455 | 109723 | 101185 | 146293 | 134908 |
Fan motor | W | 11000 | 16500 | 16500 | 22000 | 22000 |
Sound pressure | dB(A) at 10meter | 64 | 66 | 66 | 67 | 68 |
Dimensions | L mm | 2930 | 4230 | 4230 | 5530 | 5530 |
W mm | 2100 | 2100 | 2100 | 2100 | 2100 | |
H mm | 1070 | 1070 | 1070 | 1070 | 1070 | |
A mm | - | - | - | - | - | |
B mm | 1340 | 1340 | 1340 | 1340 | 1340 | |
C mm | 1300 | 1300 | 1300 | 1300 | 1300 | |
D mm | 640 | 640 | 640 | 640 | 640 | |
Inlet | mm | 3" | 3" | 3" | DN100 | DN100 |
Outlet | mm | 3" | 3" | 3" | DN100 | DN100 |
Product weight | Kg | 658 | 689 | 760 | 1105 | 1270 |
Company Introduction
Venttech 2500kW V type Dry cooler for immersion cooling
Venttk is a professional supplier in China specializes in Cooling system of Fin-tube heat exchanger. We are mainly manufacturing condensers,evaporators, dry air cooler, condenser with fan, our factorie ISO certificated.We could do Copper,Stainless steel tube, Copper,Aluminum,stainless steel fin with Epoxy.
Our Dry cooler can be widely used in Air conditioners, Chiller system,Data room precision AC system,Diesel engines，Solar heat recovery system ect.
Our Fin-tube heat exchanger can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area.
Packing&Shipping
