Оригинальный сканер штрих-кода Honeywell 7800 серии проводки подстилающего слоя (2-сторонняя) Q7800A1005
- Категория: Boiler Parts >>>
- Поставщик: Shenzhen,Jate,Burners,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 45.84 $* | 47.85 $* |
| Aug-16-2025 | 45.48 $* | 47.50 $* |
| Jul-16-2025 | 38.81 $* | 40.90 $* |
| Jun-16-2025 | 44.17 $* | 46.23 $* |
| May-16-2025 | 38.68 $* | 40.75 $* |
| Apr-16-2025 | 43.9 $* | 45.85 $* |
| Mar-16-2025 | 43.6 $* | 45.58 $* |
| Feb-16-2025 | 43.60 $* | 45.24 $* |
| Jan-16-2025 | 42.85 $* | 44.9 $* |
Характеристики

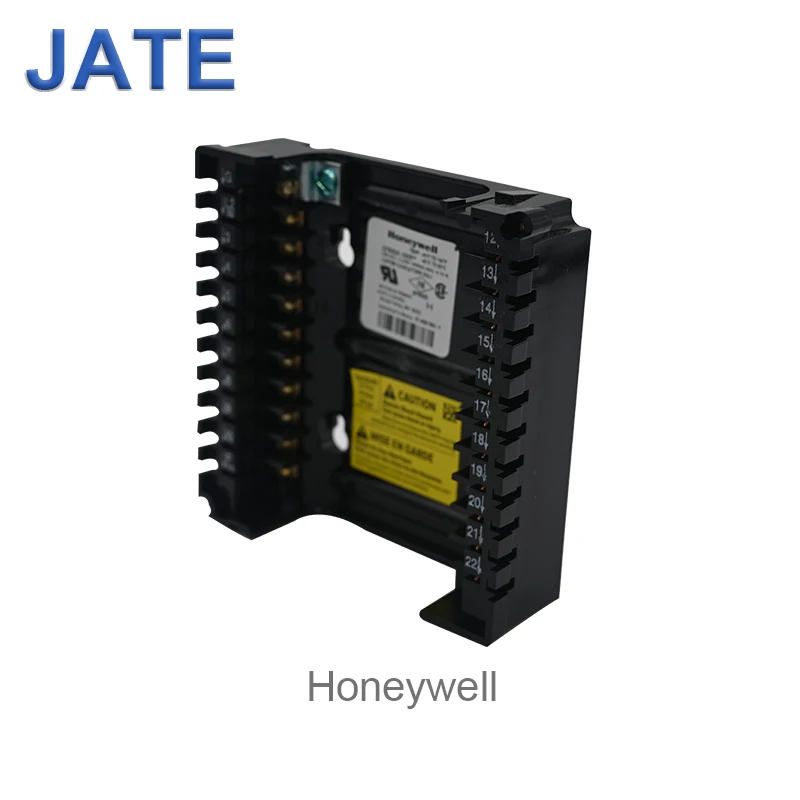

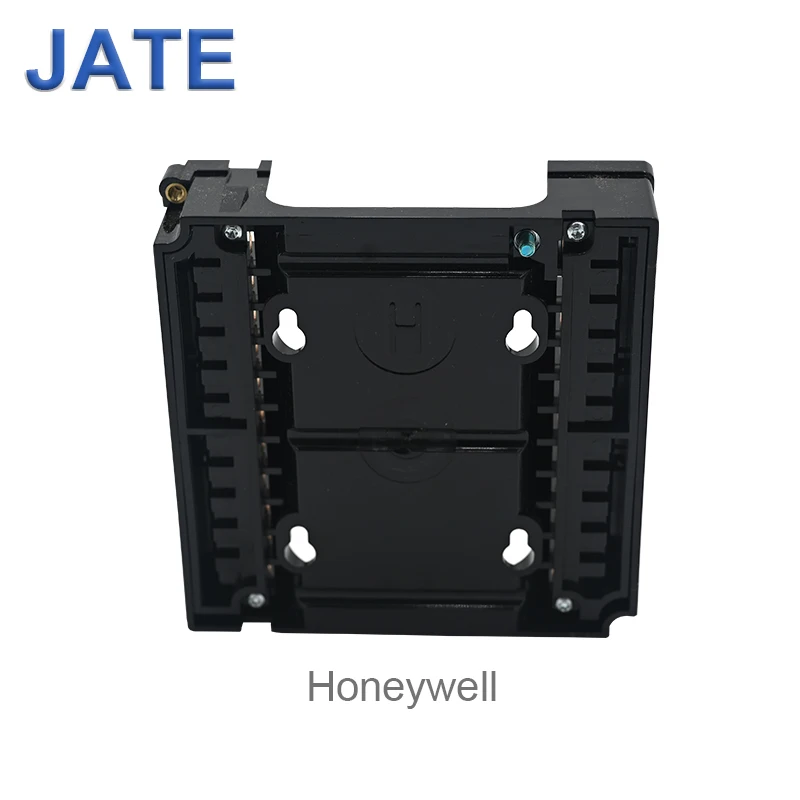

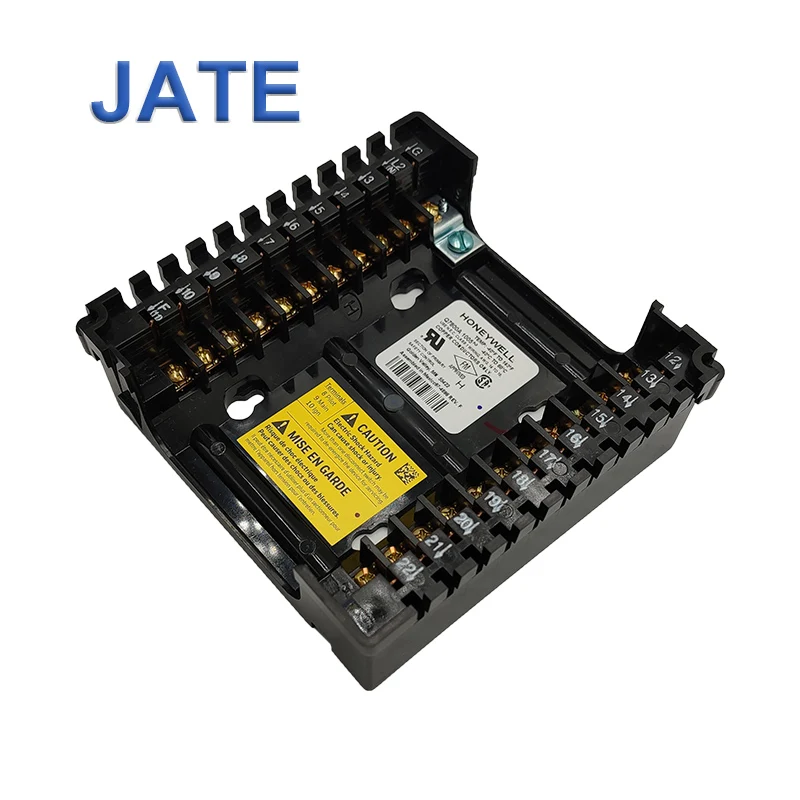

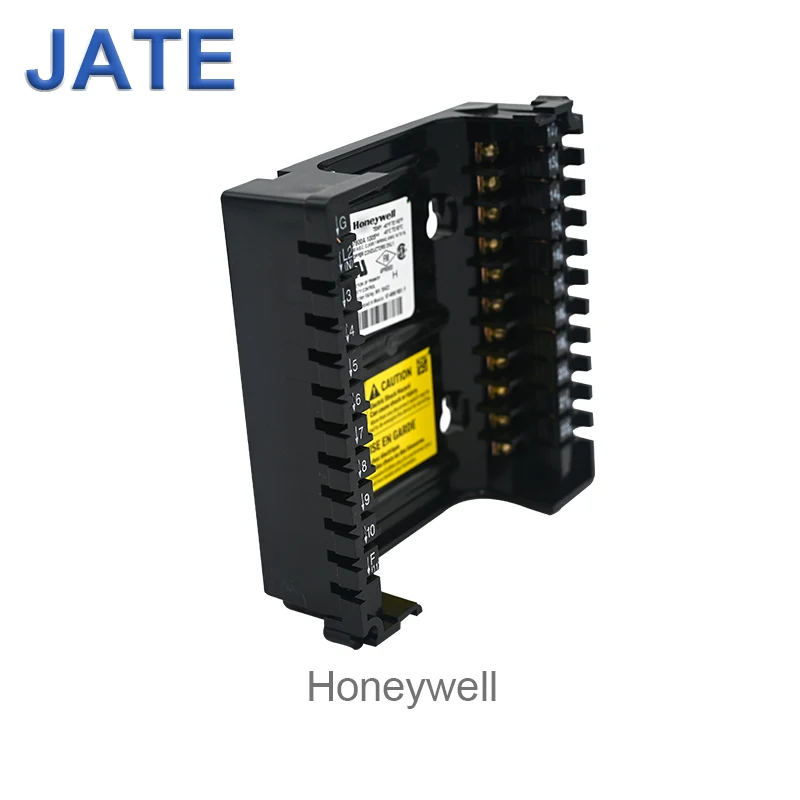

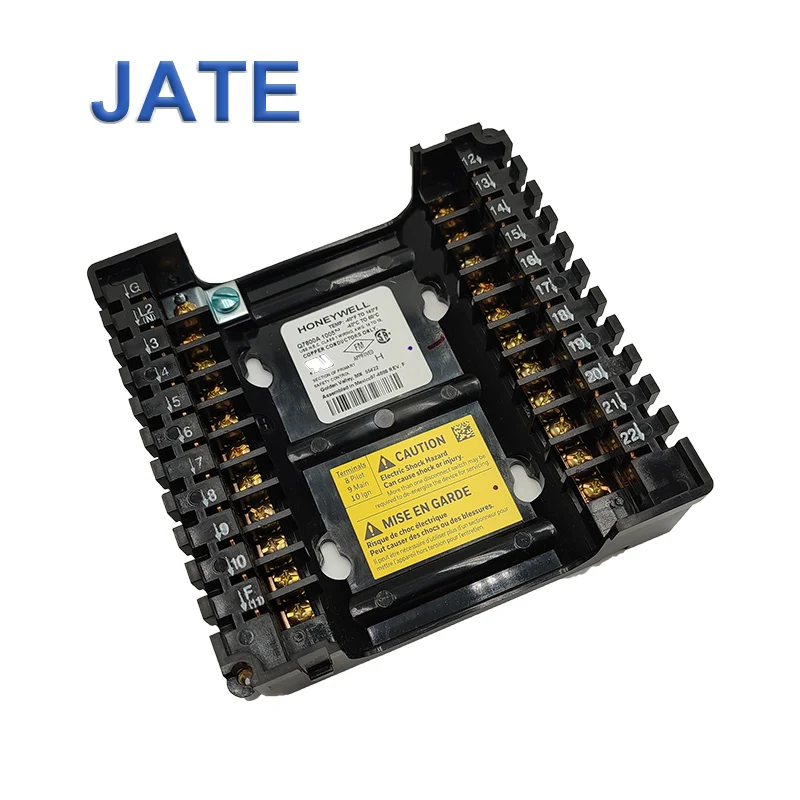

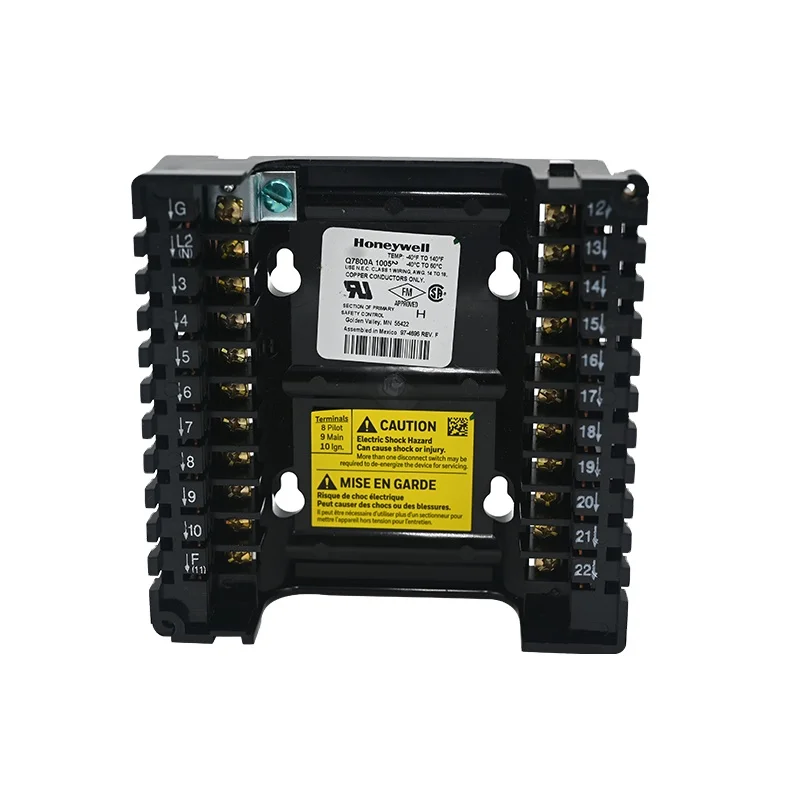

Original Honeywell 7800 Series Wiring Subbase (2-sided) Q7800A1005 Plastic Universal Subbase
PRODUCT SPECIFICATIONS
Model | Q7800A1005 |
Brand | Honeywell |
Name | Controller Wiring Subbase |
Weight | Less 1kg |
Adapter burner | gas burner |
Usage | gas burner accessories |
Application:
The Q7800A,B is the universal wiring sub-base for the 7800 series relay module and expansion alarm (S7830A). The universal wiring sub-base provides terminals for field wiring. Blade terminals are on the 7800 series relay module or S7830A engages the Q7800 with bifurcated contacts for electrical connection. The Q7800A1005 (double-sided) sub-base can be used for panel mount applications. Q7800B1003 and Q7800B1011 (4-sided) sub-bases can be used for burner or wall mount applications Knockouts are provided at the back, top and bottom of the duct connection
Features:
* Quick-mount wiring subbase for all 7800 SERIES
Relay Modules and S7830 Expanded Annunciator.
* Allows wiring of control system before installation of
relay module.
* Can be panel mounted (Q7800A) or burner or wall
mounted (Q7800B).
* Access slots provided for electrical measurements.
* NEMA 1 enclosure.
* Electrical access slot covers provided with Q7800B;
available option for Q7800A.
Relay Modules and S7830 Expanded Annunciator.
* Allows wiring of control system before installation of
relay module.
* Can be panel mounted (Q7800A) or burner or wall
mounted (Q7800B).
* Access slots provided for electrical measurements.
* NEMA 1 enclosure.
* Electrical access slot covers provided with Q7800B;
available option for Q7800A.
Flame Detection System:
SPECIFICATIONS
Weight:
Q7800A: 7 ounces.
Q7800B: 1 pound, 3 ounces.
Dimensions:
See Fig. 1, 2 and 3.
Enclosure:
NEMA 1.
Weight:
Q7800A: 7 ounces.
Q7800B: 1 pound, 3 ounces.
Dimensions:
See Fig. 1, 2 and 3.
Enclosure:
NEMA 1.
Approval Bodies:
Underwriter Laboratories Inc. Component Recognized: File
1. MP268, Guide no. MCCZ2 (Q7800A),Listed: File no.
MP268, Guide no. MCCZ (Q7800B).
Canadian Standards Association Certified: LR95329-3.
To meet EN60730 approval, the Q7800 subbase must be
mounted in a secured panel which meets IP40 class of
protection.
Accessories:
Electrical Access Slot Covers, part no. 221779 (Q7800B).
Underwriter Laboratories Inc. Component Recognized: File
1. MP268, Guide no. MCCZ2 (Q7800A),Listed: File no.
MP268, Guide no. MCCZ (Q7800B).
Canadian Standards Association Certified: LR95329-3.
To meet EN60730 approval, the Q7800 subbase must be
mounted in a secured panel which meets IP40 class of
protection.
Accessories:
Electrical Access Slot Covers, part no. 221779 (Q7800B).
Original Honeywell 7800 Series Wiring Subbase (2-sided) Q7800A1005 Plastic Universal Subbase
7800 SERIES Q7800A,B 22-TERMINAL UNIVERSAL WIRING SUBBASE
INSTALLATION
When Installing this Product…
1. Read these instructions carefully. Failure to follow them
could damage the product or cause a hazardous
condition.
2. Check the ratings given in the instructions and on the
product to make sure the product is suitable for your
application.
3. Installer must be a trained, experienced, Flame
Safeguard service technician.
4. Disconnect the power supply before beginning
installation to prevent electrical shock and equipment
damage. More than one disconnect may be involved.
5. All wiring must comply with applicable local electrical
codes, ordinances, and regulations.
6. All wiring must be NEC Class 1 (Line Voltage).
7. After installation is complete, check out product
operation as provided in these instructions.
1. Read these instructions carefully. Failure to follow them
could damage the product or cause a hazardous
condition.
2. Check the ratings given in the instructions and on the
product to make sure the product is suitable for your
application.
3. Installer must be a trained, experienced, Flame
Safeguard service technician.
4. Disconnect the power supply before beginning
installation to prevent electrical shock and equipment
damage. More than one disconnect may be involved.
5. All wiring must comply with applicable local electrical
codes, ordinances, and regulations.
6. All wiring must be NEC Class 1 (Line Voltage).
7. After installation is complete, check out product
operation as provided in these instructions.
Q7800A1005
Q7800A1005
Q7800A1005
