OEM 4 порта IEEE802.3af PoE удлинитель для IP-камеры увеличить расстояние передачи 120 м с 10/100 портами LAN сетевой
- Категория: Network Switches >>>
- Поставщик: Aost,Electronic,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 6.66 $* | 6.8 $* |
| Jul-17-2025 | 5.30 $* | 5.20 $* |
| Jun-17-2025 | 6.67 $* | 6.97 $* |
| May-17-2025 | 6.23 $* | 6.57 $* |
| Apr-17-2025 | 5.13 $* | 5.34 $* |
| Mar-17-2025 | 6.53 $* | 6.13 $* |
| Feb-17-2025 | 6.79 $* | 6.97 $* |
| Jan-17-2025 | 6.78 $* | 6.17 $* |
Характеристики
Product Description
New arrival IEEE802.3af single channel pro PoE Extender STT-E4-POE
Product overview:
1-Port PoE extender has 2 10/100M LAN ports, among them, one for power input , the other for power output.
Comply with 10/100 BASE-TX, IEEE802.3af (PoE). Power input for single port is 13W. Power output for single port is 12.2W.
PoE Extenders can increase the transmission distance for Ethernet data and PoE power up to 120m via Cat5 UTP cable.
It offers you great flexibility to extend the distance of PoE.
Features
* Comply with IEEE 802.3af Power over Ethernet.
* 10/100m Supported.
* Extend the range of PoE an additional 120 meters.
* Automatically detects and protects PoE equipments from being damaged by incorrect installation.
* Plug and Play no configuration required.
* 1 port PoE extender can forward both ethernet and PoE power for 1 terminal equipment via Cat5 UtP cable.
Product name
| 1-port 10/100M poe extender | 4-port 10/100M poe extender |
|
Port description | POE input: 1RJ45 port POE output:1RJ45 port | POE input: 1RJ45 port POE output: 4RJ45 port
| |
Network Medium | Cat5 or better UTP cable (≤120m) | ||
Repeater mode | Store or forwarder | ||
Mac address Table | 2K | ||
Packet buffer Memory | 48K byte | ||
Switching Capicity | 400Mbps | 1.0Gbps | |
POE Standard | IEEE802.3af | IEEE802.3af (power-in) IEEE802.3af ( power-out) | |
Poe port power | Input power:13watts Output:12.2watts | Input power:25.5watts Output:24watts | |
LED display | POE working status,ethernet | ||
POE Power supply type | 1/2(+),1/6(-), Mode –A, end –span |
| |
Network protocol
| IEEE802.3i 10BASE-T IEEE802.3u 10BASE-TX IEEE802.3X flow control IEEE802.3af power over Ethernet IEEE802.3at power over Ethernet( for 4 port only) | ||
Regulation Compliance | FCC part 15B Rohs directive 2011/65/EU Low voltage directive 2014/35/EU Electromagnetic compability directive 2004/108/EU | ||
Working environment | Working temperature :0°C-40°C Working humidity:10%-90% , no condesation | ||
Storage Environment | Storega temperature :-30°C-70°C Storage humidity:5% -90%, no condensation | ||

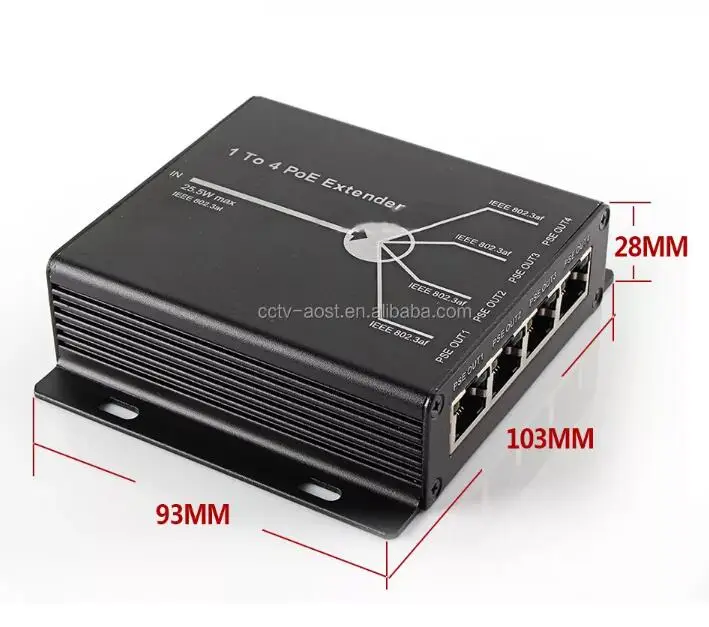

Dimension | 75*37*26.5mm | 105*93*28.5mm | |
