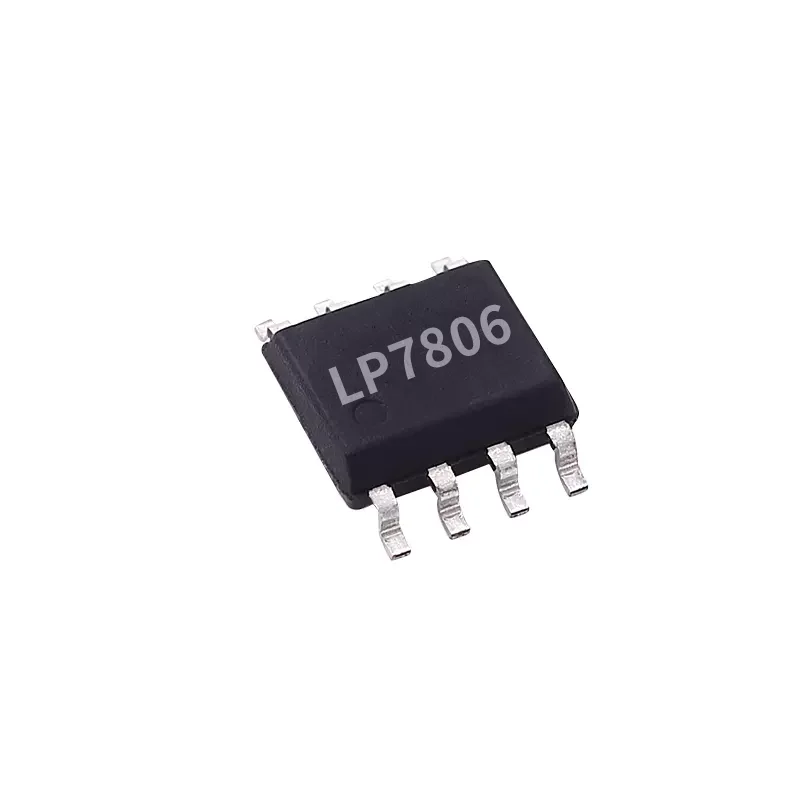

Китайский LPSemi оригинальный LP7806 5 в 1 умный литиевый аккумулятор для зарядки/разрядки чипов IC 8 pin
- Категория: Electronic Components, Accessories & Telecommunications >>>
- Поставщик: Guangdong,Zhianxin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.67 $* | 0.86 $* |
| Aug-19-2025 | 0.53 $* | 0.68 $* |
| Jul-19-2025 | 0.0 $* | 0.80 $* |
| Jun-19-2025 | 0.85 $* | 0.48 $* |
| May-19-2025 | 0.2 $* | 0.40 $* |
| Apr-19-2025 | 0.34 $* | 0.8 $* |
| Mar-19-2025 | 0.48 $* | 0.41 $* |
| Feb-19-2025 | 0.29 $* | 0.71 $* |
| Jan-19-2025 | 0.78 $* | 0.59 $* |
Характеристики
We Promisesd:
All the information we provided are true!!!
All products are original!!!
Welcome to online or on-site inspection!!!
We are a very powerful agent. only agent high quanlity and well-known original factories in China, and the products are certified by professional organizations and their quality is guaranteed.
Integrity management, strength guarantee, attentive service
looking forward to cooperating with you!!!!
Description

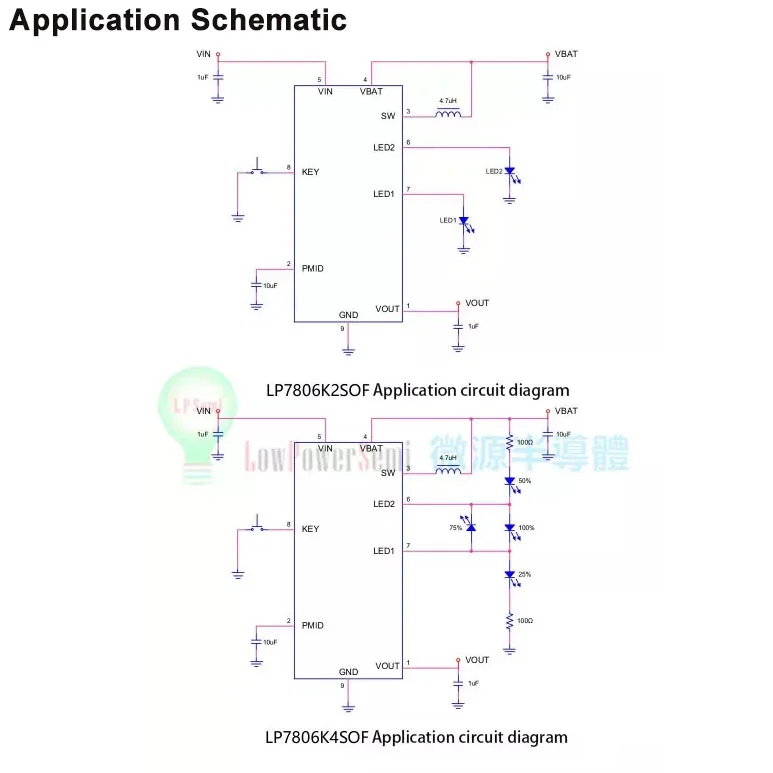

LP7806 is a single-chip solution IC designed for small-capacity lithium battery charging/discharging applications. It integrates linear charge management module, synchronous boost, control module, status indication, load identification, and discharge module;
Charging management built-in overvoltage protection function, built-in power MOS, charging current 310mA, charger current adaptive function, charging status indication function;
Discharge management has built-in synchronous boost, load access identification, and key-on functions; Discharge current detection function, the discharge current is less than 4mA, and the discharge is automatically cut off; Built-in discharge indication and low-power prompt functions;

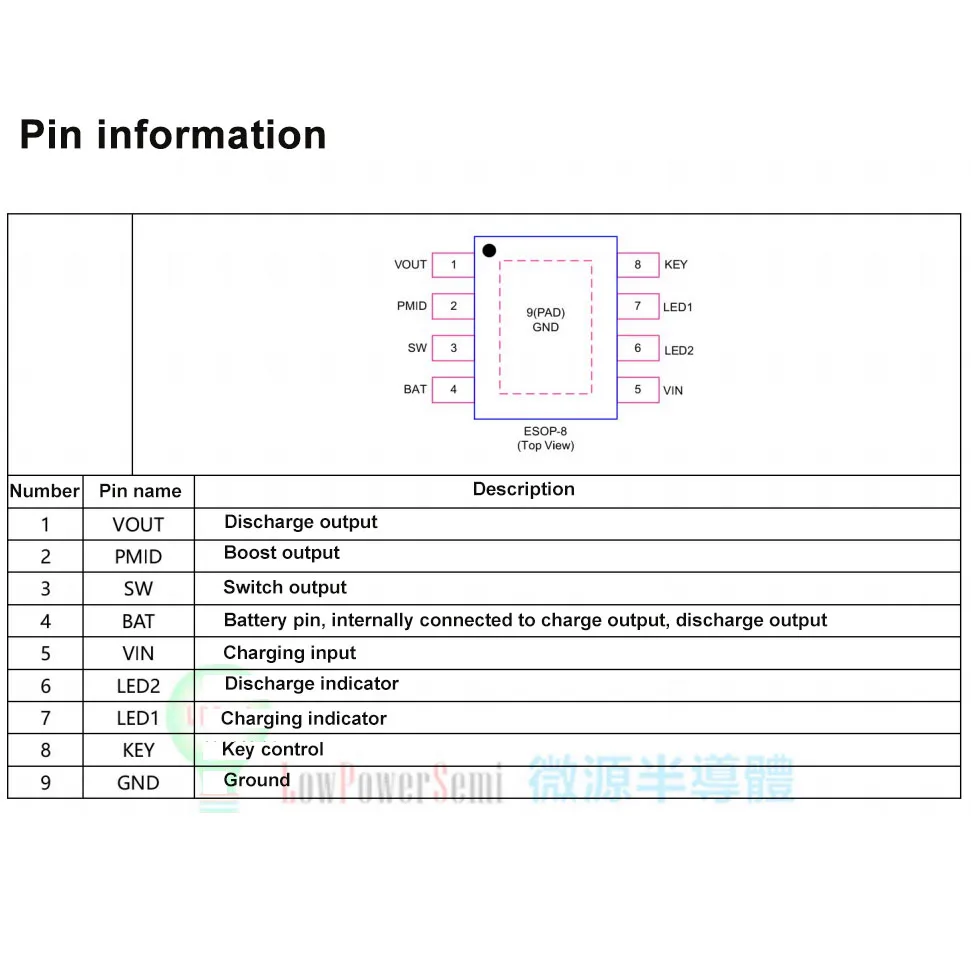

For the application of small-capacity lithium battery system, it provides an easy-to-use solution; LP7806 adopts ES0P8 package.
Charging management built-in overvoltage protection function, built-in power MOS, charging current 310mA, charger current adaptive function, charging status indication function;
Discharge management has built-in synchronous boost, load access identification, and key-on functions; Discharge current detection function, the discharge current is less than 4mA, and the discharge is automatically cut off; Built-in discharge indication and low-power prompt functions;
For the application of small-capacity lithium battery system, it provides an easy-to-use solution; LP7806 adopts ES0P8 package.
Features
♦ Standby power consumption: 15uA
♦ Built-in 6.4V overvoltage protection
♦ Linear charging, charging current 310mA
♦With charger current adaptive function
♦Intelligent constant temperature charging function
♦ Synchronous boost output 5V
♦Automatically identify the load function
♦Switching frequency 720KHZ
♦ Discharge efficiency up to 9 3%
♦ Discharge cut-off current 4 mA
♦ Discharge module over-current, short-circuit, over-temperature protection functions
♦Built-in charging and discharging indicator function, low battery indicator function
♦ Built-in 6.4V overvoltage protection
♦ Linear charging, charging current 310mA
♦With charger current adaptive function
♦Intelligent constant temperature charging function
♦ Synchronous boost output 5V
♦Automatically identify the load function
♦Switching frequency 720KHZ
♦ Discharge efficiency up to 9 3%
♦ Discharge cut-off current 4 mA
♦ Discharge module over-current, short-circuit, over-temperature protection functions
♦Built-in charging and discharging indicator function, low battery indicator function
Agent certificate
