Introduction

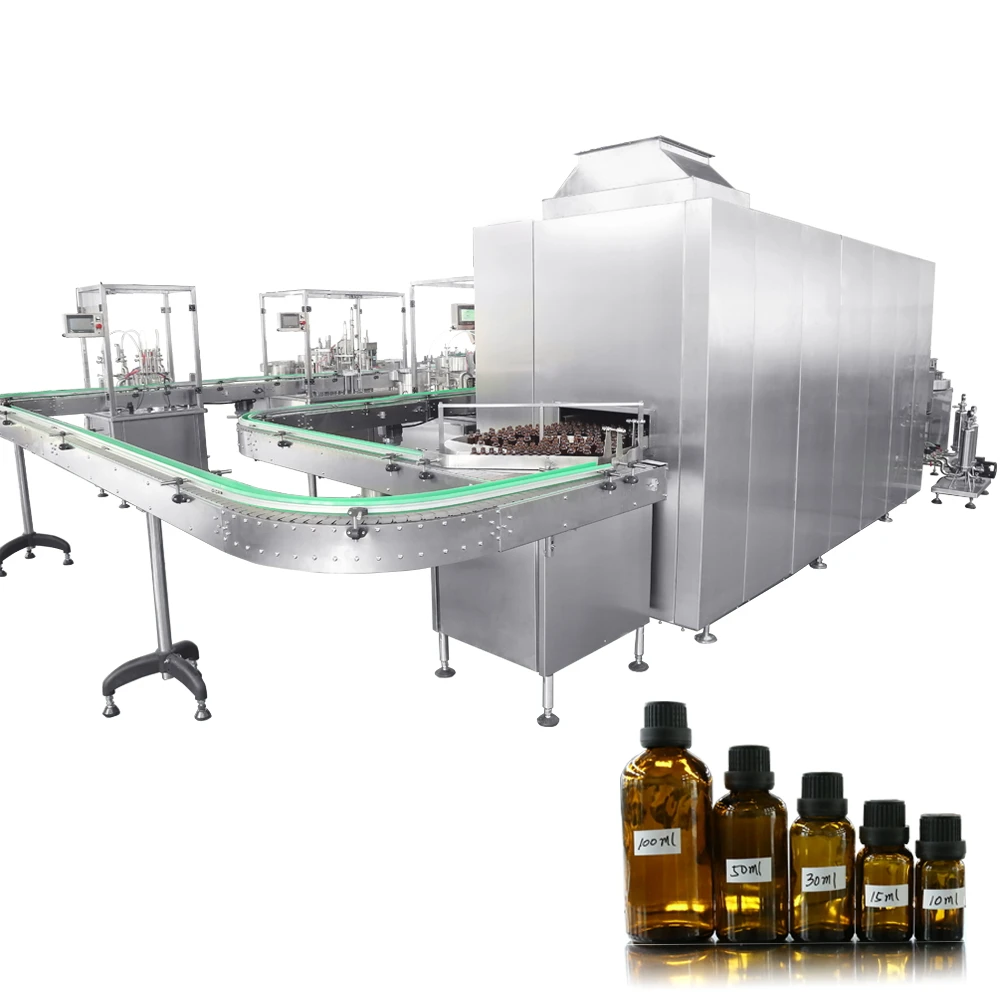

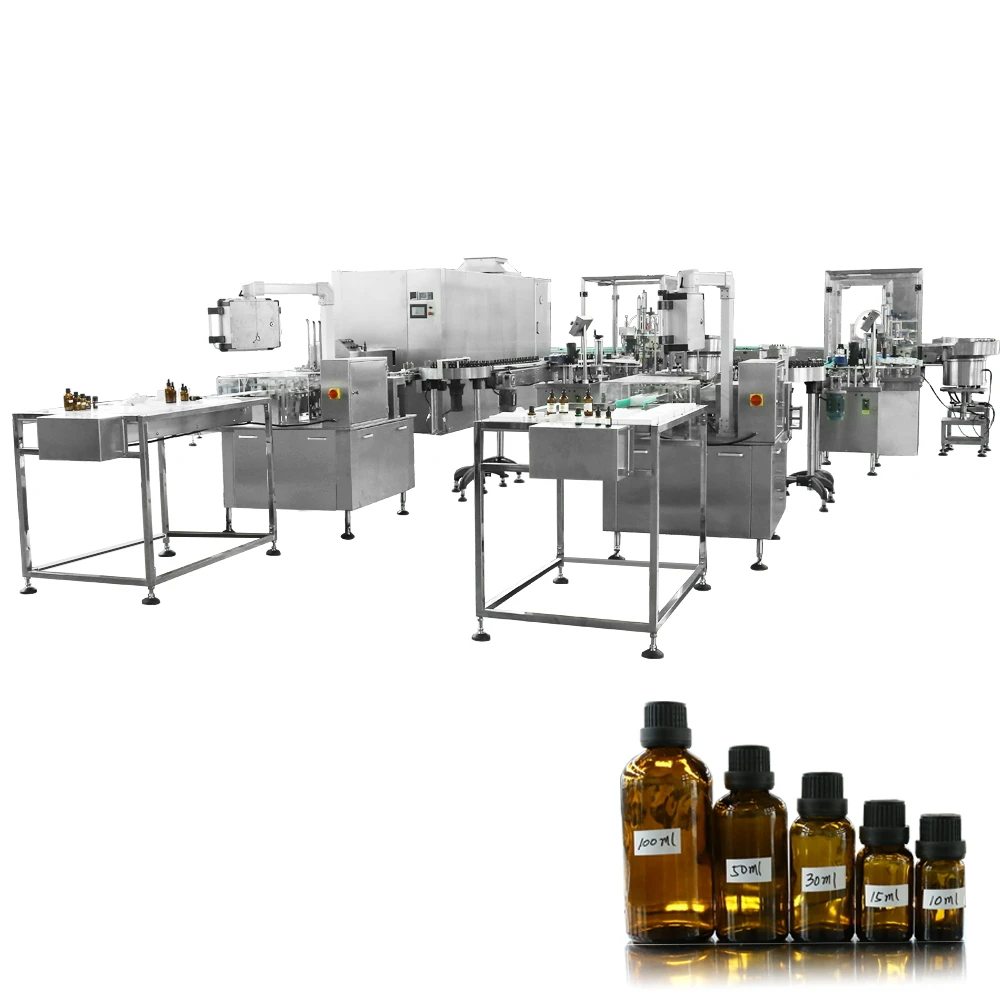

This liquid filling bottling line is composed of bottle feeding machine, filling machine, capping machine, labeling machine, boxing machine, etc. which is compact in structure and convenient in operation. They are specially designed for liquid filling in pharmaceutical, food, chemical, pesticide and other industries. Our filling machine adopt piston type metering pump, and the servo motor controls the filling quantity, and the filling quantity error can be individually adjusted, so the filling quantity is accurate.
It is applied to glass or plastic bottles with different sizes and shapes. By adjusting the filling volume on touch screen, it can fill liquid with quick speed and high precision. It is widely used for essential oil, eye dropper, perfume, nail polish, lotions and other vial bottle filling.
It is applied to glass or plastic bottles with different sizes and shapes. By adjusting the filling volume on touch screen, it can fill liquid with quick speed and high precision. It is widely used for essential oil, eye dropper, perfume, nail polish, lotions and other vial bottle filling.
PLC control method makes it easy to operate and high speed working efficiency is ideal for different scale production. It can work with the automatic capping machine and labeling machine and other equipment based on customer requirement.
Main parameters
Product | Small Bottle Liquid Filling Machine Production Line |
Output | 1000-3000 BPH |
Filling Volume | 10-100ml |
Control | PLC and Touch Screen |
Applicable Bottle Size | Can customize |
Cap Feeding | Vibrate cap sorter/Elevator |
Cap sealing method | Magnetic torque twisting, no hurt to caps |
Torquing Range | 0-100N |
Filling way | Piston pump measuring, high accuracy |
Capping Type | Screw, Pressing, Crimping, etc (Can customize) |
Bottle Type | Glass, Plastic, Metal, etc |
Precision | ±1% |
Power | 1.8KW |
Voltage | 220/380V, 50/60Hz |
Material | Product contacting parts SS304 |
BOTTLE FEEDING TABLE
Variable speed rotary bottle feeding table is the basic feeding system of filling line, operator will put empty bottles on the table, with gear motor driving, the bottle will be arranged to smarter filler input interface correctly. With flexible output tunnel, the machine will be able to work with different size bottle.

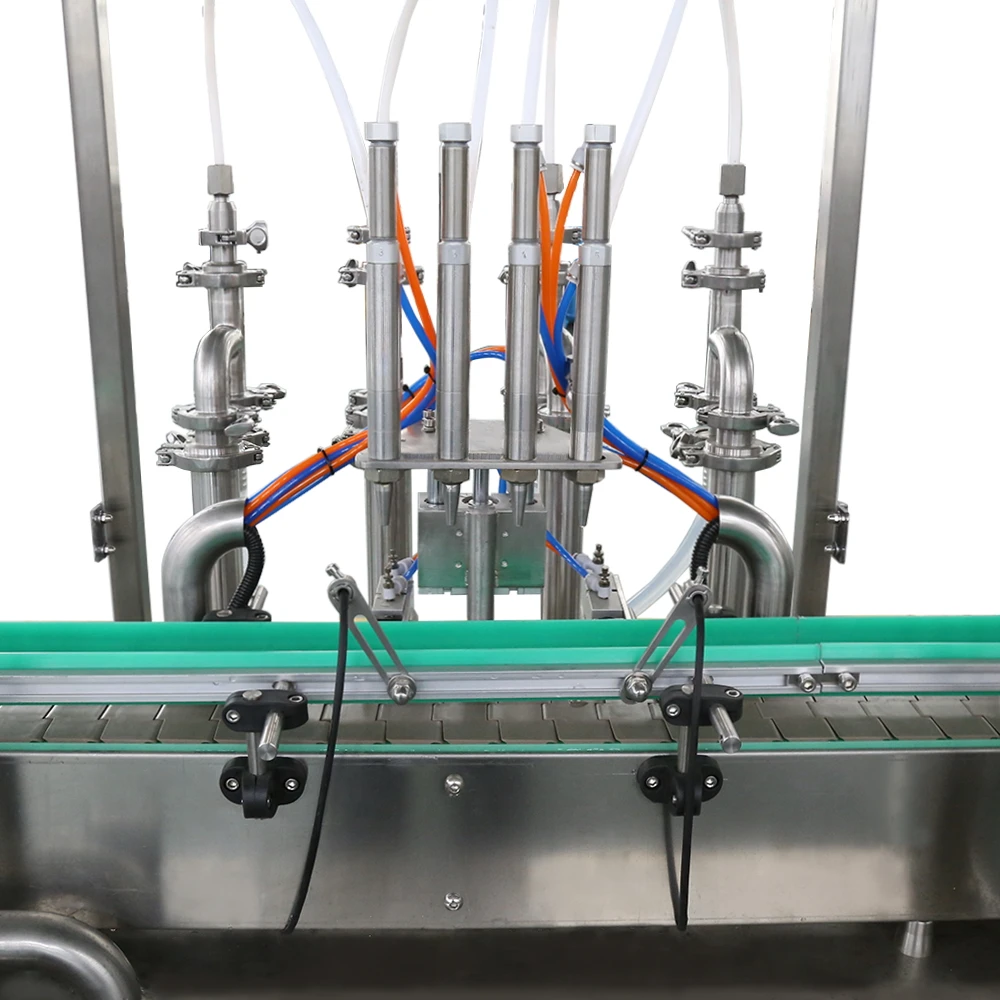

PISTON PUMP FILLING
This filling machine is specially designed for small bottle capacity filling 10-100ml. Adopt photoelectric detection to ensure No bottle No filling. SS316 and food grade silica gel pipes are used for the contact part of metering pump and filling nozzles, resist high temperature filling. It adopts quick clamp connection, convenient to disassemble, easy to clean up.
This is linear type peristaltic pump ( can be piston pump) filling machine which is designed for high capacity filling task, driven by servo motor with high precision. The filling nozzles are made of SS316, resist high temperature filling. drip-proof, via photoelectric detection to ensure no bottle no filling.

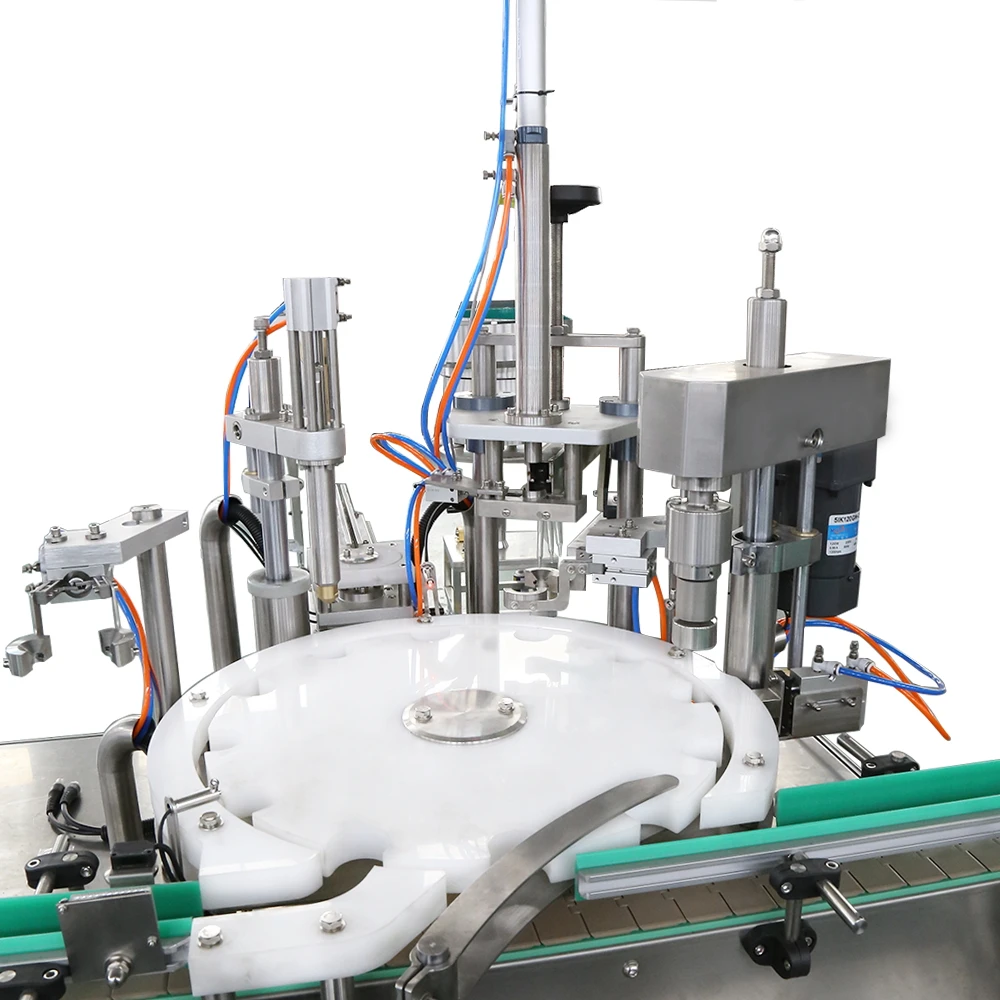

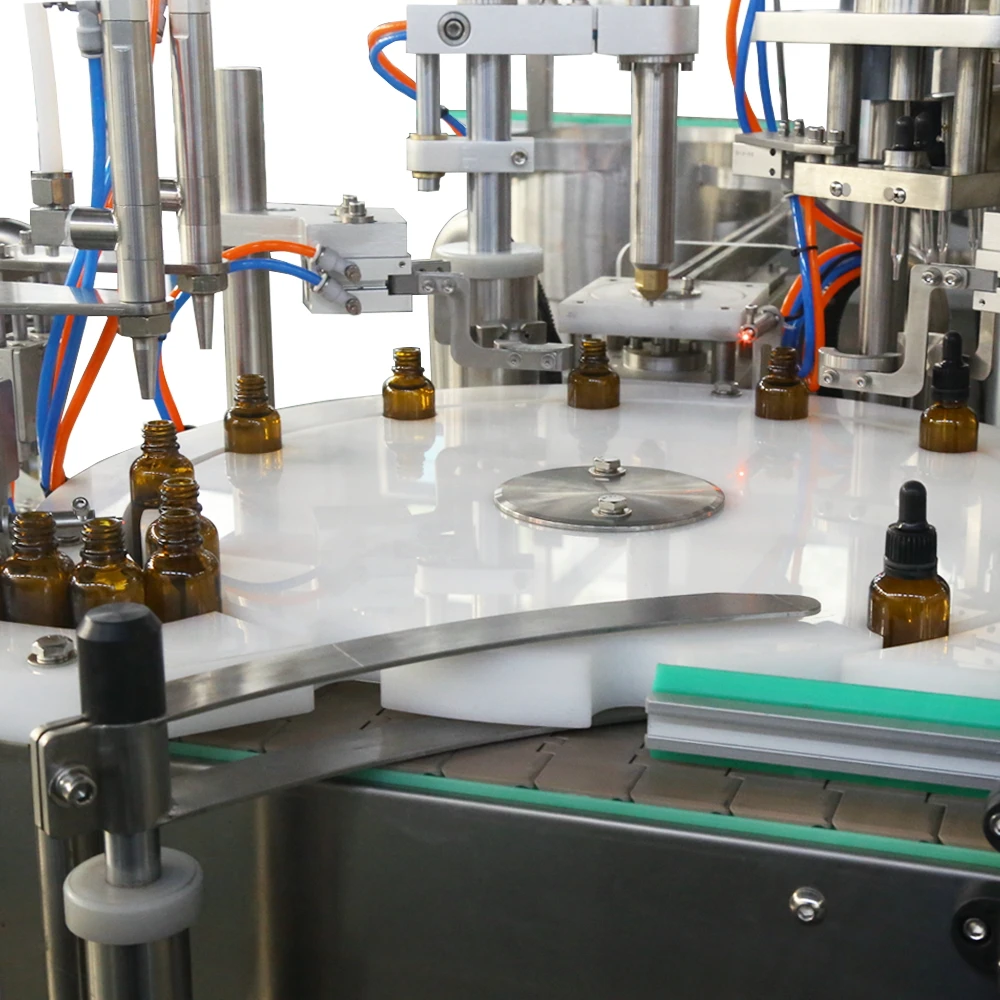

MAGNETIC TORQUE CAPPING MACHINE
The capping machine integrates the functions of automatic feeding cover and rotating cover, saving space and equipment energy consumption, also improving the production efficiency. With three-jaw capping head, the capping machine is able to work with different kinds of caps, such as dropper caps, spray caps, disc caps, brush caps, etc.
ROUND BOTTLE LABELING MACHINE
The newest smart round bottle labeling machine is working with different kinds of bottle and labels, infrared detection sensor is work with transparent label. With adjustment handle, it is able to work with high, lower, fat, thin bottle and apply labels into accurate station.
BOTTLE COLLECTING TABLE
The rectangle bottle collecting table is designed for collecting the bottles automatically and convenient for workers to stand by the table and packing into box.
A SERIES OF INSTALLATION AND TECHNICAL GUIDE VIDEOS, EASY TO LEARN
Product Paramenters
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
