Высококачественный сварочный аппарат для производства клетки бетонной трубы
- Категория: Pipe Making Machinery >>>
- Поставщик: Taizhou,Amity,Care,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 34510.94 $* | 36236.85 $* |
| Aug-20-2025 | 34220.20 $* | 35931.75 $* |
| Jul-20-2025 | 28710.13 $* | 30146.13 $* |
| Jun-20-2025 | 33640.91 $* | 35322.14 $* |
| May-20-2025 | 29290.62 $* | 30755.47 $* |
| Apr-20-2025 | 33060.3 $* | 34713.0 $* |
| Mar-20-2025 | 32770.8 $* | 34409.19 $* |
| Feb-20-2025 | 32480.39 $* | 34104.95 $* |
| Jan-20-2025 | 32190.86 $* | 33800.28 $* |
Характеристики
Product Description
| main parameters | PGHJ /CPGHJ |
| Diameter of pipe | 300~3000mm |
| Length | 1000~4000mm |
| Diameter of longitudinal bar | 4~6m,8~12mm |
| Spiral wire | 3~6mm |
| PC wire | 12,18,24,32,36,48 |
| Pitch | 40~160mm adjust |
| Welding way | Single round or nugget |
| Power | 75-200KVA |
| Speed | 3-10min/pcs |
| Code | 480,812,1216,1620,2024 |
| Weight | 5~15T |

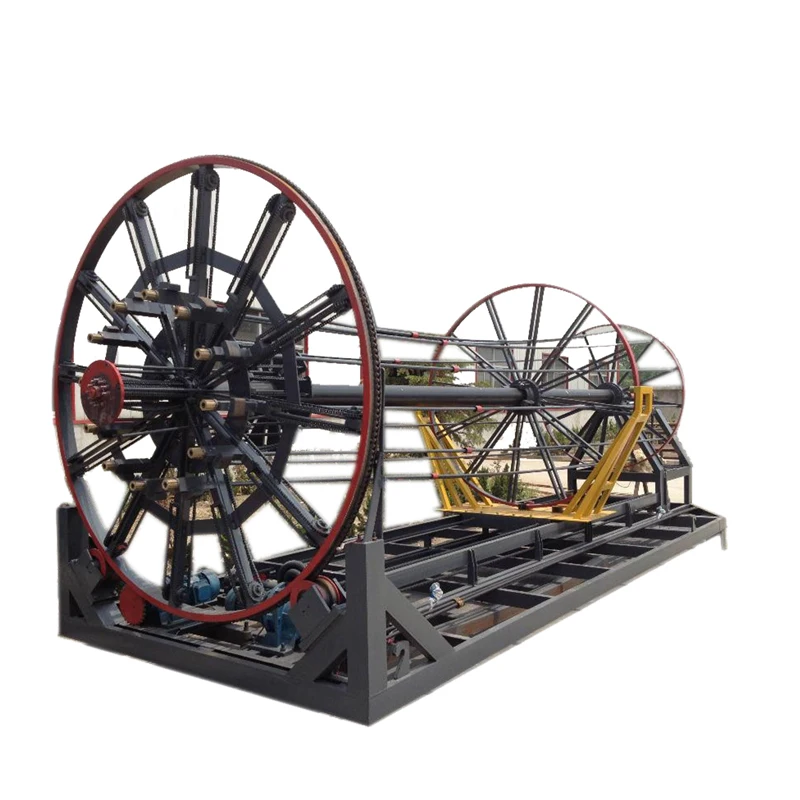

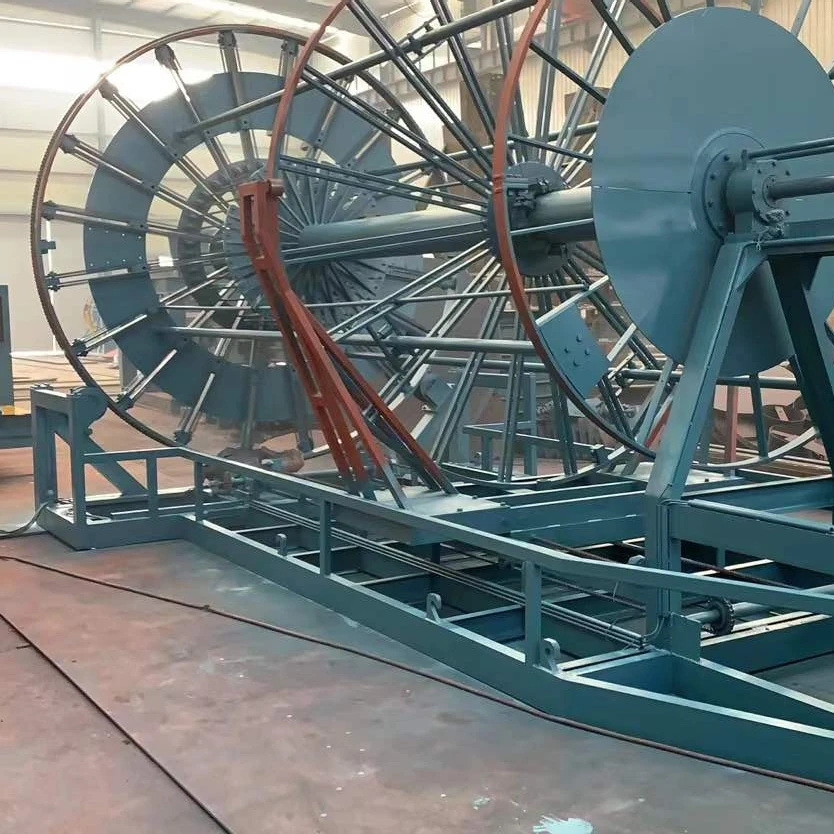

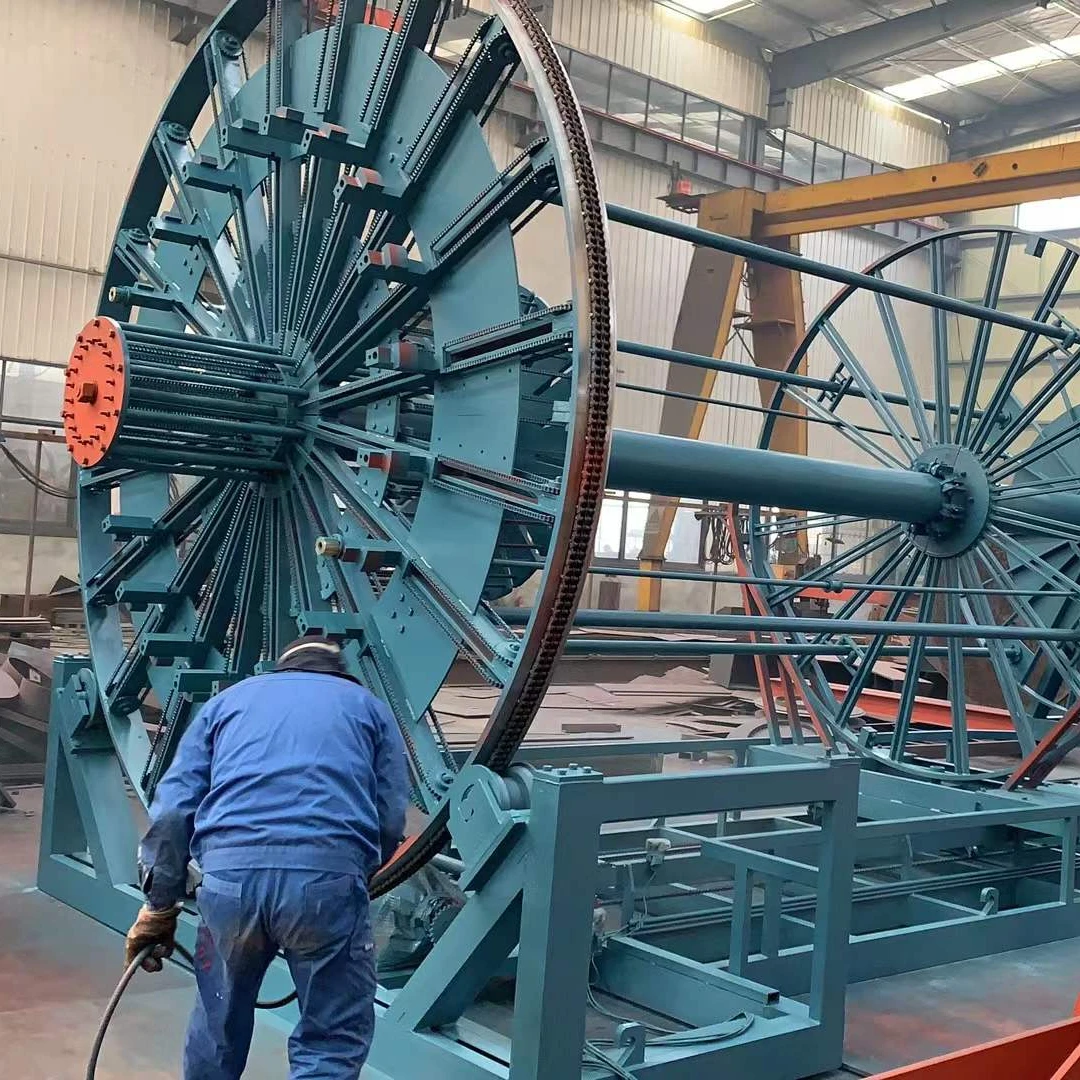

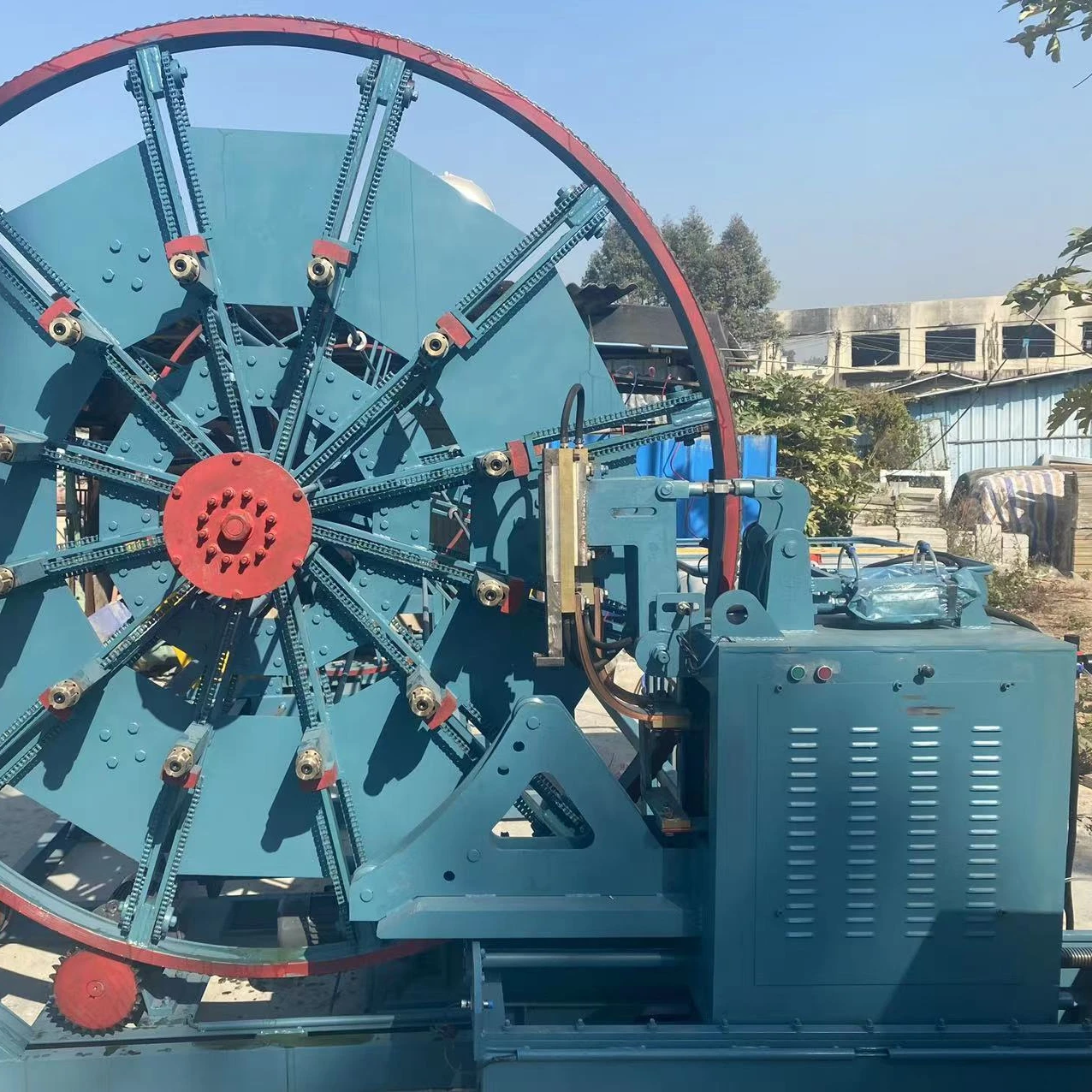

Automatic cage making machine for concrete pipe adopt foreign equipment of advanced structure, electrical automation control action, full digital control circuit welding, using push bar, fully automatic digital continuous variable diameter, frequency conversion speed synchronization, ring stiffened and pitch of arbitrary adjustable.
Thoroughly overcome the seam welder production specifications of the original less (single only 1-2 diameter specifications), high labor intensity, low production efficiency, covers an area of big, complicated operation, splash, welding, high failure rate, low automation and shortcomings.Can produce 300 - 4000 mm, length less than 5000 mm, all kinds of flat steel skeleton, tongue-and-groove, socket.
Project Case
