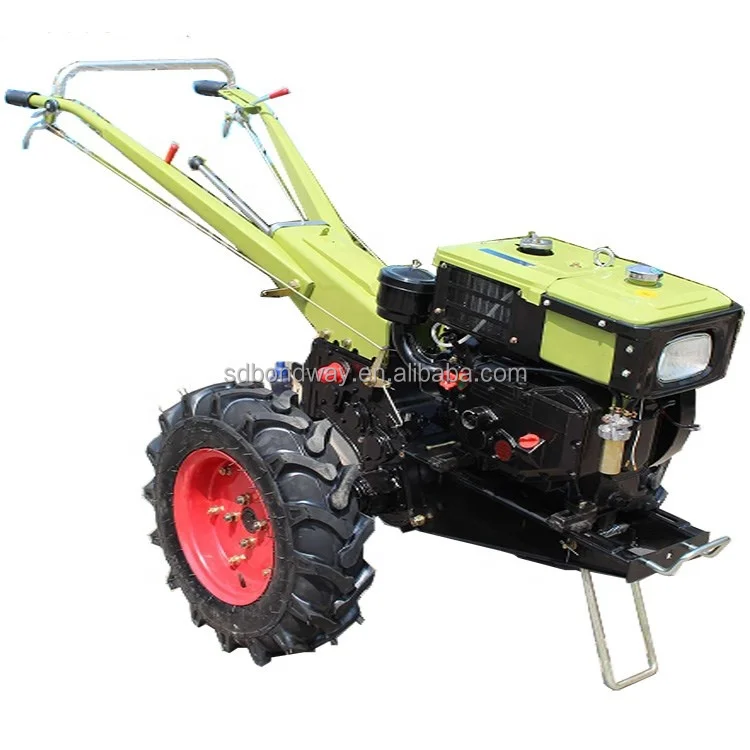

Горячая Распродажа 15hp сельскохозяйственных ходьбы ручную трактором 2 колеса мотоблок/Трактор
- Категория: Tractors >>>
- Поставщик: Shandong,Bondway,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 774.78 $* | 813.65 $* |
| Aug-15-2025 | 767.14 $* | 805.76 $* |
| Jul-15-2025 | 644.87 $* | 676.48 $* |
| Jun-15-2025 | 754.40 $* | 792.83 $* |
| May-15-2025 | 657.89 $* | 690.20 $* |
| Apr-15-2025 | 741.81 $* | 778.73 $* |
| Mar-15-2025 | 735.85 $* | 772.13 $* |
| Feb-15-2025 | 728.23 $* | 764.39 $* |
| Jan-15-2025 | 722.33 $* | 758.87 $* |
Характеристики
Product Description
Brief Introduction:
Walking tractor winch applies to cable pulling of overhead transmission line and hoisting cargo. It is equipped with a walking
device to carry the trailer with heavy objects and other tools behind it. It is suitable for pole setting out, traction hoisting
and transportation, pump concrete vibrating and other operations in the construction of power transmission line.
Features:
Equipped with forward and reverse gears, the output shaft drives the grinding cylinder to rotate to pull the load, the mechanism
is compact, the operation is light, the driving performance is good, and the trailer can be coupled.
Operation Manual:
1. Before the machine starts, please open the drive clutch of the and move the front and back shift bar to the neutral position
before starting the machine.
2. In the clutch, the action should be quick and clear, otherwise the interlock brake will not work, forming an increase in the
impact of the automatic brake pawl. The pulley can drive the input shaft to not slip.
3. You must open the transmission clutch before shift, otherwise it may damage the gear, after the shift should check whether the
shift process is tight, in order to prevent the phenomenon of jump gear.
4. In the shift process, if there is difficulty in shifting gear, you can not force shift, you can use the hand device to help
shift, the concrete method: use the wrench to swing the device, make it rotate an angle, you can enter the gear.
5. The allowable load on the reel is 5000 kilograms when turns slowly.
Walking tractor winch applies to cable pulling of overhead transmission line and hoisting cargo. It is equipped with a walking
device to carry the trailer with heavy objects and other tools behind it. It is suitable for pole setting out, traction hoisting
and transportation, pump concrete vibrating and other operations in the construction of power transmission line.
Features:
Equipped with forward and reverse gears, the output shaft drives the grinding cylinder to rotate to pull the load, the mechanism
is compact, the operation is light, the driving performance is good, and the trailer can be coupled.
Operation Manual:
1. Before the machine starts, please open the drive clutch of the and move the front and back shift bar to the neutral position
before starting the machine.
2. In the clutch, the action should be quick and clear, otherwise the interlock brake will not work, forming an increase in the
impact of the automatic brake pawl. The pulley can drive the input shaft to not slip.
3. You must open the transmission clutch before shift, otherwise it may damage the gear, after the shift should check whether the
shift process is tight, in order to prevent the phenomenon of jump gear.
4. In the shift process, if there is difficulty in shifting gear, you can not force shift, you can use the hand device to help
shift, the concrete method: use the wrench to swing the device, make it rotate an angle, you can enter the gear.
5. The allowable load on the reel is 5000 kilograms when turns slowly.
Specification
Warranty of core components | 1 Year |
Core Components | Motor, Engine |
Engine Brand | CHANGCHAI |
Applicable Industries | Farms, Home Use |
After Warranty Service | Video technical support, Online support |
Local Service Location | None |
Showroom Location | None |
Weight | 250KG |
Product name | Agricultural Tractor |
Name | Farmer Tractor |
Engine type | 101 |
Horse power | 13HP,15HP |
Weight | 250kg |
Use | Farm Land |
Wheel Distance | 680-740(can adjust) |
Keywords | 2 wheel |
Application | Ariculture |
Brand | bondway |
Packing & Delivery
We could arrange shippment by sea, by air, by express.
If by express, could directly to your home. shipping time:3-5days
If by air, could ship to your destination airport,shipping time:5-7days
If by sea, could ship to your nearest seaport, shipping time is different based on your port details.
If by express, could directly to your home. shipping time:3-5days
If by air, could ship to your destination airport,shipping time:5-7days
If by sea, could ship to your nearest seaport, shipping time is different based on your port details.
Company Profile
Shandong Bondway machinery Co,ltd is a professional company integrating product design, development, production, sales and service. The company covers an area of more than 130000 square meters and has fixed assets of 120 million yuan. There are more than 700 employees, including 100 professional technicians and more than 40 senior technicians.
Since its establishment, the company has adhered to scientific and technological innovation as the development idea and customer satisfaction as the highest purpose, firmly established the enterprise spirit of "unity, innovation, cooperation and responsibility", and achieved rapid and stable development with the enthusiastic care and strong support of leaders at all levels and friends. The company now has 12 production lines, which can produce more than 100 varieties of general gasoline engines, plant protection machinery, garden machinery, irrigation machinery and other series below 8.2kw. With reliable product quality and independent business philosophy, the company takes the lead in becoming a member of China Quality Association among plant protection machinery enterprises.
The company will continue to become bigger and stronger with the goal of "creating a well-known brand and striving for the first place in the industry". All employees of the company are willing to carry out extensive business cooperation with friends at home and abroad to jointly create a better future.
Since its establishment, the company has adhered to scientific and technological innovation as the development idea and customer satisfaction as the highest purpose, firmly established the enterprise spirit of "unity, innovation, cooperation and responsibility", and achieved rapid and stable development with the enthusiastic care and strong support of leaders at all levels and friends. The company now has 12 production lines, which can produce more than 100 varieties of general gasoline engines, plant protection machinery, garden machinery, irrigation machinery and other series below 8.2kw. With reliable product quality and independent business philosophy, the company takes the lead in becoming a member of China Quality Association among plant protection machinery enterprises.
The company will continue to become bigger and stronger with the goal of "creating a well-known brand and striving for the first place in the industry". All employees of the company are willing to carry out extensive business cooperation with friends at home and abroad to jointly create a better future.
