Охлаждающая башня для машины для литья под давлением
US $900.00-$1000
Высококачественный Испарительный конденсатор cool
- Категория: Cooling Towers >>>
- Поставщик: Shandong,Inchoi,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 10948.6 $* | 11495.30 $* |
| Aug-16-2025 | 10856.53 $* | 11399.68 $* |
| Jul-16-2025 | 9108.94 $* | 9563.48 $* |
| Jun-16-2025 | 10672.51 $* | 11206.18 $* |
| May-16-2025 | 9292.24 $* | 9757.60 $* |
| Apr-16-2025 | 10488.6 $* | 11012.55 $* |
| Mar-16-2025 | 10396.81 $* | 10916.55 $* |
| Feb-16-2025 | 10304.44 $* | 10819.94 $* |
| Jan-16-2025 | 10212.59 $* | 10723.35 $* |
Характеристики
Product description

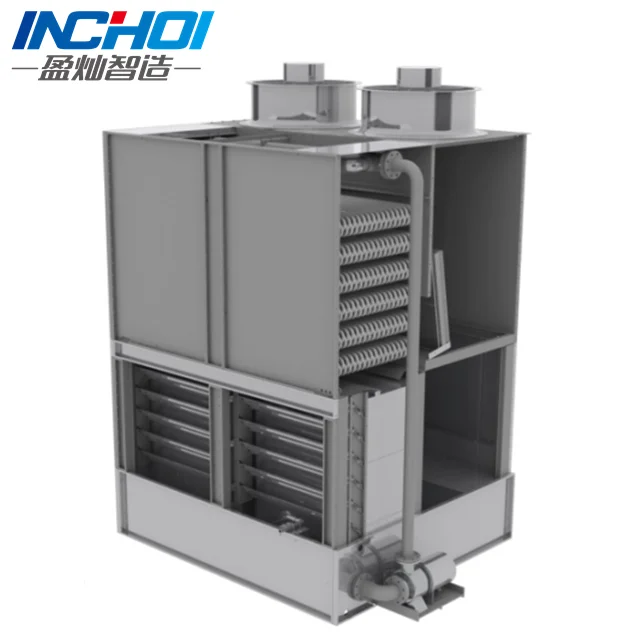

1.Using the condensation process of gaseous refrigerant to release heat, the high-temperature gaseous refrigerator enters the coil through the refrigerant inlet of the coil, exchanges heat with the spray water and air outside, and condenses from the gaseous state to the liquid state.
2.The spray water is transported by the water pump to the spray pipe at the top of the evaporative condenser, and sprayed through the nozzle to the outer surface of the condensing pipe to form a thin water film, and part of the water in the water film absorbs heat After evaporation, it becomes water vapor, and the rest falls into the water collecting tank for the pump to circulate.
3.The axial flow fan forces the air to be sucked from the top and the lower part of the side wall to flow through the coil, the filler and saturated hot and humid air are discharged into the surrounding atmosphere, and part of the water droplets entrained in the hot and humid air are intercepted by the water collector, effectively Control the loss of water droplet drift, and the water vapor in the atmosphere caused by the loss is controlled by the floating ball valve to supplement the cooling water in the system.
2.The spray water is transported by the water pump to the spray pipe at the top of the evaporative condenser, and sprayed through the nozzle to the outer surface of the condensing pipe to form a thin water film, and part of the water in the water film absorbs heat After evaporation, it becomes water vapor, and the rest falls into the water collecting tank for the pump to circulate.
3.The axial flow fan forces the air to be sucked from the top and the lower part of the side wall to flow through the coil, the filler and saturated hot and humid air are discharged into the surrounding atmosphere, and part of the water droplets entrained in the hot and humid air are intercepted by the water collector, effectively Control the loss of water droplet drift, and the water vapor in the atmosphere caused by the loss is controlled by the floating ball valve to supplement the cooling water in the system.
Technical Parameters
Main features
1. The condensing coil is made of super-long special-purpose steel pipe, which has been subjected to a strict test of 2.5MPa air pressure in water, and the hot-dip galvanizing process is anti-corrosion.
2. The unique condensing coil has a more compact design, and the same plane increases the coil area and improves the heat transfer efficiency.
3. Advanced anti-blocking and large-volume spraying device, the spraying water can accommodate the pipe wall to the maximum extent and improve the heat transfer coefficient. Unique anti-clogging properties reduce scaling.
4. Special high-flow circulating water pump: equipped with high protection IP55, the suction filter is made of stainless steel, which will not rust and increase the service life.
5. Special motor for outdoor shape, low power, large flow, low noise, excellent performance, easy maintenance, etc.
6. The use of hot-dip galvanized anti-corrosion treatment can maximize the service life of the equipment.
7. Imported high-strength aluminum-zinc-plated panels are used, which are beautiful and have good high temperature oxidation resistance; high corrosion resistance; service life is doubled.
2. The unique condensing coil has a more compact design, and the same plane increases the coil area and improves the heat transfer efficiency.
3. Advanced anti-blocking and large-volume spraying device, the spraying water can accommodate the pipe wall to the maximum extent and improve the heat transfer coefficient. Unique anti-clogging properties reduce scaling.
4. Special high-flow circulating water pump: equipped with high protection IP55, the suction filter is made of stainless steel, which will not rust and increase the service life.
5. Special motor for outdoor shape, low power, large flow, low noise, excellent performance, easy maintenance, etc.
6. The use of hot-dip galvanized anti-corrosion treatment can maximize the service life of the equipment.
7. Imported high-strength aluminum-zinc-plated panels are used, which are beautiful and have good high temperature oxidation resistance; high corrosion resistance; service life is doubled.
Machine details
Axial Fan
Low noise with large air-flow; Aluminum alloy blades; Damp-proof motor.
Low noise with large air-flow; Aluminum alloy blades; Damp-proof motor.
Drift Eliminator
High-effective water eliminater is made of PVC, can filter the drips from expelled air-steam.

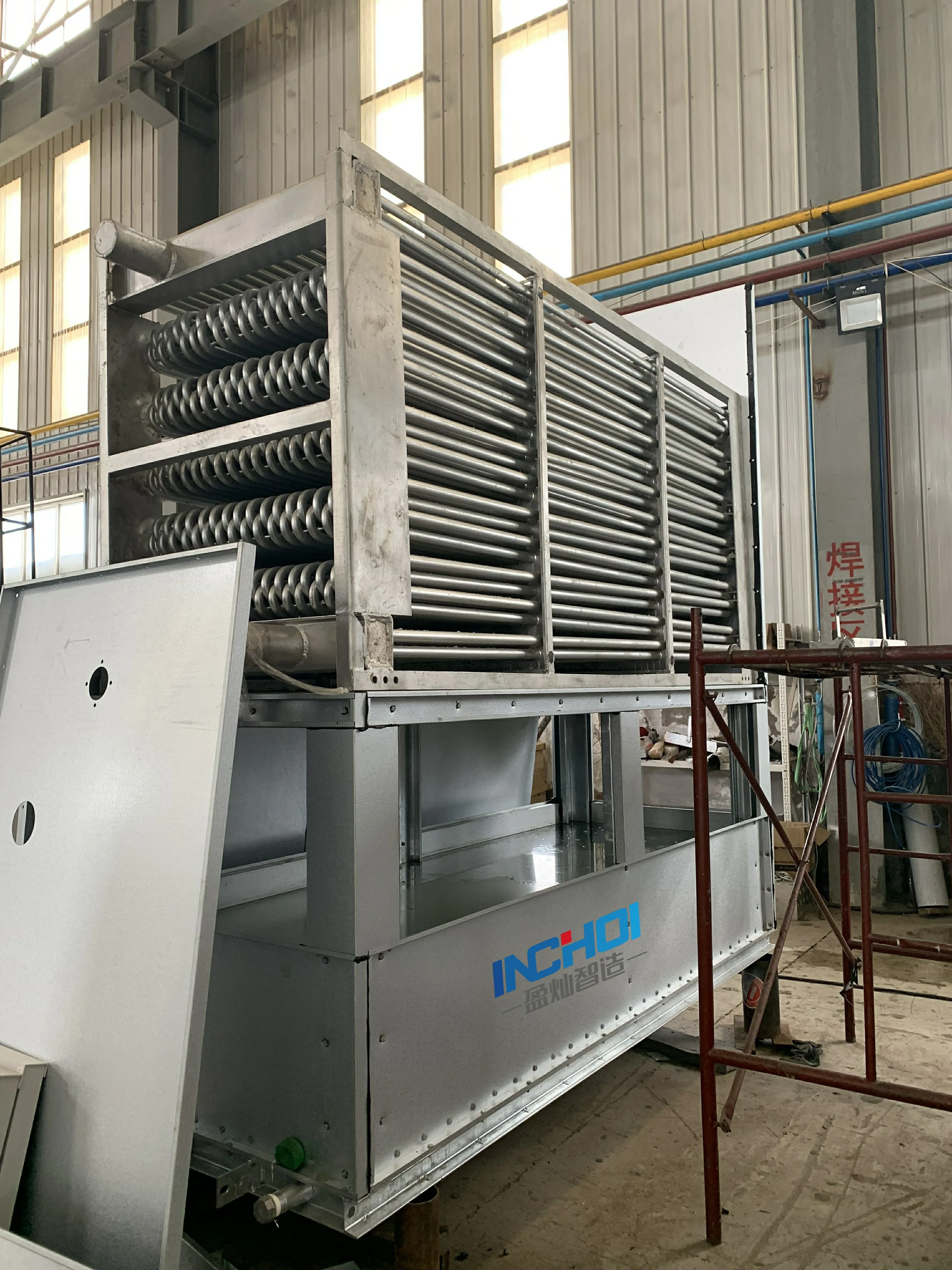

Condensing Coil
Hop dip galvanized coil or stainless steel coil; Oval tube unique design, high efficiency heat exchange process.
Successful case
Packaging and shipping
Workshop display
Company Profile
With the field of food machinery and sterilization with 20 years of design and development experience, The main products include IFQ instant freezer, thermoforming vacuum packing machine, retort and automatic sterilization line, French fries and all kinds of crispy chips frying line, fruit and vegetable processing line and other equipment sales and manufacturing. Welcome to consult.
FAQ
1. who are we?
We are based in Shandong, China, start from 2018,sell to Southeast Asia(20.00%),Africa(10.00%),Central America(10.00%),Eastern Europe(10.00%),Mid East(10.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),North America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),South America(5.00%),Oceania(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
food machine,sterilize retort autoclave,Fruit and vegetable wash&dry processing machine,vacuum packing machine,vacuum frying machine
4. why should you buy from us not from other suppliers?
In the field of food machinery and sterilization with 20 years of designing and developing experience, to provide customers with the whole line of turnkey service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2018,sell to Southeast Asia(20.00%),Africa(10.00%),Central America(10.00%),Eastern Europe(10.00%),Mid East(10.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),North America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),South America(5.00%),Oceania(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
food machine,sterilize retort autoclave,Fruit and vegetable wash&dry processing machine,vacuum packing machine,vacuum frying machine
4. why should you buy from us not from other suppliers?
In the field of food machinery and sterilization with 20 years of designing and developing experience, to provide customers with the whole line of turnkey service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
