Машина для прокатки листового металла
US $10000
Сборные дома C89 Lgsf Lgs цена киль вес Lsf рулонный светильник форма стальной рамы машина
- Категория: Tile Making Machinery >>>
- Поставщик: Jiangyin,Bosj,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 41650.5 $* | 43733.37 $* |
| Aug-18-2025 | 41300.97 $* | 43365.17 $* |
| Jul-18-2025 | 34650.56 $* | 36383.36 $* |
| Jun-18-2025 | 40600.31 $* | 42630.14 $* |
| May-18-2025 | 35350.47 $* | 37118.15 $* |
| Apr-18-2025 | 39900.15 $* | 41895.85 $* |
| Mar-18-2025 | 39550.67 $* | 41528.83 $* |
| Feb-18-2025 | 39200.59 $* | 41160.78 $* |
| Jan-18-2025 | 38850.86 $* | 40793.94 $* |
Характеристики
Product Overview
From single profile production systems to fully automatic adjustable framing systems, special solutions for flooring and roofs,
custom made solutions... We have a solution for every customer!
custom made solutions... We have a solution for every customer!
1. Versatility and flexibility in design
2. Reduced risk
3. Precision and accuracy
4. Faster construction and increased productivity
5. Higher profitability
2. Reduced risk
3. Precision and accuracy
4. Faster construction and increased productivity
5. Higher profitability
PRODUCT SPECIFICATIONS
Name | Details |
Dimension | 4800x1200x700mm |
Weight | 3 T |
Colour | Customized |
Main motor | 7.5 KW Servo motor |
Transmission | Gear transmission + chain drive |
Speed | 40m/min(without punching and cutting) |
Product size
C89x41x5.5 for 2-3 floors house
C140x41x12 for2-7 floors house
Thickness: 0.6-1.2mm
Material Width: C178mm
Material type: G300-G550 galvanized steel
C140x41x12 for2-7 floors house
Thickness: 0.6-1.2mm
Material Width: C178mm
Material type: G300-G550 galvanized steel
PRODUCT CONFIGURATION
De-coiler
Hydraulic system
Roll forming

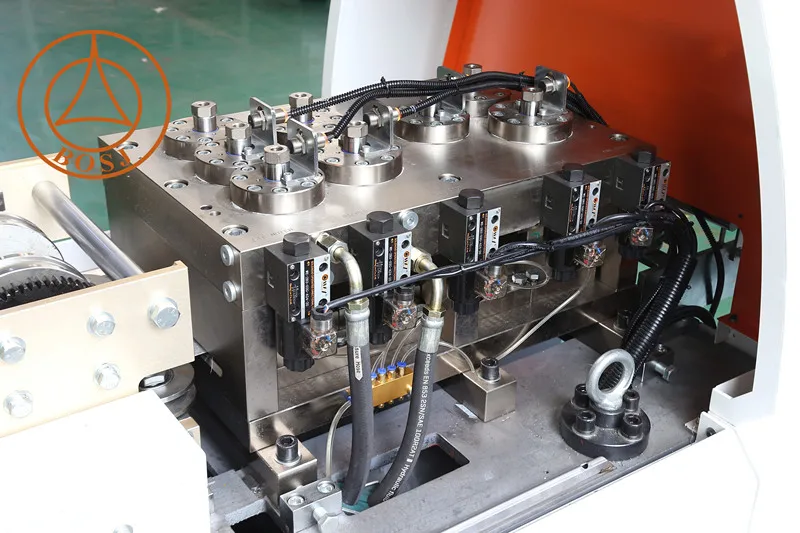

Hydraulic Punching
Forming after punching
Punching material: SKD11
Punching material: SKD11
Heat treatment to HRC58-60 after CNC machining, and then electroplating

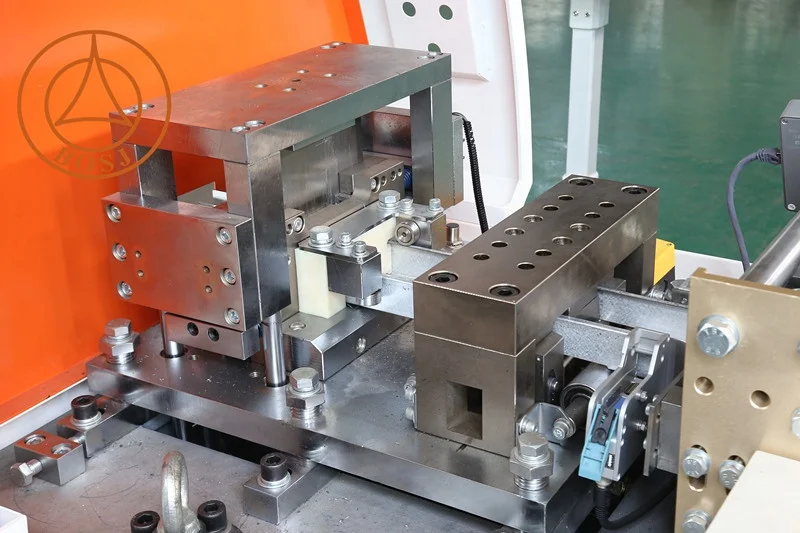

Hydraulic cutting
Advanced hydraulic drive, automatic cutting after forming, without waste, high safety level
Cutting blade: SKD11
Tracking Hydraulic cutting, cutting blade material CR12Mov steel quenching treatment
Cutting blade: SKD11
Tracking Hydraulic cutting, cutting blade material CR12Mov steel quenching treatment
Detail Tools of light guage steel machine
(1).Lip Notch;
(2).Web Notch;
(3).Swage;
(4).Service Hole;
(5).Dimple Hole;
(6).Blot Hole;
(2).Web Notch;
(3).Swage;
(4).Service Hole;
(5).Dimple Hole;
(6).Blot Hole;
