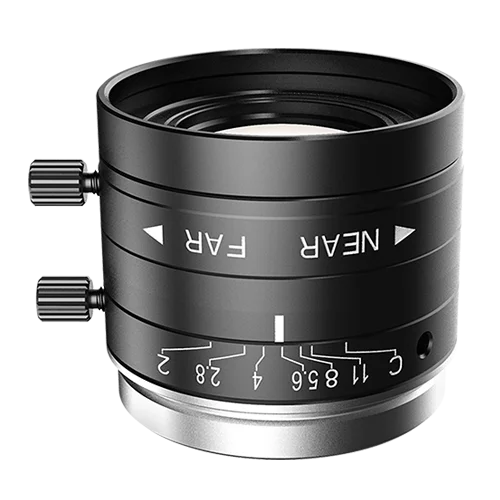

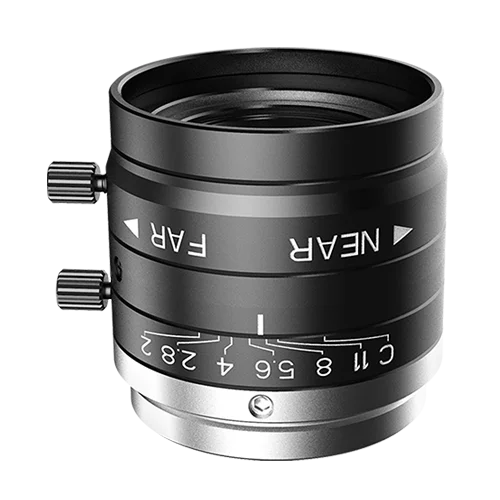

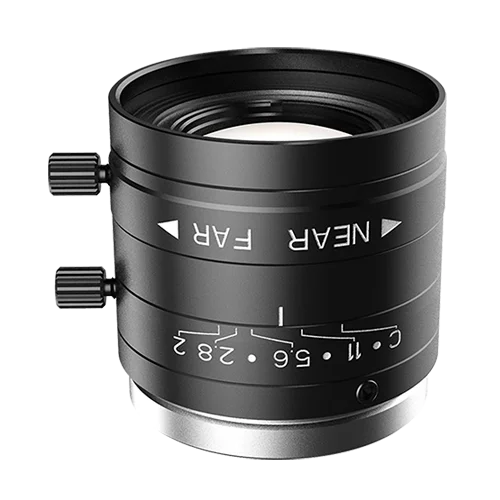

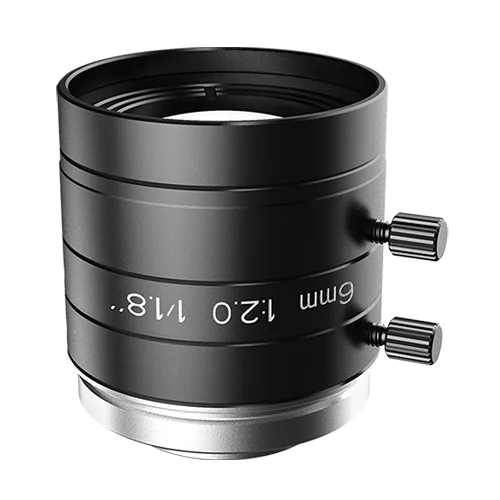

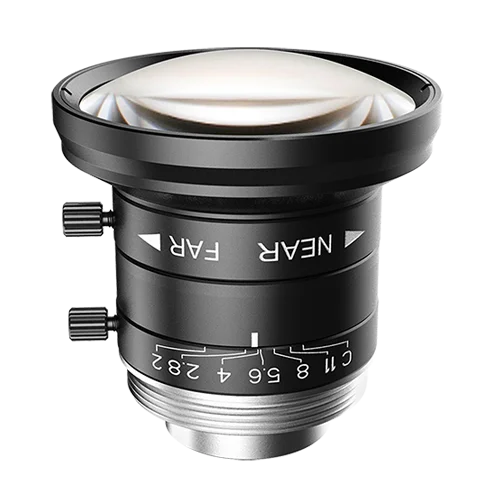

FA0601C машинного зрения автоматизации 1/1.8 дюймов ручной диафрагмой линзы с резьбовым соединением типа C для

Model	FA0601C
Resolution	5MP
Image Size	1/1.8"
EFL	6mm
Aperture	F2.0
Mount	C-mount
MOD	0.1M
Warranty	2 years
Main Material	Aluminum Alloy + optical Glass
Type	Fixed Focus
Color	Black
Application	Sony, Canon, Fuji, Olympus / Panasonic, Samsung, PENTAX, Minolta, etc.
Certificates	CE, RoHS
Net Weight	80g
Custom Design	Supported



Dimension





Line-up

Model	Image Size	Resolution	EFL	F/No.	HxV	Tv Distortion	M.O.D
FA7501A	1/1.8"	5MP	75mm	2.8~C	1/1.8":40.4*29.8 1/2.5":32.34*24.26 1/3":26.96*20.22	<0.05%	0.5m
FA0401A	1/1.8"	5MP	4mm	2~C	1/1.8":459*344 1/2.5":375*279 1/3":311*231	<0.5%	0.1m
FA0601A	1/1.8"	5MP	6mm	2.2~C	1/1.8":351*263.3 1/2.5":287.5*215.6 1/3":239.4*179.6	<0.1%	0.1m
FA0801A	1/1.8"	5MP	8mm	2.2~C	1/1.8":269.4*202 1/2.5":219.2*164.2 1/3":186*136.7	<0.1%	0.1m
FA1201A	1/1.8"	5MP	12mm	2.2~C	1/1.8":182.5*136.9 1/2.5":147.3*110.5 1/3":122.7*92.0	<0.3%	0.1m
FA1601A	1/1.8"	5MP	16mm	2.2~C	1/1.8":134.4*100.8 1/2.5":107.7*80.8 1/3":89.0*66.7	<0.1%	0.1m
FA2501A	1/1.8"	5MP	25mm	2.2~C	1/1.8":139.6*104.7 1/2.5":112.1*84.1 1/3":93.4*70	<0.1%	0.1m
FA3501A	1/1.8"	5MP	35mm	2.2~C	1/1.8":57.9*43.4 1/2.5":46.5*34.9 1/3":38.7*29.0	<0.1%	0.2m
FA5001A	1/1.8"	5MP	50mm	2.8~C	1/1.8":36.1*27.1 1/2.5":29.4*22.1 1/3":24.5*18.4	<0.05%	0.3m
