Product Description
2mm high precision interactive wall interactive projection interactive floor, turn any wall, LED, LCD into touchable

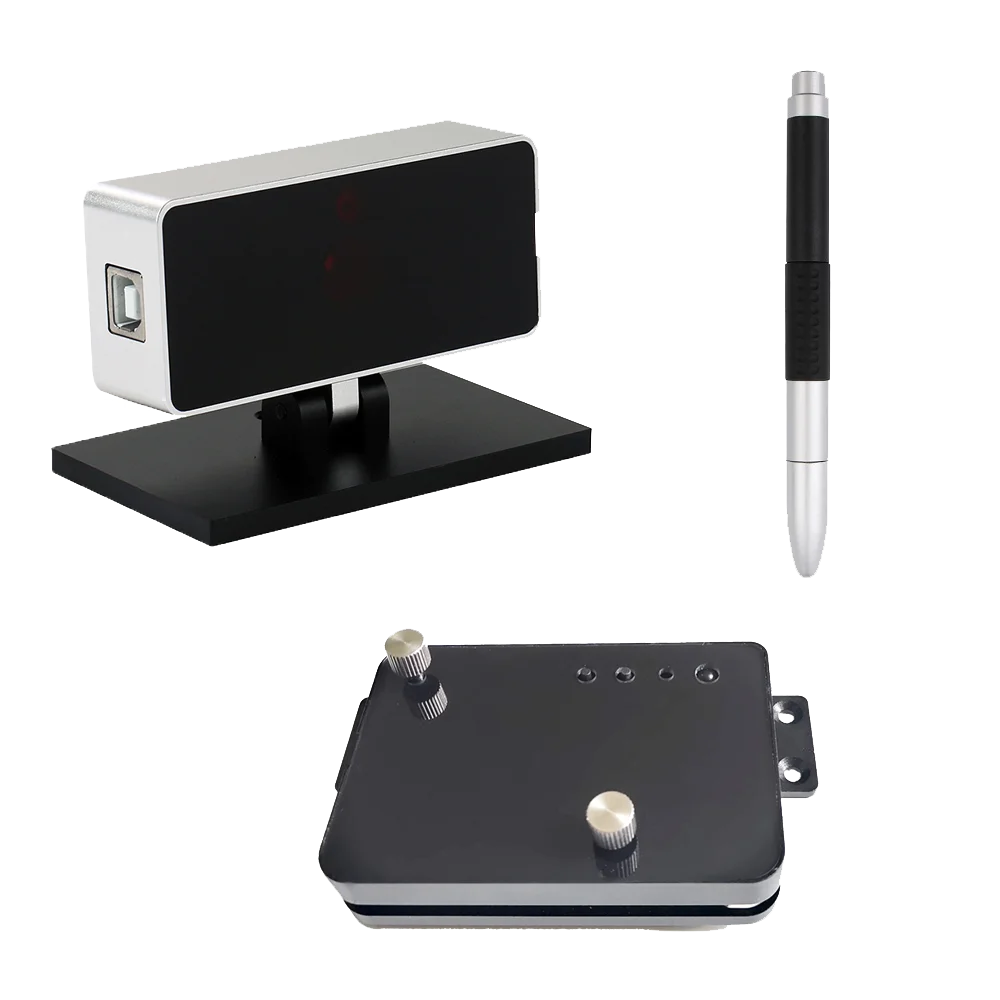

Finger touch portable interactive whiteboards FT8 includes with two parts: emitter and signal receiver. Emitter is fixed on flat surface. It emits infrared laser curtain on the surface which is about 1mm thick invisible light and parallel with the projection screen surface, 1-2mm above the screen surface. When the fingers or any non-transparent objects touch this virtual surface, the light will be reflected and detected by the signal receiver. Computer will figure out the position of the mouse by accurate calculating the reflected light position.
Specifications
For Multi points, please noted the whiteboard software must support Windows OS Native Touch
| Calibration | Automatic(5 seconds) / Manual (4/15 points) | |
| Multi-touch | 100 points touch,writing and erasing can be performed simultaneously | |
| Latency | <6 ms | |
| Filter | Software auto-control/Enhance stability | |
| Min Active Size | 30 inches | |
| Max Active Size | Pen touch:220inches,Finger touch:150inches,Throwball game:400inches(no sunshine room) | |
| Technology | Laser image calibration technology | |
| Positional Accuracy | ±1 pixel (Resolution: 4096*4096) | |
| Aspect Ratio | 4:3/16:9/16:10 | |
| Projector Ratio | Ultra short throw:0.28/0.16 | Installation distance:about 0.4 - 1m |
| Short throw(Middle throw):0.83 /0.57/0.38 | Installation distance:about 1 - 3m | |
| Long throw:1.28 | Installation distance:about 3 - 5m | |
| Power | 5 W | |
| Power of Laser Emitter | 280mW*2 | |
| Laser Emitter Power Requirements | 3.3V/2A | |
| Infrared Coverage Area | 6*8 m | |
| Signal Refresh Rate | 60/180fps | |
| Connect | The sensor and computer are connected by USB cable,laser emitter just need power | |
| Laser Emitter Weight | 146 g | |
| Sensor Weight | 67 g | |
| OS Requirement | Windows xp/vista/7/8/10/11,Android 9/10/11 | |
| Software | OwayIWB,Multi-Board | |
| Certification | CE/FCC/RoHS | |
| Warranty | Sensor(3 years)/Laser emitter(1 year)/IR pen(1 year) | |
| Package | 1.Sensor,2.Emitter,3.IR pen,4.USB cable(10m),5.Remote,6.Power adaptor,7.CD with software | |
Working Sketch:
FT8 is small and easy to install. It doesn’t require professional technology to install.
Just install the laser emitter in the middle area above the whiteboard (or other flat surface) and place the signal receiver on the projector.
Remar: Keep the IR emitter 2-5 cms above the active flat surface.
Game contents:
FAQ:
Q1: What the whole set of interactive wall/floor includes?
A1: It includes:
a.computer (clients prepare or buy from us)
b. projector(clients prepare or buy from us)
c. touch system FT8 (buy from us)
d. games(clients prepare or buy from us)
Q2: Do you provide the whole set of interactive projection wall/floor system?
A2: Yes, we can provide the whole set of interactive projection system. Please leave us your contacts email/whatsapp/wechat.
Q3: Can I buy any other projectors?
A3: Yes, just give us the size of the projector, and we’ll customize the system to your needs.
Q4: If I buy the basic version, can you teach me how to install the interactive floor system?
A4: Yes, we will provide you with a detailed user manual and an installation video.
Q5: Can you design new effects for me?
A5: Yes, you can play your imagination, tell us what you want and then we design.
Q6: What’s the delivery time?
A6: After payment, 3-6 business days after the offshore time.
