Многофункциональный Умный протектор 63 а 230 В 50 Гц автоматическое обнаружение устройства защиты от напряжения
- Категория: Voltage Regulators\/Stabilizers >>>
- Поставщик: Zhejiang,Wuce,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5.16 $* | 5.65 $* |
| Aug-17-2025 | 5.0 $* | 5.64 $* |
| Jul-17-2025 | 4.14 $* | 4.4 $* |
| Jun-17-2025 | 5.7 $* | 5.78 $* |
| May-17-2025 | 4.10 $* | 4.57 $* |
| Apr-17-2025 | 5.2 $* | 5.34 $* |
| Mar-17-2025 | 5.4 $* | 5.26 $* |
| Feb-17-2025 | 4.43 $* | 4.84 $* |
| Jan-17-2025 | 4.50 $* | 4.3 $* |
Характеристики
Products Description
Our Advantages
1.We have the most advanced production process equipment.
2.Our factory has more than 10 years of production experience.
3.We have product safety certification: VDE, PSE, CCC, CE (LVD), CE (EMC), CB.
4.High quality products, excellent service.
5.Our sales staff have rich experience in foreign trade and can respond to and solve your problems in a timely manner.
3.We have product safety certification: VDE, PSE, CCC, CE (LVD), CE (EMC), CB.
4.High quality products, excellent service.
5.Our sales staff have rich experience in foreign trade and can respond to and solve your problems in a timely manner.
Product overview
This intelligent dual-display over-voltage and under-voltage protector is a wide product developed by our company. It integrates over-voltage protection, under-voltage protection and current limiting protection. , the user can adjust according to their own voltage and current requirements. When the line exceeds the overvoltage, undervoltage, and overcurrent setting values, the power supply of the protector can be quickly cut off to protect the electrical equipment from being damaged and burned. After the fault is eliminated, The protector can automatically detect the voltage and current according to the line conditions. The product can display the voltage and current status when the product is energized and connected to the equipment. The product can automatically close and restore power within the set range value without manual operation.

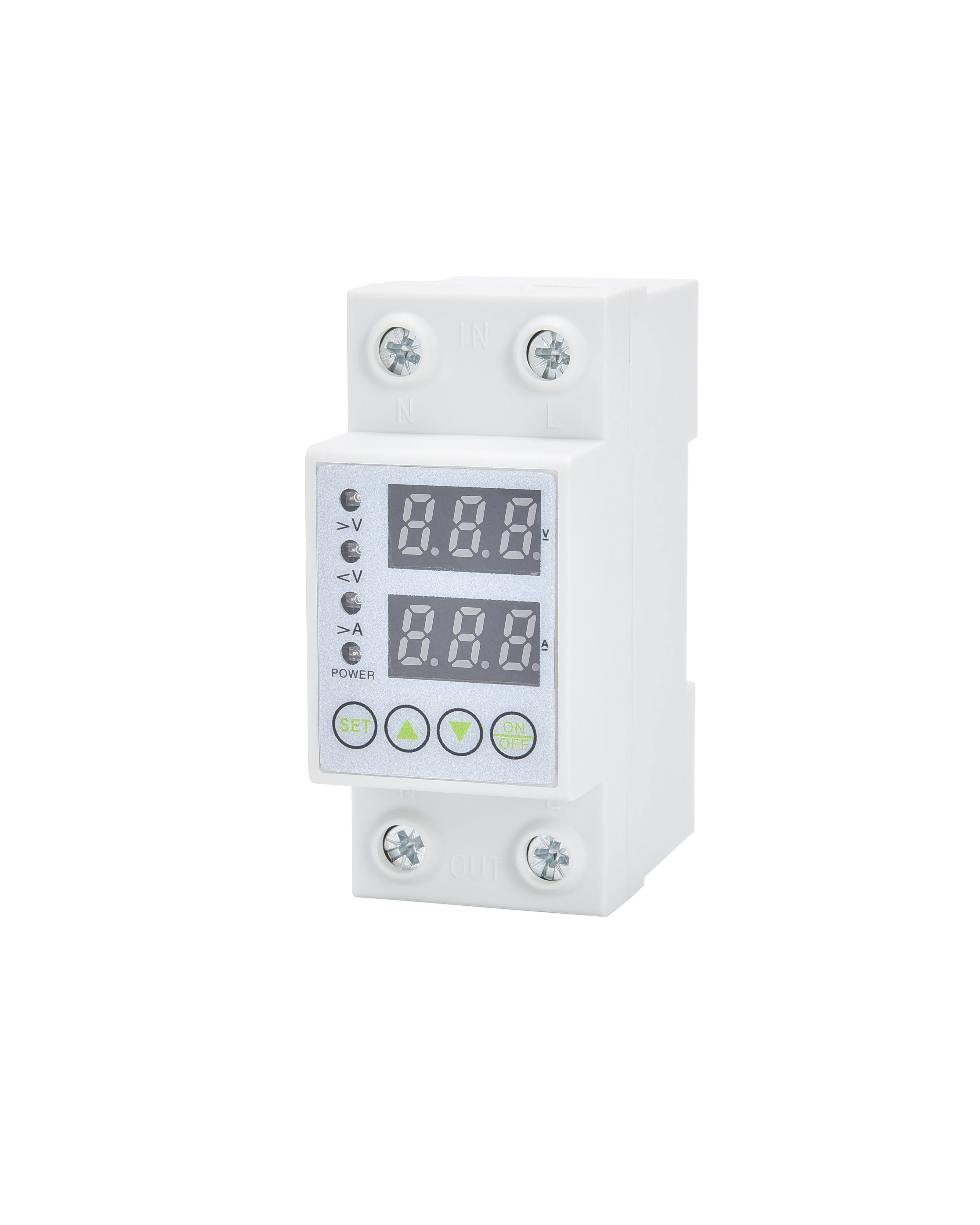

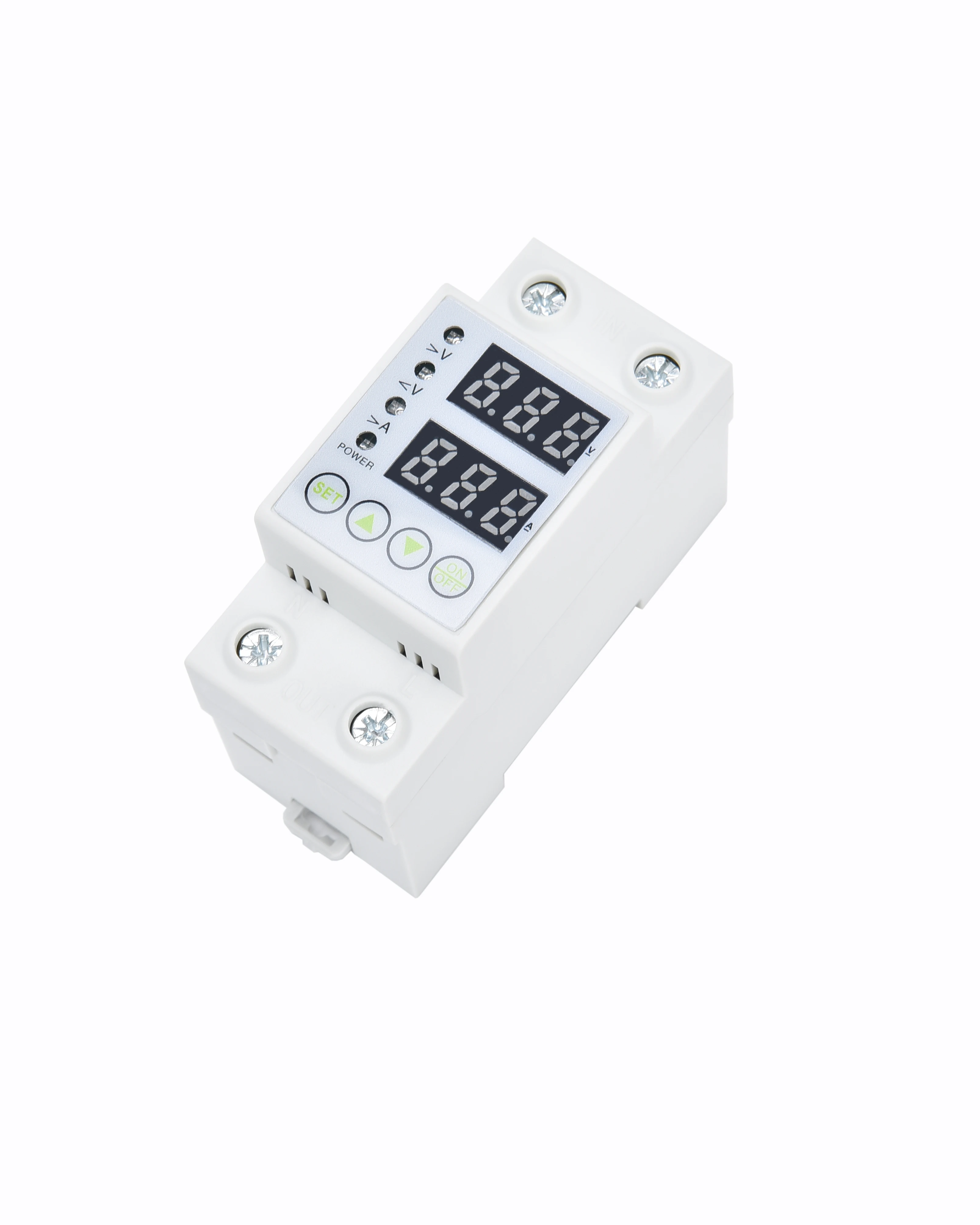

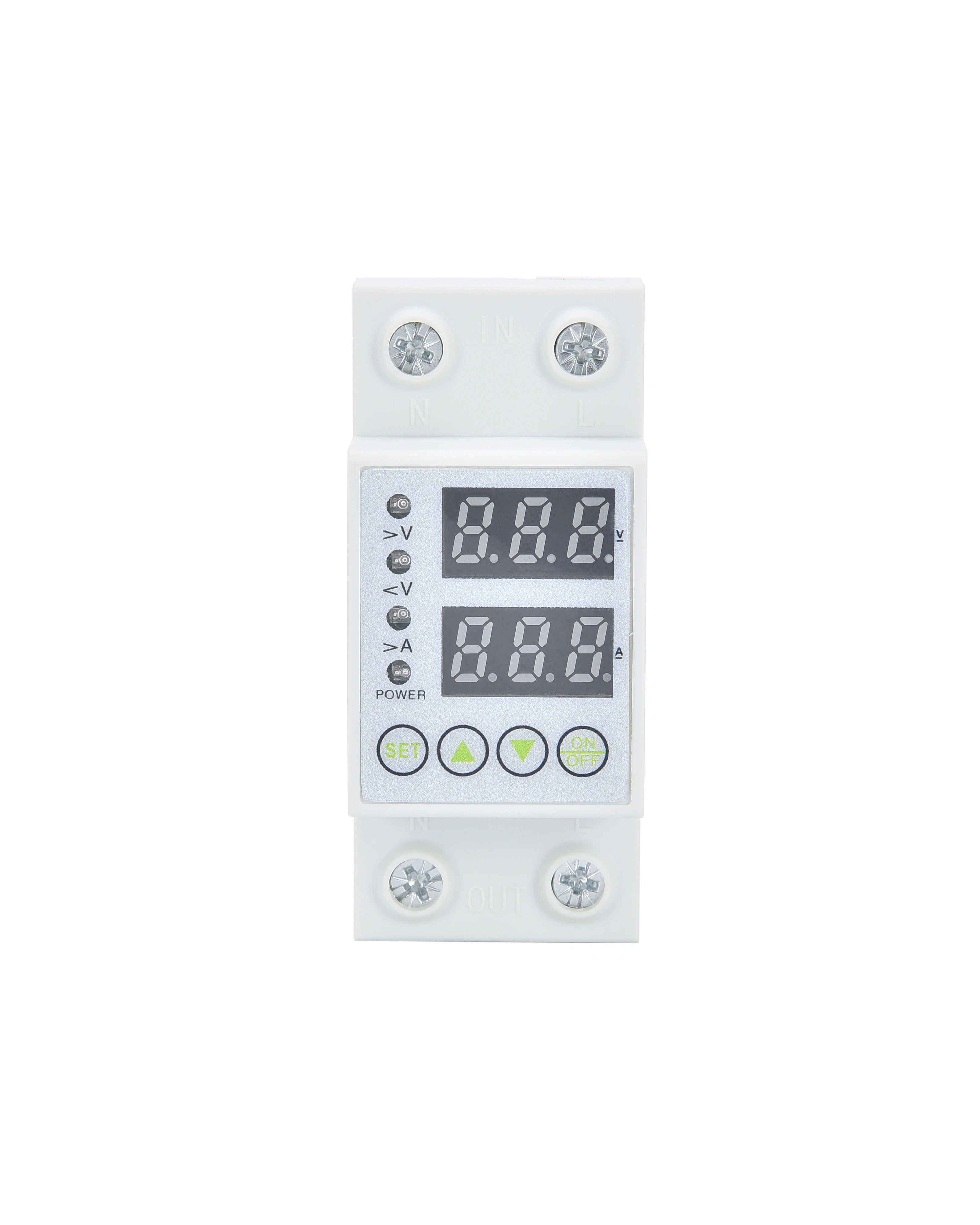

Functional structure
1 - SET Button:This button is used to save after setting/changing Over-current values & high/low voltage setting values and error
wait time.
2 - UP Button: Increase the required value.
3 - Down Button: Reduce the required value.
4 - Manual On/Off Button: For close the device output. In this state, the screen will display "off" and the device cannot be automatic reset. Press this button again to Switch on the device intouse again (No failure premise).
wait time.
2 - UP Button: Increase the required value.
3 - Down Button: Reduce the required value.
4 - Manual On/Off Button: For close the device output. In this state, the screen will display "off" and the device cannot be automatic reset. Press this button again to Switch on the device intouse again (No failure premise).
5 - Current Display 1St Display Group: During normal operation, the input (mains) voltage value is displayed here,the screen
lights up steadily when not in error state,the display flashes in case of error (high or low voltage).During the programming
process, the value of the relevant program is shown on the display (Over-current and high/low voltage, error wait,reset wait
setting values].
lights up steadily when not in error state,the display flashes in case of error (high or low voltage).During the programming
process, the value of the relevant program is shown on the display (Over-current and high/low voltage, error wait,reset wait
setting values].
6 - Voltage Display 2St Display Group: During normal operation, current value is displayed here, the screen
lights up steadily when not in error state,the display flashes in case of error (over-current). During the programming process,
the numeric value of the relevant program is displayed here.
lights up steadily when not in error state,the display flashes in case of error (over-current). During the programming process,
the numeric value of the relevant program is displayed here.
7 - LEDs: A>:Light up when an over-current fault occurs. V>:Light up when an high voltage fault occurs. V<: Light up when an low
voltage fault occurs. power: Lights up when the device starts to output.
voltage fault occurs. power: Lights up when the device starts to output.
Device Usage and Principle of Operation
WCE-63 Current & voltage protection relay is designed to protect devices with sensitive operating voltage & current values from
errors that may arise from mains voltage and Overload.
errors that may arise from mains voltage and Overload.
Make the connections of the device according to the connection type. Otherwise, the device may be damaged. Adjust the over-current
and high & low voltage and settings of the device according to the operating current and voltage values of the load you will use.
and high & low voltage and settings of the device according to the operating current and voltage values of the load you will use.
Wiring diagram
The neutral an phase connection comes from the mains must be connected to the "N"and "L" terminal set the "lnput" of the device.
Neutral and Phase connection of the devices that are desired to be protected from over and under voltage should be taken from the "N" and“L”terminals in the "Output" part of the device.
Neutral and Phase connection of the devices that are desired to be protected from over and under voltage should be taken from the "N" and“L”terminals in the "Output" part of the device.
Rated voltage: | 230v | |||||||||||||
Frequency: | 50Hz | |||||||||||||
Rated current: | 1A~36A adjustable (default 40A, 64A~100A can be customized) | 280V | 320V | 385V | 440V | 600V | NPE:255V | |||||||
Undervoltage action cut-off value: | 210v-145v adjustable (default 170v) | |||||||||||||
Overvoltage action cut-off value: | 230v-300v adjustable (default 270v) | |||||||||||||
Power transmission delay after power failure: | 30s | |||||||||||||
Self power consumption: | ≤2w | ≤1.0kV | ≤1.2kV | ≤1.45kV | ≤1.6kV | ≤2.5kV | ≤1.5kV | |||||||
Electrical and mechanical life: | ≥ 100,000 times | |||||||||||||
Wiring method: | top in and bottom out, bottom in and top out | |||||||||||||
Over-voltage and under-voltage limit current action parameters and recovery parameters can be adjusted according to customer needs | ||||||||||||||
Production equipment environment
The comprehensive production area covers a huge area, with dozens of production lines for various products; it has a lightning strike simulation laboratory, various lightning protection product testing instruments, etc.; it is equipped with a bright production environment, and has positive technical personnel to ensure product quality.
The neat desktop, bright and clean production environment is beneficial to the work of our employees, protects the eyesight, does not need to worry about the safety of the ground, guarantees the rapid production and quality of the product, and the maintenance personnel can easily and quickly judge the normal damage of the product quality.
The company has independently developed a number of advanced automatic production and processing lines, plastic injection molding lines, metal stamping lines, as well as multiple lines; automatic glue filling, automatic soldering, automatic lamination, pad printing, laser marking, automatic detection and other automatic lines.
It integrates automation equipment such as data uploading, automatic sealing and packaging. It runs through every link of our production, carefully controls every production process, strictly implements every standard specification, and realizes the controllable and traceable quality of every product. Strictly control the quality of each product.
