Характеристики



Product Description

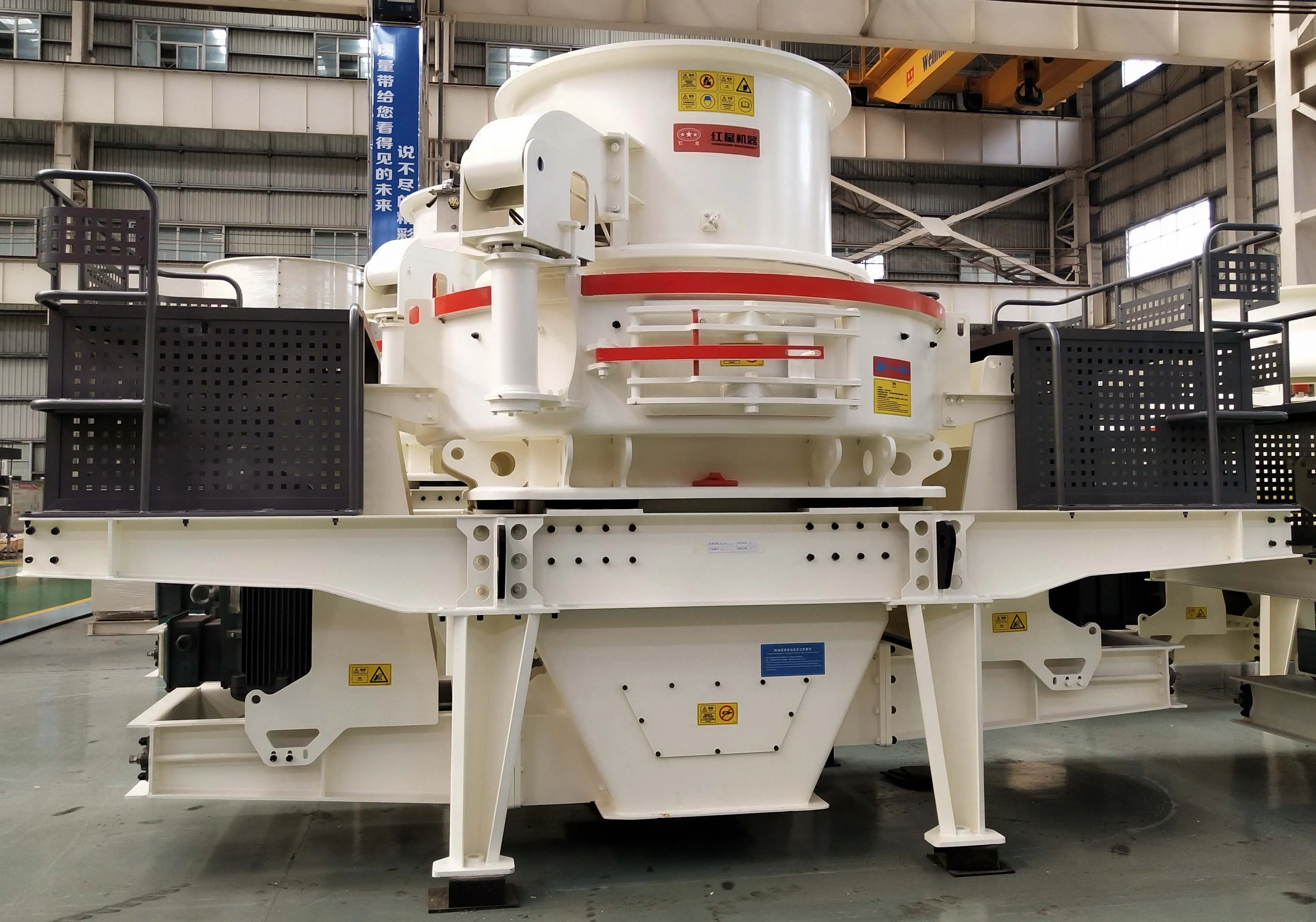

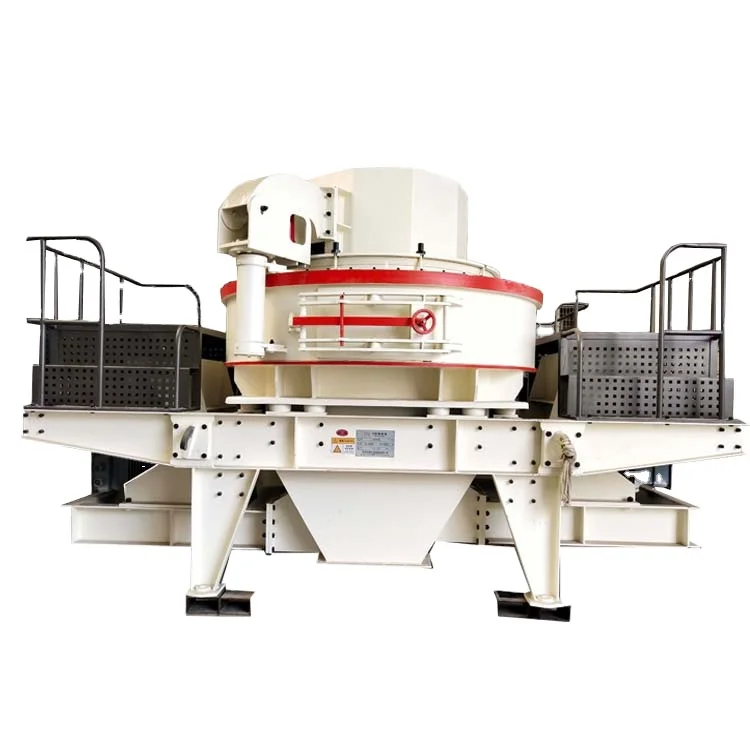

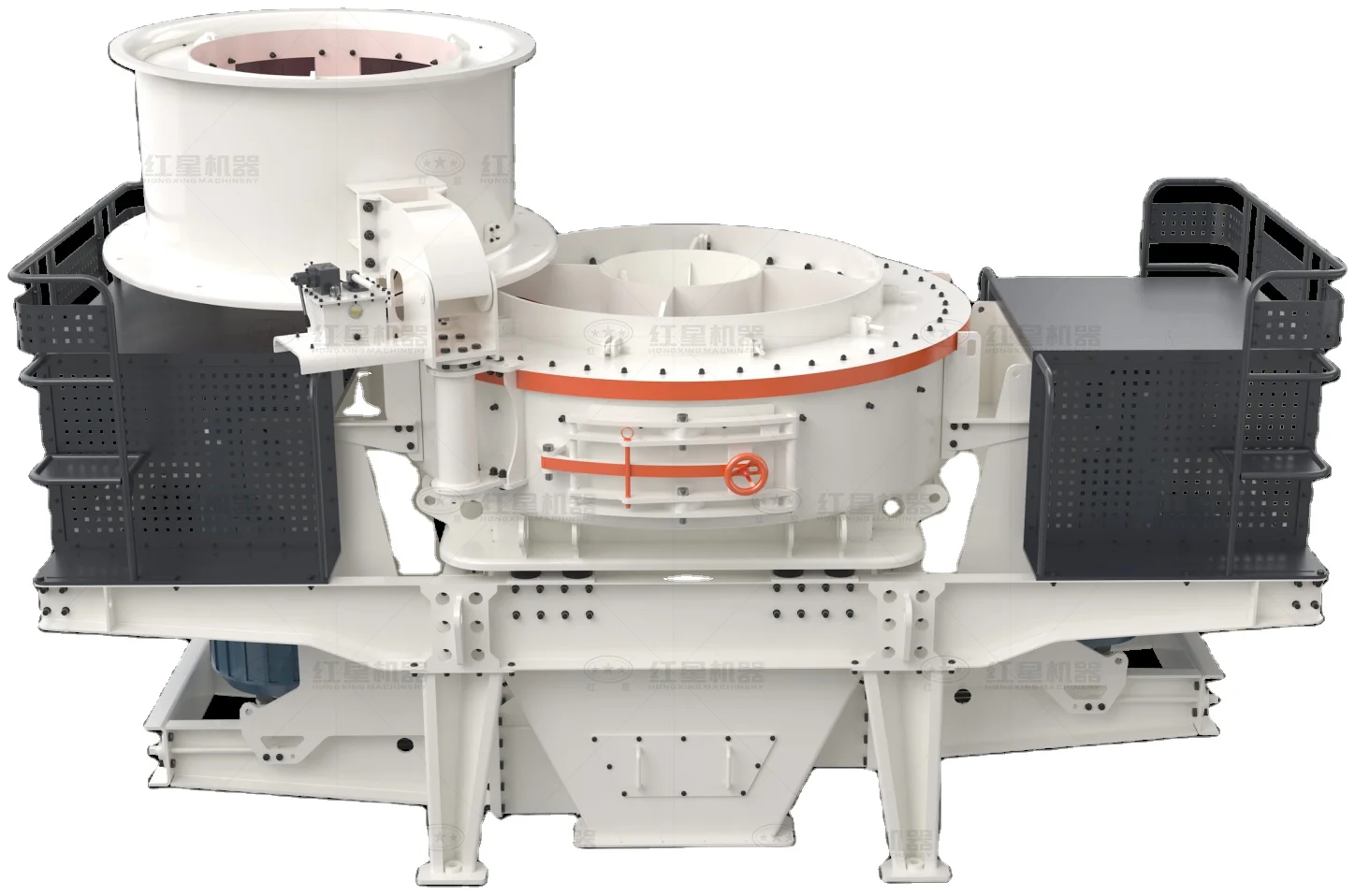

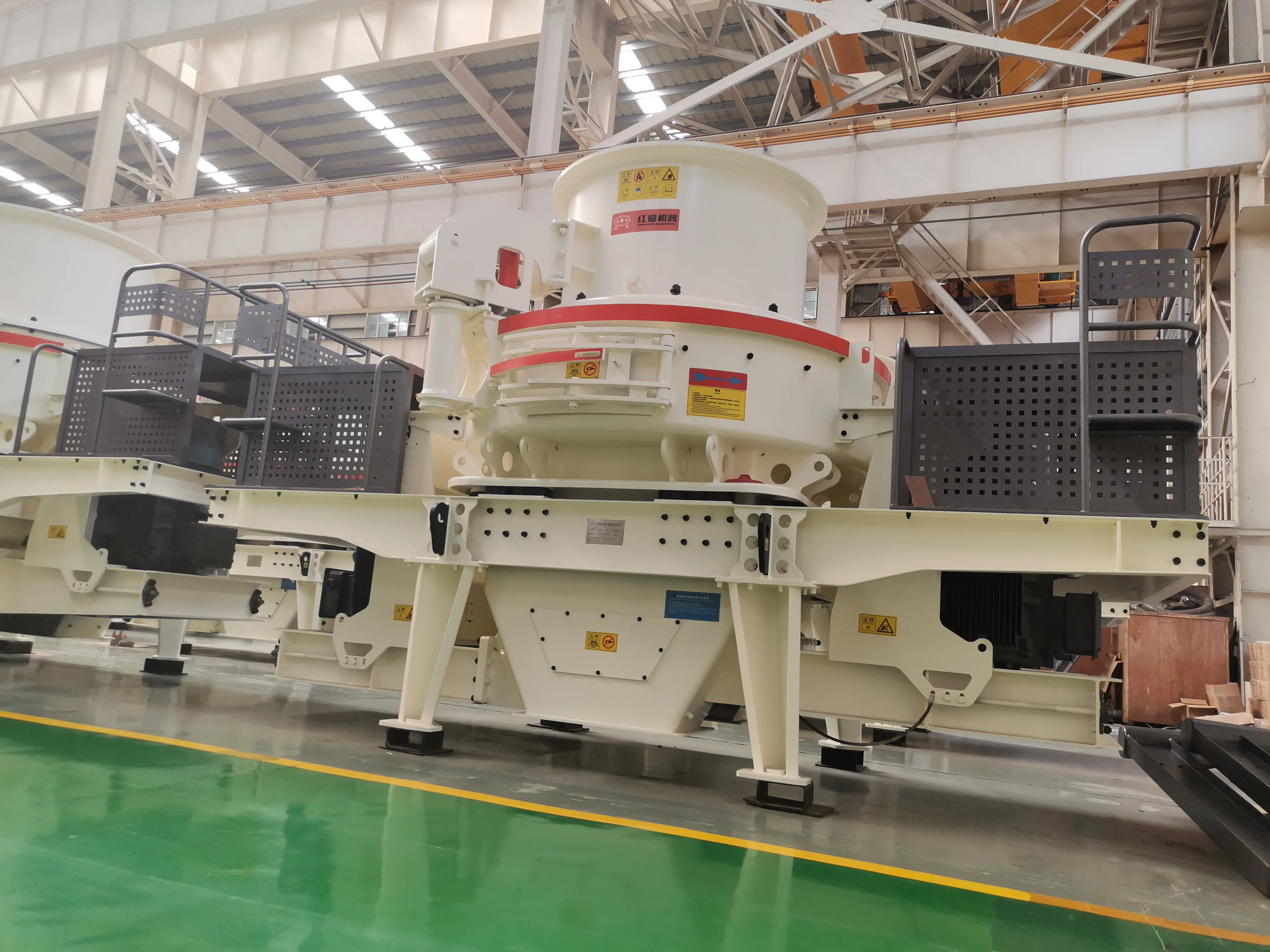

Sand Making Machine is suitable for the medium and fine crushing of various hard and crisp materials such as various rocks,abrasive materials, refractory, cement clinker, quartz stone, iron ore and concrete aggregate, and especially suitable for making building sand and road paving sand and stone.






Working principle


The materials go into the crusher from the feed hopper and are separated into two parts by the distributor. One part goes into the impeller rotating with high speed from the middle of the distributor, and is quickened inside the impeller, and the acceleration can reach hundred times of the acceleration of gravity, and then the materials will cast from the three uniformly distributed runners of the impeller at a speed of 60-70m/s, and impact and crush with the other part of materials which fall from around the distributor and then they will together impact to the material lining inside the vortex cavity. Bounced from the material lining,the materials will impact obliquely upward to the top of the whirling motion chamber which will change their movement direction again, so that materials will move down, and the  materials launching from the runners of the impeller will form a continuous material curtain. In this way, the materials will get two times or more hitting, friction, grinding and crushing effect inside the whirling motion crushing chamber. The crushed materials will be discharged from the bottom discharging mouth. This process will form a closed-circuit system together with the cyclic screening system and generally speaking, after three times of cycle, the materials will be crushed below 20Moh.




Sand making Plant
It includes hopper, vibrating feeder, jaw crusher, cone crusher, vibrating screen, sand making machine, sand washer with fine sand recycling machine.


Model list


Model
Input
Power(kw)
Capacity of sand making(t)
Capacity of shaping(t)
HX-06
35
37-55
5-10
12-30
HX-07
45
55-75
15-18
25-55
HX-09
50
110-150
18-30
55-100
VSI-7611
30-35
110
30-35
60-90
VSI-8518
35-40
180
40-45
100-130
VSI-9526
40-45
264
50-65
150-190
VSI-1140
45-50
400
85-90
225-260
HVI-0815
30-35
150
70-140
130-230
HVI-0818
30-35
180
85-190
165-283
HVI-0922
35-40
220
105-145
220-330
HVI-0926
35-40
264
120-190
240-380
HVI-1032
40-45
320
181-278
246-356
HVI-1040
40-45
400
262-284
350-440
HVI-1250
45-50
500
345-371
414-540
HVI-1263
45-50
630
453-498
521-585


Our Advantages


1. There is airflow self-circulation inside vortex chamber ; less dust ; less noise ; stones can form the bottom protection base during production process ; no abrasion for the machine body , durable in use .

2. Hudraulic pressure opening device , easy to maintain.

3. The ambient guard plate can be turned up and down to prolong the service life

4. Combined throwing head , only need to replace the wear part , can reduce the cost of 30%

5. Lubrication method can be selected , the modular design of thin oil type and grease type of bearing chamber can realize the whole interchangebility.






Packing & Delivery


Machine is nude packing , motor and lubricating station / control cabinet is packing in wooden box .

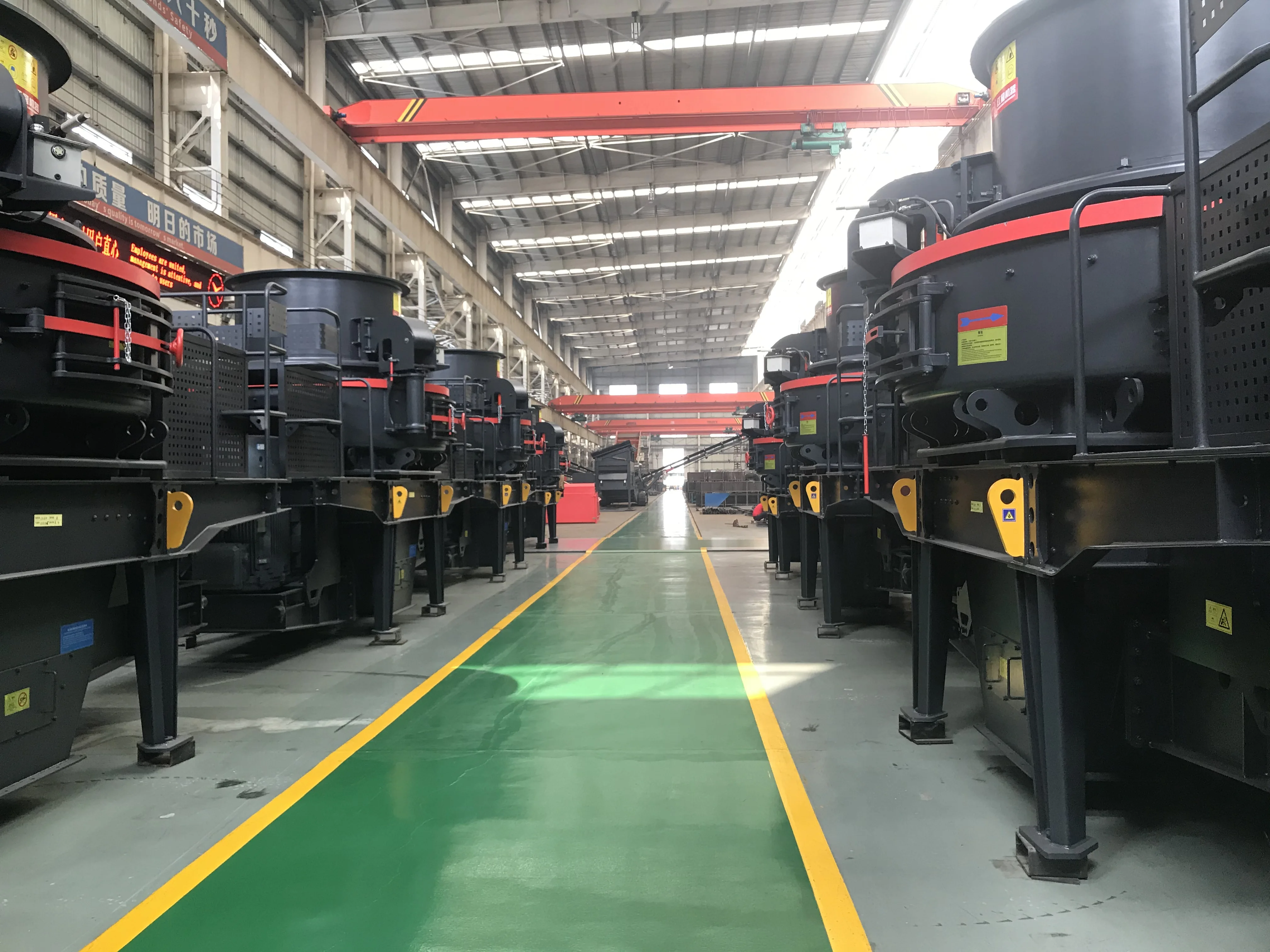

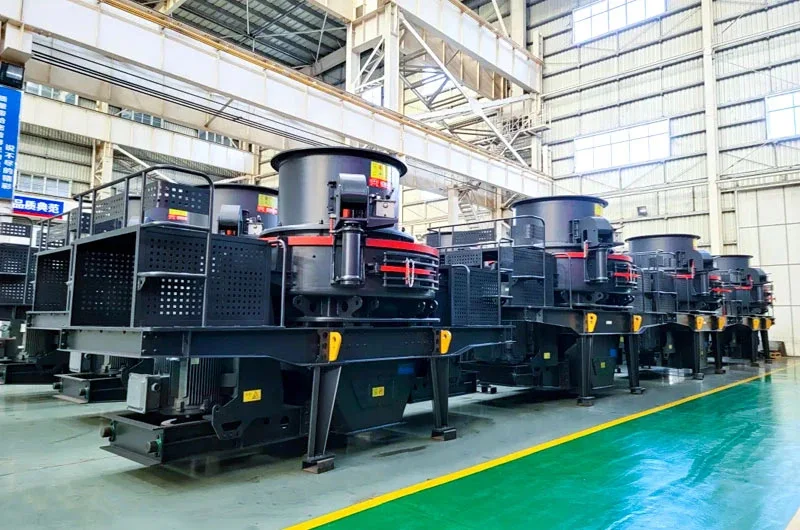

Our factory


Henan Hongxing Mining Machinery co., Ltd, is a large scaled mining machinery manufacturer and export company . The headquarter is located in the High & New Technology Industries Development Zone of Zhengzhou.

Now we possess three large manufacturing bases with an area of 350,000m2, which includes 260,000m2 of standard heavy duty industrial workshop. There are more than 600 equipment, including large and medium sized metal processing, riveting and installing equipment.




Communication






Contact us


If you are interested with our products, please don't hesitate to contact us. You can tell me the following questions, Then I can send you accurate quotation soon, including additional discount!

1. what kind of stone do you want to crush ? limestone ? granite ? concrete bricks ? or ?

2. what's the size of your stone before crush ? how many mm or inch ?

3. what's your requirement of production capacity ? how many ton per hour?

4. what's your requirement of final stone's size ?
