Дешевые спутниковый телевизионный ресивер GTMEDIA V7S5X DVB-S/S2/S2X для спутникового ТВ-приемника Южной Америки
- Категория: Satellite TV Receivers >>>
- Поставщик: Shenzhen,Intek,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.18 $* | 0.89 $* |
| Aug-16-2025 | 0.38 $* | 0.60 $* |
| Jul-16-2025 | 0.57 $* | 0.16 $* |
| Jun-16-2025 | 0.35 $* | 0.73 $* |
| May-16-2025 | 0.33 $* | 0.80 $* |
| Apr-16-2025 | 0.73 $* | 0.85 $* |
| Mar-16-2025 | 0.69 $* | 0.23 $* |
| Feb-16-2025 | 0.61 $* | 0.51 $* |
| Jan-16-2025 | 0.41 $* | 0.83 $* |
Характеристики

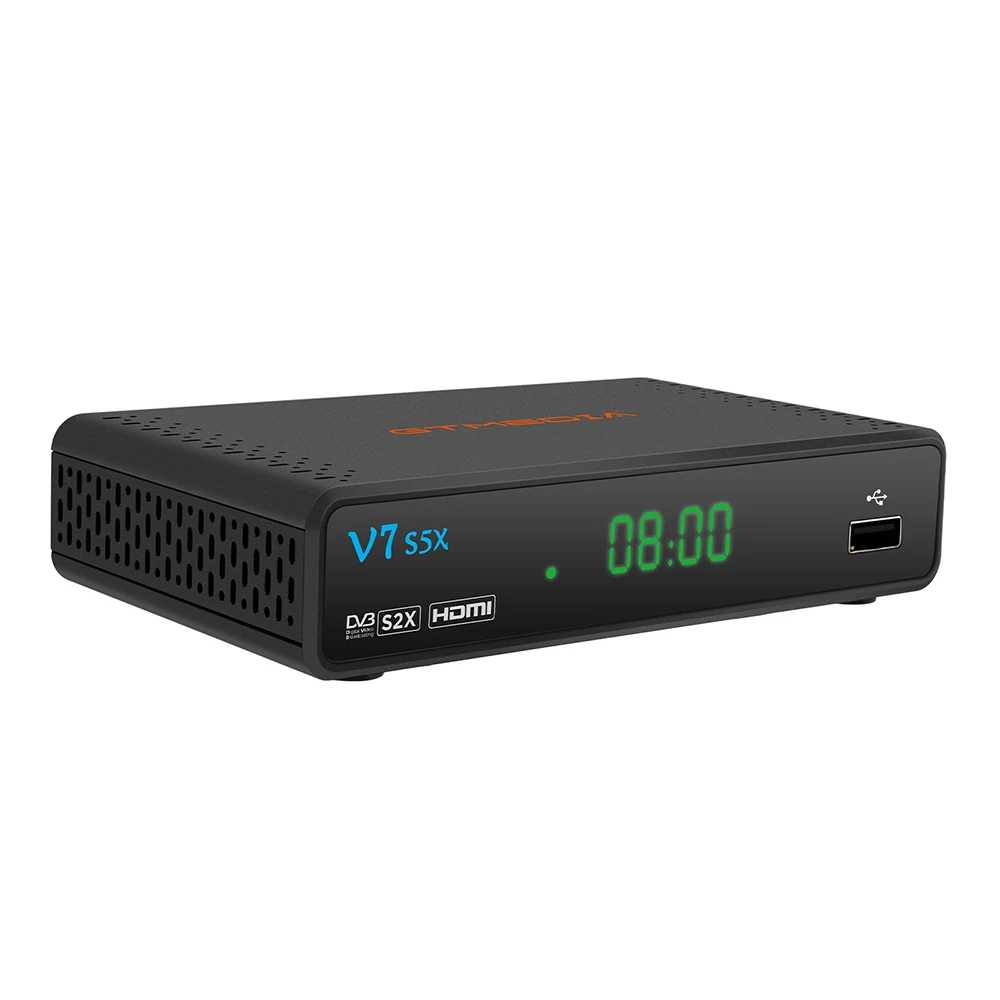

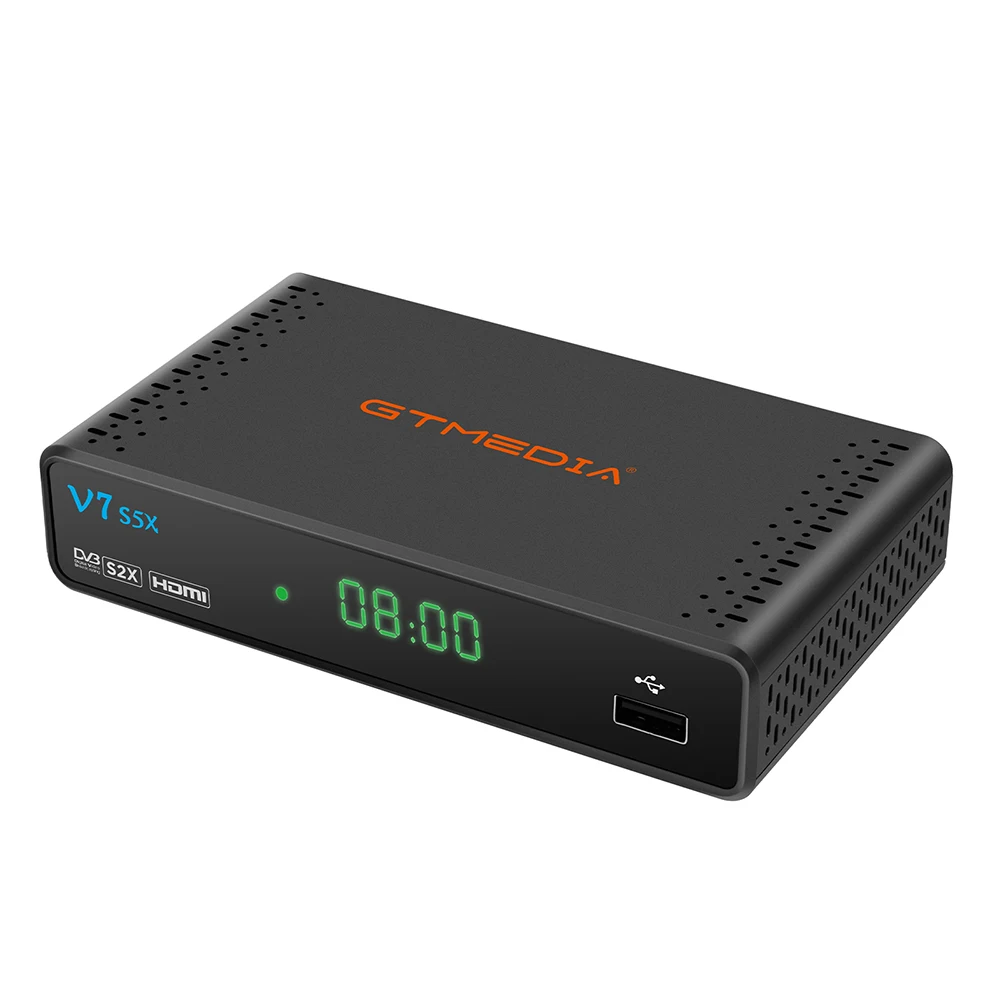

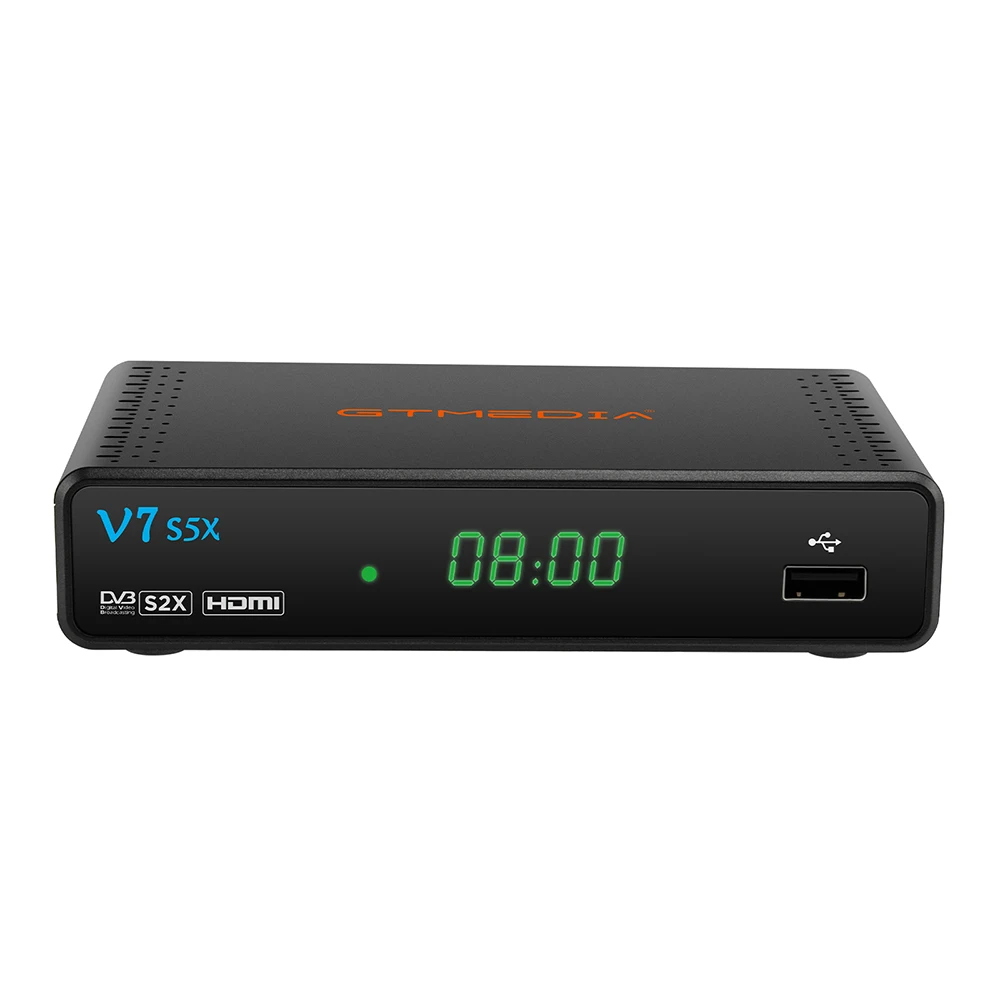

New Arrival GTMEDIA V7S5X 1080P satellite receiver update V7S2x HD 1080P STB DVB S2X Satellite Receptor
Products Description
Highlight
1. Support DVB-S/S2/S2X, AVS+,VCM/ACM/multi-s tream/T2MI 2.Support BI SS auto roll, Full Po werVu, DRE &Bi ss key;
3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;
4.Support Full speed USB 3/4G dongle and USB wifi dongle,
5.Support Online Movie (You tube,You porn);
6.Support Ccc am, New cam;
7.Technical support website : www.freesat.cn
CPU frequency 550MHz Dual Core
Flash Memory 64MB SPI FlashDDR2
Memory 512M RAM
Main Chip Sets | CPU frequency | 770MHz Dual Core | ||||||||||||
Flash Memory | 64MB SPI Flash | |||||||||||||
DDR2 Memory | 512M RAM | |||||||||||||
TS Demux | Demultiplexer | ISO/IEC 13818-1 | ||||||||||||
Input Bit Rate | Max 100Mbit/s | |||||||||||||
Video Decode | Video Decode | HEVC main profile@level 4.1 and main10 profile@L4.1,High tier MPEG-2 MP@ML H.265 BP,MP&HP@L3/L4.1/L4.2 AVS Jizhun profile and broadcast profile MPEG-4 SP profile, advanced simple profile@L5 VC1 SP@ML, MP@HL, AP@L0-3 H263 baseline profile JPEG decoder | ||||||||||||
PAL/NTSC | Automatic PAL/NTSC conversion | |||||||||||||
Aspect Ratio | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box | |||||||||||||
Video Resolution | 1080P, 1080I, 720P, 576P, 480P, 576I, 480I | |||||||||||||
Audio Decode | Audio Decode | MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, Dolby AC3/AC3+, DRA CH/5.1CH | ||||||||||||
Sound Mode | LEFT/RIGHT/STEREO/MONO | |||||||||||||
Sampling Frequency | 32KHz,44.1KHz,48KHz | |||||||||||||
Hardware specifications | Panel display | 4-digit LED display | ||||||||||||
LED Indicator | Power ON :Green; Standby :Red | |||||||||||||
Button | NC | |||||||||||||
Wifi | Support USB Wifi dongle (MTK7601/RT5370) | |||||||||||||
IR | Exit IR for 38KHz,Infra Remote control | |||||||||||||

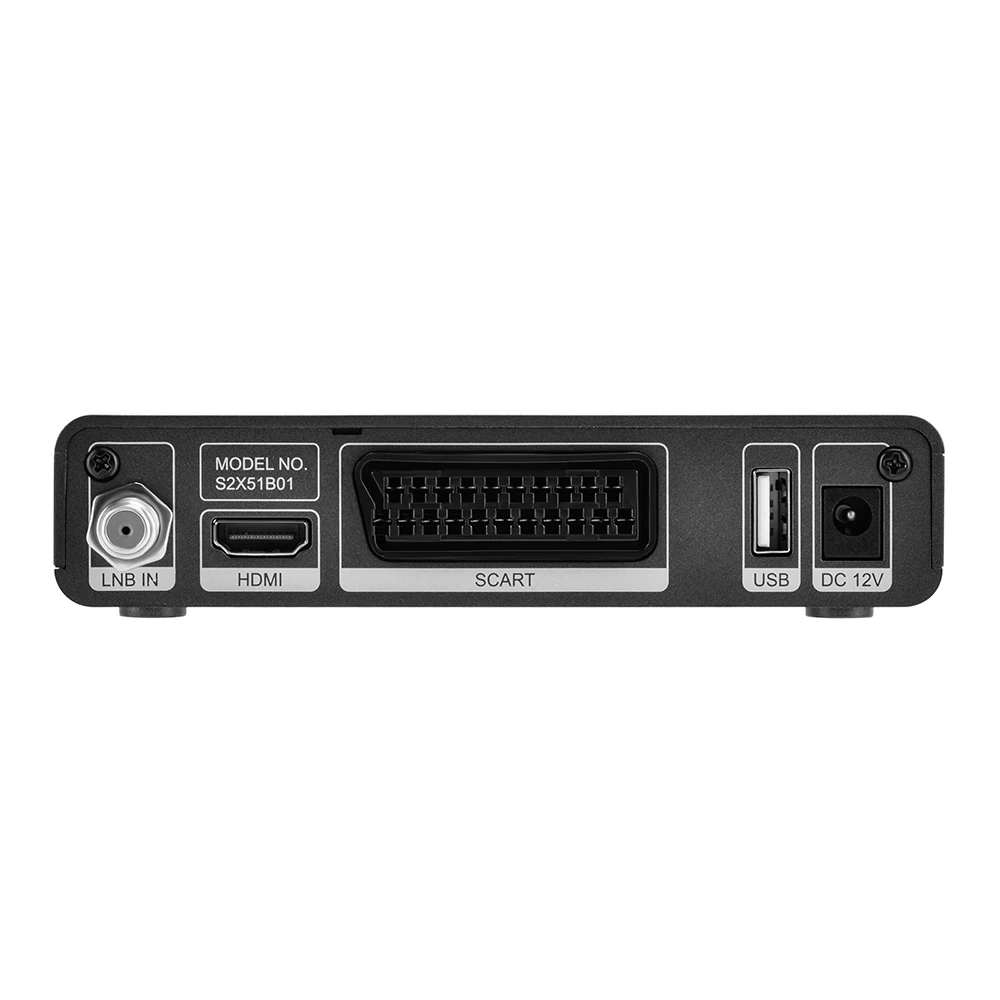

Rear Panel | LNB IN (Frequency Range950MHz to 2150MHz DVB-S/S2/S2X) | |||||||||||||
HD OUT (up to 1080P) | ||||||||||||||
SCART OUT | ||||||||||||||
2*USB 2.0 HOST | ||||||||||||||
Power (DC 12V/1.5A) | ||||||||||||||
DVB-S/S2 Tuner specificati-ons | System standard | ETS 302 307 | ||||||||||||
Frequency Range | 950~2150MHz for DVB-S/S2/S2X | |||||||||||||
LNB Power and Polarization | DiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection | |||||||||||||
Input Level Range | -80dBm ~ -25dBm | |||||||||||||
Symbol Rates | DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK | |||||||||||||
Forward error correction rate | 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 | |||||||||||||
Carrier frequency acquisition range | ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates | |||||||||||||
Symbol Rates | 2 ~ 90MSPS(Code Rate 1/2) | |||||||||||||
Code Rates | 1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6 ,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates | |||||||||||||
ANT. Connector | Connector:IEC TYPE F Input Impedance:75 Ω | |||||||||||||
Sortware Features | Standard | Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite) | ||||||||||||
Channels Number | 6000+ channels TV and Radio programmable | |||||||||||||
Favorites | 16 different favorite groups selection | |||||||||||||
OSD Language | OSD Multi-language for options(English, Spanish, French, Russian, Portuguese, Polish, Indonesian, Arabic, Turkish, German, Italian, Persian, Thai) | |||||||||||||
EPG | Fully support to 7 days Electronic Program Guide(EPG) | |||||||||||||
OSD Color | 16-bit OSD with anti-flickering | |||||||||||||
Channel Search | Supports Automatic network search for newly added transponders | |||||||||||||
Channel Edit | Various channel editing function(favorite,move,lock,skip, delete,rename,find,sort) | |||||||||||||
Parental Ctrl | Parental control for channels | |||||||||||||
Easy Menu | Plug and Play installation, with an easy to use Menu System | |||||||||||||
SoftUpgrade | Software upgrades through USB port upgrade. | |||||||||||||
Channel | Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) | |||||||||||||
Subtitle | support DVB EN300743 and EBU | |||||||||||||
Teletext | support DVB ETS300472 by VBI and OSD | |||||||||||||
Time Set | Time set by GMT offset automatic and manual,Summer Time support | |||||||||||||
Timer | 5 event timers,off/Once/Daily/Weekly Mode | |||||||||||||
USB Decode | USB 2.0 | Support FAT/FAT32/NTFS big capacity hard disk | ||||||||||||
PVR Option | USB 2.0 for PVR,TIMESHIFT,media files playback | |||||||||||||
Media Codec | TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files | |||||||||||||
Audio Codec | WMA,MP3 | |||||||||||||
Photo Codec | JPG, BMP, PNG, GIF | |||||||||||||
Packing | Product Dimension | 140*80*32mm （L*W*H） | ||||||||||||
Packaged Size | 233*165*49MM | |||||||||||||
Carton Size | 510*260*486MM---30pcs/ctn | |||||||||||||
Unit Weight | 0.45 Kg with gift box | |||||||||||||
Carton Qty&Weight | 30 pcs/Carton, 14kgs optional | |||||||||||||
Accessories | Gift Box, Adapter, IR remote control, HD Cable, User Manual,Warranty card | |||||||||||||
Physicals | Power Supply | AC 100-250V,50Hz/60Hz | ||||||||||||
Power Consumption | 8W in operation ≦1 W Standby Power Mode | |||||||||||||
Temperature | Operation 0～+45℃; Storage -10~+60℃ | |||||||||||||
Humidity | 20~90%, non-condensed | |||||||||||||
Details Images
Certificate
Alibaba Assessed Gold supplier
With 11 years experience in the field of TV Box,we get the SGS assessment certificate and become the member of alibaba assessed supplier.
About us
Certificate
Alibaba Assessed Gold supplier
With 11 years experience in the field of TV Box,we get the SGS assessment certificate and become the member of alibaba assessed supplier.
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q1:How did i trust your company ?
A:We are a 10-years old suppliers from alibaba, we have good reputation in this area. You can trust us,
also can trust alibaba.
Q2:How long will you ship out the goods after i place the order on you?
A:We will make the shipment within 24 hours after your order is confirmed if it is standard order;
If it is customization order, the lead time depends on your exact requirements.
Q3:After i get the products What if my products broken , what kind of service you support ?
A:First contact us, tell us about the problem, our engineer will help to handle; secondly, you can send back the products to us , we will fix it . we support 12 months warranty , any problem catch me online ,we can give you good solution way . we want to do long term business with you not just for 1 day 1 times.
Q4. Customs Tax
should be paid by buyer, Seller can not support any Customs Tax.
Q5. Remote Area:
For Remote area, DHL/Fedex/UPS/TNT will charge extra " Remote Area Fee", please understanding
