Лидер продаж популярный высококачественный коммерческий водолазный шланг

Лидер продаж популярный высококачественный коммерческий водолазный шланг

Категория: Snorkels >>>
Поставщик: Yantai,Zhituo,Diving,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.67 $*	0.71 $*
Aug-20-2025	0.88 $*	0.31 $*
Jul-20-2025	0.4 $*	0.98 $*
Jun-20-2025	0.76 $*	0.70 $*
May-20-2025	0.81 $*	0.57 $*
Apr-20-2025	0.55 $*	0.77 $*
Mar-20-2025	0.65 $*	0.76 $*
Feb-20-2025	0.75 $*	0.46 $*
Jan-20-2025	0.52 $*	0.42 $*

Характеристики

3 Part Umbilical Material (Pneumo, Breathing, Communications):

A diver's umbilical is a group of components which supply breathing gas and other services from the surface control point to a diver. It is part of the life support system and will usually be inspected before use, and maintained and tested at specified intervals.

A Pneumofathometer is a device used to measure the depth of a diver by displaying the back-pressure on a gas supply hose with an open end at the diver, and a flow rate with negligible resistance in the hose.

Products Description

Item (UMB004)	Unit	AFL 04
Max.working pressure	psi/bar	500
Min. burst pressure	psi/bar	2000
Inner dia.	mm	8
Outer dia.	mm	17.5
Weigth in air	kg/km	210
Weight in water	kg/km	-44.3
Min. bend radius	mm	42.5
Total weight	kg/km	330
Comm hose color			Red
Air hose color			Blue

Item(UMB005)	Unit	AFL 04 -Air	AFW 05-Pneumo.
Max.working pressure	psi/bar	500	400
Min. burst pressure	psi/bar	2000	1600
Inner dia.	mm	8	5.5
Outer dia.	mm	17.5	11.5
Weigth in air	kg/km	210	88.5
Weight in water	kg/km	-44.3	-31.8
Min. bend radius	mm	42.5	29
Total weight	kg/km	418.5
Comms hose color			Red
Color			Blue	Yellow

Item(UMB006)	Unit	AFL 06
Max.working pressure	psi/bar	800
Min. burst pressure	psi/bar	3200
Inner dia.	mm	8.5
Outer dia.	mm	18.5
Weigth in air	kg/km	257
Weight in water	kg/km	-57.3
Min. bend radius	mm	44.5
Total weight	kg/km	377
Comms hose color			Red
Air hose color			Yellow

Terms(UMB007)	Unit	AFL 07-Air	AFW 07-Pneumo.
Max.working pressure	psi/bar	800	800
Min. burst pressure	psi/bar	3200	3200
Inner dia.	mm	8.5	5.5
Outer dia.	mm	18.5	11.5
Weigth in air	kg/km	257	110
Weight in water	kg/km	-57.3	-22.3
Min. bend radius	mm	44.5	22.5
Total weight	kg/km	487
Comms hose color			Red
Color			Blue	Yellow

Terms(UMB008)	Unit	AFL 08-Air	AFW 08-Pneumo
Max.working pressure	psi/bar	1500	1500
Min. burst pressure	psi/bar	6000	6000
Inner dia.	mm	8.5	5
Outer dia.	mm	18.5	12
Weigth in air	kg/km	257	110
Weight in water	kg/km	-57.3	-22.3
Min. bend radius	mm	44.5	22.5
Total weight	kg/km	487
Comms hose color			Red
Color			Yellow	Black

Details Images

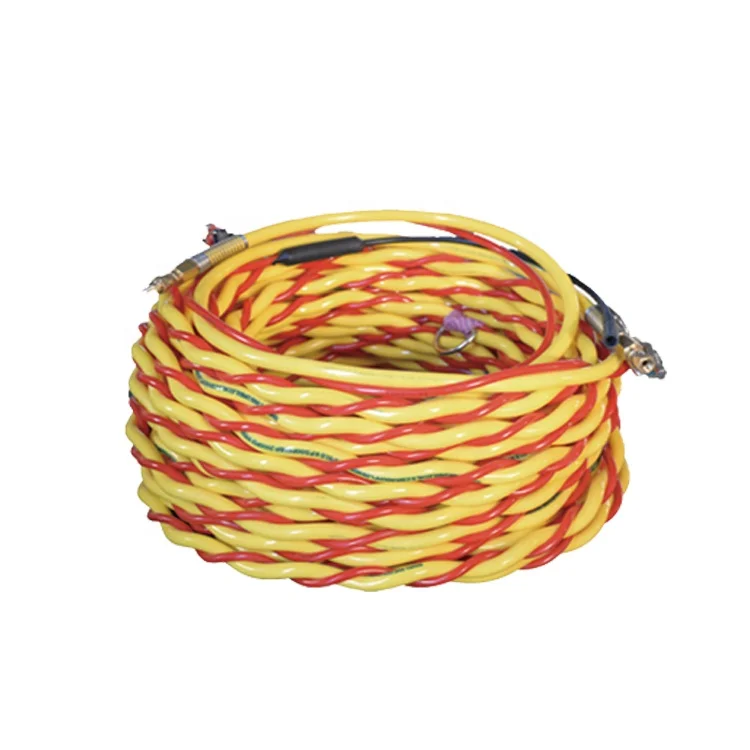

UMB004 Umbilical

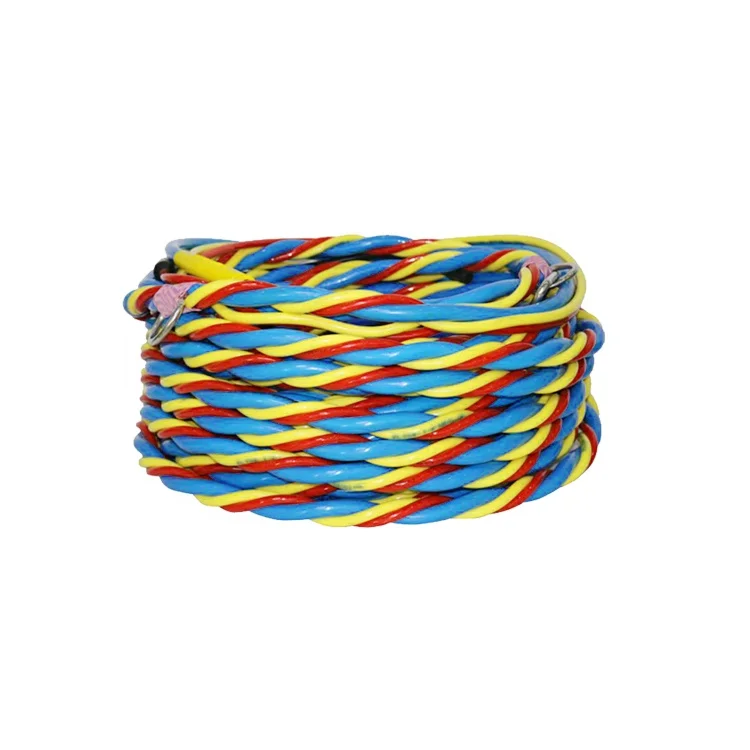

UMB005 Umbilical

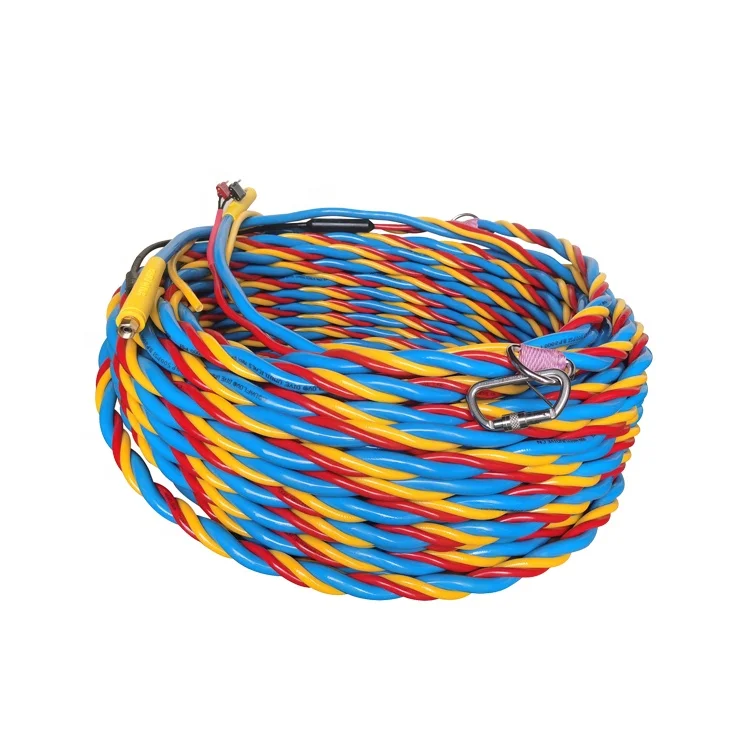

UMB006 Umbilical

UMB007 Umbilical

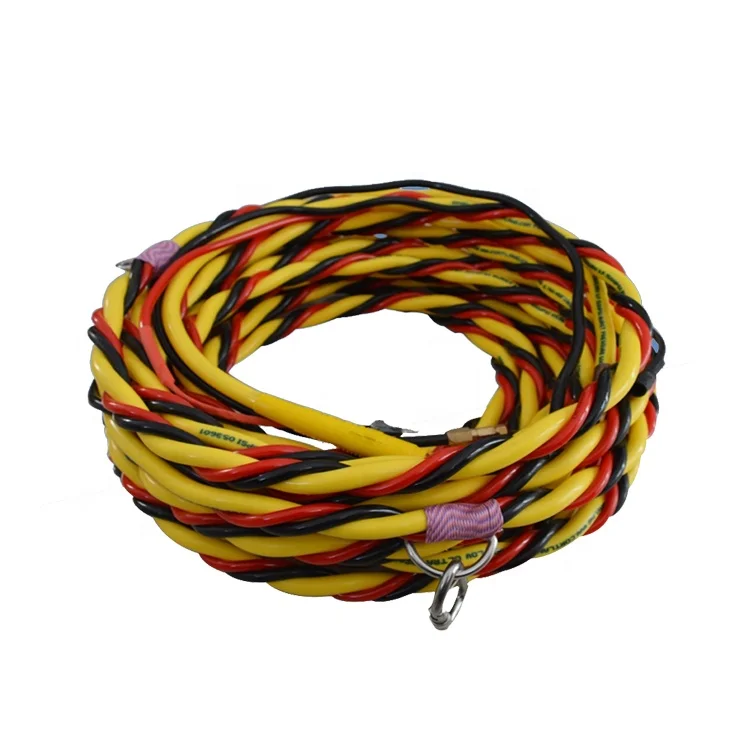

UMB008 Umbilical

Joints

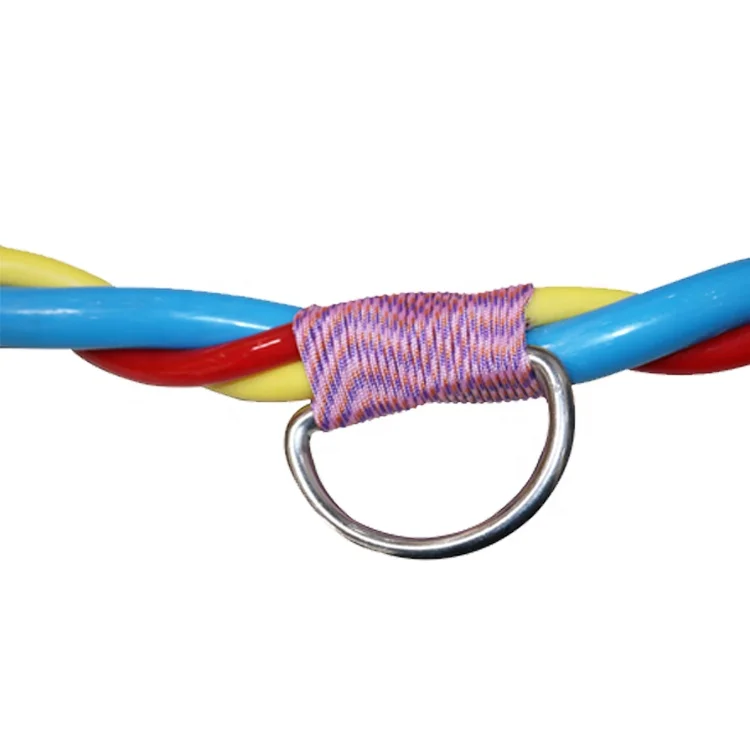

D-ring

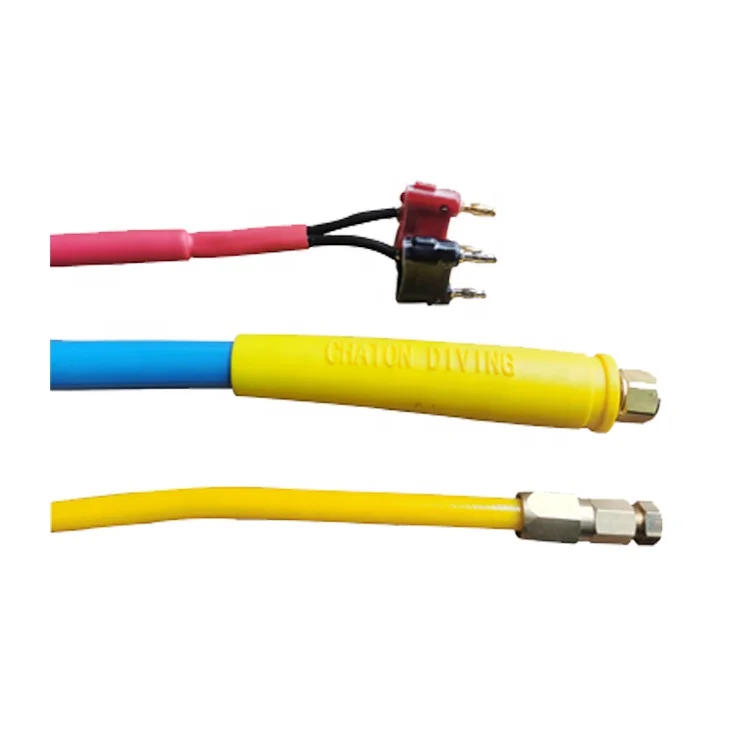

Joints for communication

Application

Company Profile

YANTAI ZHITUO DIVING EQUIPMENT CO.,LTD, locating in beautiful coastal city-YANTAI, is a professional commercial and scuba diving gears manufacturer with an integration of design, manufacturing, and sale. Our company is a member of China Diving & Salvage Contractors Association. Our diving gears involve engineer diving, scuba diving, commercial diving, underwater salvage, underwater rescue, etc. Our diving gears occupy a leading position in domestic market with good reputation, and we also export to Asia, Africa, Europe & South America. Our team is growing under flexible system, strict management, advanced equipment, outstanding before and after sales service. We are so proud of our profession, service, quality and price. Welcome to visit our company warmly! Please feel free to contact us by telephone or email. You can depend on us for assistance 7*24*365.

Exhibition

FAQ

1.Are you a MANUFACTURER or TRADER?

We are a professional manufacturer of dive gears for more than ten years.

2.What is your PAYMENT TERMS?

30% advance payment by T/T,balance payment before delivery.

3.Is OEM available?

Absolutely, just send us your LOGO.

4.What is the MOQ?

1PC, as your performance insepction.

5.Do you have export experience?

Absolutely, we export to Australia, Russia, North Korea etc.

Product packaging

Commercial 3 parts umbilical hose package: Self-box + Wooden box.
