1000 в 500 водонепроницаемый 2 3 4 6 12 струн Солнечная система PV
- Категория: Solar Related Products >>>
- Поставщик: Hefei,Junmuhe,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 57.57 $* | 58.12 $* |
| Jul-20-2025 | 46.30 $* | 47.39 $* |
| Jun-20-2025 | 56.94 $* | 57.0 $* |
| May-20-2025 | 56.9 $* | 57.2 $* |
| Apr-20-2025 | 45.57 $* | 46.43 $* |
| Mar-20-2025 | 55.62 $* | 56.94 $* |
| Feb-20-2025 | 54.99 $* | 55.15 $* |
| Jan-20-2025 | 54.27 $* | 55.49 $* |
Характеристики
Specification
System maximum dc voltage | 500V/1000V |
Maximum input strings | 4 |
Maximum input current for each string | 15A |
Maximum output switch current | 63A |
Number of inverter MPPT | 1 |
Number of output strings | 1 |
Nominal discharge current | 20KA |
Maximum discharge current | 40KA |
Voltage protection level | 2.8KV/3.8KV |
Maximum continuous operating voltage Uc | 1000V |

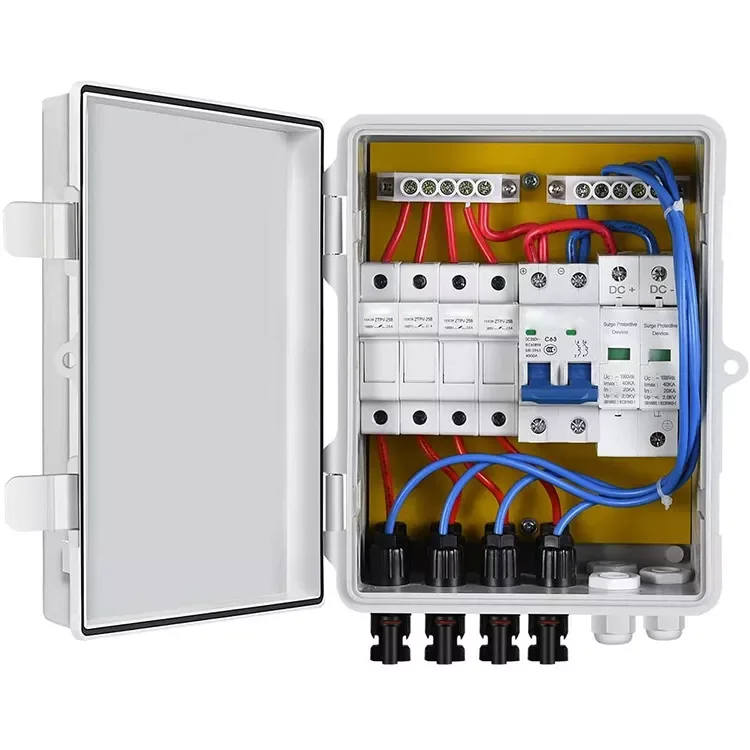

YMC4 Connectors/dc fuse/dc surge protector | Standard |
Monitoring module/Preventing diode | Optional |
Box material | PC/ABS |
Installation method | Wall mounting type |
Operating Temperature | -25℃--+55℃ |
Permissible relative humidity | 0-95%, no condensation |
