Новый Huawei SmartAX EA5801 серии EA5801-GP08 EA5801E mini olt
US $389.00-$700.00
Открытое самонесущее 2 ядра FRP ftth без каблука обувь прямая кабеля волоконно-оптический кабель с стальной провод
- Категория: >>>
- Поставщик: Zhuhai,Surelink,Communication,Cable,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.66 $* | 0.45 $* |
| Aug-18-2025 | 0.92 $* | 0.13 $* |
| Jul-18-2025 | 0.51 $* | 0.96 $* |
| Jun-18-2025 | 0.88 $* | 0.6 $* |
| May-18-2025 | 0.18 $* | 0.98 $* |
| Apr-18-2025 | 0.30 $* | 0.1 $* |
| Mar-18-2025 | 0.7 $* | 0.65 $* |
| Feb-18-2025 | 0.58 $* | 0.46 $* |
| Jan-18-2025 | 0.45 $* | 0.87 $* |
Характеристики

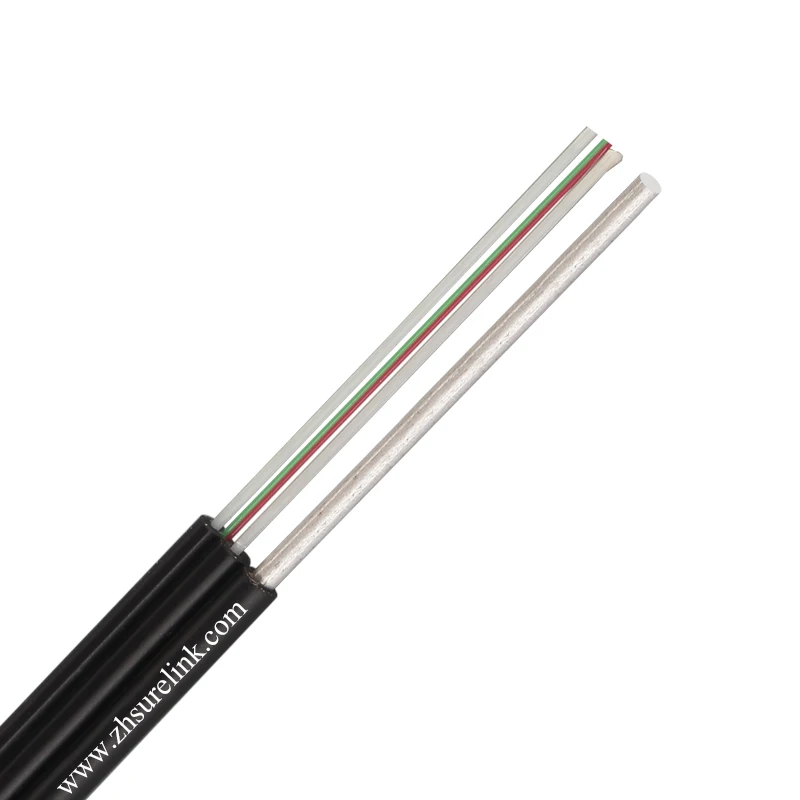

SURELINK 2 core aerail G652d G657a ftth cable with Steel messenger outdoor ftth drop cable ftth cable
Feature：
1.Soft and bendable, easy to deploy and maintenance.
1.Soft and bendable, easy to deploy and maintenance.
2.Smaller diameter, Light weight, and high practicability.
3.Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.
4.Environmental protection- Low smoke, zero halogen and flame retardant sheath.
PRODUCT SPECIFICATIONS

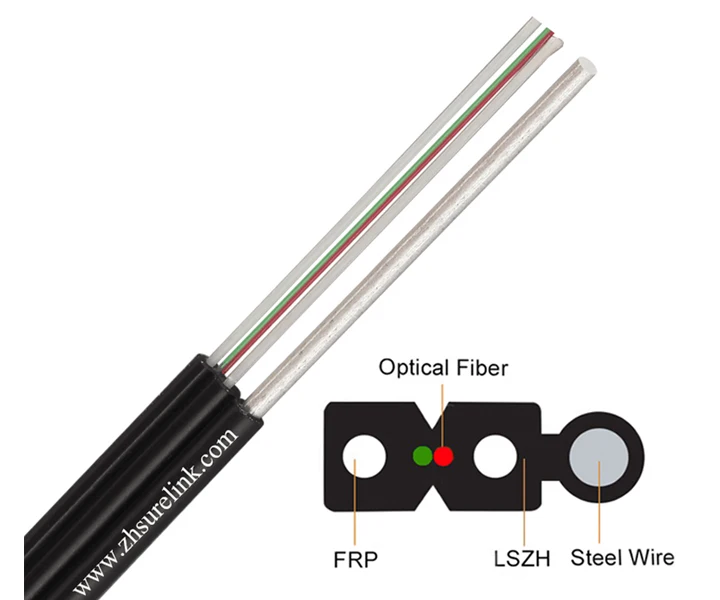

1.Product Structure
2.Optical Characteristics
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation (+20°C) | @850nm | ≤3.5 dB/km | |||
@1300nm | ≤1.5 dB/km | ||||
@1310nm | ≤0.45 dB/km | ≤0.50 dB/km | |||
@1550nm | ≤0.30 dB/km | ≤0.50dB/km | |||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | |||
@1300nm | ≥1000 MHz·km | ||||
Numerical Aperture | 0.200±0.015NA | ||||
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Fiber Parameters
No. | Items | Unit | Specification | ||
G.657A1 | |||||
1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 | |
1550nm | μm | 10.1±0.5 | |||
2 | Cladding Diameter | μm | 124.8±0.7 | ||
3 | Cladding Non-Circularity | % | ≤0.7 | ||
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | ||
5 | Coating Diameter | μm | 245±5 | ||
6 | Coating Non-Circularity | % | ≤6.0 | ||
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | ||
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | ||
9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 | |
1550nm | dB/km | ≤0.21 | |||
10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 | |
1turn×10mm radius@1625nm | dB | ≤1.5 | |||
Application
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor.
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor.
SIMILAR PRODUCTS
COMPANY PROFILE
Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories. We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.
CERTIFICATE
MANUFACTURE
PRODUCT PACKAGE
