033 U-образная машина для производства питьевой соломы
US $9200-$9500

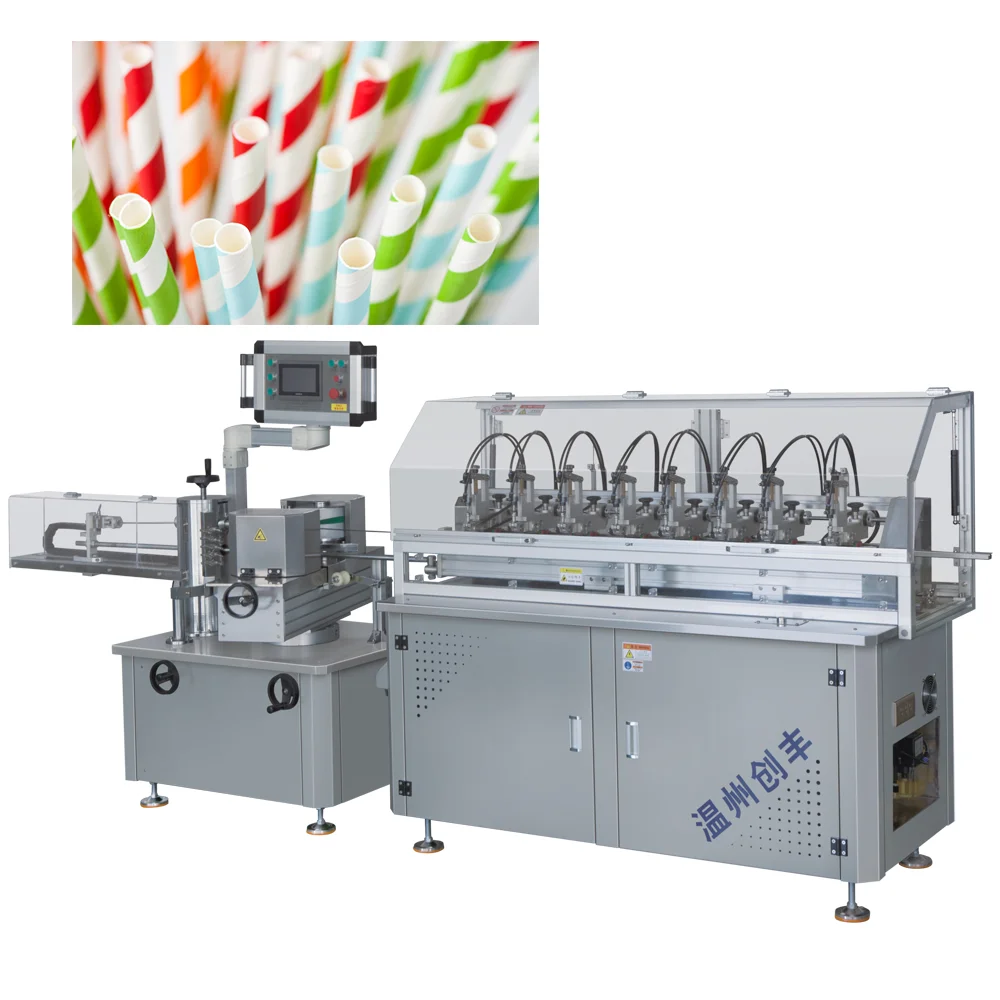

Высокоскоростные многорезаки u-образная машина для производства соломинок риса и бумаги
- Категория: Straw Making Machines >>>
- Поставщик: Wenzhou,Chuangfeng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 27370.15 $* | 28739.24 $* |
| Aug-19-2025 | 27140.71 $* | 28497.93 $* |
| Jul-19-2025 | 22770.83 $* | 23909.29 $* |
| Jun-19-2025 | 26680.71 $* | 28014.63 $* |
| May-19-2025 | 23230.85 $* | 24392.30 $* |
| Apr-19-2025 | 26220.91 $* | 27531.94 $* |
| Mar-19-2025 | 25990.4 $* | 27290.38 $* |
| Feb-19-2025 | 25760.81 $* | 27048.75 $* |
| Jan-19-2025 | 25530.44 $* | 26807.80 $* |
Характеристики
Application:
1. Paper feeding speed is 110 meters per min; Paper tube out put speed is 85-100 meters per minute.
2. Machine adopted with PLC controller; main motor equipped with variable frequency speed regulation; touch screen man-machine interface makes it simpler for setting and operating.

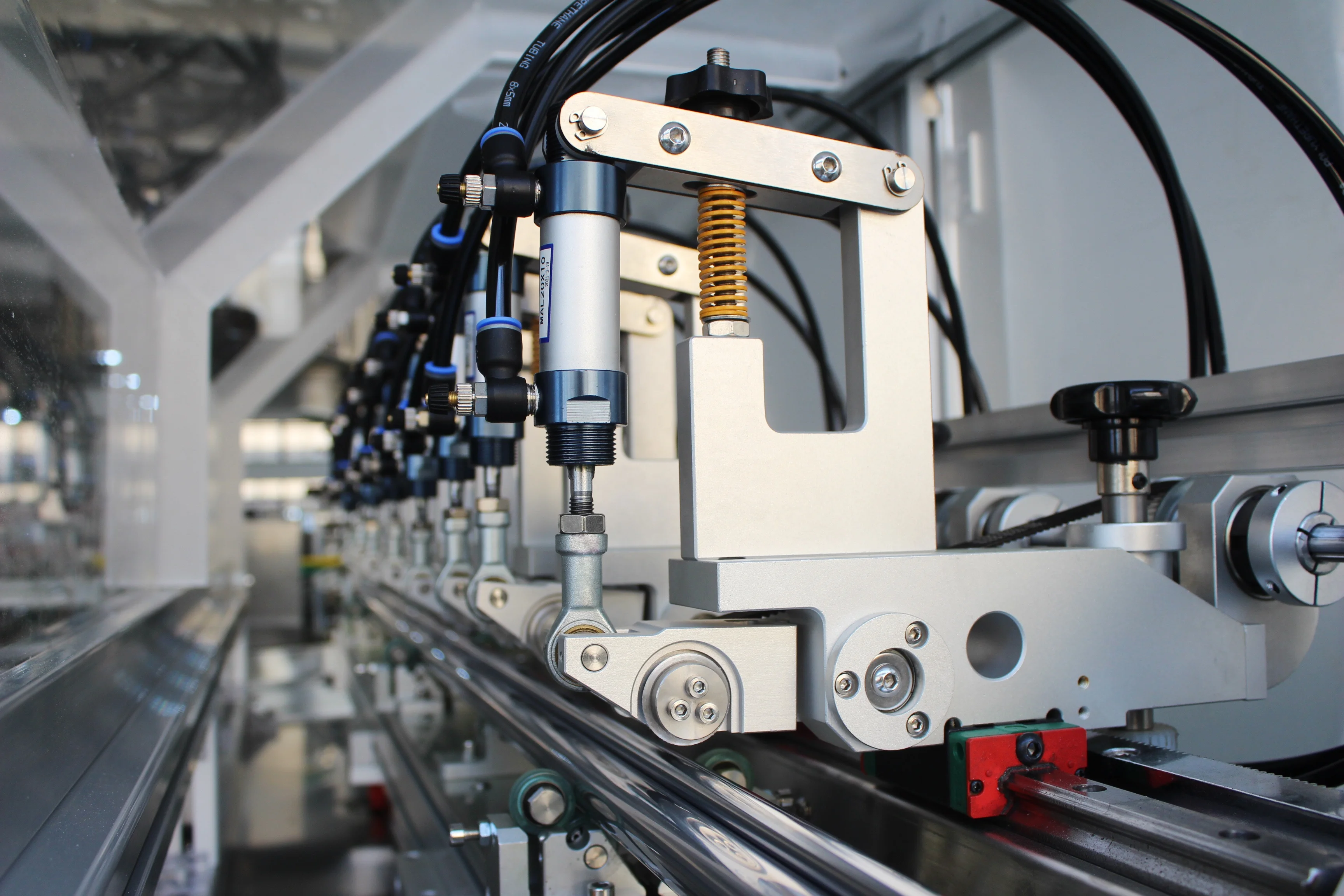

3. Cutting section adopted with numerical 10 cutters Servo synchronous tracking cutting system makes it higher precision and efficiency.
4. Machine made by 304 stainless steel. Ensure the hygiene and environmental protection of the products
5. Machine with automatic paper connection; It is easy to change paper roll.
Technical Parameter | Control System | |||
Paper Layer | 4 layers (can make both 3 and 4 layers) | Total Power Required | 8.0kw | |
Paper Straw OD | 4.2-13mm | Motion Controller | Panel Master | |
Paper Straw ID | 3.8-12.3mm | Operating Panel | Panel Master | |
Highest Speed | 80m/min. | Language | English | |
Stable Speed | 65-75m/min. (related to straw size & material quality) | Inverter | Schneider | |
Winding Nose | Two noses single belt | Electric Components | Schneider | |
Machine & parts | 304 Stainless steel | Pneumatic Components | AirTac | |
Length fixing | Encoder | Servo Motor | Schneider | |
Speed Control | By Inverter | Servo Driver | Schneider | |
Cutting System | Multi-blades; 8 pcs online | Screw Rod | Shangyin | |
Synchronism tracking cutting system | Servo motor synchronism tracking | Slider | Shangyin | |
Bearing | Haerbin | |||
Straw Collecting | Automatically | Power Supply | 380V / 3phases / 50 Hz | |
Equipped with | Safety Covers | Configuration | ||
Operator | 1 person | Paper Reel Stand | 3 Layers (auto paper connection) | |
Working Air Pressure | 0.6Mpa | Gluing Unit | 3 Layers (with heater) | |
Measurement & Weight | Winding Belt | 5 Pieces | ||
Measurement | 3500*1500*1200mm | Mandrel Shaft | 3 Sets | |
Working Space | 8000*5000mm | Cutting Blade | 14 Pieces | |
Weight | Around 2400kgs | Useful Tool | 1 Set | |
