Головка термопары резьбового
- Категория: Instrument Parts & Accessories >>>
- Поставщик: Shanghai,Tankii,Alloy,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.10 $* | 0.97 $* |
| Aug-15-2025 | 0.23 $* | 0.15 $* |
| Jul-15-2025 | 0.56 $* | 0.62 $* |
| Jun-15-2025 | 0.95 $* | 0.64 $* |
| May-15-2025 | 0.83 $* | 0.87 $* |
| Apr-15-2025 | 0.82 $* | 0.30 $* |
| Mar-15-2025 | 0.56 $* | 0.67 $* |
| Feb-15-2025 | 0.21 $* | 0.42 $* |
| Jan-15-2025 | 0.7 $* | 0.78 $* |
Характеристики

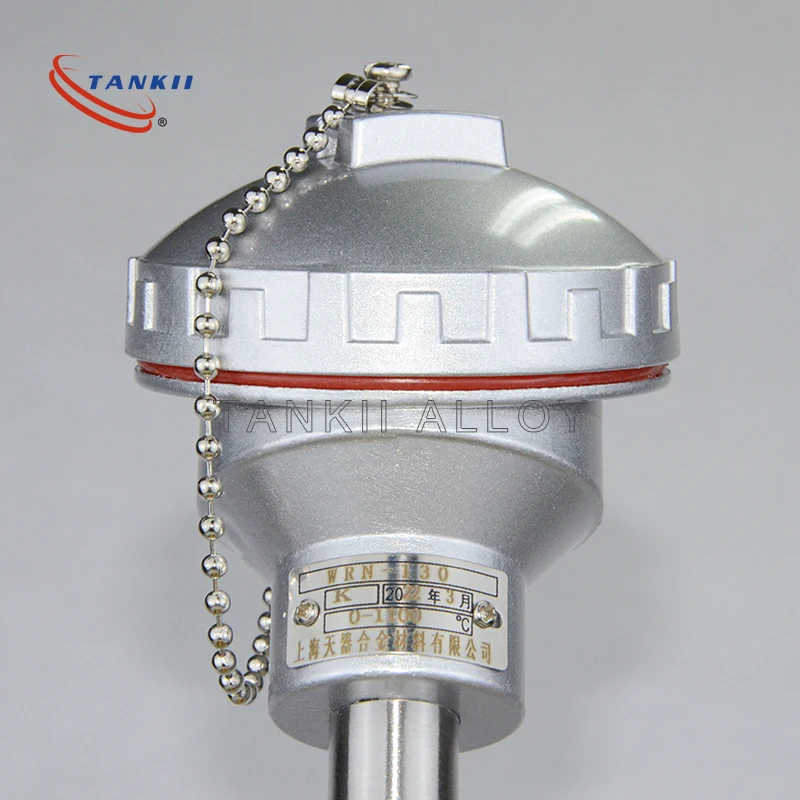

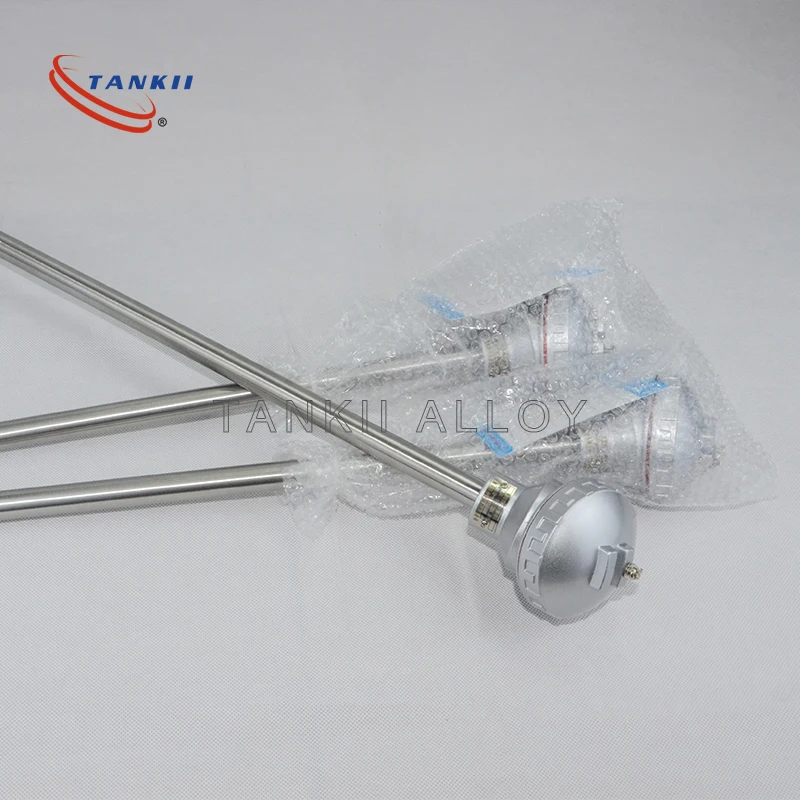

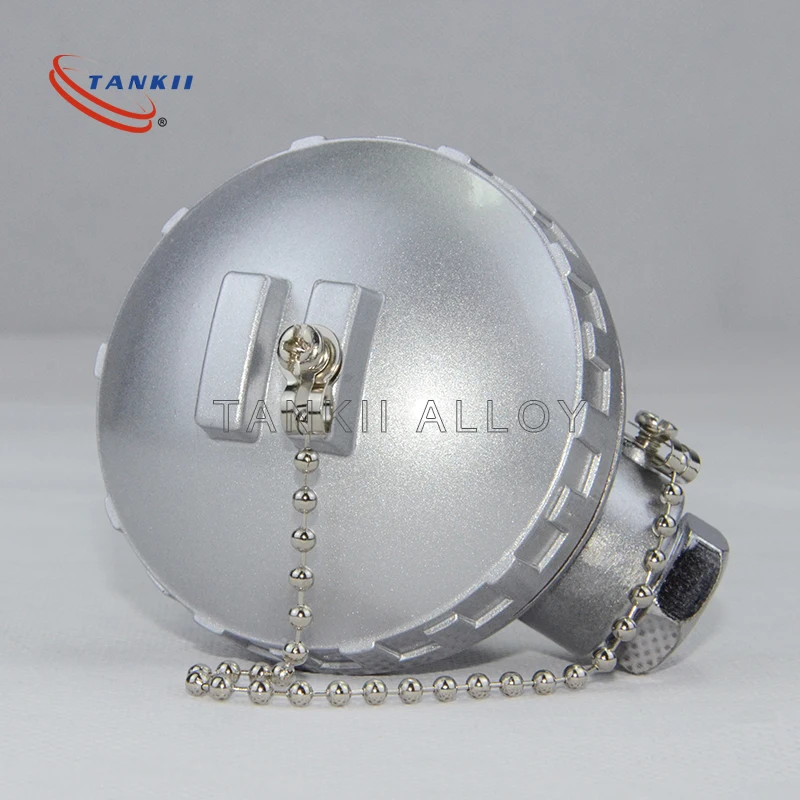

THREAD TYPE THERMOCOUPLE HEAD
- EX-Works Price - Silver paint : Price on Demand * MOQ 10 nos.
- Ex-Works Price- : Price on Demand * MOQ 10 nos.
- Payment Terms : 50% Advance and Balance against Proforma Invoice.
- Delivery : 7 Days
- Raw Material : ADC12/LM2
- Colour : Silver Paint
- Chain : Dia 3.50 x 155 long MS Nickel Plated Ball chain
- Chain Clip : MS Nickel Plated clip
- Screws : MS Nickel Plated
- Cable Entry - Standard Size :M20*1.5
- Bottom Entry - standard Size : M12*1, M16*1, M20*1
Recommended Working Temperature of all types Mineral insulated thermocouples:
Product Name | Chinese Code | International Type | Sheath material | Outer dia.(mm) | Temperature /℃ |
Ni Cr - Ni Si | KK | K | SS304 | 0.5-1.0 | 400 |
SS321 | 1.5-3.2 | 600 | |||
SS316 | 4.0-8.0 | 800 | |||
SS310 | 0.5-1.0 | 500 | |||
SS310 | 1.5-3.2 | 800 | |||
INCL600 | 4.0-6.4 | 900 | |||
INCL600 | 8.0-12.7 | 1000 | |||
Ni Cr Si - Ni Si | KN | N | SS304 | 0.5-1.0 | 400 |
SS321 | 1.5-3.2 | 600 | |||
SS316 | 4.0-8.0 | 800 | |||
SS310 | 0.5-1.0 | 500 | |||
SS310 | 1.5-3.2 | 800 | |||
INCL600 | 4.0-6.4 | 900 | |||
INCL600 | 8.0-12.7 | 1000 | |||
Ni Cr- Constantan | KE | E | SS304 | 0.5-1.0 | 400 |
SS321 | 1.5-3.2 | 500 | |||
SS316 | 4.0-8.0 | 800 | |||
Fe - Constantan | KJ | J | SS304 | 1.0 | 300 |
SS321 | 1.5-3.2 | 500 | |||
SS316 | 4.0-8.0 | 800 | |||
Cu - Constantan | KT | T | SS304 | 1.0 | -200-100 |
SS321 | 1.5-3.2 | 100-200 | |||
SS316 | 4.0-8.0 | 100-350 |
