Характеристики





High Automation Stable Output Disposable Nonwoven Cuff Sleeve Making Machine





Introduction :


High Automation Stable Output Disposable Nonwoven Cuff Sleeve Making Machine is to produce the medical long sleeve, after sleeve finished, can use the gown making machine to make the gown body, and then use sewing machine to the sew the sleeve and gown body, the final products can be the whole medical gown cloth for hospital doctor.

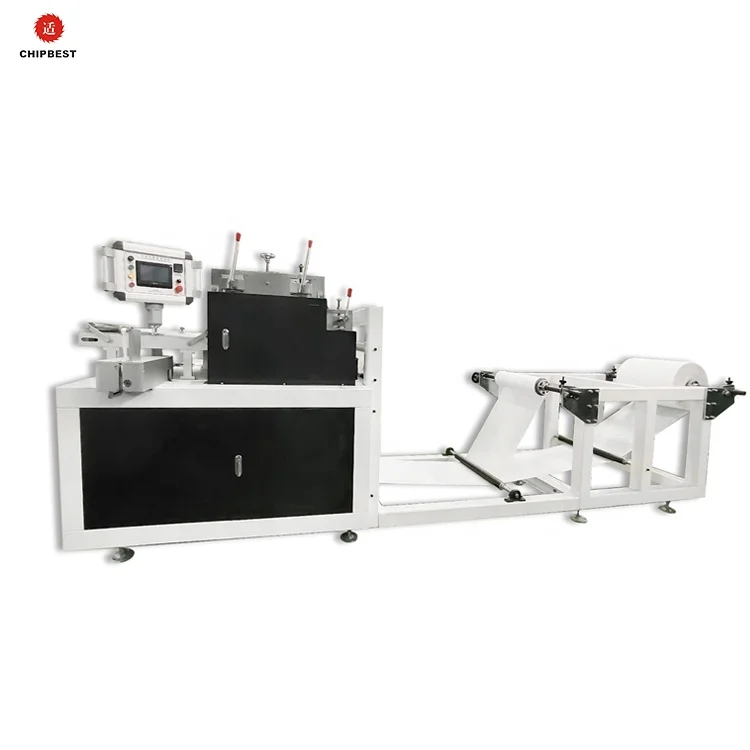

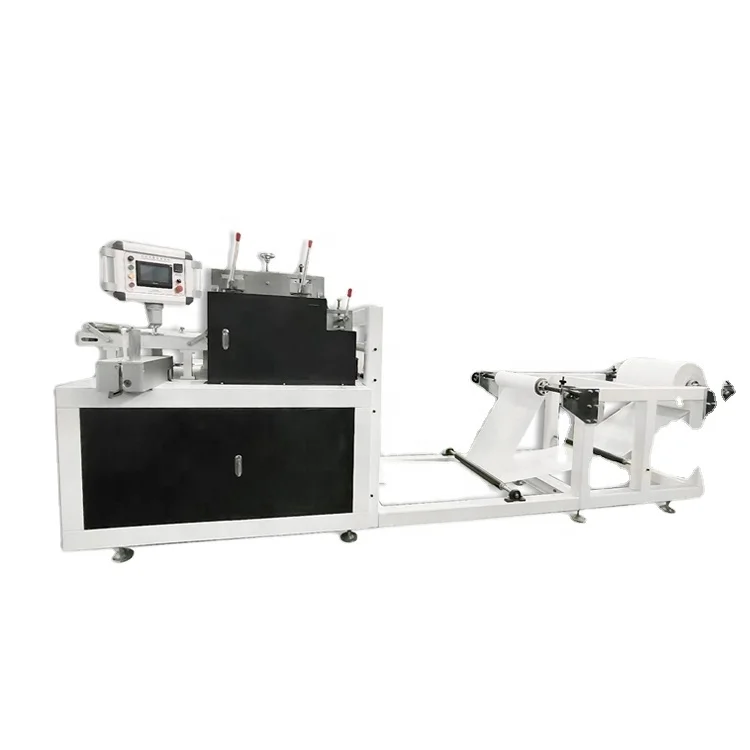

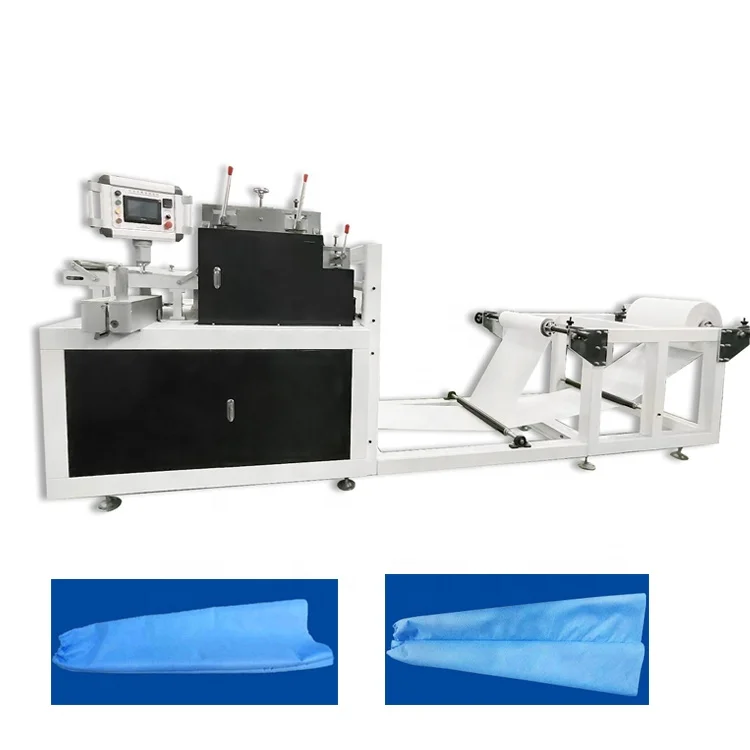

Cuff Sleeve Making Machine Photo :


surgical sleeve machine


Machine Parameters:


































Model Name



JS-SM High Automation Stable Output Disposable Nonwoven Cuff Sleeve Making Machine



Machine Size



5000×2000×1800mm (L*W*H)



Producing speed



40~60 PCS/min



Voltage



380 V ,3 phase ,4 lines



Ultrasonic Set



2 Sets



Machine Working Power



5 KW



Machine weight



1200 kg

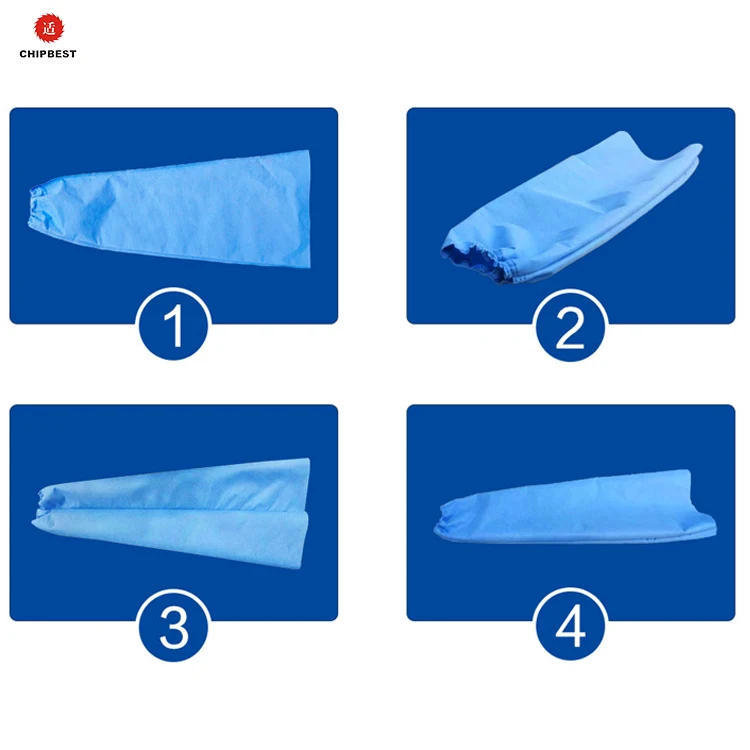

Finished Sleeve Product Photos:


sleeve machine 1.png

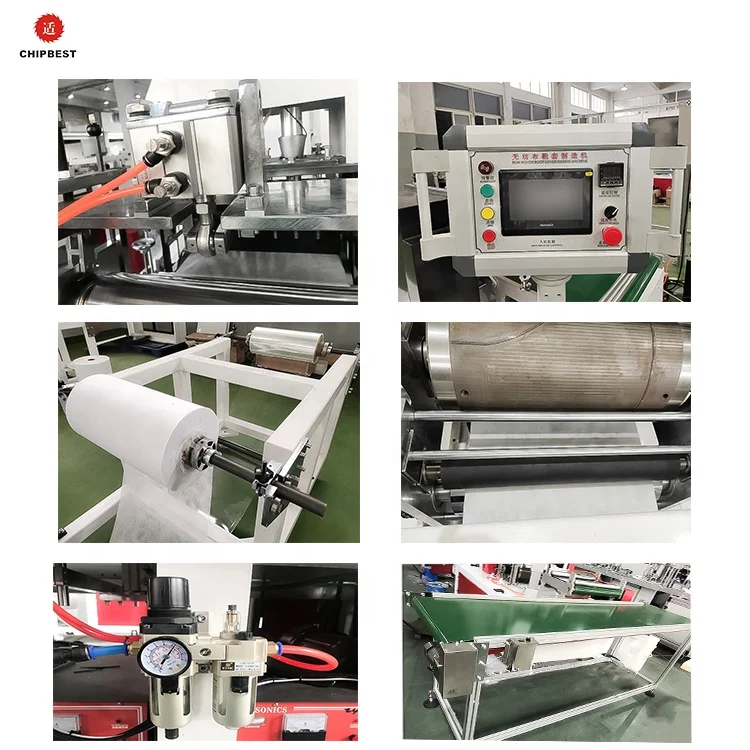

Machine Main Parts Advantages






































































































No.



Difference






advantage



1



Produce Speed







40-60pcs/min



2



Ultrasonic systems












There are ultrasonic devices set in the machine with good and stable quality which can make the non woven weld much more solid.



3



Electric box






We use the independent safety inspection electric control box, which can be operated open, agile and safe.






4



frequency converter






We use “Inovance” frequency converter






5



Fan












we used fan near the ultrasonic horn to reduce temperature of horn and extend the life of ultrasonic



6



Motor









Our gear motor is new and doesn't need to be fueled



7



air cylinder control

















Machine rolls are controlled by air cylinder .



8

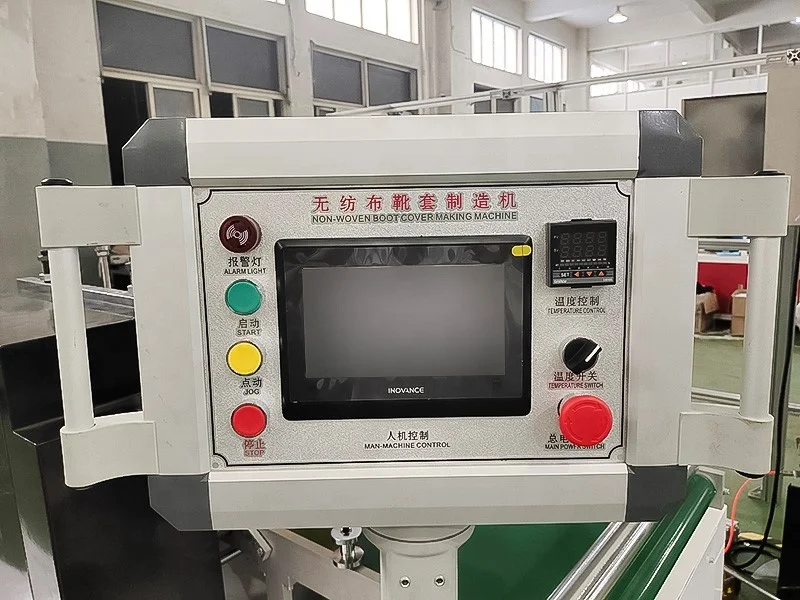

Computer controller









“Inovance” PLC touch screen  controller
























9



Machine door close












The workers can’t start the machine without key if the door was closed, we can ensure the production safety in this way



10



Traction roller












We used silicon roller instead of butyronitrile roller as silicon roller with better abrasion resistance and will not crack.



11



Independent RM unwind












RM feeding part



12



Connect with cylinder












because there is air cylinder control device on the machine, so buyer needs to buy an air compressor to combined with the cylinder



13



Cutting blade mould






The cutting mould to cut the boot piece by piece



16



Automatic waste discharge device






Automatic waste discharge device, which can save a lot of labor and more efficient. Some manufacturers need to operate the waste part manually.



17



conveyor belt












We install the conveyor belt to collect the finished product, which can be set as a single or multiple stack to facilitate the customer's later packaging work






Cuff Sleeve Machine Spare Parts List :




































No.



Name



Qty



1



Adjustable Spanner



1set



2



Allen wrench



1set



3






Screwdriver



1set



4



Screw



N pcs



5



Mould pad



1 pc
