Kunpeng UAV KP1260 портативный БПЛА с долгим
- Категория: Aircraft >>>
- Поставщик: Shaanxi,Guoyuan,New,Material,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 7795.48 $* | 8185.41 $* |
| Aug-20-2025 | 7729.71 $* | 8115.73 $* |
| Jul-20-2025 | 6485.57 $* | 6809.23 $* |
| Jun-20-2025 | 7598.95 $* | 7978.80 $* |
| May-20-2025 | 6616.83 $* | 6947.15 $* |
| Apr-20-2025 | 7467.33 $* | 7840.26 $* |
| Mar-20-2025 | 7402.33 $* | 7772.91 $* |
| Feb-20-2025 | 7336.44 $* | 7703.2 $* |
| Jan-20-2025 | 7271.16 $* | 7635.64 $* |
Характеристики
Specification
List of Public Edition Packaging Items | ||||||||
Product Name | Specifications / Models | Quantity | Unit | Remarks | ||||
Unmanned Aerial Vehicle | The KP1260X 6A Series | 1 | short for Taizhou | / | ||||
Cluster module | KPJQ0603T (optional) | 1 | cover | (Including antenna) | ||||
Telecontroller | Heaven flies ET 16S | 1 | short for Taizhou | Can be charged | ||||
Power Battery | 6S1P / 30000mAh lithium battery | 2 | group | Two pieces are in 1 group | ||||
Number of. Figure pass | CTW15A (sky end) (optional) CTW15A (ground end) (optional) | 1 | cover | / | ||||
The 900MHz antenna is available | 5dbi | 2 | root | / | ||||
Charger | Ist, i SDT Esther D 6 | 1 | individual | |||||
Charger Power Supply | not have | 0 | short for Taizhou | Configuration on demand | ||||
Power Line | not have | 1 | root | / | ||||
Connecting Line | not have | 3 | root | / | ||||
Data Wire | Type-C | 1 | root | / | ||||
Air Box | Dimensions of 880 * 750 * 220mm | 1 | individual | / | ||||
Aerobat | ||
Size | Expansion (including blade and landing gear): 19501950600mm (length, width and height) | |
Fold (excluding blades and gear): 650650100mm (length, width and height) | ||
Wheel Base | 1260 | |
Weight | About 13kg (including battery) | |
Maximum Load | 10kg | |
Maximum Take-Off Weight | 23kg | |
Service Frequency | 2.4GHz, 1.4GHz, 800MHz in the three frequency band | |
Suspension Accuracy | Vertical: ± 0.5m (GPS positioning) Horizontal: ± 1.5m (GPS positioning) | |
Rotary Angular Speed can be set | Elevation shaft: 240° / s (60° -240° / s) Roller: 180° / s (60° -240° / s) Direction axis: 80° (15-180°) | |
The tilt angle can be set | Adjustable, 20-40° (GPS mode), 20° | |
The rise speed can be set | Adjustable 1.0-8.0m/s (GPS mode) at 5m / s | |
Speed speed (vertical) | Adjustable 1.0-4.0m/s (GPS mode) at 3m / s | |
Horizontal flight speed can be set | Adjustable 2.0-20.0 m/s, (GPS mode) 72 km/h (height mode) 52 km/h (fixed mode) | |
Maximum takeoff altitude of | 2000m | |
Maximum speed can withstand wind speed | 12m/s | |
No-load battery life | ≥60min | |
The 7KG battery life period | ≥38min | |
A 10KG battery life period | ≥30min | |
Support the yuntai installation mode | Quick disassembly installation | |
GNSS | GPS+GLONASS | |
Operating Ambient Temperature | -10~40℃ | |
Kunpeng CTW15A-15km Feature:
Point-to-point broadband access and data transmission, a central node connected up to 16 sub-nodes
Support for transmit power of up to 25dBm
Supports 1.4MHz, 3MHz, 5MHz, 10MHz, and 20MHz bandwidth
Support for 816MHz and 1437MHz two frequency bands (customized products)
It can provide a distance of 15km
Support automatic power control; support automatic frequency point control
Provides 2 Ethernet ports packaged with the PH2.0 interfaces
Provides 2 PH2.0 interface package with RS232 serial ports
Support for transmit power of up to 25dBm
Supports 1.4MHz, 3MHz, 5MHz, 10MHz, and 20MHz bandwidth
Support for 816MHz and 1437MHz two frequency bands (customized products)
It can provide a distance of 15km
Support automatic power control; support automatic frequency point control
Provides 2 Ethernet ports packaged with the PH2.0 interfaces
Provides 2 PH2.0 interface package with RS232 serial ports
Note: 1. The antenna must be installed before the picture is connected!When the CTW15A is used, it is paired with the number on the label.
Product Description

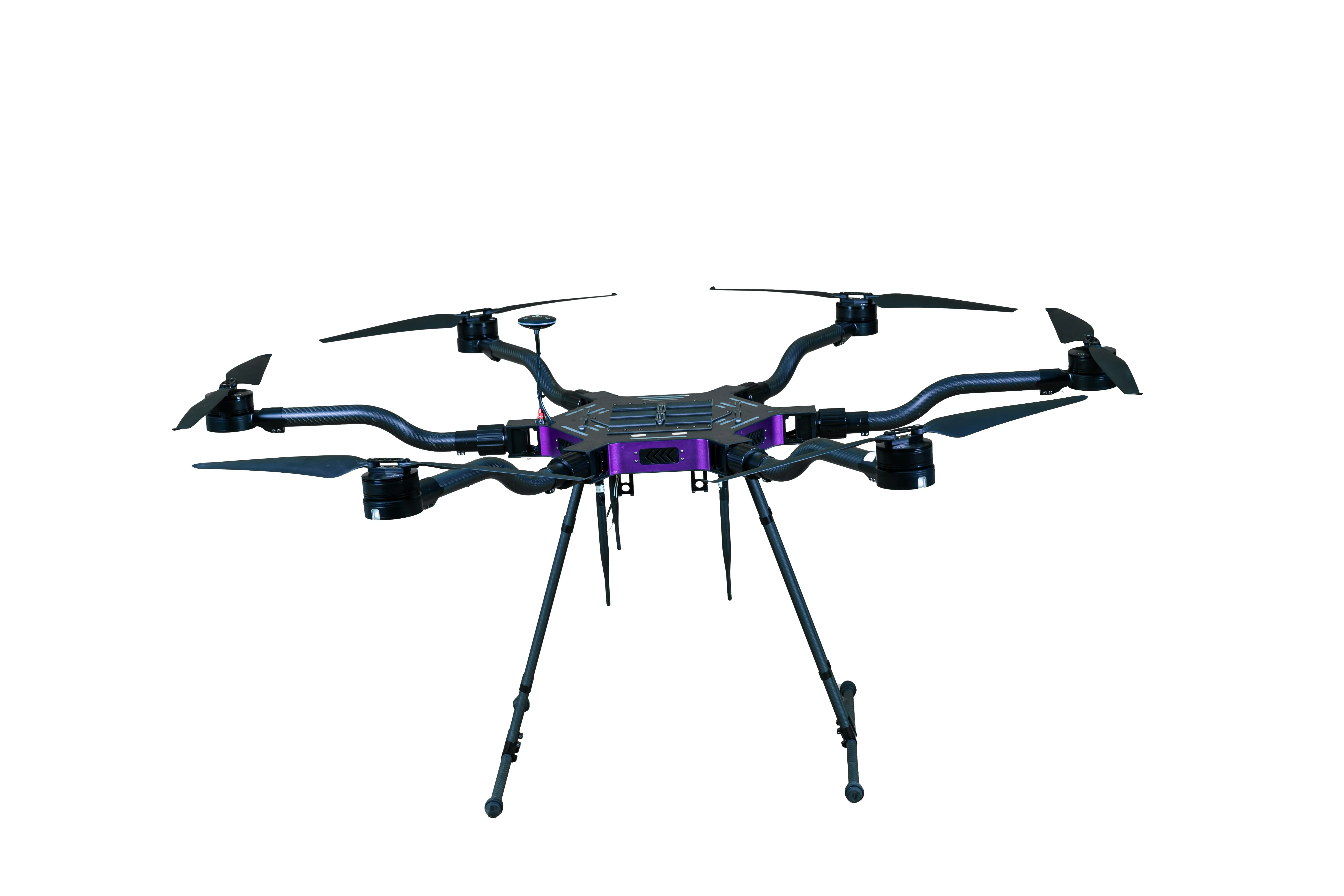

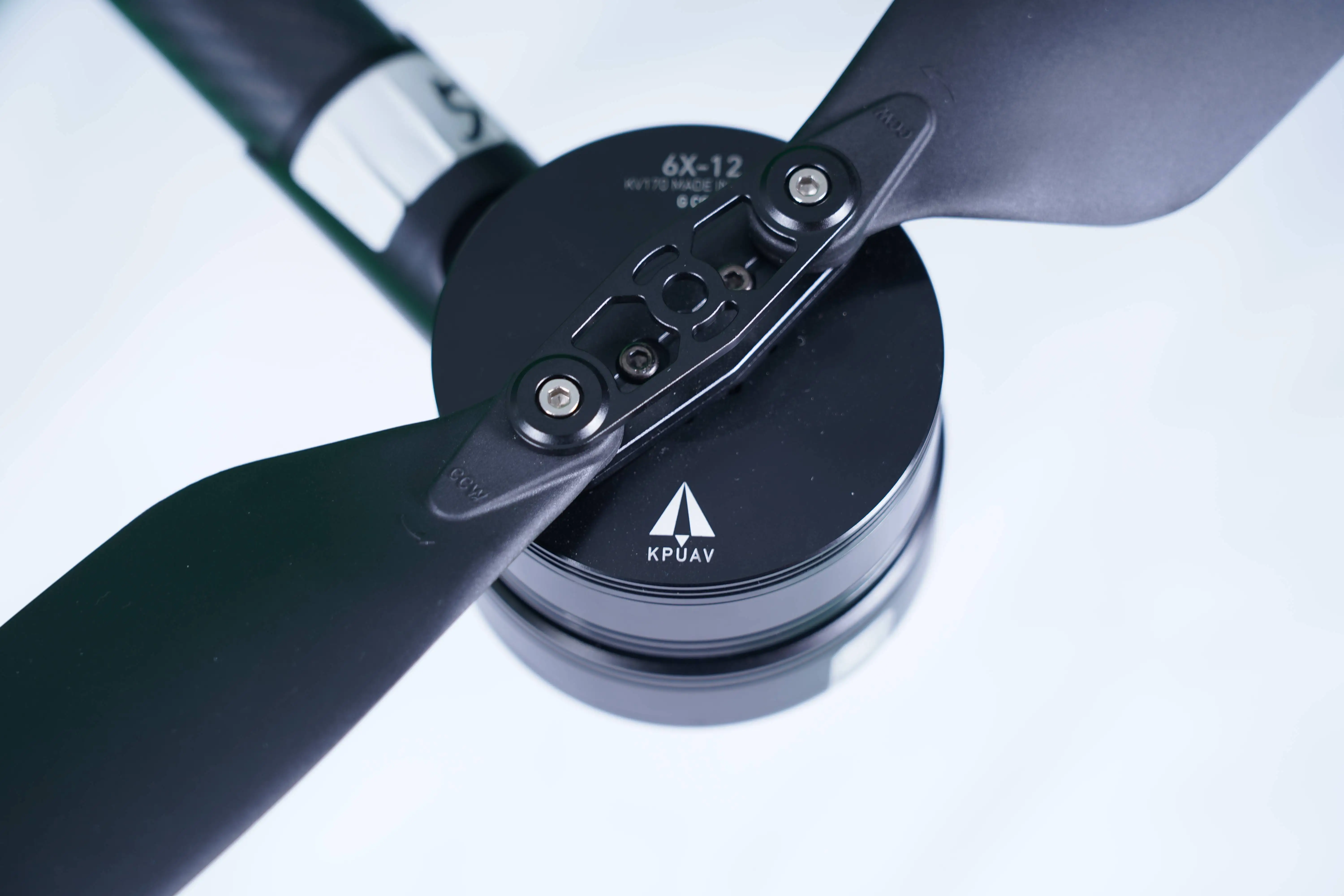

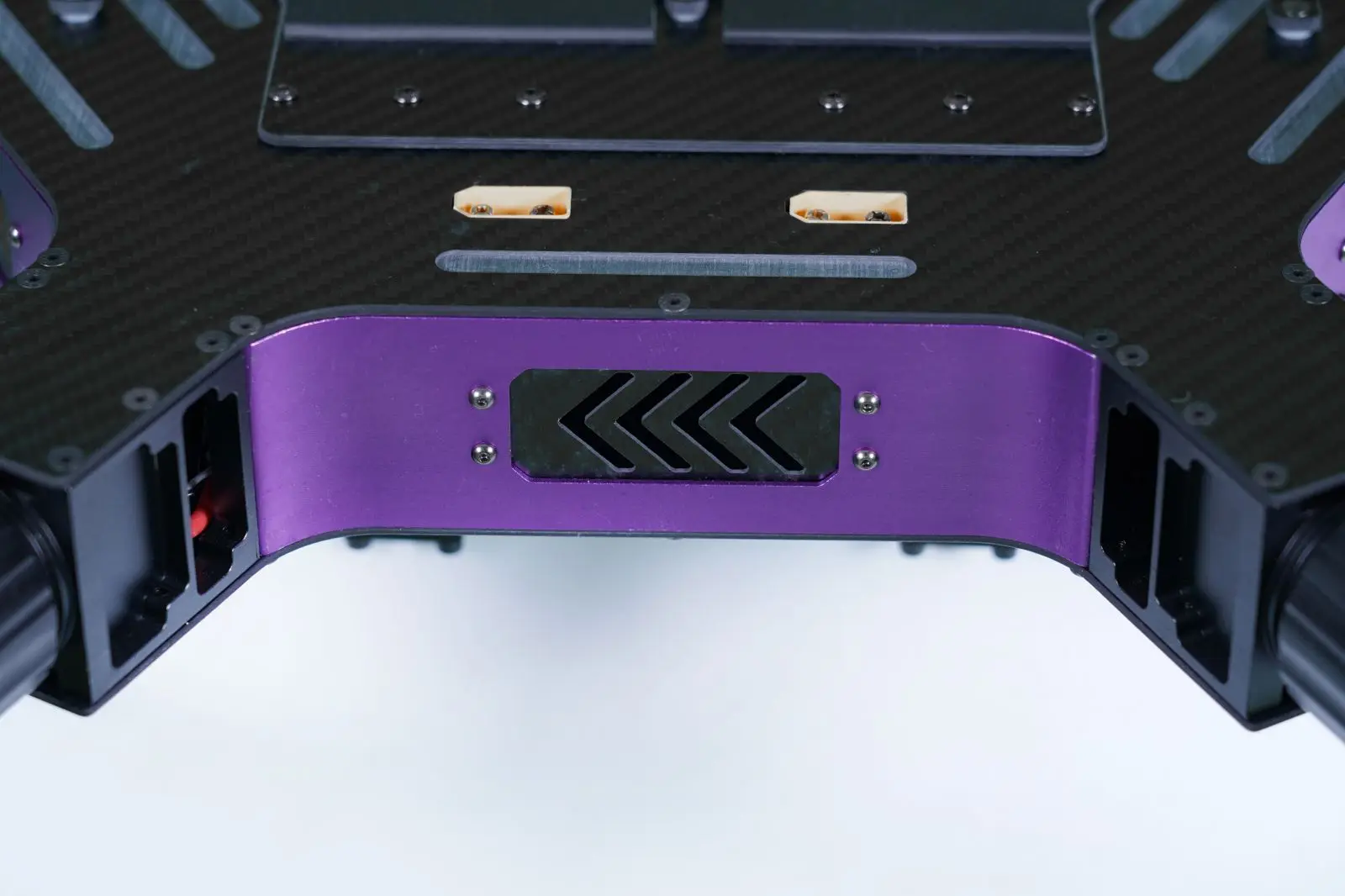

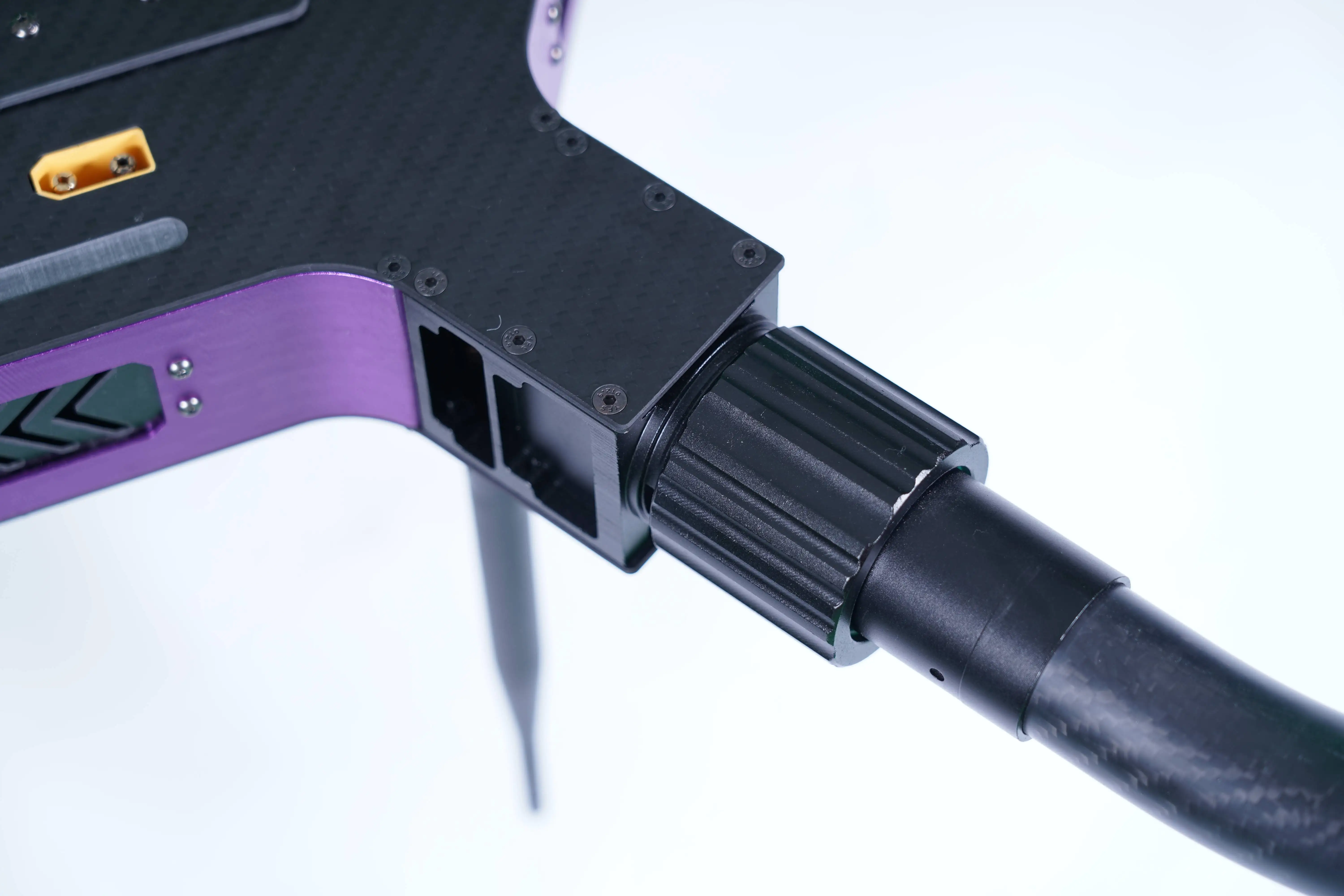

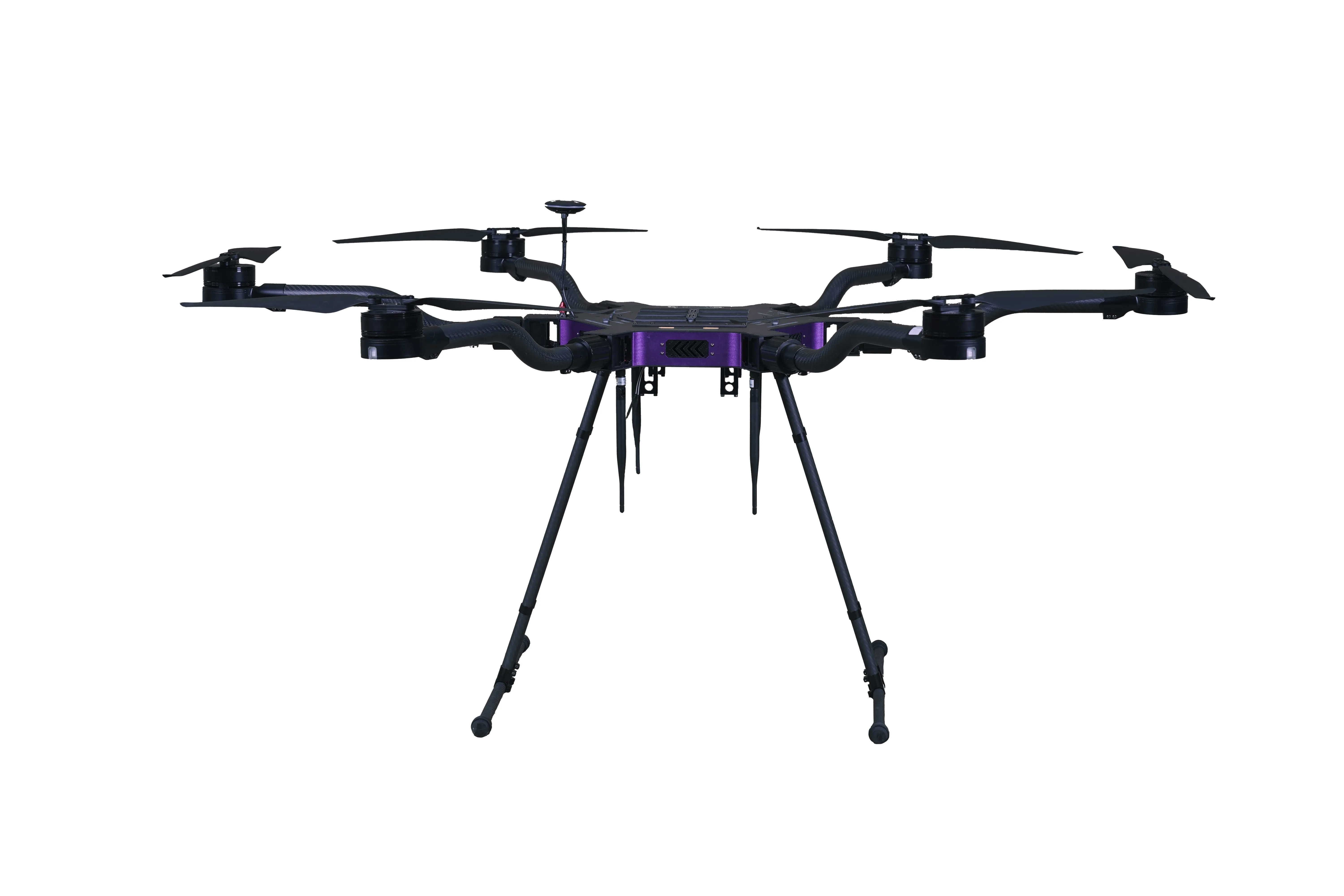

Product Display
Packing&Delivery
Company Profile
Shaanxi Guoyuan New Material Technology Co.,Ltd.
Shaanxi Guoyuan New Material Technology Co.,Ltd. focus on making high quality products, all products are strictly controlled at every step during designing, producing, packing and quality controlling process. Our company attaches importance to every customer and takes "integrity, struggle, cooperation and win-win" as its tenet, provides customers with the high product quality, the best technical solutions and the excellent service to meet customers' various needs. Adhering to the business principle of mutual benefits, we have had a good reputation among our customers because of our perfect services, quality products and competitive prices. If you have any new ideas or concepts for the products, please contact us. We are glad to work together with you and finally bring you the satisfied products.
FAQ
Q1 | Could you accept the customized products service? |
A1 | Warmly welcome. We have professional design team to design your goods by your request. |
Q2 | Is there a requirement for the MOQ of a custom logo? |
A2 | There are requirements, the MOQ is more than 1000. |
Q3 | Can I get the sample to check first? |
A3 | Accept. It will be finished with 7 days except customized sample. |
Q4 | What are your delivery times? |
A4 | 20-45 days after order be confirmed. The specific time is according to your order details. |
Q5 | What's the regular payment terms? |
A5 | 30% deposit before production and 70% balance payment to be paid by B/L copy. |
