3 компонента DT-SOLO Высокая чувствительность трехосный 5 Гц Geophone сейсмической
- Категория: Other Electronic Measuring Instruments >>>
- Поставщик: SmartSolo(Beijing)Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 226.8 $* | 237.55 $* |
| Aug-17-2025 | 224.59 $* | 235.92 $* |
| Jul-17-2025 | 188.51 $* | 197.30 $* |
| Jun-17-2025 | 220.18 $* | 231.77 $* |
| May-17-2025 | 192.80 $* | 202.18 $* |
| Apr-17-2025 | 217.62 $* | 228.8 $* |
| Mar-17-2025 | 215.58 $* | 226.28 $* |
| Feb-17-2025 | 213.48 $* | 224.59 $* |
| Jan-17-2025 | 211.66 $* | 222.36 $* |
Характеристики

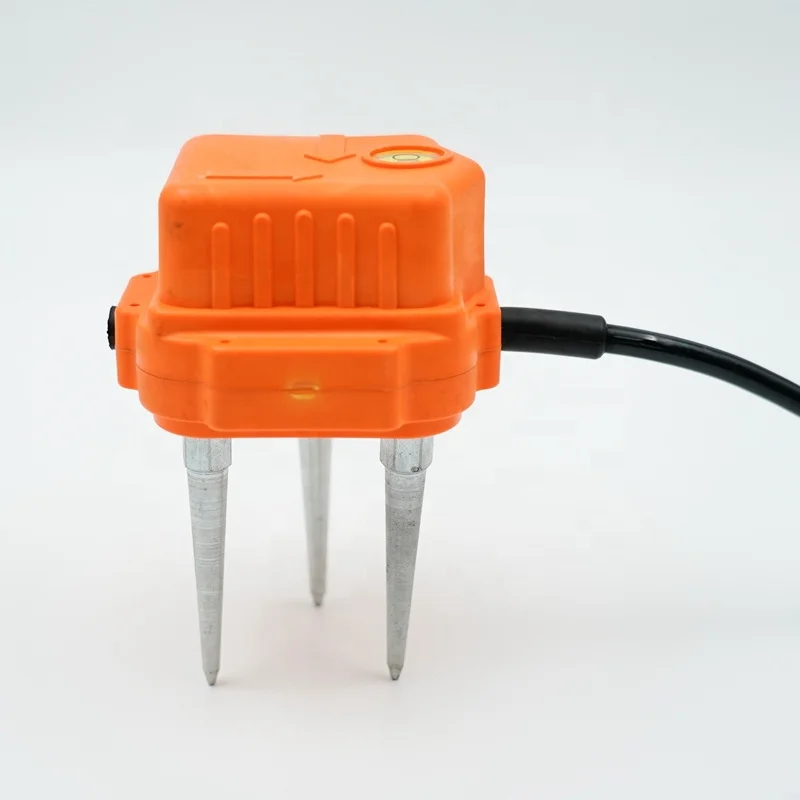

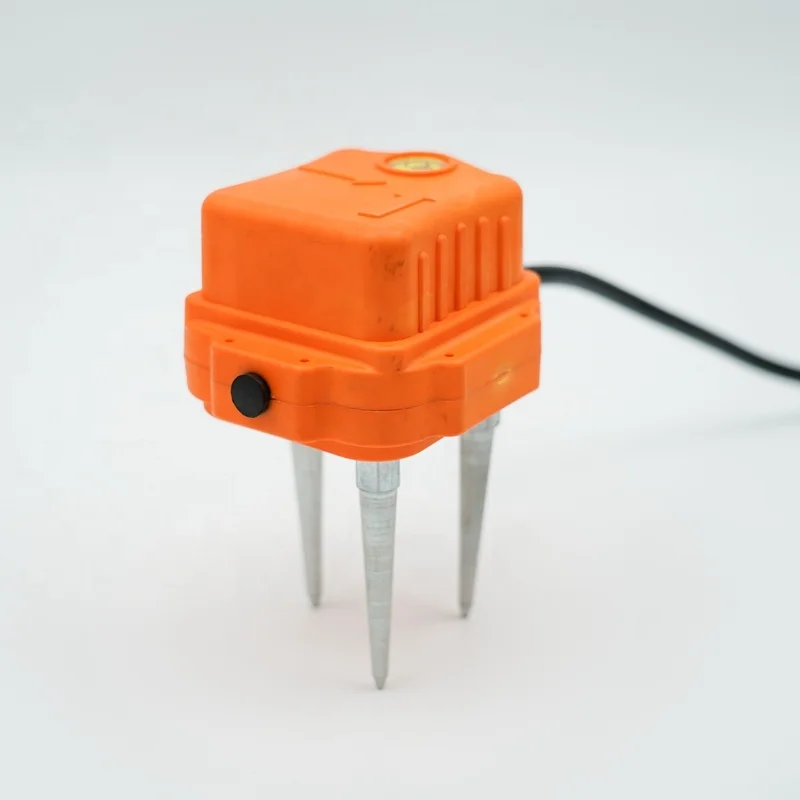

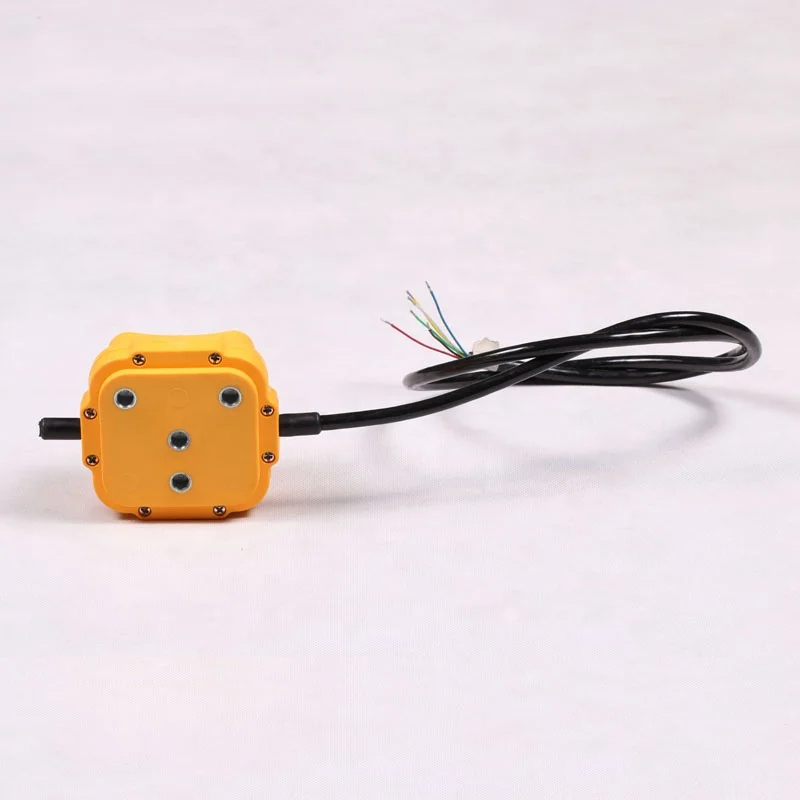

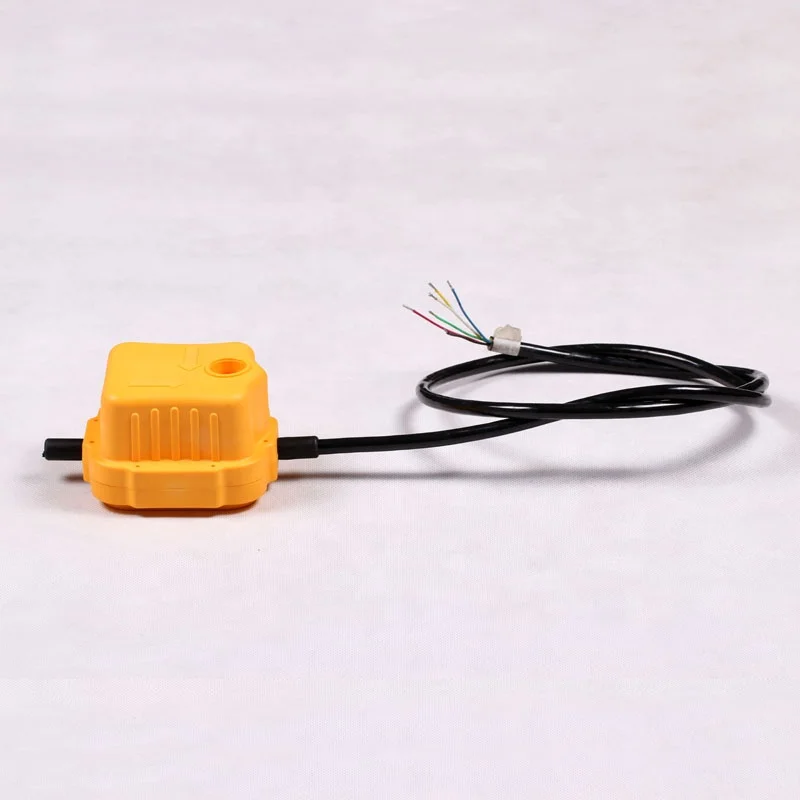

D3C-V3 5Hz 3 Component Geophone
3 coonent geophone string is kind of geophone with land cased ,which is light in weight, durable to many harsh environment,it is to perform passive and active source seismic detection,like H/VSR,MASW and seismic analysis, inside the waterproof case there are one vertical and two horizontal high-precisions geophone elements.
Three component geophone string ranging from 4.5Hz to100Hz are available,and you can also choose DT-SOLO series high sensitivity geophone elements.
3C geophone string is widely adopted inunderground water surveys, geological stratigraphy, landslide studies,pile foundation detecting, subsoil cavities detection, mining,archaeology, etc.

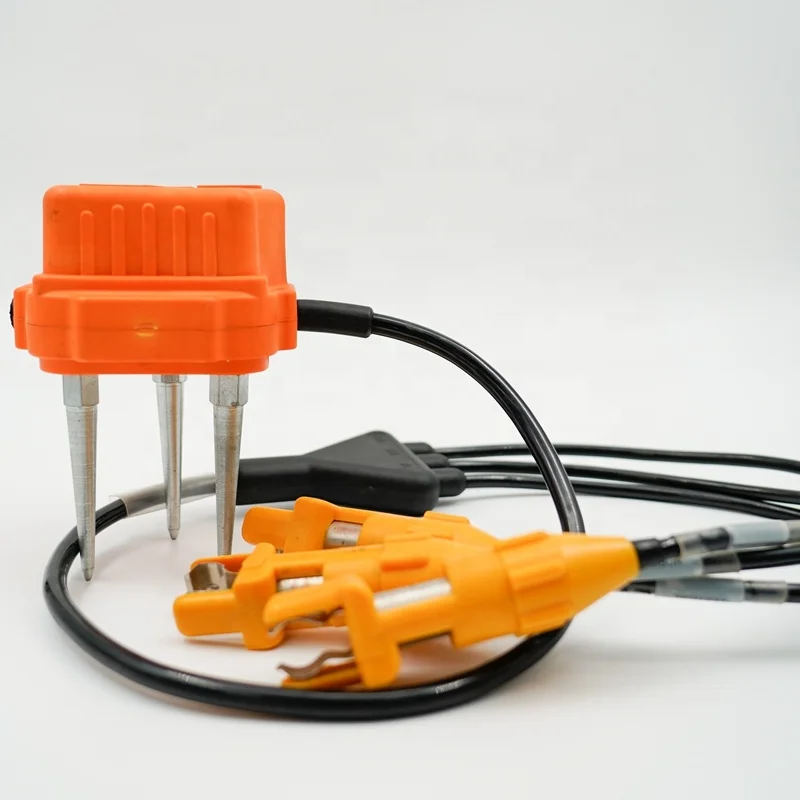

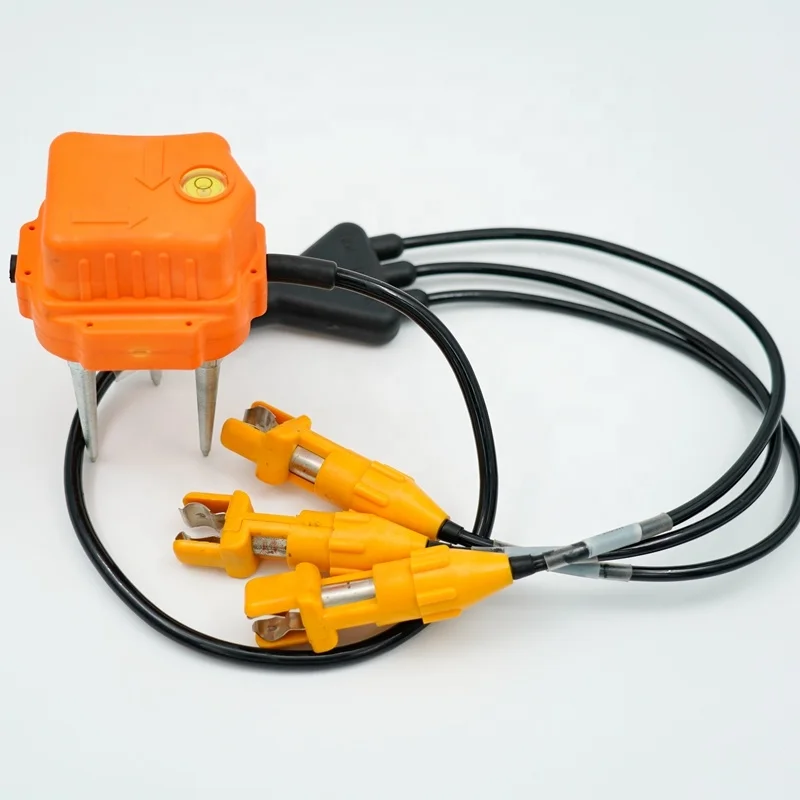

With KCK ，KCL , Split spring , Mueller clip connector etc are optional.
Details Images
PRODUCT SPECIFICATIONS
All parameters are specified at +22° C in the vertical position unless otherwise stated | ||||
Frequency | Natural Frequency (Fn) | 5Hz | ||
Tolerance | ±7.5% | |||
Spurious Frequency | >170 Hz | |||
Distortion | Distortion | < 0.1% | ||
Distortion at vertical | 0.05% Typical | |||
Distortion from Vertical to 10° Tilt | < 0.15% measured at 12 Hz with 0.7 in/s p-p | |||
Damping | Open Circuit Damping | 0.6 | ||
Damping with 43 kΩ load | 0.7 | |||
Tolerance | ±7.5% | |||
Coil Resistance | Standard | 1850ohm | ||
Tolerance | ± 5% | |||
Sensitivity | Open Circuit Intrinsic Voltage Sensitivity | 80 V/m/s (2.03 V/in/s) | ||
Sensitivity with 43 kΩ load | 76.7 V/m/s (1.95V/in/s) | |||
Tolerance | ±5% | |||
Physical Characteristics | Moving Mass | 22.7 g (0.801 oz) | ||
Max. Coil Excursion p.p. | 3mm (0.118 in) | |||
Diameter | 30.5 mm (1.2 in) | |||
Height | 40.7 mm (1.6 in) | |||
Weight | 138 g (4.87 oz) | |||
Operating Temperature Range | ﹣40℃ - +80℃ | |||
Warranty excludes damage caused by high voltage and physical damage to the element case. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. | ||||
Geophone Response Curve and Phase Lag
Why Choose Us
High quality and 100% test
Geophone Element DT-SOLO 5 Hz Vertical is one of our flagship geophone elements.
1.We use very good material
2.We use supper special method to make it high quality
3.Perfect design from our own patent
4.100% test before delivery.
Company Profile
About us
The DTCC Group was formed in 1999, with its headquarters located in Calgary, Canada. It is a manufacturer of vibration sensing and measuring equipment. This equipment, which uses “internet of Things” technology,is designed for use in unusual and challenging environments.The DTCC Group has an international presence. in addition to the corporate, training and marketing facilities in North America, we have a Business Development Center located in Beijing, together with a Research, Development and Manufacturing Facility in Shenzhen. Aditional production locations are in Langfang, Hebei and Dongguan, Guangdong.DTCC also has offices and subsidiaries in several other countries round the world. Our product ranges from Geophones, Geophone Strings available in Land, Marsh,3C, Hydrophones, Dual Component for transition and marine seismic.Digital cables for Land, Marsh and Transition Zone for the most widely used recording systems. Leader wire and connectors of all types used in seismic acquisition.
Exhibition
Global Sales & Support Network
Product packaging
Small package carton box saving deliver fee
Middle size use plywood box,make is safer
big size make it safe and saving
Certifications
FAQ
Q1:What about min order or sample?
A1:Yes,we can send samples.
Q2:What about package?
A2:Our standard package is 50 pieces per box,but for samples or small order,we can also make good package.
Q3:What about delivery time?
A3:Yes,we have large quantity in store,normally make delivery in 3 working days.
