Оптовые цены электродвигатель с электродвигателем для перемотки класс F изоляционная бумага композитная
- Категория: Insulation Materials & Elements >>>
- Поставщик: Yancheng,Advanced,Insulation,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.41 $* | 0.13 $* |
| Aug-19-2025 | 0.88 $* | 0.64 $* |
| Jul-19-2025 | 0.98 $* | 0.89 $* |
| Jun-19-2025 | 0.95 $* | 0.90 $* |
| May-19-2025 | 0.1 $* | 0.26 $* |
| Apr-19-2025 | 0.79 $* | 0.44 $* |
| Mar-19-2025 | 0.60 $* | 0.97 $* |
| Feb-19-2025 | 0.69 $* | 0.56 $* |
| Jan-19-2025 | 0.69 $* | 0.95 $* |
Характеристики
Product Description

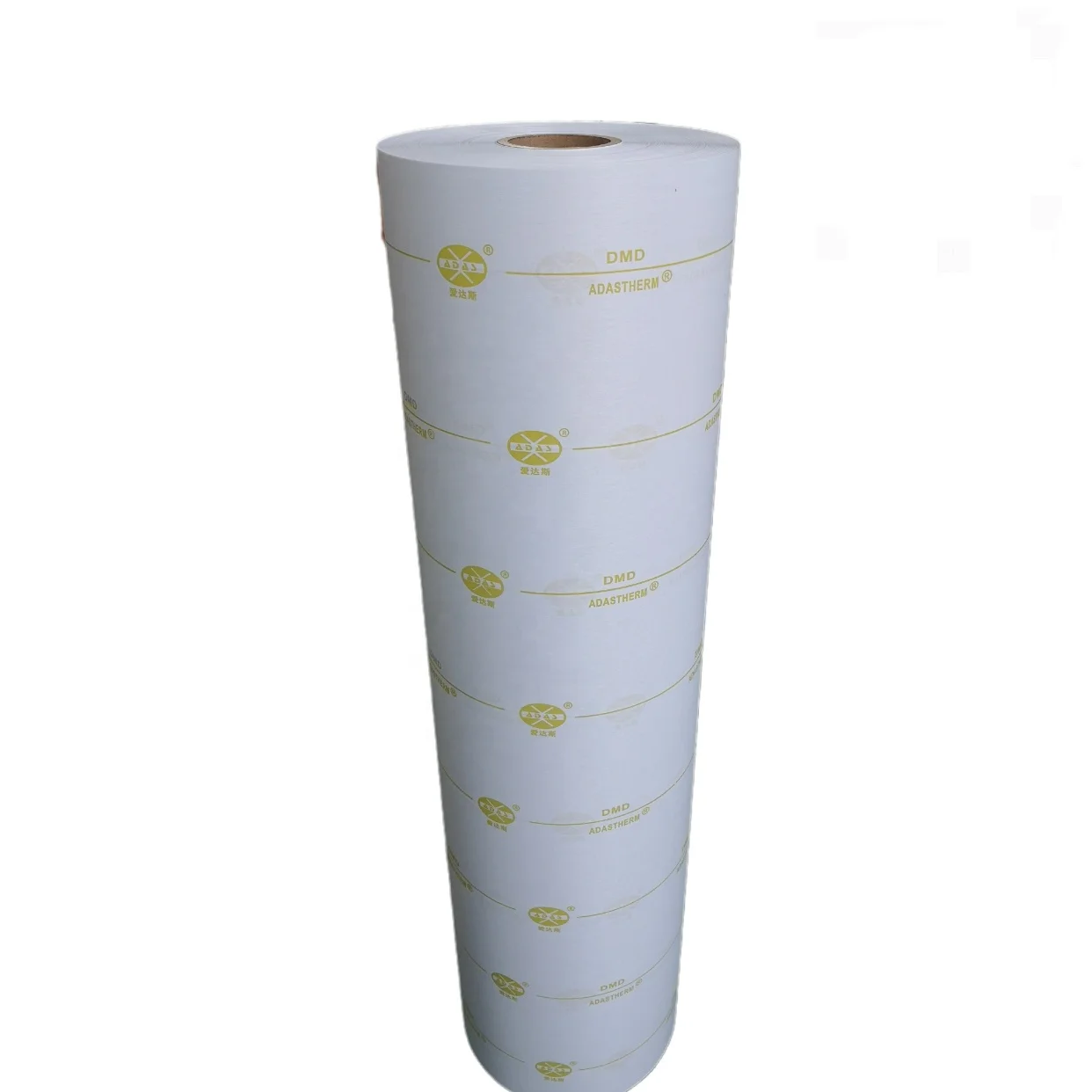

DMD is made of Dacron fabric on both sides and polyester film as middle layer , with 3 layers lamination , it has very good high voltage protection and mechanical strength ,widely used for all kinds of motors.
Specification
Name： | DMD B |
Thickness and Tolerance: | 0.15mm +/-0.02 , 0.18mm +/-0.02 0.20mm +/-0.02 , 0.25mm +/-0.02 0.30mm +/-0.03 , 0.35mm +/-0.02 0.40mm +/-0.03 , 0.45mm +/-0.03 |
Standard width: | 1000mm +/-10 |
Package: | 50 kgs +/-5 per roll |
Breakdown voltage: | 0.15mm ------6kv , 0.18mm---7kv 0.20mm ------8kv , 0.25mm----10kv 0.30mm-------11kv , 0.35mm-----13kv 0.40mm-------16kv , 0.45mm-----19kv |
Thermal Class: | B (130 degree) |
Standard: | IEC60626-3-500 |
Name： | DMD F |
Thickness and Tolerance: | 0.15mm +/-0.02 , 0.18mm +/-0.02 0.20mm +/-0.02 , 0.25mm +/-0.02 0.30mm +/-0.03 , 0.35mm +/-0.02 0.40mm +/-0.03 , 0.45mm +/-0.03 |
Standard width: | 1000mm +/-10 |
Package: | 50 kgs +/-5 per roll |
Breakdown voltage: | 0.15mm ------6kv , 0.18mm---7kv 0.20mm ------8kv , 0.25mm----10kv 0.30mm-------11kv , 0.35mm-----13kv 0.40mm-------16kv , 0.45mm-----19kv |
Thermal Class: | BF(155 degree) |
Standard: | IEC60626-3-500 |
Why Choose Us
Advantages:
The thermal class covers: B, F, H, N,and C , the enterprise is managed strictly according to ISO9001 system (Registered No.: E03817Q01957R2M), and passed UL approval ( File No. : E345432) ,all products comply with IEC standard and ROHS as well as REACH test.
Applicable Industries:
Our products are widely used for wind power ,thermal power generation , civil aviation,railway , military project ,motor and transformer Etc.
Packing & Delivery
Packing：Carton packaging, large size is pallet packaging
Delivery：Shipping, Shanghai special line
Company Profile
Yancheng Advanced Insulation Co.,Ltd is an esteemed insulation material manufacturer with brand ADAS registered , which mainly produce fiberglass insulation sleeving (yearly production 200 million meters), flexible lamination (3500 tons/year) , woven tape ( yearly production 50 million meters) .

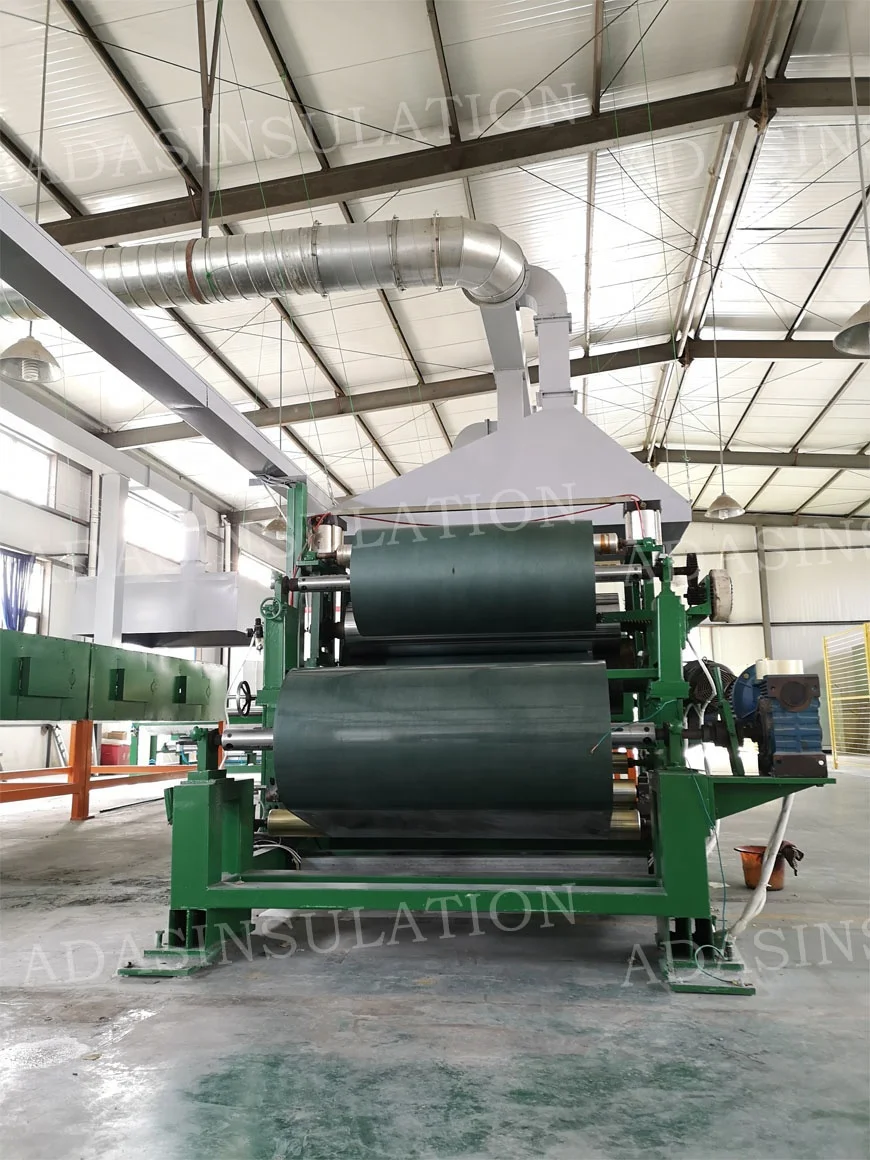

Factory workshop
Certifications
FAQ
Q1:What is the payment term?
A:T/T or L/C.
Q2:What is the shipping port?
A:Shanghai Port.
Q3:What is the delivery time?
A: 25 working days
Q4:What is the quality level of your product?
A:International Standard.
Q5. Are you factory or a trading company ?
A: Factory
Q6: when did you found ?
A: In July 2007
Q7: How many employee in your company ?
A:T/T or L/C.
Q2:What is the shipping port?
A:Shanghai Port.
Q3:What is the delivery time?
A: 25 working days
Q4:What is the quality level of your product?
A:International Standard.
Q5. Are you factory or a trading company ?
A: Factory
Q6: when did you found ?
A: In July 2007
Q7: How many employee in your company ?
A: 110
Any question，please let us know and contact us！
