(1) F8-9000 Product advantages:



• 1. The Si PIN detector with high performance has higher detection accuracy.


• 2. Realize on-site, fast, non-destructive and accurate detection, and display alloy grade, element and percentage content in 2-3 seconds.


• 3. Using 50kV, 100mA, 4W X-ray tube technology, the instrument has better detection limit and radiation safety guarantee.


• 4. The precision of Ti and V can reach 0.02% by using smart beam, which can distinguish stainless steel 304 and 321, chromium alloy P91 and 9 chromium, titanium alloy grade 7 titanium and pure titanium, etc.


• 5. The lower detector temperature and the ultra-low temperature working condition of - 35 °C make the instrument have excellent resolution.


• 6. Higher detection accuracy and the average value statistics function of multiple tests can effectively improve the detection accuracy of the instrument.


• 7. The intelligent detection of irregular or very small samples, such as hair (0.06mm) thin silk can also be tested and identified immediately.


• 8. Automatic stop function, there is no object to be tested in front of the window, start the instrument will automatically stop the test after 2 seconds.


• 9. The extensible probe can be used to detect the inner wall of pipe, weld, small parts and other places that are difficult to contact.


• 10. The instrument has its own HD resolution display screen, which can be assigned, viewed and edited at will..


• 11. The alloy grades can be added, edited and deleted on site without the help of computer.


• 12. The instrument is made of aluminum alloy, which has stronger heat dissipation ability, anti vibration ability and automatic radiation protection device.


• 13. The user-friendly one button design is adopted, so that the user does not need to press the button all the time during the test.


• 14. The test results can be output and printed by computer. The instrument has standard test result version, which is very convenient for customers to edit and print the result information.


• 15. The instrument can realize the remote monitoring function, and the maintenance engineer can install and maintain the instrument software remotely through the Internet to ensure that the customer's machine will not be down for 24 hours.


• 16. The instrument adopts Windows CE operating system to ensure the instrument operating system more stable and powerful.


• 17. The instrument has its own standard block. Every time the instrument is started up, it will be standardized automatically. If the standardization is passed, the instrument can be used normally. If the standardization fails, the instrument cannot be used. Ensure that the instrument is in the normal accuracy range every time it is used.


• 18. The instrument adopts the basic parameter method (FP method). Before the test, it is not necessary to know the type of test sample and select the test curve.


• 19. The test results can be converted into excel output, can also be sent to a personal computer or directly transmitted to a notebook computer by Bluetooth for printing and archiving.



(2) F8-9000 Product function, analysis accuracy and stability



(1) Analyzable alloy composition types

• (1) , all elements between Ti (titanium) and U (uranium) can be analyzed.


• (2) The alloy brands can be analyzed up to 2000 kinds, and the machine has up to 300 alloy brand databases. At the same time, users can add more than 300 alloy brand databases.


• (3) , used for identification of stainless steel, alloy steel and tool steel, and testing of composition and content, including several hundred commonly used stainless steel grades 201, 203, 301, 304, 316, 321, etc.


• (4) , used for copper alloy brand and composition detection, including brass, bronze, copper, pure copper, etc.


• (5) , used for the composition and detection of various hybrid alloys, including titanium alloy, tin alloy, lead alloy, tungsten alloy, zinc alloy, aluminum alloy, nickel alloy, etc.


• (6) , used for precious metal detection. It contains gold, silver, platinum, rhodium and palladium.



(2) Analysis accuracy and stability:

• 1. The detection limit of metal content is 0.01%, and the allowable difference of stable reading for these metal test analysis has reached the following standards:


• A. the stable reading difference of elements with detection content greater than 5percenter is less than ± 0.1-0.2%


• B. the difference between the stable reading of elements with the content of 0.5-5% is ± 0.05% ~ 0.1%


• C. The difference between the stable reading of elements with the content of 0.1-0.5% is ± 0.01-0.03%


• D. the change rate of element test reading with detection content less than 0.1% is ± 10-15%


•

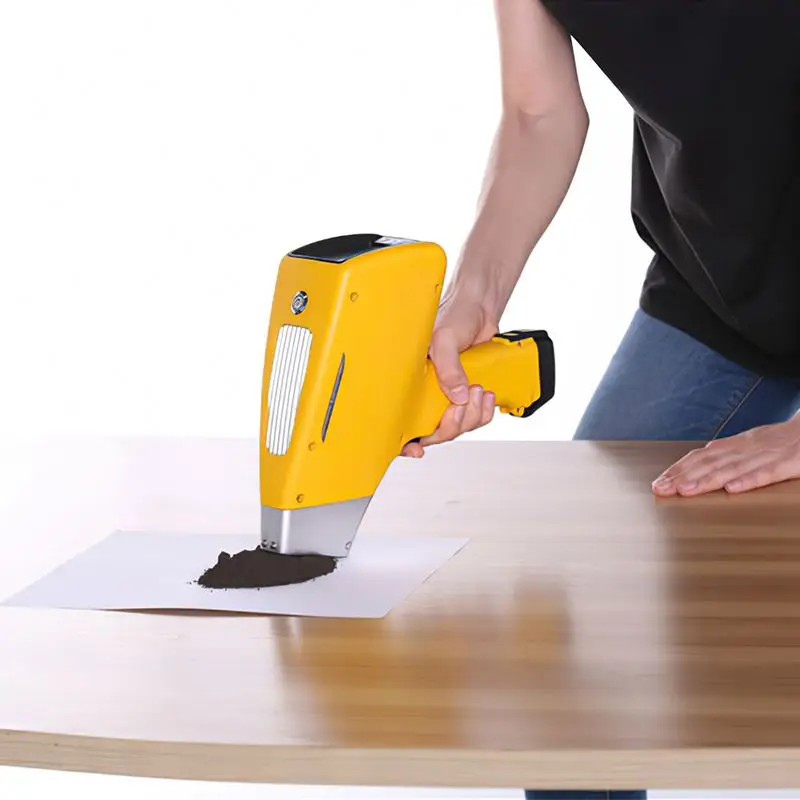

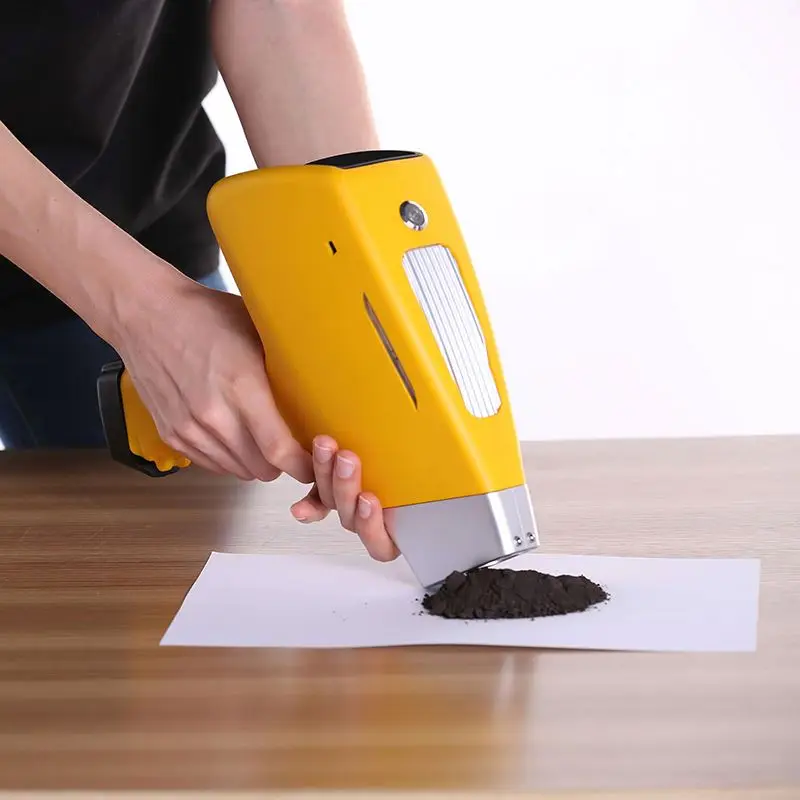

• 2. Can detect and analyze sample state: block, solid, powder.



(3) F8-9000 Technical parameters and indicators:



weight	basically weight: 1.4kg, after battery: 1.5kg
size (H x W x L)	300 mm x 90 mm x 220 mm
excitation source	there are four kinds of target materials for X-ray tube: gold (AU), silver (Ag), tungsten (W) and palladium (PD)
voltage, current and power	high power miniature x-ray tube 50kV, 100mA, 4W
filter	six optional filters are automatically adjusted according to different objects High performance and high resolution Si PIN X-ray detector
detector refrigeration temperature	Peltier effect semiconductor refrigeration, refrigeration temperature - 35
standard film	external 316 standard cap with test window protection function;[resolution] < 180ev
resolution	< 180ev
power supply	8 hours / 2 lithium power supply and AC power supply
processor	Intel 400MHz StrongArm processor
operating system	mobile Windows CE system Compatibility Bluetooth
software standard mode	alloy
data processing	8g large capacity data memory card: ≥ 40, 000 sets of data and spectrogram
data analysis	a variety of analysis modes, including basic parameters, Compton normalization and empirical calibration mode
data display	focus on ppm and percentage (%), spectrum or peak intensity (count rate) or user-defined unit
data transmission	RS232 serial cable, Bluetooth, excel output
display screen	color, high-resolution 3.5-inch TFT industrial touch screen, large icon graphic interface, clearly visible in any light conditions
shape design	integrated fuselage design, strong, waterproof, dustproof, antifreeze, effective anti vibration, suitable for outdoor, humid or low temperature environment
safety operation	one touch "trigger", the software will automatically lock the trigger or stop the test protection function; after judging that there is no sample in front of the test window, the X-ray will be automatically turned off within 2 seconds
test environment conditions	temperature - 35 ~ + 50 °C, humidity < 80% RH
calibration	the instrument has been calibrated before leaving the factory, but the instrument still has the function of establishing a targeted calibration curve, which is suitable for the accurate test of specific samples
radiation protection function	the radiation dose rate is less than 2.5 μ SV / h within the space range of 10-100 cm from the instrument handle and the instrument shell
element content analysis range	from 0.01% to 99.99%





(4) F8-9000 Product configuration:





• (1) One X-ray fluorescence spectrometer host;


• (2) A set of special testing software for alloy analysis;


• (3) Lithium batteries (2 pieces);


• (4) A set of lithium battery charger;


• (5) A set of USB data cable for special data download;


• (6) 316 standard cap;


• (7) A user manual;


• (8) Instrument factory inspection certificate;


• (9) The window protective film was used;


• (10) One waterproof main engine protection box;



 (5) F8-9000 Product configuration:



• 24 hours / 7 day uninterrupted service


• response response within 4 hours


• remote online troubleshooting


• long term spare parts inventory


• free installation training of new machine


• warranty period can be customized according to customer requirements


• one year warranty for new machine, free maintenance of software for life



 Product description



Amptech Analyzers Vulcan Expert Alloy Price Scientific Niton Xl2 A Tester Machine Handheld Xrf Analyzer For Metal And Mineral
