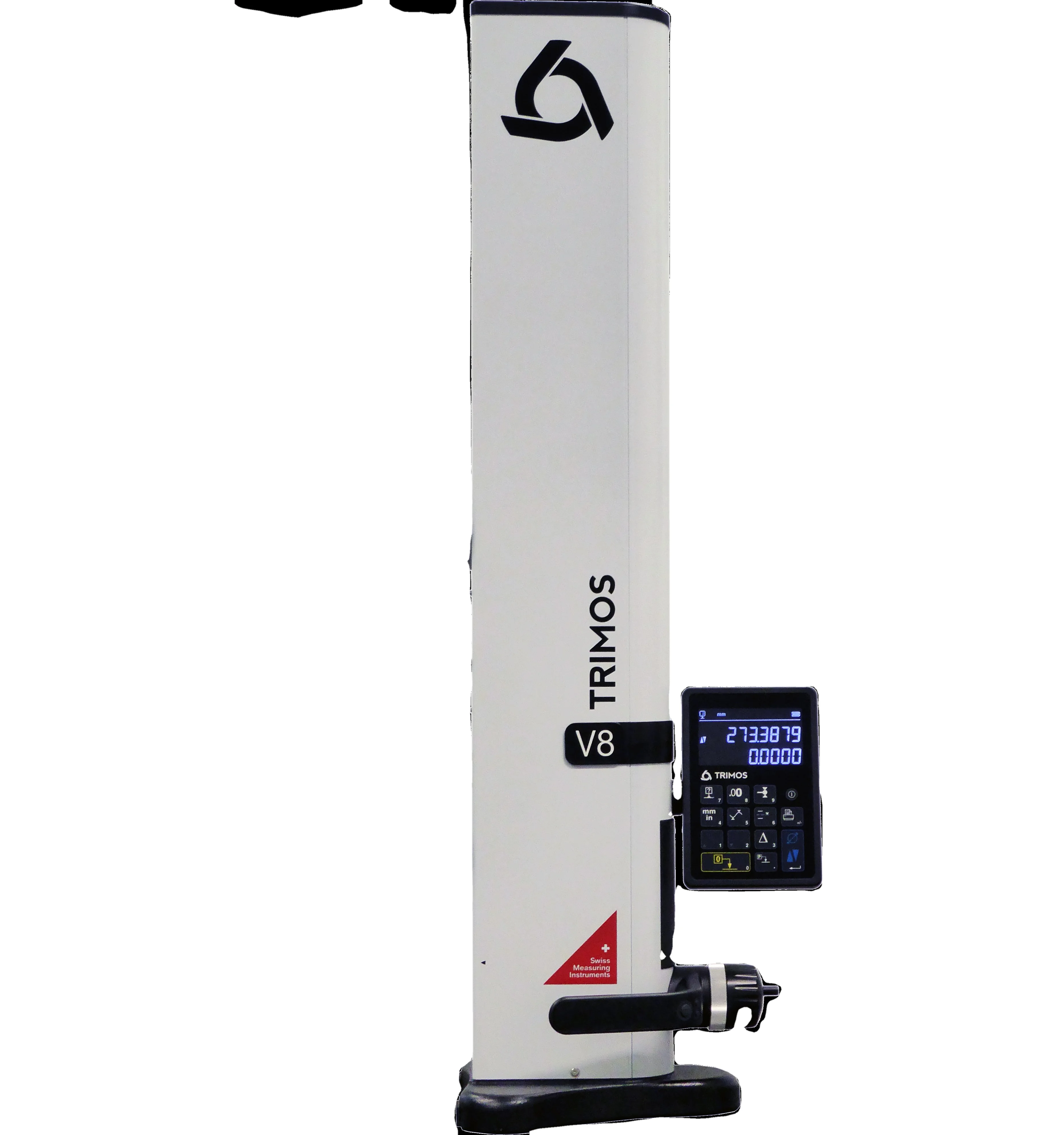

Trimos V8-700 CH вертикальный
- Категория: Height Measuring Instruments >>>
- Поставщик: Trimos,S.A.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.86 $* | 0.41 $* |
| Aug-20-2025 | 0.39 $* | 0.7 $* |
| Jul-20-2025 | 0.72 $* | 0.27 $* |
| Jun-20-2025 | 0.33 $* | 0.95 $* |
| May-20-2025 | 0.68 $* | 0.2 $* |
| Apr-20-2025 | 0.81 $* | 0.11 $* |
| Mar-20-2025 | 0.32 $* | 0.81 $* |
| Feb-20-2025 | 0.61 $* | 0.68 $* |
| Jan-20-2025 | 0.75 $* | 0.76 $* |
Характеристики
TECHNICAL SPECIFICATION
| V8 | 400 | 700 | 1100 | |
| Measuring range | mm (in) | 406 (16) | 710 (28) | 1109 (43) |
| Measuring range with extension | mm (in) | 724 (28) | 1028 (40) | 1427 (56) |
| Max permissible errors, BMPE | µm | 1.2 + L(mm)/1000 | ||
| Repeatability, RMPE (2s) | µm | 0.4 (Ø:1) | ||
| Frontal squareness deviation SMPE | µm | 5 | 8 | 11 |
| Max. Resolutions | mm | 0.0001 (0.000005) | ||
| Measuring force | N | 0.75 ÷ 1.5 | ||
| Autonomy | h | 12 | ||
| Interfaces | USB / RS232 | |||
| Air cushion | Yes | |||
| Weight | kg | 22 | 25 | 34 |
The above values have been determined according to ISO 13225 with the standard measuring insert (TA-MI-119).
RMPE is defined as twice the standard deviation (2s) over 20 height measurements.
