Датчик температуры термопары типа K из нержавеющей стали ZHYQ 1300 градусов 4-20

Описание и отзывы

Трекер стоимости

Характеристики

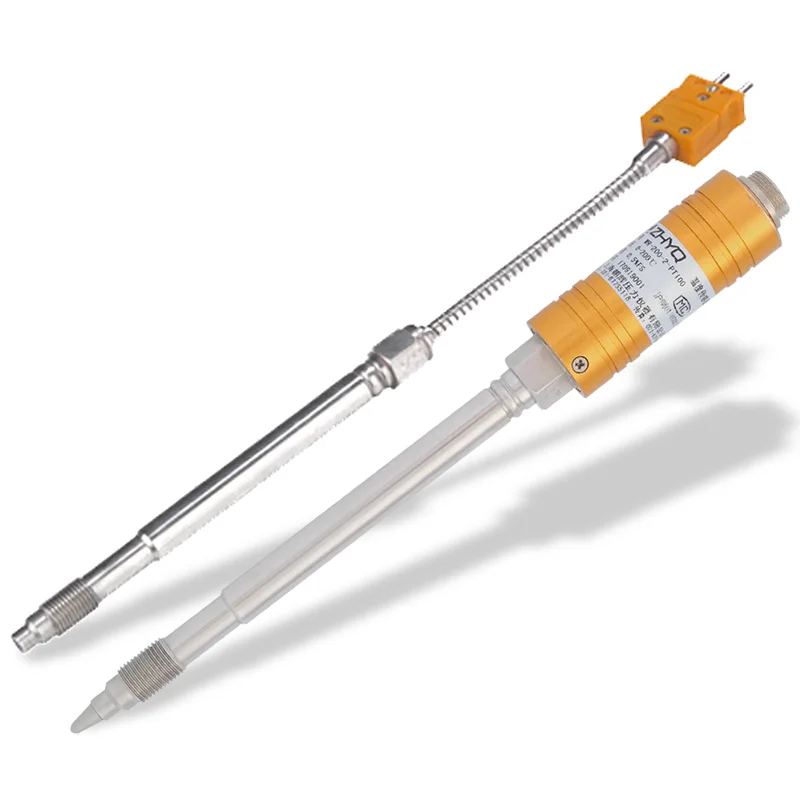

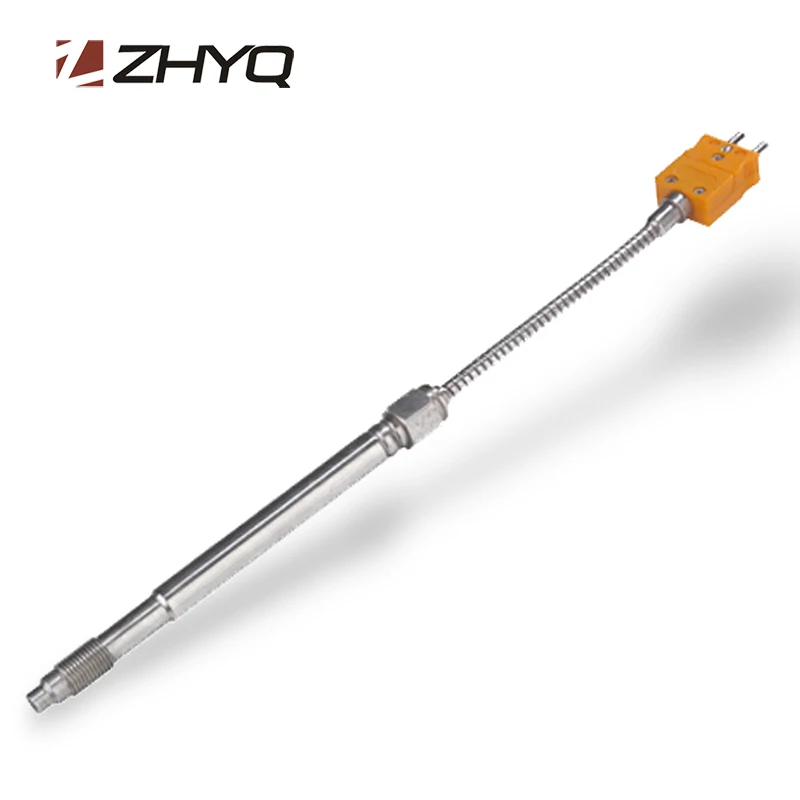

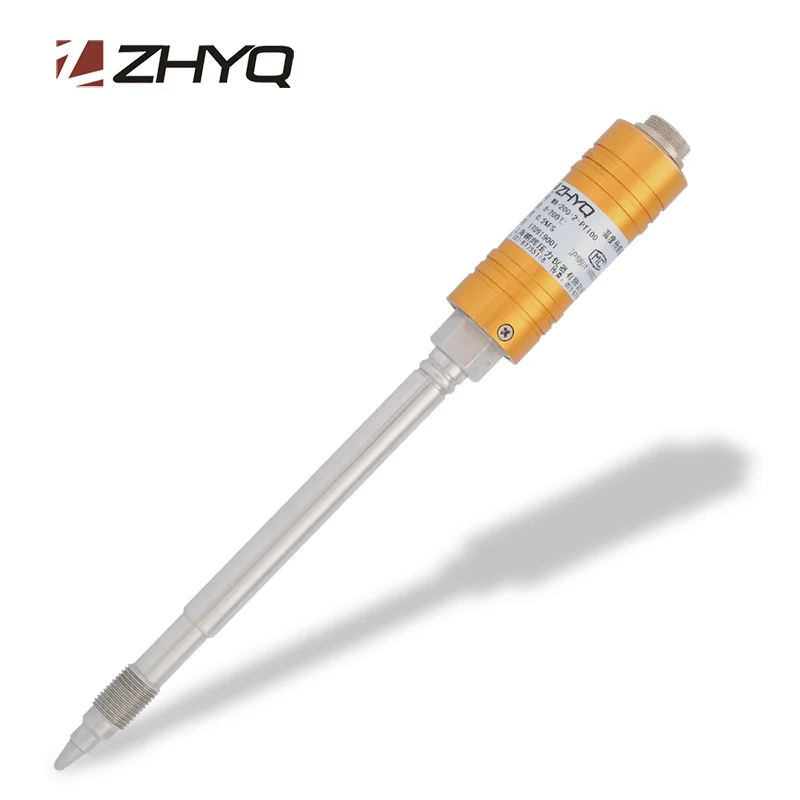

  K type thermocouple temperature sensor



WR-200 Series K type thermocouple temperature sensor adopts excellent temperature sensing elements; consummate encapsulation technology and perfect assemble process to insure the quality and performance. This series has the advantage of fast thermal response time, strong thermal resistance capability, high pressure resistance, various temperature elements to choose, diverse forms of installation, etc.



Application

K type thermocouple temperature sensor is used for the temperature measuring and control in the erumpent processing of chemical fiber, rubber plastic, food process and etc.



Features

Type J, K, E,PT100 optional

0 to 1300°C measurement range K type thermocouple temperature sensor

 Immersion lengths to match applications

Spring or armor adjustable K type thermocouple temperature sensor

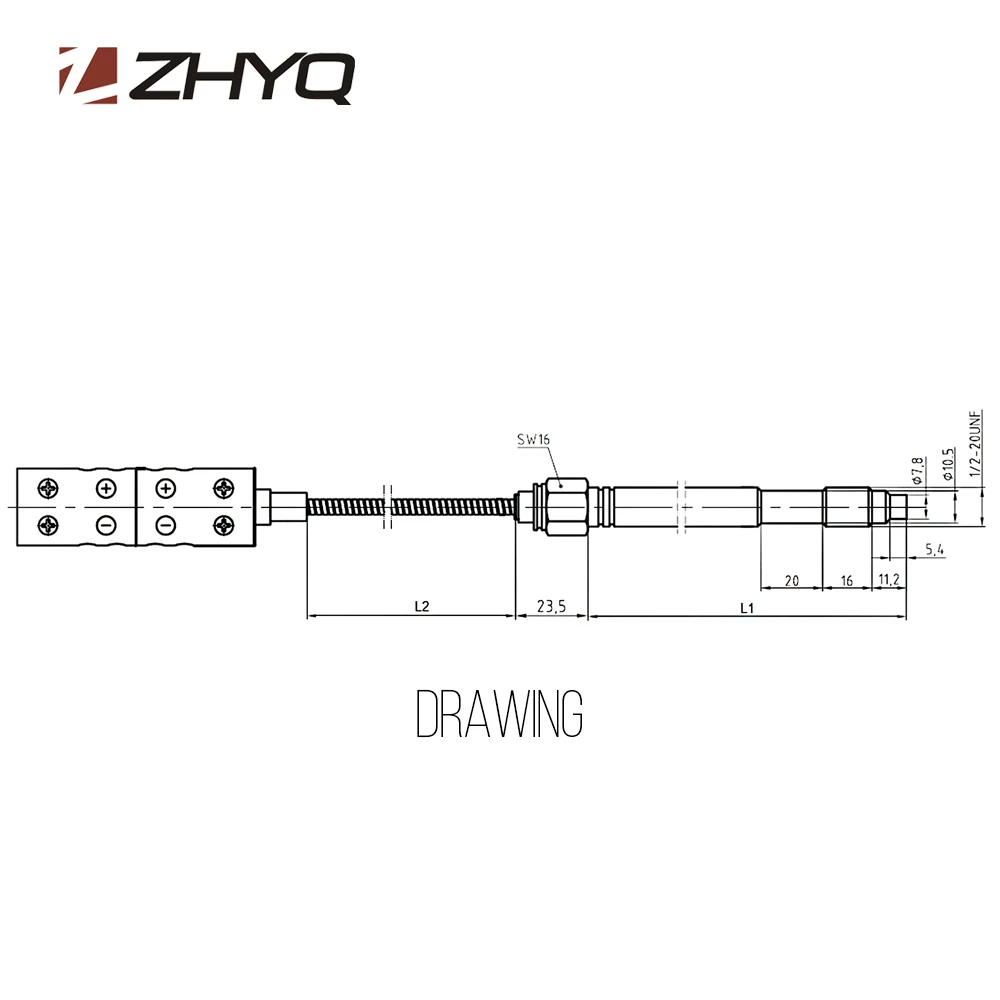

Dimension

Specification

Model	WR-200 K type thermocouple temperature sensor
Temperature range	0 to 1300°C
Output	4-20mA optional
Power supply	10 ~30VDC  K type thermocouple temperature sensor
error	0.1%FS, 0.3%FS, 0.5%FS
Media compatibility	316L stainless steel
Pressure connection	1/2-20UNF, M14*1.5 K type thermocouple temperature sensor
Protection tube	Stainless steel 6mm and 8mm dia.
Insert length	6inch, 9inch  K type thermocouple temperature sensor
Tip Length	0mm , 5mm, 10mm, 15mm
Sensing element	J, PT100  K type thermocouple temperature sensor
Electrical connector	2PIN or PIN special connector



FAQs





1.How do you ensure good product quality?



We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before exporting to our clients.





2.What’s your MOQ and how long is your product warranty?



We have no MOQ limits, so 1 piece for test purpose at first is acceptable.



We offer 1 year warranty for all of our products, if there are any problems with the product itself, we would repair it for free.





3.What’s your production capacity and can you offer free samples?



Our production capacity is about 5,000 pieces per month. Yes, we offer free samples, but premise is that you buy at least 50 pieces from us later.





4.What detailed information do we need to provide if we want to purchase an order?



Such as application area, pressure range, output, accuracy, thread type, electric connector and other related parameters.





5.What types of payment terms and trade terms can you accept?



Payment terms: TT, Western Union, Money Gram, etc



Trade terms: Ex. Works, FOB, CNF, etc.





6.What express ways can you offer, can we use our own courier?



We can send goods to you by DHL, TNT, UPS, SF, EMS, or you use your own courier, just for your convenience.
