Кормушки и поилки для птицы

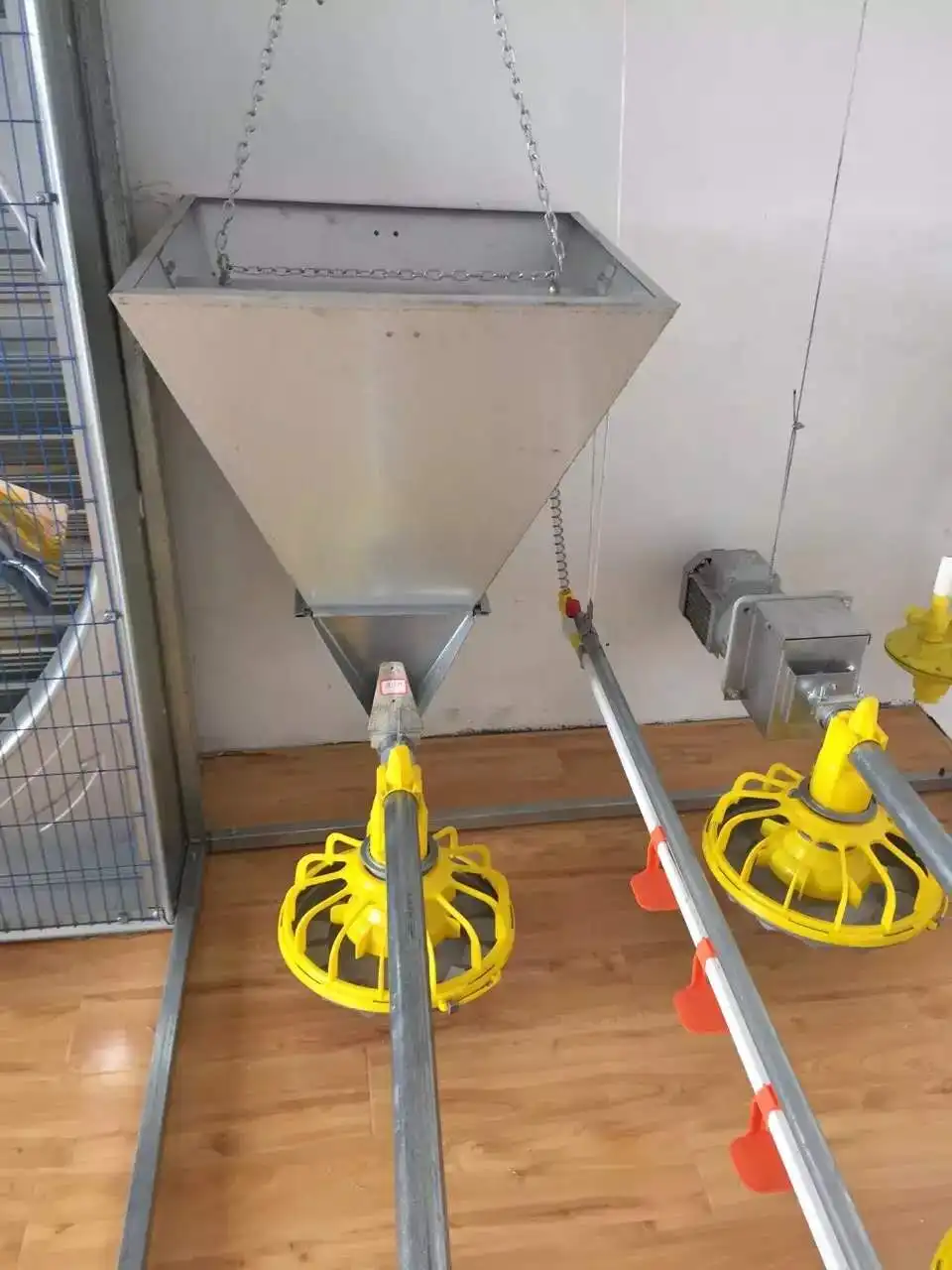

1.Vice Hopper

Size: 70Kg, 90Kg

Material:hot-dip galvanized sheet, thickness:1mm

2.Feed Pipe

Feed pipe:

Diameter of feed pipe:Φ45mm

Material:hot-dip galvanized sheet pipe with the zinc coating amount—more than 275m2.

Helical spring auger:

imported from South Africa, feeding ability:450Kg/h

3.Feed Pan

4 feed pans/3m,

Feed pan capacity:

50-55 broilers/pan

4.Control feed pan(with sensor)

imported from Germany

time delay range: 0-2hours

The sensor is usually installed at the end of each feeding line which controls motor on and off to achieve feed delivery automatically. The motor will start working and convey feed when sensor doesn't touch feed, the motor will stop conveying feed when sensor touchs feed.

5.Driving motor

Taiwan brand

Power: 0.75Kw/1.1Kw/1.5Kw,

Voltage:380V/220V/others, three-phase/single-phase

Frequency:50Hz, AC current

6.Connector box

Firm connection

7.End tube

End tube position

8.Anti-perching system

It prevents chickens from staying on the ground for too long.

9.Lifting & Suspension

It's very convenient to adjust the feeding line height by winch.

10.Hopper bin

Hopper bin position

11.Cross beam

Cross beam position

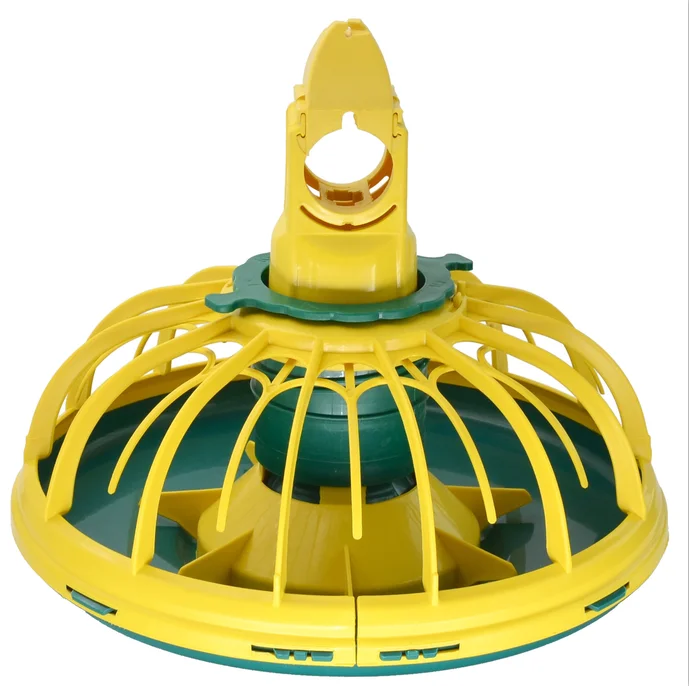

Chicken feed pan specific

Basic information

14 grilles, diameter of pan bottom-330mm, material-pure engineering plastic

Feeding ability

50-55 broilers/pc

Advantages

a. Made of high-resistant injected plastic——PP;
b. Six-position regulator that enables the correct amount of feed to be delivered according to the age of chickens, just need to catch two ears in the inner and pull them out adjust up and down.

c. Easy assembly and disassembly system for cleaning the pan;
d. A flange is incorporated to keep the pan suspended for handling;
e. The pan bottom can be disassembled on the ground, which can be used for day-old chicks;
f. V-shape plate design can reduce feed storage on bottom, so birds can always eat fresh feed, which also prevents birds staying on the plate for a long time;

g. The edge of pan plate tilt towards the center, which avoids waste of feed, the smooth edge prevents birds craws hurting and make sure safe and comfort feeding;

h. The pan features fins and lips to prevent the feed from falling into the chicken's bedding and being wasted.
