Автоматическая машина для прорезки гофрированного картона прорезные бумажные картонные коробки упаковки
- Категория: Carton\u00A0Printing\u00A0Slotting\u00A0Die-Cutting\u00A0Machinery >>>
- Поставщик: Cangzhou,Zhaoli,Carton,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 685839.63 $* | 699556.3 $* |
| Jul-16-2025 | 556232.43 $* | 567357.28 $* |
| Jun-16-2025 | 675039.11 $* | 688540.77 $* |
| May-16-2025 | 669638.42 $* | 683031.67 $* |
| Apr-16-2025 | 534631.49 $* | 545324.14 $* |
| Mar-16-2025 | 658838.25 $* | 672015.89 $* |
| Feb-16-2025 | 653438.26 $* | 666507.57 $* |
| Jan-16-2025 | 648037.32 $* | 660998.92 $* |
Характеристики
PRODUCT SPECIFICATIONS
Factory Price Cardboard Clapboard Making Machine Corrugated Carton Packing slotter Machine
This machine is manual operation and vacuum absorption auxiliary feeding system.(The wind strength can be adjusted).
It can slot, cut corner, cut the extra side and press the lines of the corrugated cardboard.
The slotting width is electric adjustment, and it attached a ruler that the scale can be read easily.
The phase adjustment of slotting part is planetary gear structure.
The machine adopts 360°electric adjustment.
The up and down slotting knives and creasing knives can move synchronously (use exclusive tool toadjust left and right).
This small machine is easy to operate and repair easily which is specialized for slotting small boxes.
Factory Price Cardboard Clapboard Making Machine Corrugated Carton Packing slotter Machine
Model | ZL-1600 | ZL-1800 | ZL-1800 |
Max machine speed | 60-90pieces/min | 60-90pieces/min | 60-90pieces/min |
Max feeding size | 1400mmx600mm | 1600mmx600mm | 1800x600mm |
Min feeding size | 450mmx170mm | 450mmx170mm | 450x170mm |
Min height of box | 70MM | 70mm | 70mm |
Deimen | 2700x1500x1400mm | 2900x1500x1400mm | 2900x1500x1400mm |
Weight | 1300kg | 1500kg | 1500kg |
introduction
Factory Price Cardboard Clapboard Making Machine Corrugated Carton Packing slotter Machine
FEATURES AT A GLANCE
Factory Price Cardboard Clapboard Making Machine Corrugated Carton Packing slotter Machine
1. Feeding paper roller adopt patterned roller, feeding paper roller pressure adjustment adopt eccentric wheel adjust and
left-right eccentric wheel, adjust the pressure synchronous
2. Pushing paperboard department adopt both sides baffle and latter baffle to fasten paperboard, to avoid the slotting error when pushing paperboard which make upper paperboard misplace, can fit to every kinds paperboard, and sending paper stable and accurate.

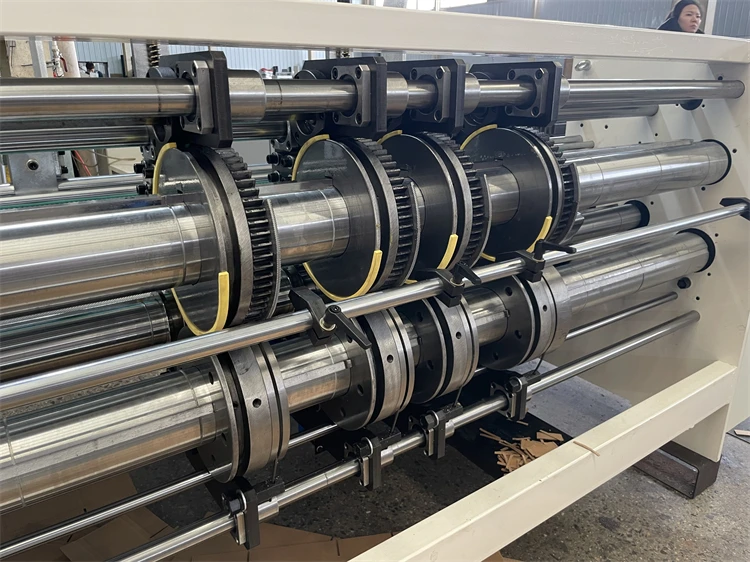

3. Slotting plate adopt full steel processed accessories, slotting knives adopt zigzag arc-shaped semicircle knives to slot and remove the scrap, paperboard get into slitting roller after slotting, slitting knives slit both sides of the paperboard
(note:pressing wheel and slitting knives in one roller)
4. Paperboard is send out by six transmit shaft after slotting, corner-cutting, slitting, pressing, this machine power equipped with the frequency conversion speed regulator (speed adjustable freely), adopt Jintiao frequency converter.
5. This machine adopt electric planetary gear phase to adjust paperboard size, can adjust without stopping.
left-right eccentric wheel, adjust the pressure synchronous
2. Pushing paperboard department adopt both sides baffle and latter baffle to fasten paperboard, to avoid the slotting error when pushing paperboard which make upper paperboard misplace, can fit to every kinds paperboard, and sending paper stable and accurate.
3. Slotting plate adopt full steel processed accessories, slotting knives adopt zigzag arc-shaped semicircle knives to slot and remove the scrap, paperboard get into slitting roller after slotting, slitting knives slit both sides of the paperboard
(note:pressing wheel and slitting knives in one roller)
4. Paperboard is send out by six transmit shaft after slotting, corner-cutting, slitting, pressing, this machine power equipped with the frequency conversion speed regulator (speed adjustable freely), adopt Jintiao frequency converter.
5. This machine adopt electric planetary gear phase to adjust paperboard size, can adjust without stopping.
Recommend Products
SALES AND SERVICE NETWORK
About us
FAQ
Q1: Are you a factory or trading company?
A:1 We are a manufacture which is specialized in the production of various kinds of carton equipments for 20 years.(with export license)
Q2: Where is your factory located? How can I visit here?
A2：Our factory is located in Dongguang county, Cangzhou City, Hebei province, China. It is 1 hours from Beijing airport by train. We can pick you up if you need, welcome to visit our factory.
Q3: What are your products?
A3: Our main products are partition assembler machine, 3/5/7ply corrugated cardboard production line, high speed printing slotting machine, carton folder gluer machine, stapler machine,
etc.
Q4: How does your factory do regarding quality controlling?
A4: We have one year warranty for whole machine, not including easy-damage parts.
