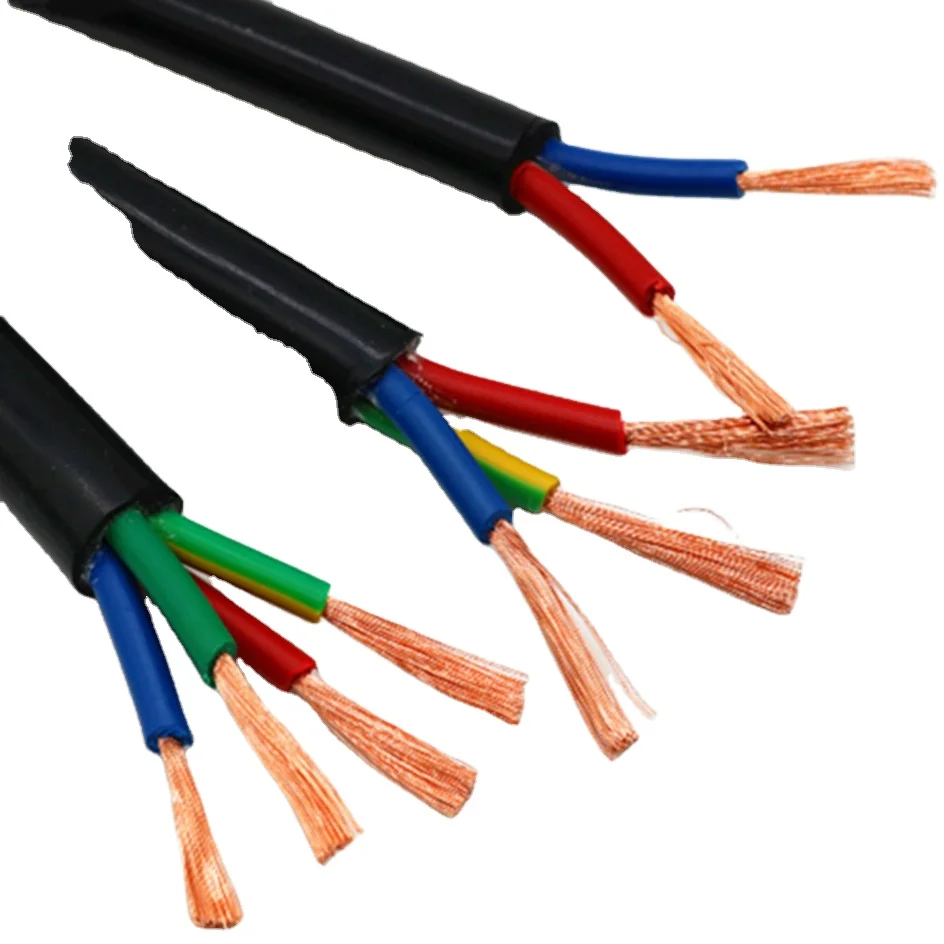

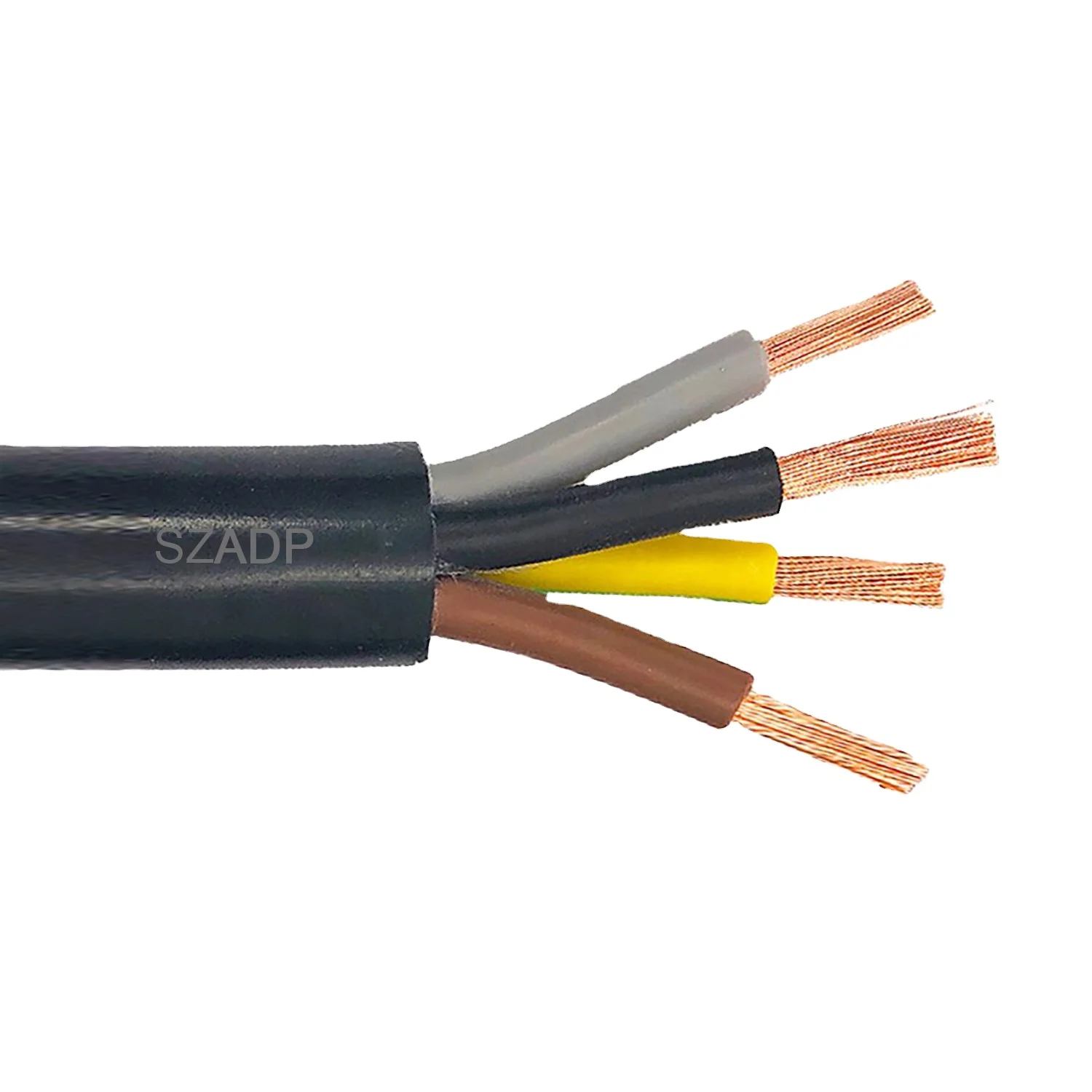

RVV 4 ядра 3 2 Королевский шнур провод 1 5 мм 6 гибкий медный проводник ПВХ pe изолированные кабели
- Категория: Power Cables >>>
- Поставщик: Huizhou,Adp,Optical,Communications,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.28 $* | 0.49 $* |
| Aug-18-2025 | 0.82 $* | 0.34 $* |
| Jul-18-2025 | 0.6 $* | 0.76 $* |
| Jun-18-2025 | 0.0 $* | 0.80 $* |
| May-18-2025 | 0.16 $* | 0.33 $* |
| Apr-18-2025 | 0.66 $* | 0.80 $* |
| Mar-18-2025 | 0.21 $* | 0.32 $* |
| Feb-18-2025 | 0.17 $* | 0.96 $* |
| Jan-18-2025 | 0.41 $* | 0.18 $* |
Характеристики
Specification

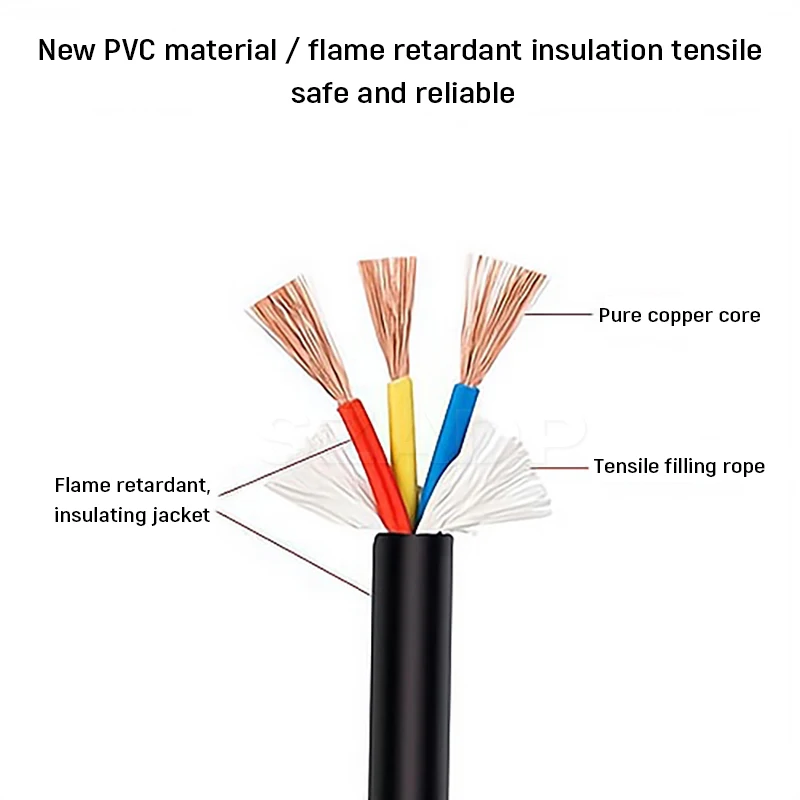

pvc insulated cable
1) No necessary to heat up in advance while installing above 0℃.
2) Max. continuous normal operating Temperature: 90℃(PVC Sheathed cable).
3) Max. Permissible temperature at short circuit (5s. at longest): 250℃.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
Detailed Description
1.Cross-linked polyethylene insulated power cable not only has excellent electric and mechanical properties, but also has powerful resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and using conveniently, also can be laid with no restriction of different level. The long term operating temperature is 90, and its transmit capacitance is large.
2.Our company can produce both flame retardant and non-flame retardant series of XLPE power cable.. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards stated above..
The flame-retardant cable covers all kinds of low-smoke low-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special XLPE cable according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on..
Application:
1 .Machine Tool Manufacture Industry
2 .Full Set of Equipment Installation Project
2 .Power Plant System
4 .Central Heating and Air-Condition System
5 .Office Automation Equipments Application
1) No necessary to heat up in advance while installing above 0℃.
2) Max. continuous normal operating Temperature: 90℃(PVC Sheathed cable).
3) Max. Permissible temperature at short circuit (5s. at longest): 250℃.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
Detailed Description
1.Cross-linked polyethylene insulated power cable not only has excellent electric and mechanical properties, but also has powerful resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and using conveniently, also can be laid with no restriction of different level. The long term operating temperature is 90, and its transmit capacitance is large.
2.Our company can produce both flame retardant and non-flame retardant series of XLPE power cable.. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards stated above..
The flame-retardant cable covers all kinds of low-smoke low-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special XLPE cable according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on..
Application:
1 .Machine Tool Manufacture Industry
2 .Full Set of Equipment Installation Project
2 .Power Plant System
4 .Central Heating and Air-Condition System
5 .Office Automation Equipments Application

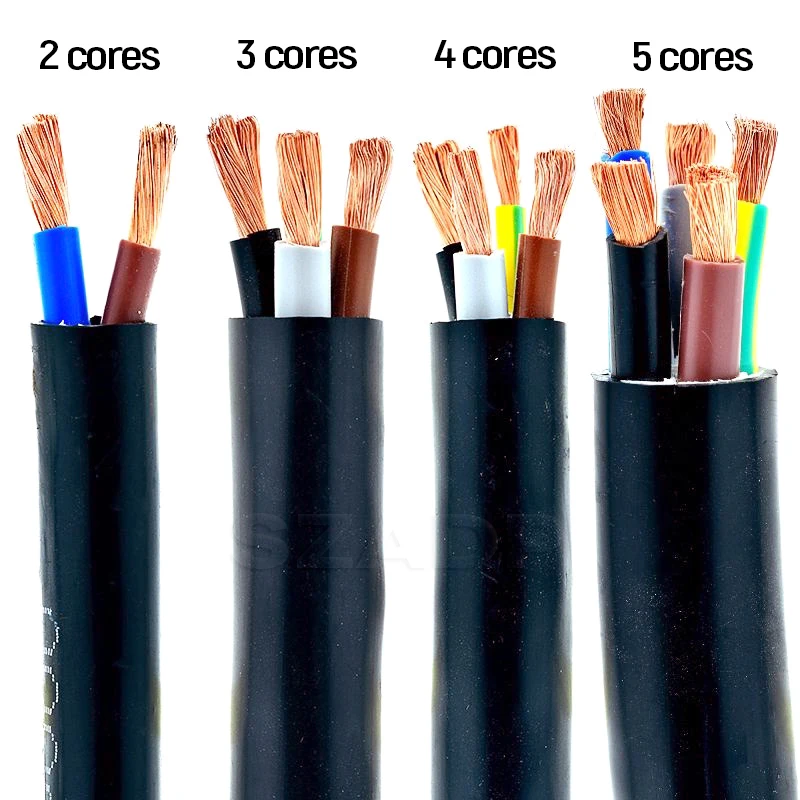

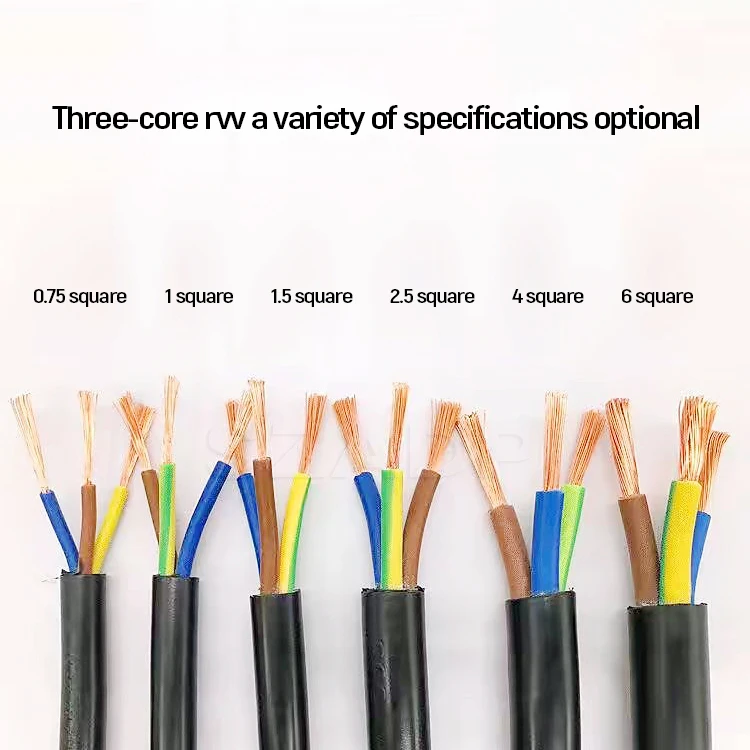

RVV 300/300V
Nominal sectionmm2 | Core Structure no./diamm | Max. outer dia(mm) | Conductor resistance at20 Ω/km | Min.Insulation resistance at 70 Ω·km |
2×0.5 | 16/0.20 | 6.0 | 39.0 | 0.012 |
2×0.5 | 16/0.20 | 3.6×6.0 | 39.0 | 0.012 |
2×0.75 | 24/0.20 | 6.4 | 26. | 0.010 |
2×0.75 | 24/0.20 | 3.9×6.4 | 26.0 | 0.010 |
3×0.5 | 16/0.20 | 6.2 | 39.0 | 0.012 |
3×0.75 | 24/0.20 | 6.8 | 26.0 | 0.010 |
Nominal sectionmm2 | Core Structure no./diamm | Max. outer dia(mm) | Conductor resistance at20 Ω/km | Min.Insulation resistance at 70 Ω·km |
2×0.75 | 24/0.20 | 7.6 | 26.0 | 0.011 |
2×0.75 | 24/0.20 | 5.2×7.6 | 26.0 | 0.011 |
2×1.0 | 32/0.20 | 7.8 | 19.5 | 0.010 |
2×1.5 | 30/0.25 | 8.8 | 13.3 | 0.010 |
2×2.5 | 49/0.25 | 11.0 | 7.98 | 0.0090 |
2×0.75 | 24/0.20 | 8.0 | 26.0 | 0.011 |
3×1.0 | 32/0.20 | 8.4 | 19.5 | 0.010 |
3×1.5 | 30/0.25 | 9.6 | 13.3 | 0.010 |
3×2.5 | 49/0.25 | 11.5 | 7.98 | 0.0090 |
4×0.75 | 24/0.20 | 8.6 | 26.0 | 0.011 |
4×1.0 | 32/0.20 | 9.2 | 19.5 | 0.010 |
4×1.5 | 30/0.25 | 11.0 | 13.3 | 0.010 |
4×2.5 | 49/0.25 | 12.5 | 7.98 | 0.0090 |
5×0.75 | 24/0.20 | 9.4 | 26.0 | 0.011 |
5×1.0 | 32/0.20 | 11.0 | 19.5 | 0.010 |
5×1.5 | 30/0.25 | 12.0 | 13.3 | 0.010 |
5×2.5 | 49/0.25 | 14.0 | 7.98 | 0.0090 |
Nominal sectional area mm2 | Conductor No/Dia. mm | Nominal Insulated thick mm | Max overall Dia. mm | Condcutor Resistance at 20 | Min insulated resistance at 70MΩ/km | Weight Kg/km | ||||
Cu | Al | Cu | Al | |||||||
1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - | ||
1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - | ||
2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 | ||
4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 | ||
6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 | ||
10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 | ||
16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 | ||
25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 | ||
35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 | ||
50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 | ||
70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 | ||
95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 | ||
120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 | ||
150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 | ||
185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 | ||
BVR flexible cable
Nominal sectional area mm2 | Conductor No/Dia. mm | Nominal Insulated thick mm | Max overall Dia. mm | Condcutor Resistance at 20 | Min insulated resistance at 70MΩ/km | Weight Kg/km |
2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
10 | 49/0.52 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
95 | 259/0.68 | 1. | 19.5 | 0.139 | 0.0035 | 965.0 |
120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
150 | 259/0.85 | 1.8 | 25.0 | 0.124 | 0.0032 | 1510.0 |
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
