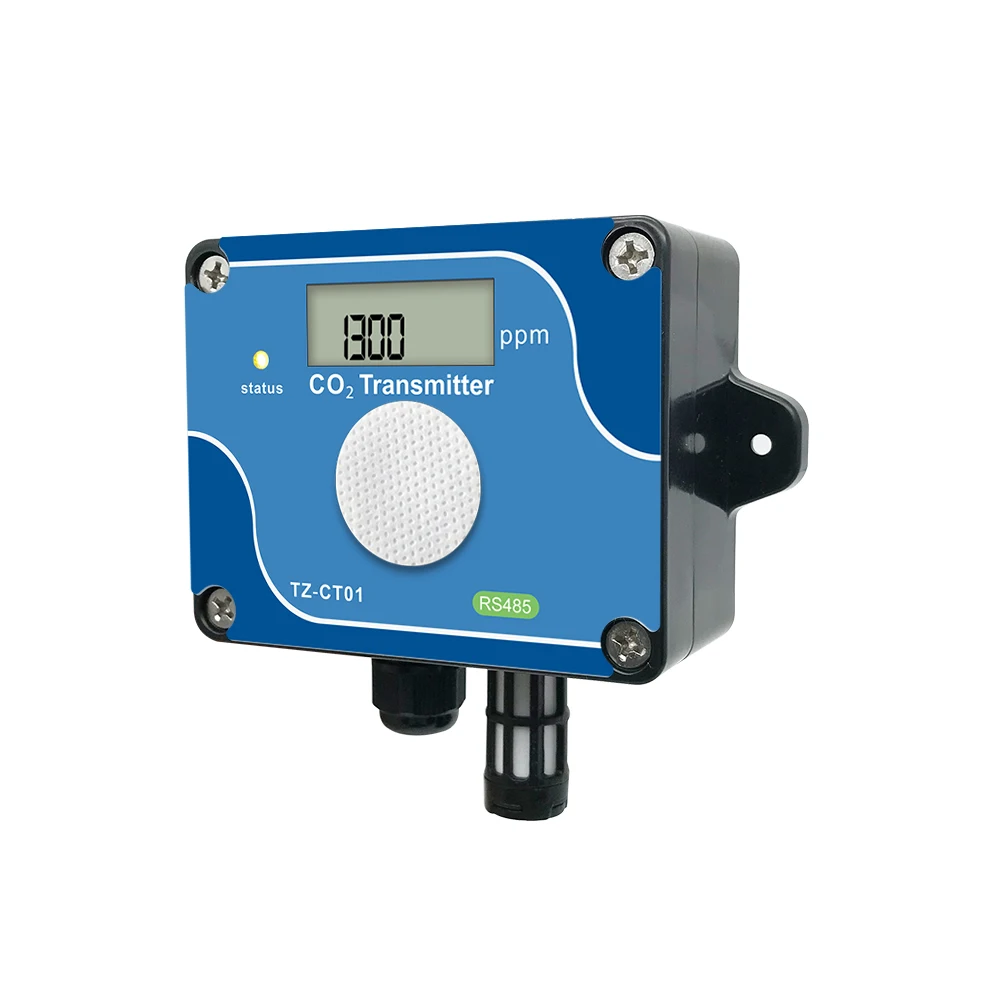

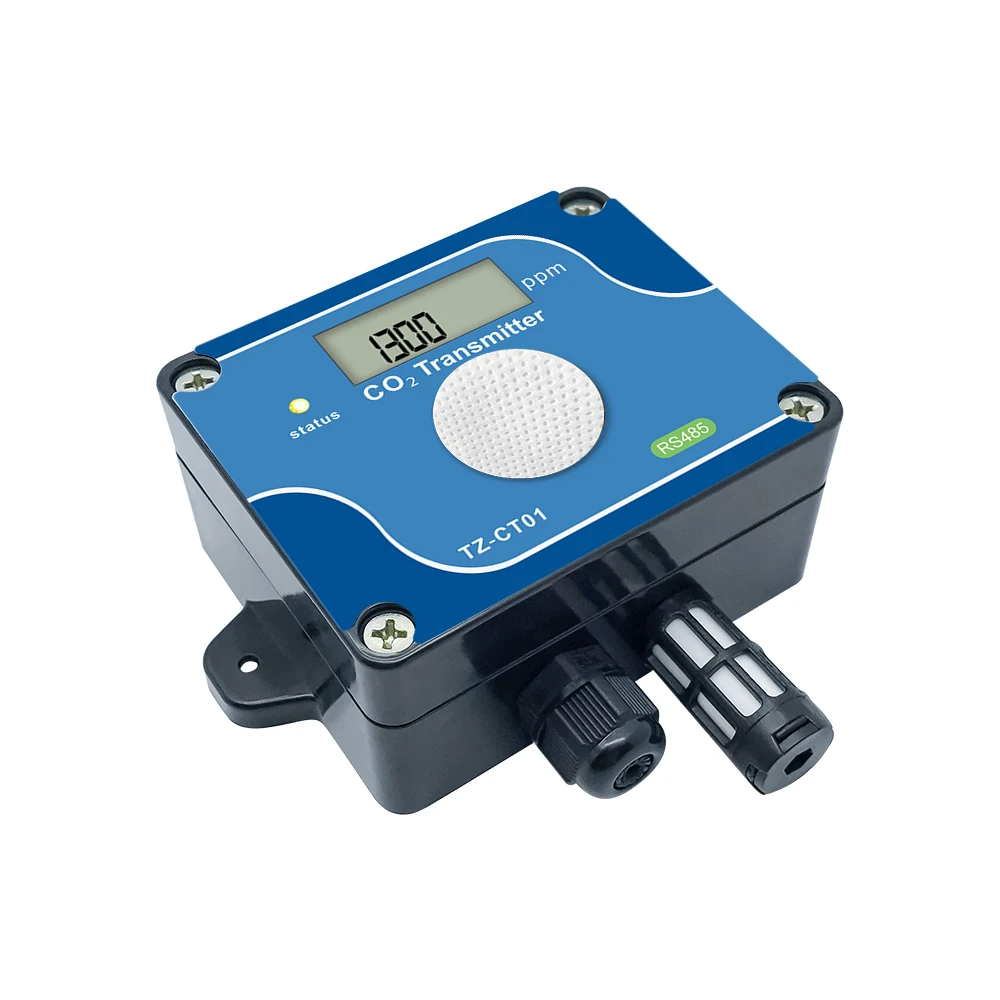

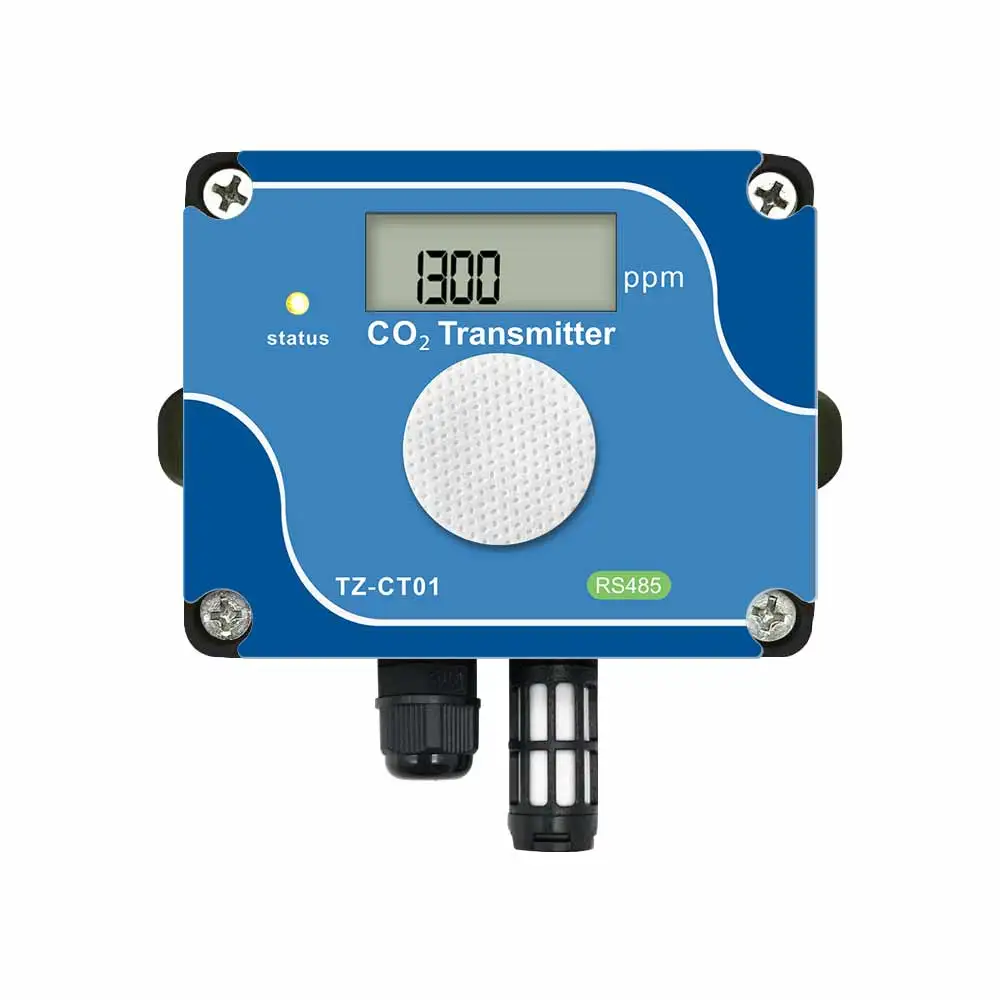

TZ-CT01 is a transmitter independently developed by our company to measure CO₂ concentration. The sensing element adopts NDIR dual beam infrared carbon dioxide sensor, which has a fast and sensitive response, avoiding the life and long-term drift problems of traditional electrochemical sensors, and is widely used in agricultural greenhouses, flower cultivation, edible mushroom cultivation and other occasions that require CO₂ monitoring.

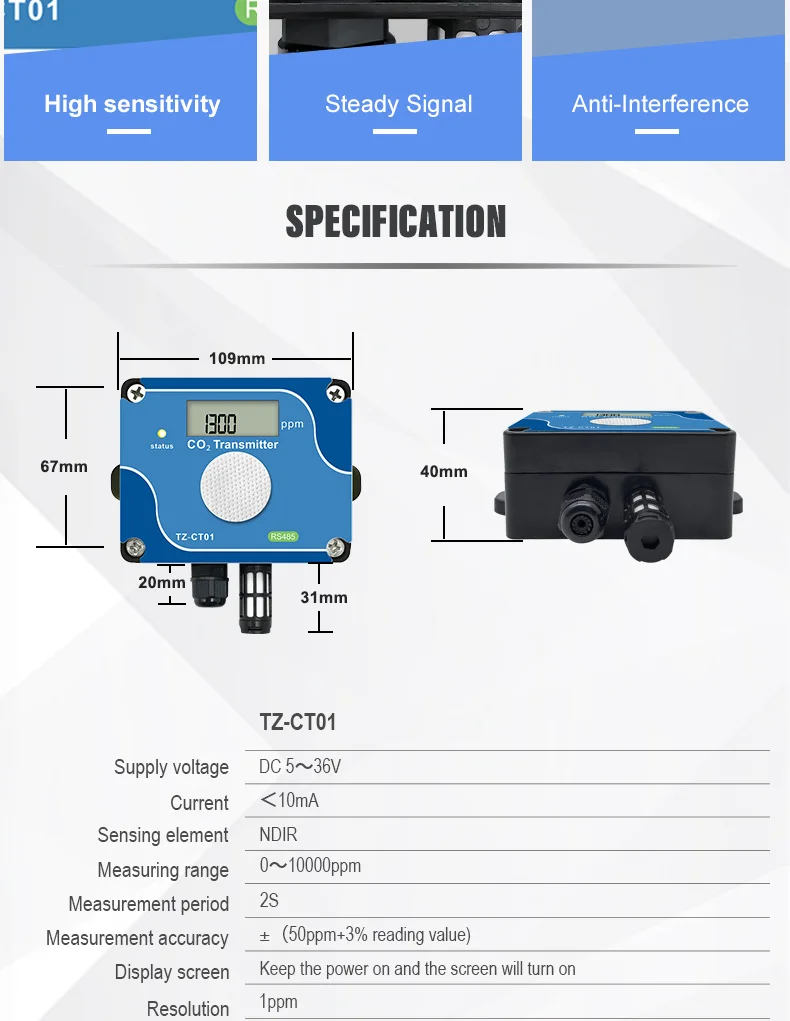

Product name	RS485 Output Transmitter Co2 Gas Carbon Dioxide Sensor
Supply voltage	DC 5~36V
Current	<10mA
Sensing element	NDIR
Measuring range	0~10000ppm
Measurement period	2s

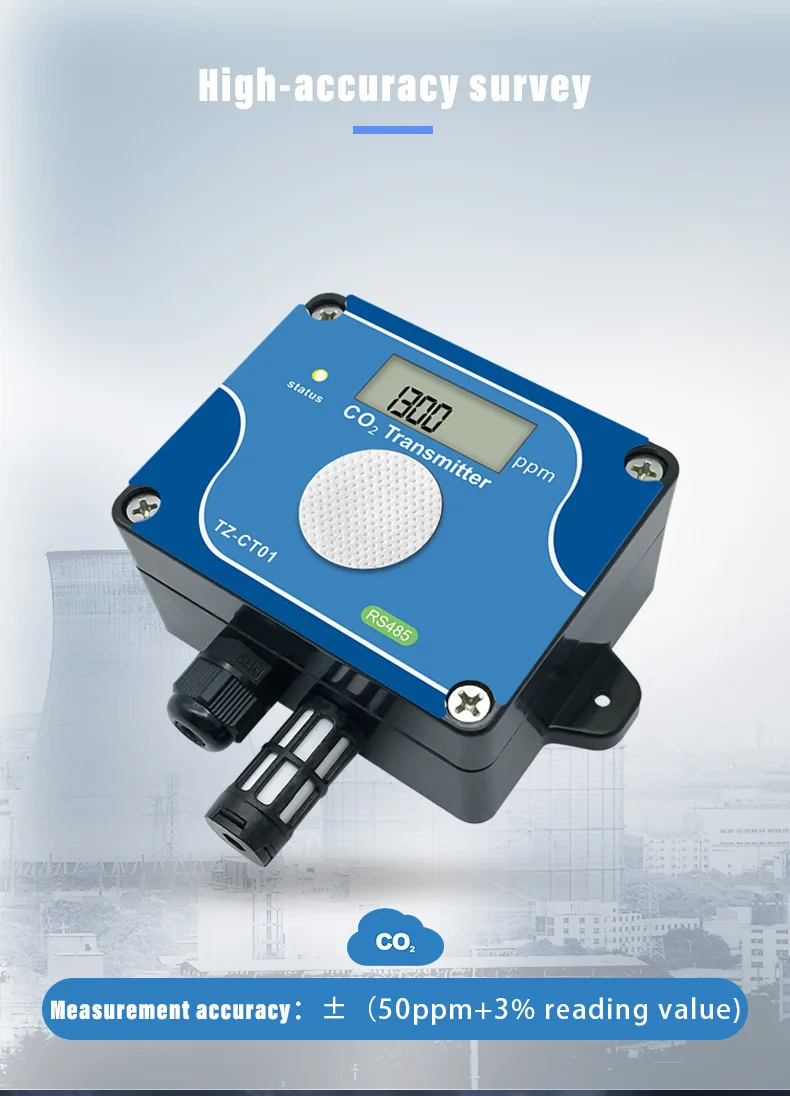

Measurement accuracy	±(50ppm+3% reading value)
Display screen	Keep the power on and the screen will turn on
Resolution	1ppm
Response time	1min(Time to reach 90% concentration change)
Warm up time	30s In 25℃
Indicator light	Keep power on, it will be solid red
Transfer protocol	RS485 serial port, standard modbus RTU
Transmission rate	4800bps / 9600bps
Transmission distance	The standard maximum transmission distance is about 1200 meters
Number of theoretical nodes	32
Operating temperature range	0~50℃
Storage temperature	-20~60℃
Operating humidity range	0~95%
Storage humidity	0~95%
Dimensions	109mm x 67mm x 40mm



· 1500mm factory: competitive price &on-time delivery

· 16 years experience and have a large advantage in technology and R&D.

· 6 Production line and 50 worker-it have a large advantage in price and quality.

· 4 international shows every year: face-to-face communication



Established in 2006 Shenzhen Tzone Digital Technology Co. Ltd. is a leading hi-tech enterprise with consolidated R&D manufacture and sales. Tzone covers about 1500 square meters and is with complete R&D and quality management team. Its production procedure is in full compliance with ISO9001 standard.

Tzone focuses on temperature monitoring device. As a manufacturer and operator with several independent intellectual properties and product trade market we are experienced in OEM and ODM service and providing solution according to customer requirement. We believe that satisfaction of customers is the root of company development and we pursue continuous innovation and improvement on product function quality and delivery to enhance our competitiveness.

We have over 1000 active clients from Middle East Europe and Asia. More and more customers from all over the world would be attracted and satisfied by our service and technology.
