Водонепроницаемая плитка XPS задняя панель из экструдированного полистирола теплоизоляционная пенопластовая с твердым сердечником настенная для ванной
- Категория: XPS Boards >>>
- Поставщик: Shandong,Blosam,New,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.22 $* | 0.50 $* |
| Aug-16-2025 | 0.55 $* | 0.71 $* |
| Jul-16-2025 | 0.1 $* | 0.40 $* |
| Jun-16-2025 | 0.27 $* | 0.35 $* |
| May-16-2025 | 0.71 $* | 0.64 $* |
| Apr-16-2025 | 0.75 $* | 0.79 $* |
| Mar-16-2025 | 0.46 $* | 0.80 $* |
| Feb-16-2025 | 0.46 $* | 0.55 $* |
| Jan-16-2025 | 0.33 $* | 0.72 $* |
Характеристики
Product Description
Product name-Cement Coated Tile Backer Board 6,10& 20mm
SANYI board (also known as construction board, tile backer board, insulation backer board ,waterproof backer board ,wet room
backer board)

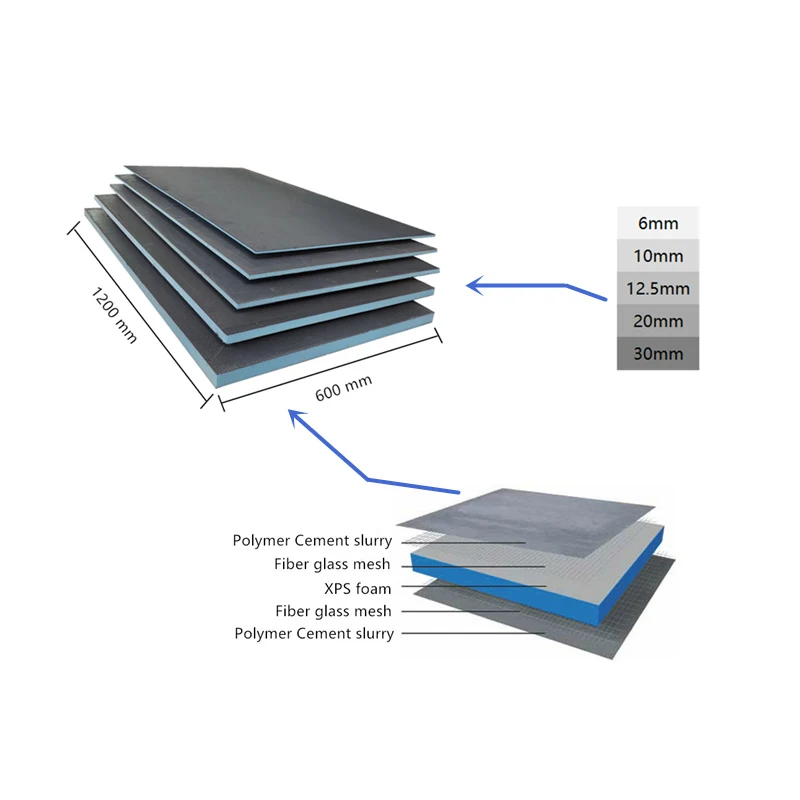

Product structure
SANYI boards are made of high-performance waterproof extruded polystyrene, it has a 0.75mm coating on either side comprising a
glass fiber mesh embedded in a polymer cement mortar.
Outstanding characteristics
Both insulation and waterproof
Product appearance
The boards have straight edges. The color of the surface is grey and the core material is light blue
Working temperature range
50 to +80 °C
Reaction to fire
The boards are classified as class E according to EN 13501-1. When the boards are covered with tiles, their fire performance
should comply with local construction laws and regulations.
Effect on indoor environment
SANYI board has been assessed as not emitting any particles, gases or radiation that may have a negative effect on the indoor
climate or to have any significant effect on health.
Environmental declaration
The product does not contain any substances on the observation list of dangerous substances published by the national
environmental authorities.
Main applications
Used as a watertight layer on walls and floors in houses, hotels and other wet areas such as bathroom, shower room.
Other applications
Other places to be insulated and waterproofed.
Description
Blosam Tile Backer Board consists of a blue core made from extruded polystyrene rigid foam. The rigid foam is reinforced with
glass fibre (with alkali-resistant finish) on both sides and coated with a polymer-modified cement. This core is 100% waterproof
and remains fully functional even after possible damage.
Blosam Tile Backer Board is suitable for a wide range of applications, thanks to it's special properties.
Blosam Tile Backer Board is primarily used as a carrying element for laying tiles, slabs and natural stone floor coverings using
the thin-bed method. It can also be used as an adhesive surface for applying plaster, tile adhesive and other materials.
Blosam Tile Backer Board offers excellent moisture protection, effective heat insulation, and can be used in countless ways as a
design element in any tiling installation.
Blosam Tile Backer Board is approved for interior use in rooms at a normal temperature. Contact Blosam on the application method
for special applications (swimming pools, cold stores, external areas etc.). Blosam Tile Backer Boards are approved for use on
floors in rooms with an ordinary residential load. Wheeled loads with high concentrated loads are not permitted.
Blosam Tile Backer Board is also available in two different versions – Blosam Construct Building Board has pre-cut grooves either
lengthwise or width-wise in the board to allow you to create curved walls and other interior features.
The Blosam Vapor Building Board is specifically designed for use in areas with constant high humidity, such as swimming pools,
steam rooms, spas, wellness suites, etc. It differs from the standard Blosam Tile Backer Board by using a special cement coating
on both sides of the boards and a vapour barrier on one side.
Blosam Tile Backer Board can be fitted on almost any surface, and is waterproof, heat-insulating, versatile, lightweight,
dimension ally stable and quick to process.
SANYI board (also known as construction board, tile backer board, insulation backer board ,waterproof backer board ,wet room
backer board)
Product structure
SANYI boards are made of high-performance waterproof extruded polystyrene, it has a 0.75mm coating on either side comprising a
glass fiber mesh embedded in a polymer cement mortar.
Outstanding characteristics
Both insulation and waterproof
Product appearance
The boards have straight edges. The color of the surface is grey and the core material is light blue
Working temperature range
50 to +80 °C
Reaction to fire
The boards are classified as class E according to EN 13501-1. When the boards are covered with tiles, their fire performance
should comply with local construction laws and regulations.
Effect on indoor environment
SANYI board has been assessed as not emitting any particles, gases or radiation that may have a negative effect on the indoor
climate or to have any significant effect on health.
Environmental declaration
The product does not contain any substances on the observation list of dangerous substances published by the national
environmental authorities.
Main applications
Used as a watertight layer on walls and floors in houses, hotels and other wet areas such as bathroom, shower room.
Other applications
Other places to be insulated and waterproofed.
Description
Blosam Tile Backer Board consists of a blue core made from extruded polystyrene rigid foam. The rigid foam is reinforced with
glass fibre (with alkali-resistant finish) on both sides and coated with a polymer-modified cement. This core is 100% waterproof
and remains fully functional even after possible damage.
Blosam Tile Backer Board is suitable for a wide range of applications, thanks to it's special properties.
Blosam Tile Backer Board is primarily used as a carrying element for laying tiles, slabs and natural stone floor coverings using
the thin-bed method. It can also be used as an adhesive surface for applying plaster, tile adhesive and other materials.
Blosam Tile Backer Board offers excellent moisture protection, effective heat insulation, and can be used in countless ways as a
design element in any tiling installation.
Blosam Tile Backer Board is approved for interior use in rooms at a normal temperature. Contact Blosam on the application method
for special applications (swimming pools, cold stores, external areas etc.). Blosam Tile Backer Boards are approved for use on
floors in rooms with an ordinary residential load. Wheeled loads with high concentrated loads are not permitted.
Blosam Tile Backer Board is also available in two different versions – Blosam Construct Building Board has pre-cut grooves either
lengthwise or width-wise in the board to allow you to create curved walls and other interior features.
The Blosam Vapor Building Board is specifically designed for use in areas with constant high humidity, such as swimming pools,
steam rooms, spas, wellness suites, etc. It differs from the standard Blosam Tile Backer Board by using a special cement coating
on both sides of the boards and a vapour barrier on one side.
Blosam Tile Backer Board can be fitted on almost any surface, and is waterproof, heat-insulating, versatile, lightweight,
dimension ally stable and quick to process.
Feature
1. 100% waterproof, made of HCFC-FREE XPS foam
2. High-rigidity and durability
3. Close bond to any tiling walls or floors
4. Available at various thickness and sizes
5. Compatibility to multiple substructures
6. Vapor retardant against mildew
7. Light-weight, easy to handle and cut with utility knife
1. 100% waterproof, made of HCFC-FREE XPS foam
2. High-rigidity and durability
3. Close bond to any tiling walls or floors
4. Available at various thickness and sizes
5. Compatibility to multiple substructures
6. Vapor retardant against mildew
7. Light-weight, easy to handle and cut with utility knife
Applications
■ Attaching to masonry, concrete or plaster
■ Screwing onto laths and supports
■ Concrete floors
■ Timber floors
■ Under floor heating
■ Bath tubs and shower tray surrounds
■ Vanity and shelving
■ Pipe coverings
■ Attaching to masonry, concrete or plaster
■ Screwing onto laths and supports
■ Concrete floors
■ Timber floors
■ Under floor heating
■ Bath tubs and shower tray surrounds
■ Vanity and shelving
■ Pipe coverings
Technical Data | Underfloor Heating Insulation Cement Coated Tile Backer Board 6mm |
Property | Ratings |
Density | 36kg/m3 |
Thermal Conductivity | 《0.035 w/ (m*k) |
Compressive strength (10% deflection) | Minimum of 0.25 N/mm2 |
Flextural strength | 2.05N |
Water absorbtion(2-day immersion) | 《1% |
Water absorbtion(Capillary) | Zero |
Coefficient of liner expansion | |
Water vapor diffusion resistivity (∪) | 110-225u |
Water vapour permeability | 0.028ng/pa.m.s |
EU Controlled substances content |
Details Images

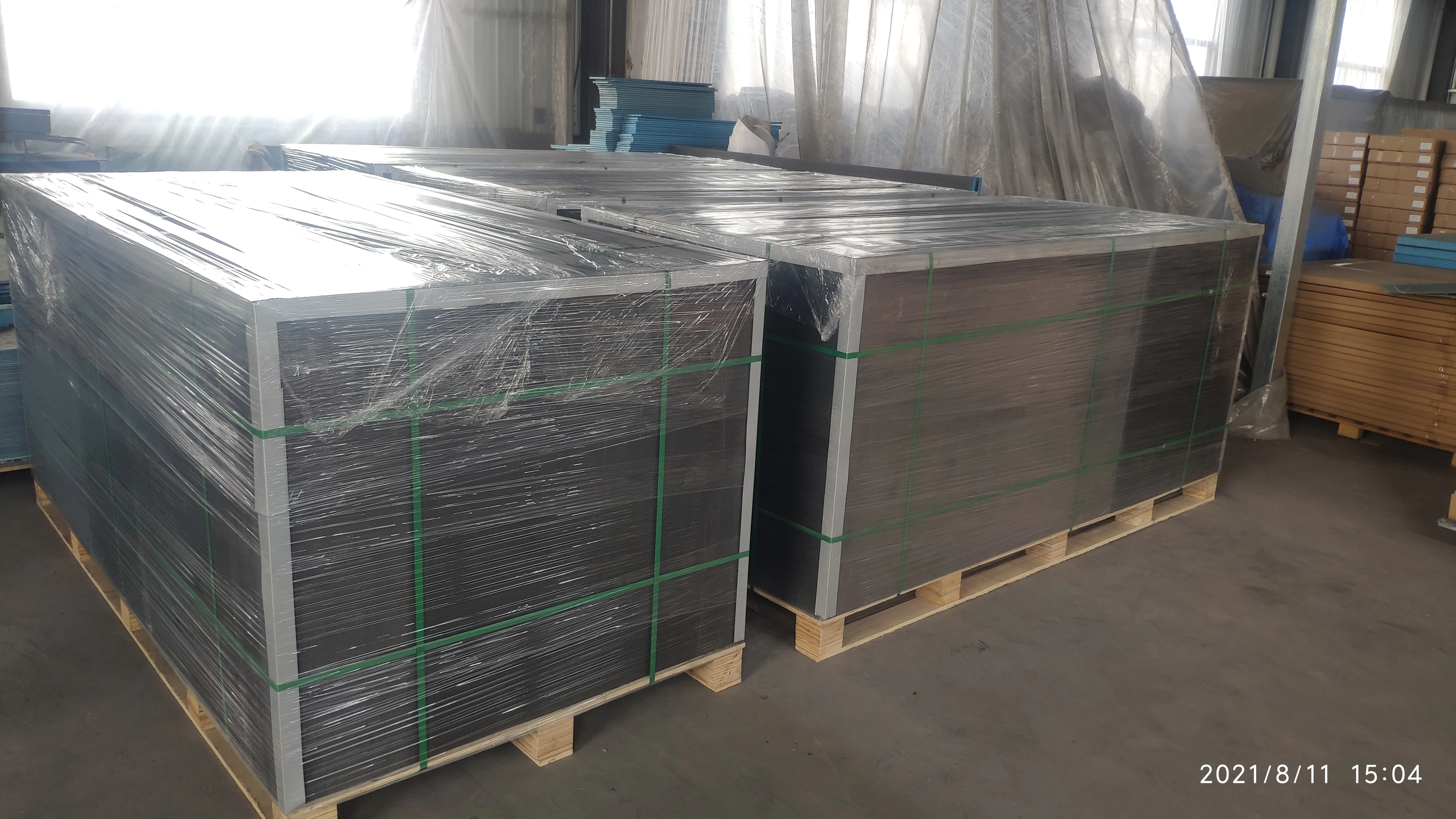

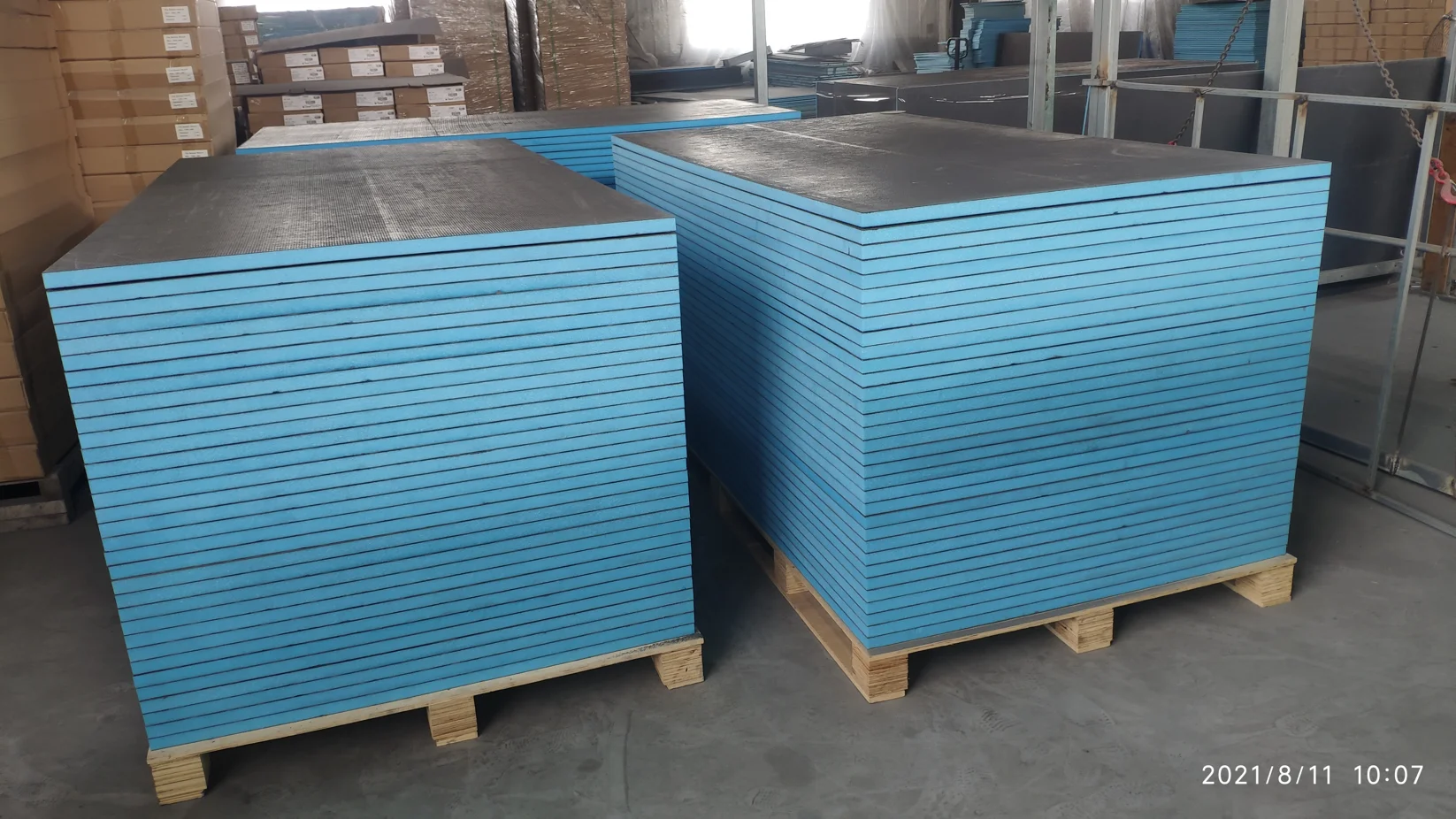

Product packaging
Related Products
After and Before
Accessories
underlay wetroom electric underfloor central heating mat kit system with cable thermostat insulation board
FAQ
Underfloor Heating Insulation Cement Coated Tile Backer Board 6mm
1. Could you develop some certain product with tile backer board and shower tray for us?
Answer: Yes, we have strong R&D Capability, we are welcome you to discuss the new idea with us.
2. Do you have any product certification for your tile backer board and shower tray ?
Answer: Our Shower system have certain CE Certification, also our certain product tested in USA with good performance in TCNA and
IAPMO. If you need the SINTEF OR SONAP, we could apply the certification together.
3. How is your production time ?
Answer: Normally it take 15-25 days and it vary according to the product quantity.
4. How many countries and areas have your product shipped?
Answer: We have shopped our shower system to United States, United Kingdom, Ireland, Canada, Russia, Netherland, Nigeria, Sweden,
Republic of Lithuania etc.
5. Do you provide OEM/ODM service?
Answer: Yes, we could produce the product with private labeled.
ATTENTION
Fixing
Choose a way to fix our boards according to the substrate to be fixed to. Normally, using modified tile adhesive for solid
concrete wall/floor and strengthened by mechanical fixings when necessary while only using mechanical fixings for wood and steel
frames.
Reinforcement
1. Dry areas: reinforce all joints between boards, floors and walls by 5cm or 10cm wide self-adhesive tape.
2. Wet areas: reinforce by suitable waterproof tape.
Waterproof strengthen
1. Strengthening all joints between boards, floors, walls and mechanical fixings placements by suitable waterproof tape.
2. Strengthening joints between walls, outside corners and inside corners by special corners.
3. Sealing pipe holes with special waterproof tape.
4. Strengthening once again by waterproof glue, liquid tanking membrane, tanking membrane paint, etc. when necessary.
Coating of panels
Should always be covered by ceramic tiles, mosaics or other equivalent non-fireproof materials after installation.
1. Could you develop some certain product with tile backer board and shower tray for us?
Answer: Yes, we have strong R&D Capability, we are welcome you to discuss the new idea with us.
2. Do you have any product certification for your tile backer board and shower tray ?
Answer: Our Shower system have certain CE Certification, also our certain product tested in USA with good performance in TCNA and
IAPMO. If you need the SINTEF OR SONAP, we could apply the certification together.
3. How is your production time ?
Answer: Normally it take 15-25 days and it vary according to the product quantity.
4. How many countries and areas have your product shipped?
Answer: We have shopped our shower system to United States, United Kingdom, Ireland, Canada, Russia, Netherland, Nigeria, Sweden,
Republic of Lithuania etc.
5. Do you provide OEM/ODM service?
Answer: Yes, we could produce the product with private labeled.
ATTENTION
Fixing
Choose a way to fix our boards according to the substrate to be fixed to. Normally, using modified tile adhesive for solid
concrete wall/floor and strengthened by mechanical fixings when necessary while only using mechanical fixings for wood and steel
frames.
Reinforcement
1. Dry areas: reinforce all joints between boards, floors and walls by 5cm or 10cm wide self-adhesive tape.
2. Wet areas: reinforce by suitable waterproof tape.
Waterproof strengthen
1. Strengthening all joints between boards, floors, walls and mechanical fixings placements by suitable waterproof tape.
2. Strengthening joints between walls, outside corners and inside corners by special corners.
3. Sealing pipe holes with special waterproof tape.
4. Strengthening once again by waterproof glue, liquid tanking membrane, tanking membrane paint, etc. when necessary.
Coating of panels
Should always be covered by ceramic tiles, mosaics or other equivalent non-fireproof materials after installation.
