2G/3G/4G 16 портов sms пескоструйная машина бесплатное программное обеспечение gsm модем
- Категория: Modems >>>
- Поставщик: Shenzhen,TYH,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 176.85 $* | 185.87 $* |
| Aug-16-2025 | 175.4 $* | 184.23 $* |
| Jul-16-2025 | 147.25 $* | 154.55 $* |
| Jun-16-2025 | 172.3 $* | 181.47 $* |
| May-16-2025 | 149.1 $* | 156.74 $* |
| Apr-16-2025 | 169.39 $* | 177.72 $* |
| Mar-16-2025 | 167.42 $* | 175.10 $* |
| Feb-16-2025 | 166.54 $* | 174.16 $* |
| Jan-16-2025 | 164.69 $* | 172.63 $* |
Характеристики

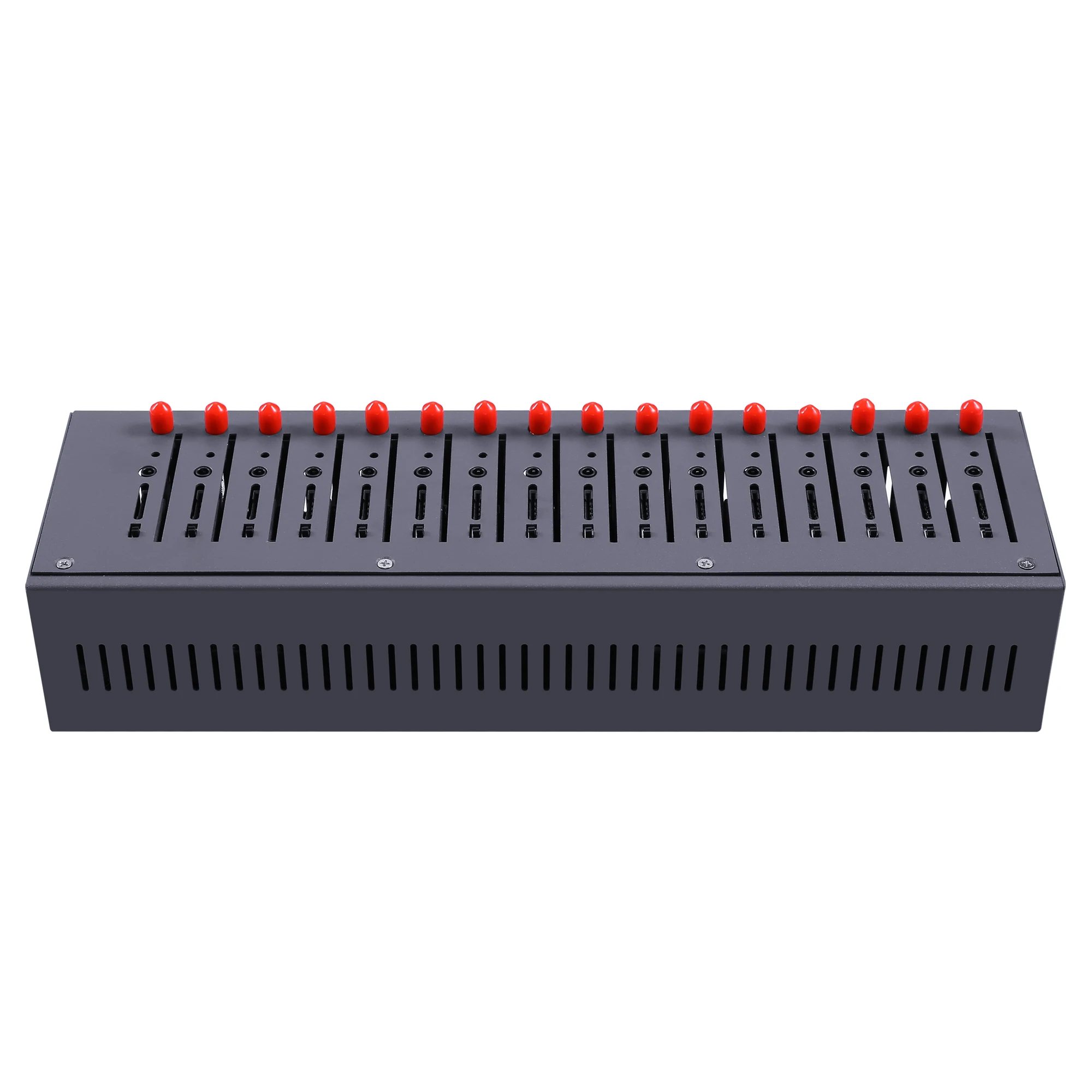

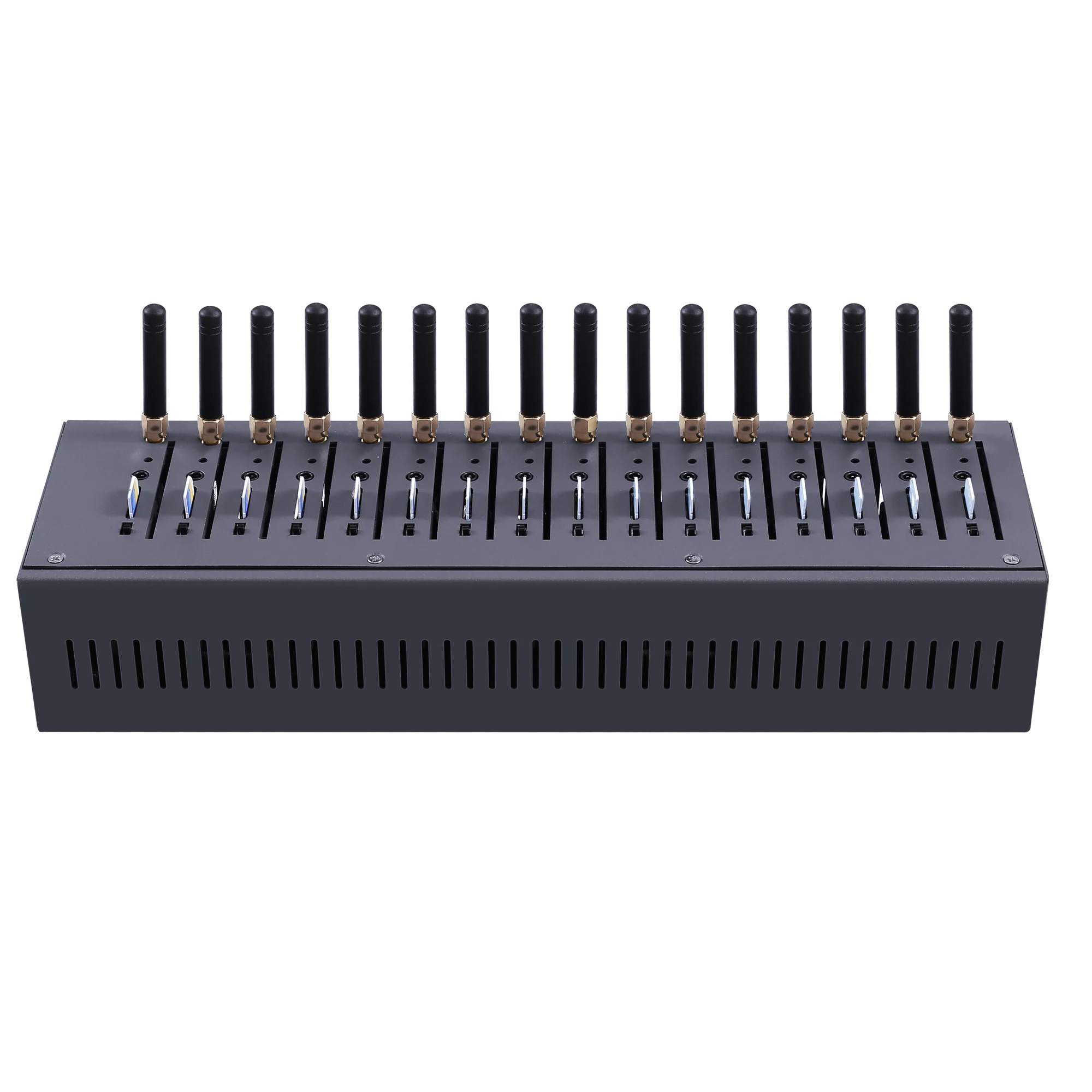

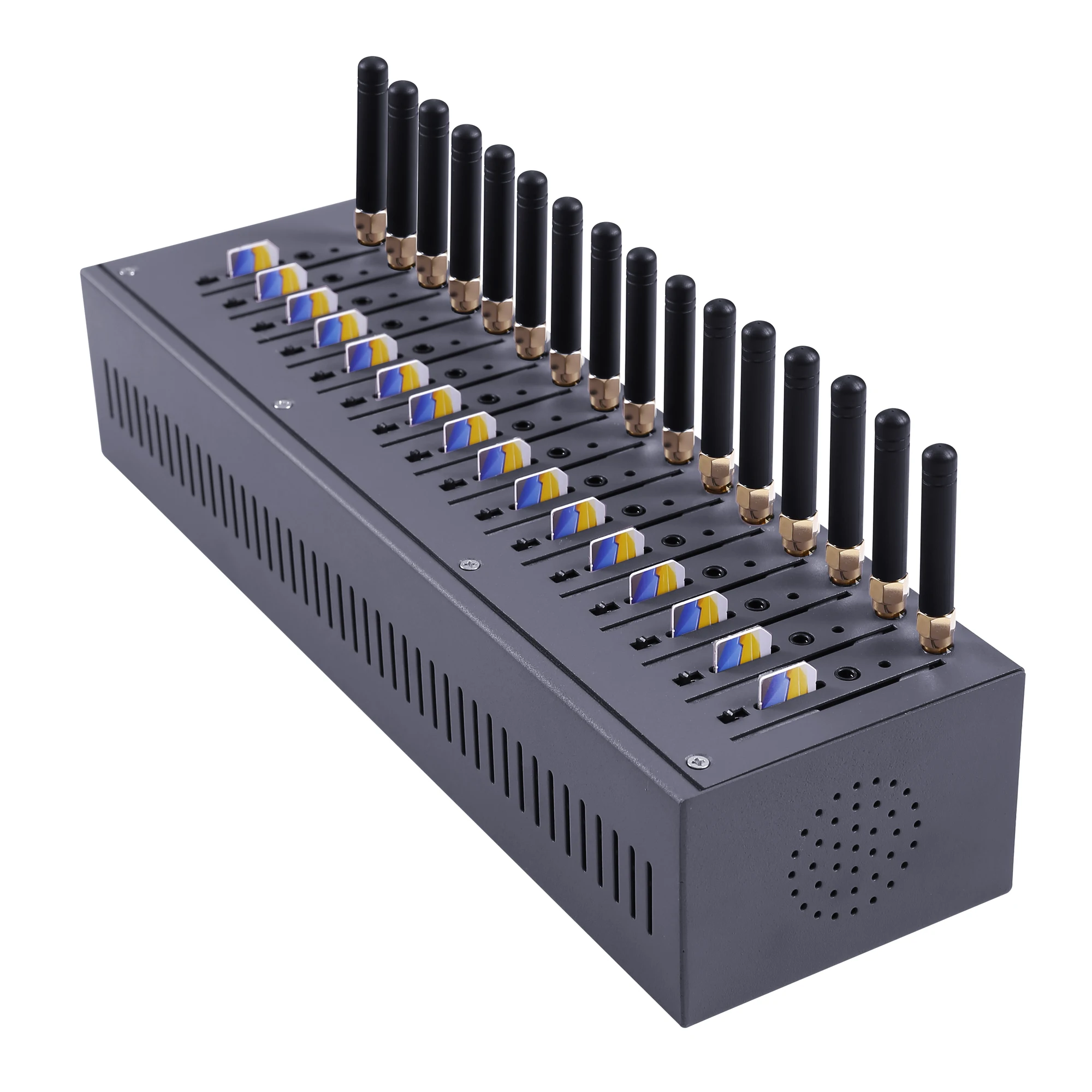

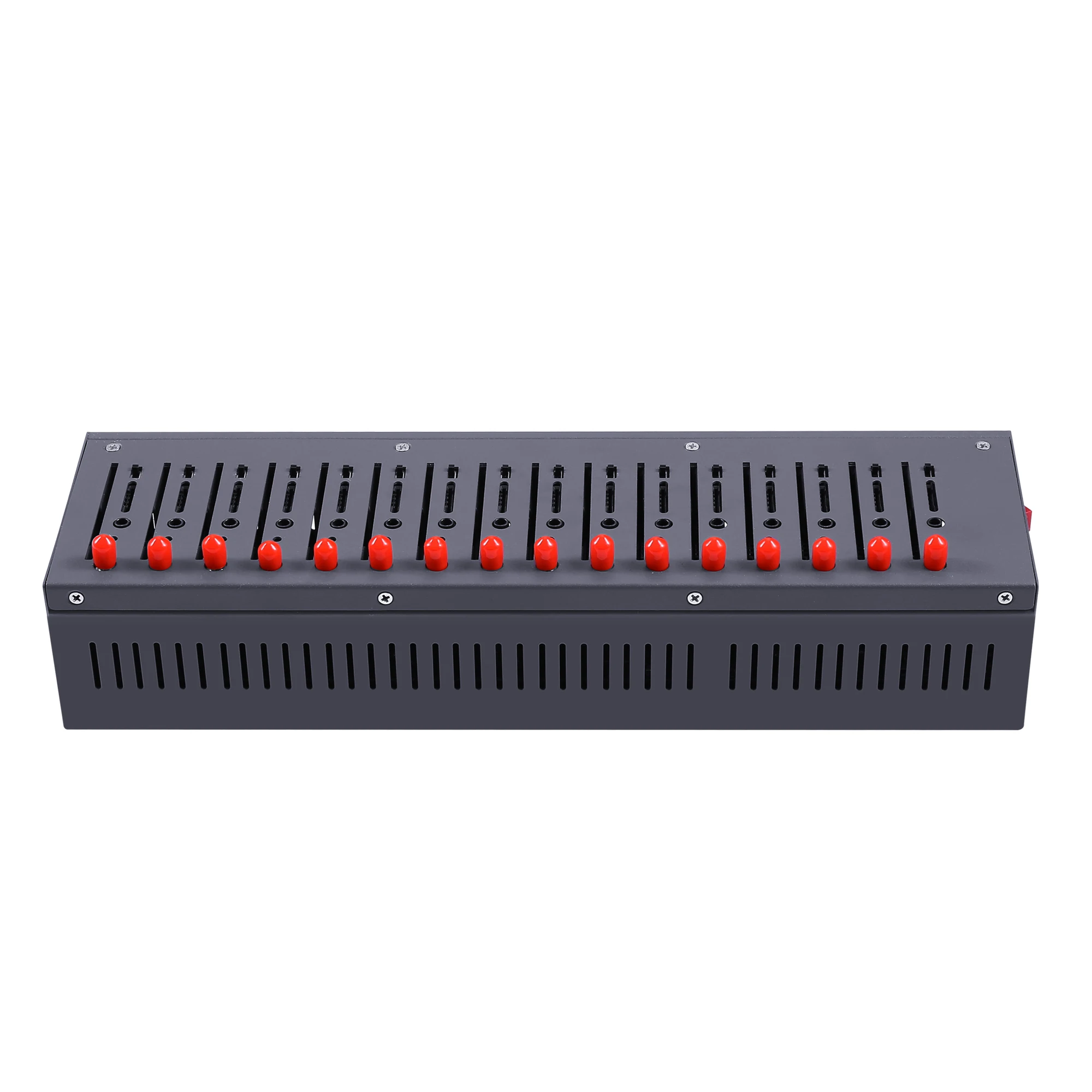

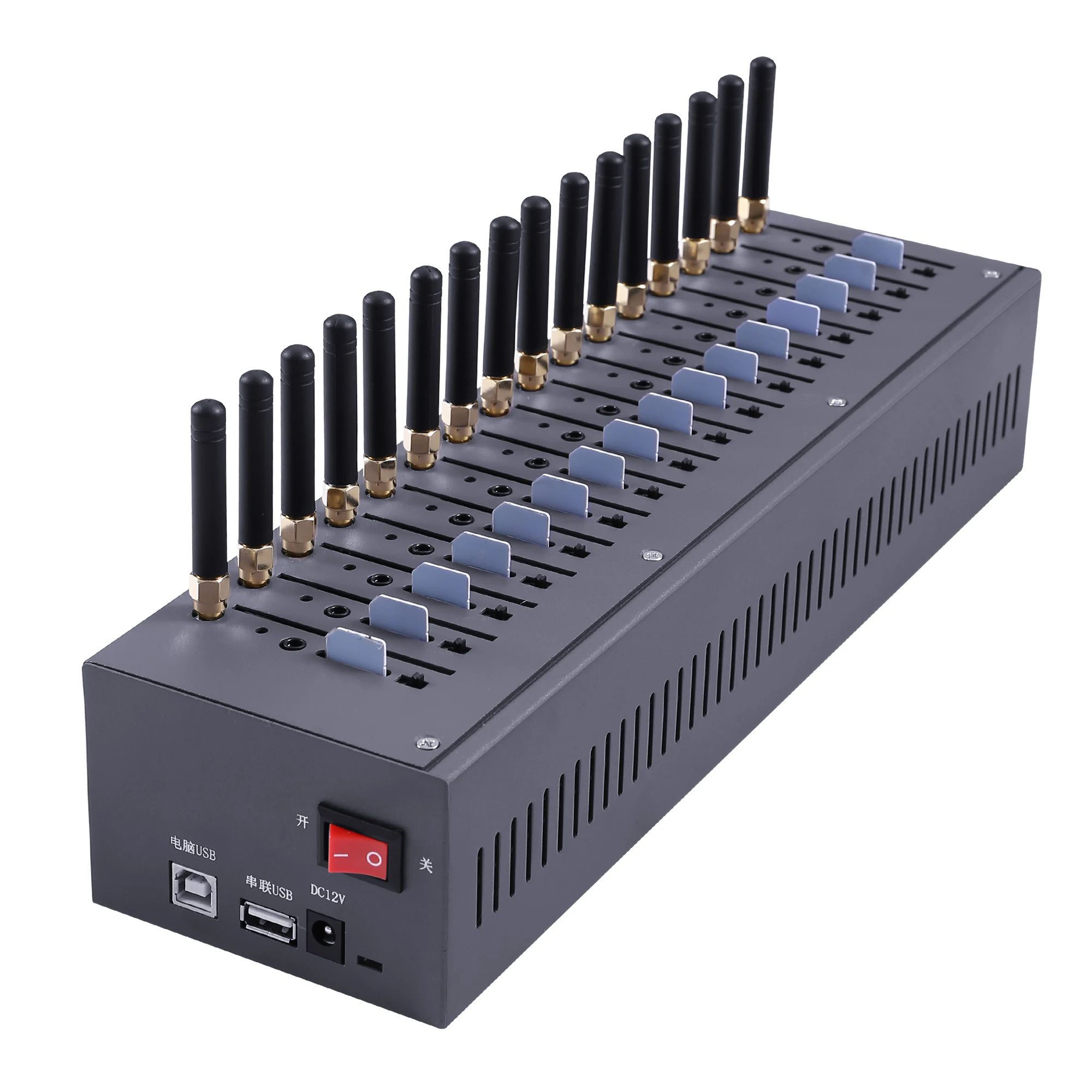

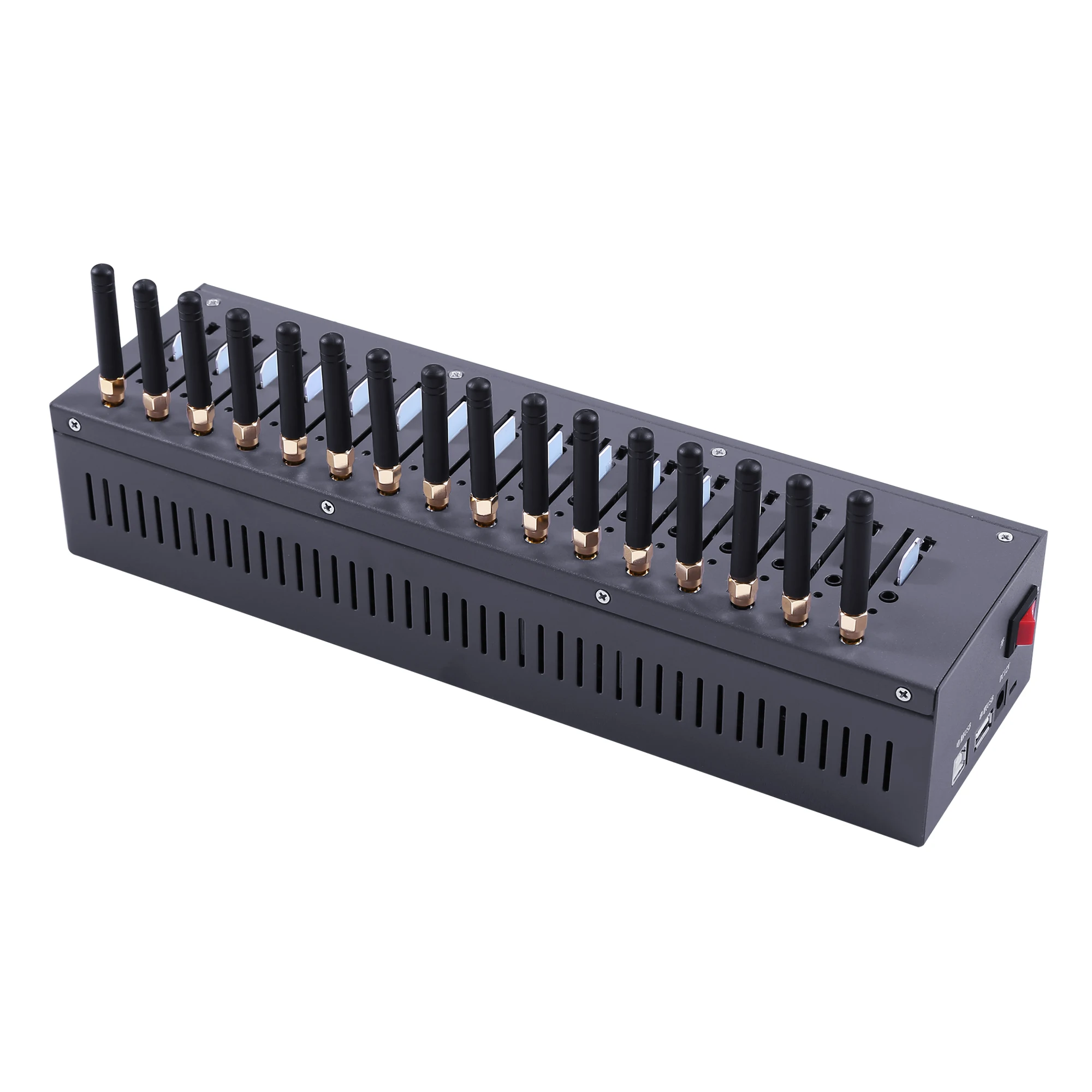

16 ports GSM Modem
The GSM Modem is actually a kind of equipment used for sending and receiving SMS.
It needs a mobile phone SIM card to support just the same as we use cellphone.
It needs a mobile phone SIM card to support just the same as we use cellphone.
Note:
1.This link is only for 2G sms modem,we also have 3G and 4G sms modem,contact us for more details.
2.We suggest USA, Australia, Canada, Japan, Korea use 4G sms modem because 2G is no longer working.
Key Features | * USB GSM modem pool * Based on Quectel industrial modules M26, M35, 4glte * GSM: 850/900/1800/1900MHz or 900/1800 MHz * 1/8/16/32/64 x SIM card(big/small) slots * Send and receive SMS,MMS * Maximum transmitting speed 115KBps * Input voltage: 100 to 240V * Working temperature: -20 to +60 degrees Celsius * Storage temperature: -25 to +70 degrees Celsius * Double tone multi-frequency function(DTMF) * Weight:4.5kg | |||
Basic Features | * Asynchronous, transparent or non-transparent, to a maximum 14400 bits/s * Baud Rate : 300-115200 bits / s * Automatic baud rate: from 2400 to 19200 bits / s * Fax support three * Switched voice and fax * V.42, V.42bis * GPRS compatible * WAP compatible * SMA Antenna Interface * SIM Card Outlet * Power connector * RS-232, the Mini-DB-9 connector * AT command control ( GSM 07.07 and 07.05) | |||
Applications | * Large shopping malls, supermarkets * Professional market, large wholesalers * Large hotels, large-scale entertainment * Large agencies * Transport, logistics industry * Large enterprises, and institutions * Large hospitals, large bookstore * Newspaper, television and radio stations * Oil Company ( other chain business model) * Government agencies or large township | |||
Hardware Features | * Support quad-band GSM: 850/900/ 1800/1900 MHz * Meet the ETSI GSM 2 + standards * Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz) * 5 -24 VDC power supply (which can be directly connected to the nickel- metal hydride or lithium batteries) * Operating Temperature: -20 ° C - + 55 ° C * Storage temperature: -25 ° C - + 70 ° C * Size: standard 1U chassis | |||
Support OS | Window 98 , Windows 2000, Window 2003, Windows XP, Windows Vista,Windows7,Windows8,MAC , Linux | |||
Packing list | 1*USB Cable, 16*SMA antenna, 1*Power adapter |
Device Setup
1. Device Connection
Equipment Parts List
① GSM Modem ②Power Line ③Antenna ④USB
A Install all antennas one after the other (rotate clockwise). After the installation is complete, insert the sim card. The sim card needs to be inserted with the chip facing down to the right. Install the power cord and insert the source part of the power cord into the corresponding inlet in the device. The other side is plugged into the power supply.
B Turn on the device switch (ON) and wait for 1-2 seconds for the device to start, after which the device will light up. as the picture shows.
C Connect the usb cable, plug the port marked 1 into the computer, and the port marked 2 into the device.
D After all devices are connected, open the software that comes with the device and click the URL.
How to use the sms modem？
1.Install SMS Caster like common software and close it after installing successfully
2.Connect the GSM MODEM to computer correctly, and then there will be a prompt from computer to install driver.
3.Select the driver path for every port, it will install automatically.
4.After completing the driver installation, starting SMS Caster program, all ports will be found.
2.Connect the GSM MODEM to computer correctly, and then there will be a prompt from computer to install driver.
3.Select the driver path for every port, it will install automatically.
4.After completing the driver installation, starting SMS Caster program, all ports will be found.
