RS485 Modbus наружная система контроля качества воздуха PM1.0 PM10 PM2.5
- Категория: Gas Analyzers >>>
- Поставщик: Shandong,Jianda,Renke,Electronic,Technology,Co.,.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.99 $* | 0.11 $* |
| Aug-15-2025 | 0.31 $* | 0.21 $* |
| Jul-15-2025 | 0.71 $* | 0.8 $* |
| Jun-15-2025 | 0.8 $* | 0.95 $* |
| May-15-2025 | 0.12 $* | 0.58 $* |
| Apr-15-2025 | 0.0 $* | 0.6 $* |
| Mar-15-2025 | 0.93 $* | 0.80 $* |
| Feb-15-2025 | 0.28 $* | 0.6 $* |
| Jan-15-2025 | 0.94 $* | 0.50 $* |
Характеристики
RS485 Modbus Outside Air Quality Monitoring System PM10 PM2.5 Air Quality Sensor
Product Description
Using the principle of laser scattering measurement, sieving through unique data dual-frequency acquisition technology to obtain the number of particles of equivalent particle size per unit volume, and calculating the number of particles of equivalent particle size per unit volume with a scientific and unique algorithm Concentration.It can be used in outdoor weather stations, dust monitoring, libraries, archives, industrial plants and other places that require PM2.5,PM1.0 or PM10 concentration monitoring.
RS485 Output | Analog Output | ||||||||
Power supply | 10-30VDC | Power supply | 10-30VDC | ||||||
Operating temperature | -20℃~+60℃, 0%RH~95%RH non-condensing | Current output | 1.2W | ||||||
485 (modbus) protocol Baud Rate: 2400, 4800 (default), 9600 Data bit length: 8 Parity mode: none Stop bit length: 1 The default ModBus Address: 1 Support Function code: 03 | Voltage output | 1.2W | |||||||
Resolution | 1ug/m3 | ||||||||
Accuracy | ±3%FS(@100μg/m3,25℃,50%RH) | ||||||||
Operating temperature | -20℃~+60℃, 0%RH~95%RH non-condensing | ||||||||
Measure range | PM2.5 | 0~1000ug/m3 | |||||||
Resolution | 1ug/m3 | PM10/pm1.0 | 0~1000ug/m3 | ||||||
Accuracy | ±3%FS(@100μg/m3,25℃,50%RH) | responding speed | ≤90S | ||||||
Measure range | PM2.5 | 0~1000ug/m3 | Preheat time | ≤2min | |||||
PM10/pm1.0 | 0~1000ug/m3 | Output signal | 4~20mA/0~5V/0~10V | ||||||

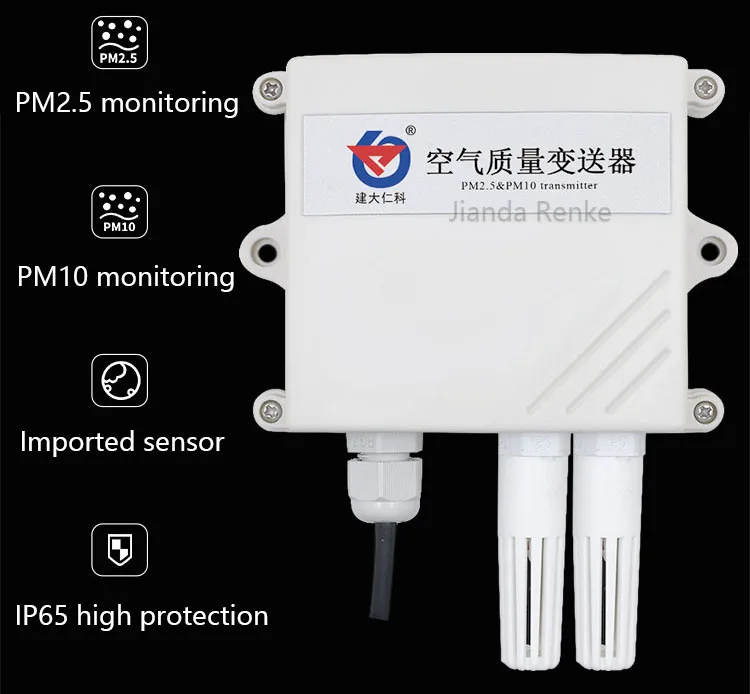

Detailed Images
1. Range: 0-1000ug/m3, resolution 1ug/m3
2. Simultaneous output of PM2.5,PM1.0 and PM10
3. Unique dual-frequency data acquisition and automatic calibration technology
4. Adopt advanced laser anti-attenuation technology to ensure long-term stability of the equipment
5. The output mode is RS485/0-20MA/0-10V/0-5V
2. Simultaneous output of PM2.5,PM1.0 and PM10
3. Unique dual-frequency data acquisition and automatic calibration technology
4. Adopt advanced laser anti-attenuation technology to ensure long-term stability of the equipment
5. The output mode is RS485/0-20MA/0-10V/0-5V
Output method
Installation Method
