Horizontal High Speed Stainless Steel Wire Knitting Machine Wire Braiding Machine For Rubber Hose


Product Description

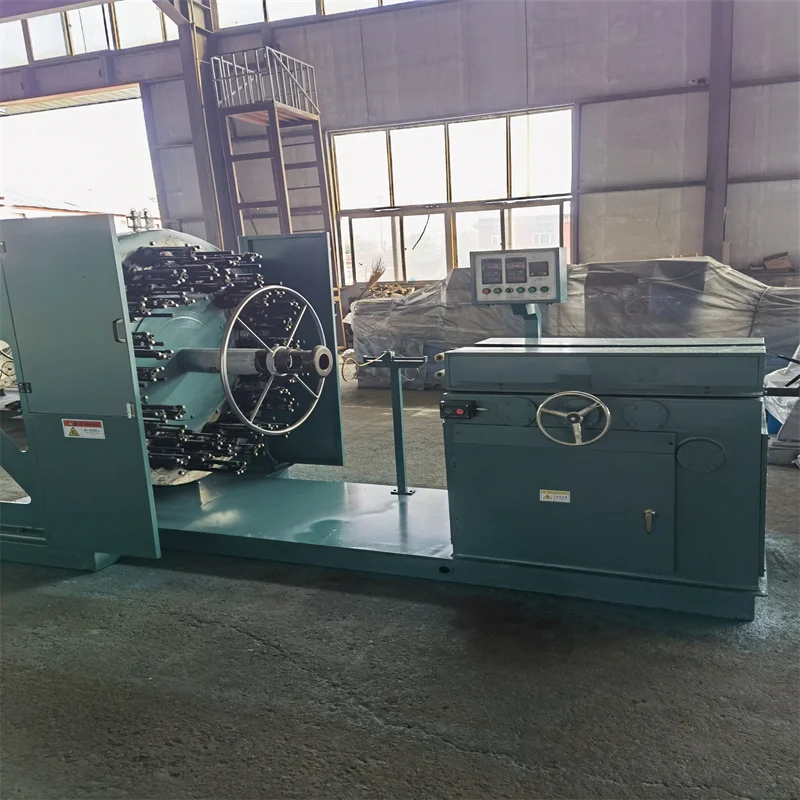

Wire Braiding Machine


Type 1 : High speed Braiding Machine for High Tensile Wire


Super high speed wire braiding machine
This product is a new type of wire braiding machine manufactured by our company based on the US RB-TWO wire weaving machine.This machine adopts the principle of controlled rotation; the spindle is performed by circular track; it breaks through the principle of 8 word handover machines at home and abroad; this machine is a new type of steel wire braiding machine with high technology advanced technology.
Working decker for super high speed braider
1. Working principle: rotary type
2.Control form: automatic digital control (plc+ man-machine interface)
3. Drive motor: full servo motor drive
4. Bobbin capacity : 13KG


single layer and double layer can be braid on our high speed wire braider
Copper wire can be used on our high speed rubber hose braiding machine

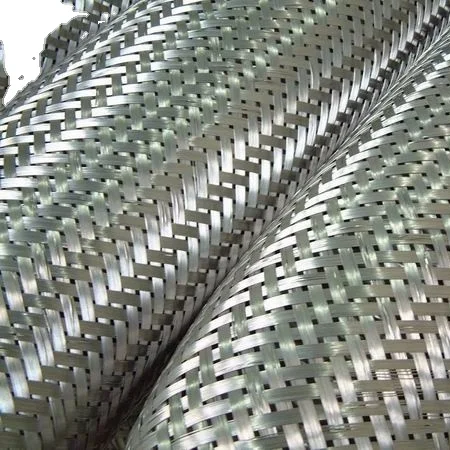

High quality braids


Super High-speed Single decker wire braiding machine
Product model
HLT16
HLT20
HLT24
HLT36
Spindle Rpm(r/min)
90
80
68
45
Max.Braiding diameter(mm)
10
13
25
32
Bobbin capacity(kg)
11.4
13.3
13.3
13.3
Braiding angle
54°44"
54°44"
54°44"
54°44"
Machine dimension
6433*2744*2598
6433*2744*2598
6433*2744*2598
6433*3055*2598




Large Capacity Carriers
High speed carriers ((left one of below picture) is 5 times wire capacity comaper with normal type carriers( Right one of below picture)

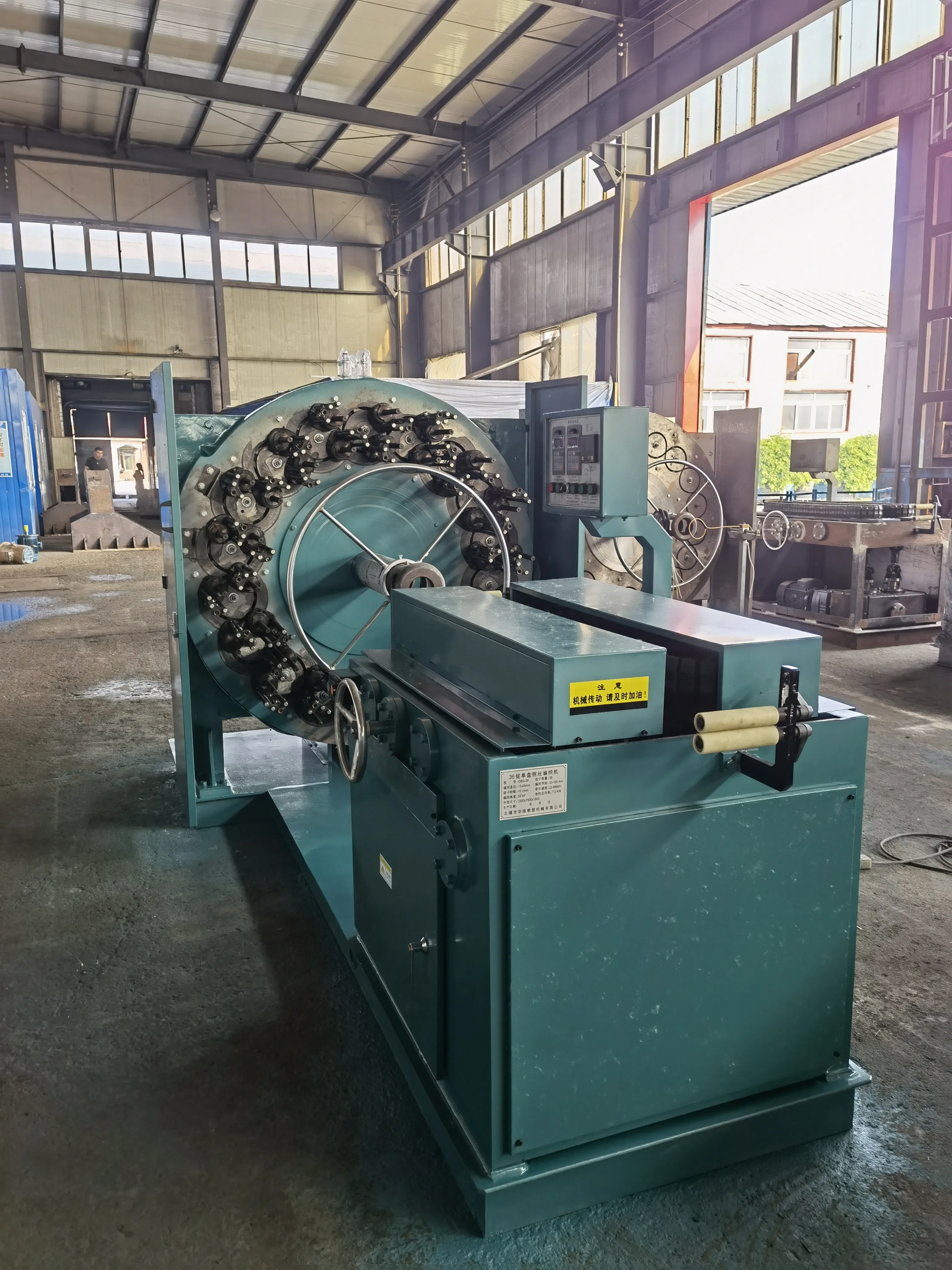

Type 2: Middle Speed Braiding Machine


Main technical specification
1. Control form: automatic digital control (plc+ man-machine interface)
2. Drive motor: frequency conversion + servo motor (variable frequency control of braiding part, haul off servo drive)
3. Braided hose diameter (maximum) mm: Φ60
4. Spool capacity : 7~7.5KG
5. Braiding pitch: 30-179mm
6. Spindle speed r/min: 23 (design speed) 18 (actual working speed)
7. Total power: 14kw
8. The number of braiding layers at one time: 1 layers
9. Dimensions mm: 4027*1980*2450 (length * width * height)
10. Noise reduction protection: full noise reduction protection room




Product model
HLT16
HLT20
HLT24
HLT36
Spindle Rpm(r/min)
45
35
30
18
Max.Braiding diameter(mm)
10
13
25
51
Bobbin capacity(kg)
7.5
7.5
7.5
7.5
Braiding angle
54°44"
54°44"
54°44"
54°44"
Machine dimension
3765*1728*2150
3765*1728*2150
3765*1728*2150
4027*1980*2450

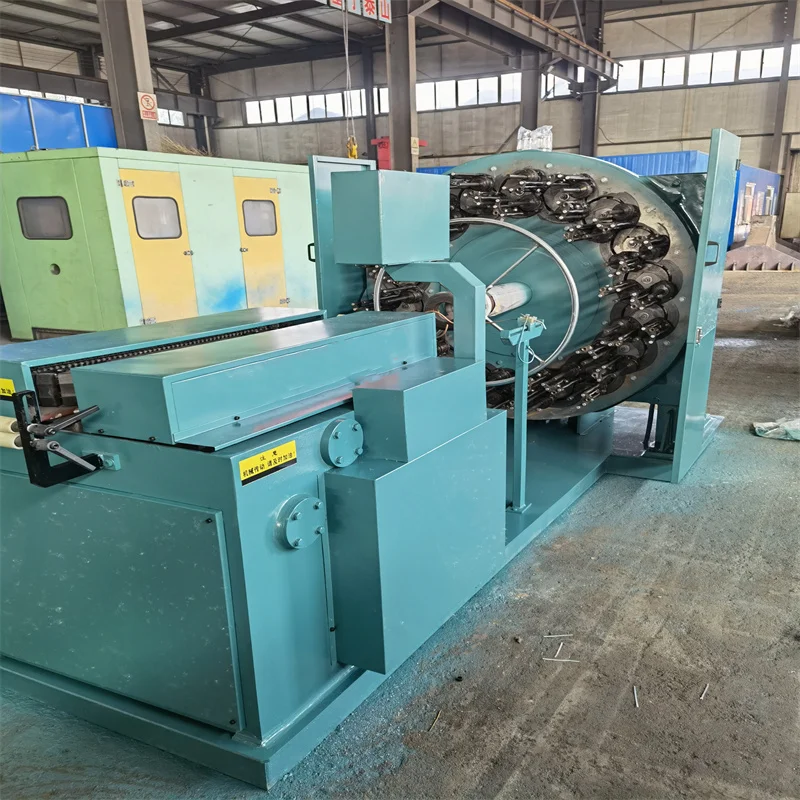

Type 3:Normal Speed Braiding machine


Machine Feature
* The machine has high speed compared with the ordinary steel wire knitting machine efficiency is a little more than 1 times.
* Easy operation, high precision. This machine all adopt the automatic control, PLC+man-machine dialogue interface and servo motor. Greatly improve the precision of weaving. Reduce the operation difficult of the workers.
* Fully enclosed structure to reduces the noise and improve the performance of workers safety equipment.
* The spools large capacity, saves the steel waste and reduce the line frequency and improve work efficiency.
* No rubber stop alarm function
* Break line stop alarm function
* Fixed length function
* Fault detection capabilities
* Three color alarm promp








Package & Delivery




Related Machine

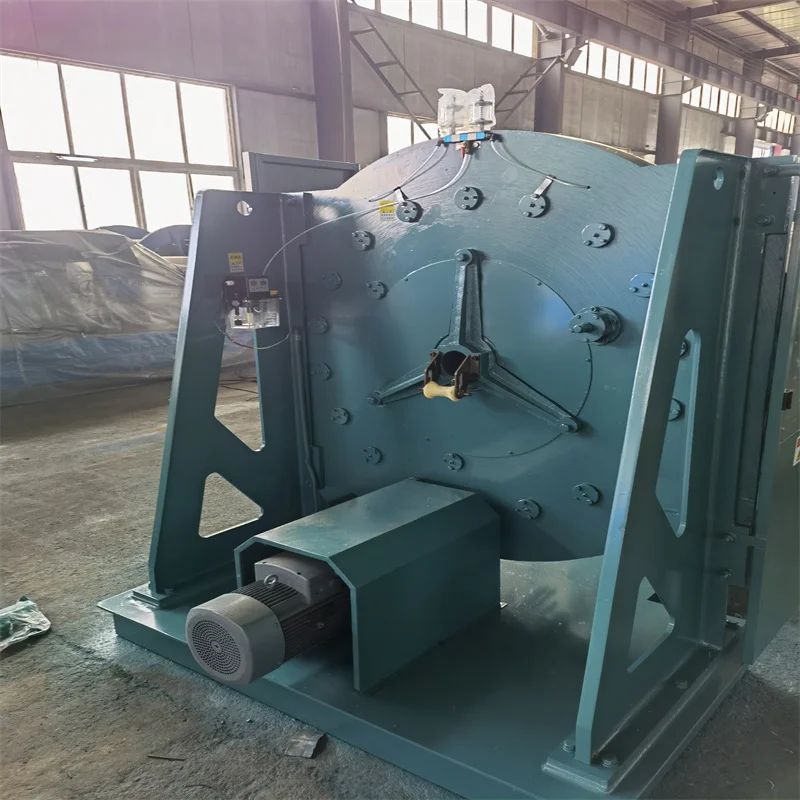

ZHG-B-12 High Speed Boobin Winder




High speed Bobbin re- winding machine
Products Model
Take up Speed
(m/s)
take-up control method
lay off control method
winding diameter
diameter of wire
dimensions (L*H*H)
CF12
10
PLC+human-computer interface
electric
Φ180
Φ0.2-Φ0.4
3658*1160*1840
CF18
10
PLC+human-computer interface
electric
Φ180
Φ0.2-Φ0.5
4533*1130*1840




Company Introduction






Wuxi Longterm Machinery Technologies Co., Ltd
We are professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing.The sizes cover 16 carrier from 128 carrier braiding machine, the wire diameter starts from 0.2 till 1.0mm. We have normal speed type, high speed type and super high speed type, etc..Our braiding machines are horizontal types which enable heavy tensile strength.


Our Service


Installation for high speed wire bobbin rewinder machine
Installetion and commisioning for hish speed wire braiding machine


We are a professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing. The sizes cover 16 carriers from 128 carrier braiding machines, the wire diameter starts from 0.2 till 1.0mm. We have normal speed type, high-speed type, and super high-speed type, etc..Our braiding machines are horizontal types that enable heavy tensile strength.






FAQ


1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience

2. What wires can you machine braid?

1) Stainless steel wire
2) Copper coated steel wire
3) Cotton Wire

3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:

1. What outer diameter of the hose you want to braid?
2. Wire diameter
3. Application

4. Do you have any requirements about the production efficiency?
