Машина для выдувания полиэтиленовой пленки винтовой цилиндр одновинтовые бочки пластиковых
- Категория: Plastic & Rubber Machinery Parts >>>
- Поставщик: Zhejiang,Jiacheng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 119.39 $* | 125.82 $* |
| Aug-18-2025 | 118.31 $* | 124.35 $* |
| Jul-18-2025 | 99.80 $* | 104.14 $* |
| Jun-18-2025 | 116.53 $* | 122.14 $* |
| May-18-2025 | 101.9 $* | 106.6 $* |
| Apr-18-2025 | 114.71 $* | 120.48 $* |
| Mar-18-2025 | 113.34 $* | 119.40 $* |
| Feb-18-2025 | 112.38 $* | 118.34 $* |
| Jan-18-2025 | 111.40 $* | 117.56 $* |
Характеристики
Products Description

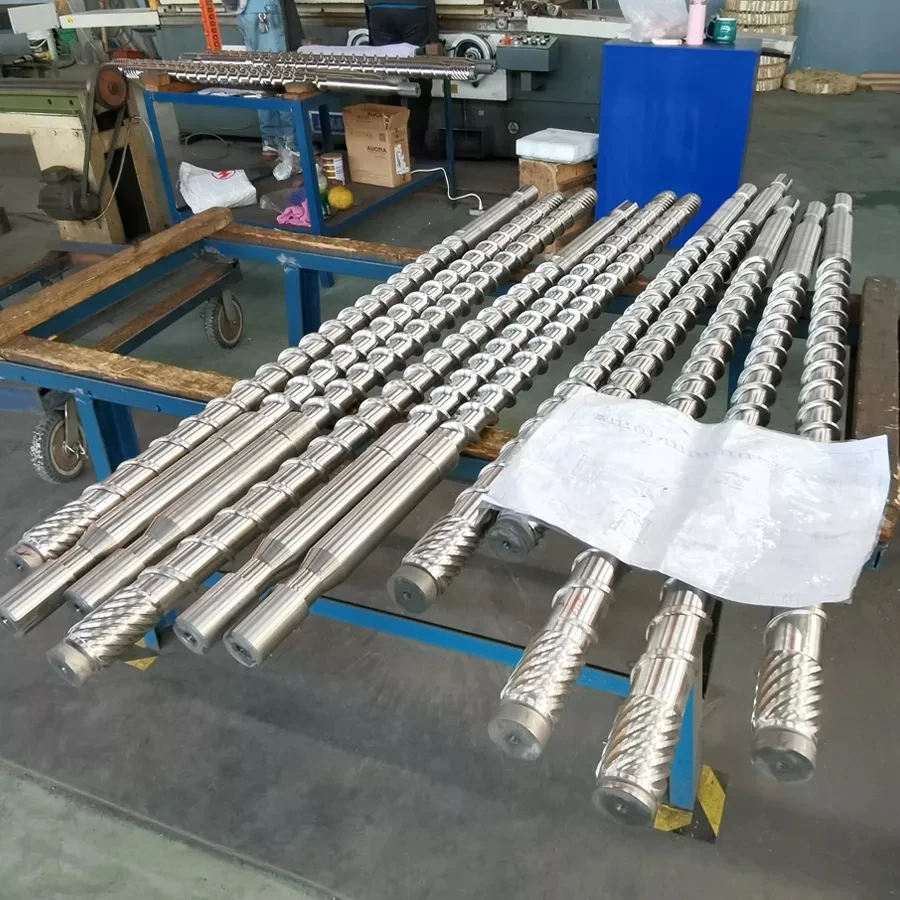

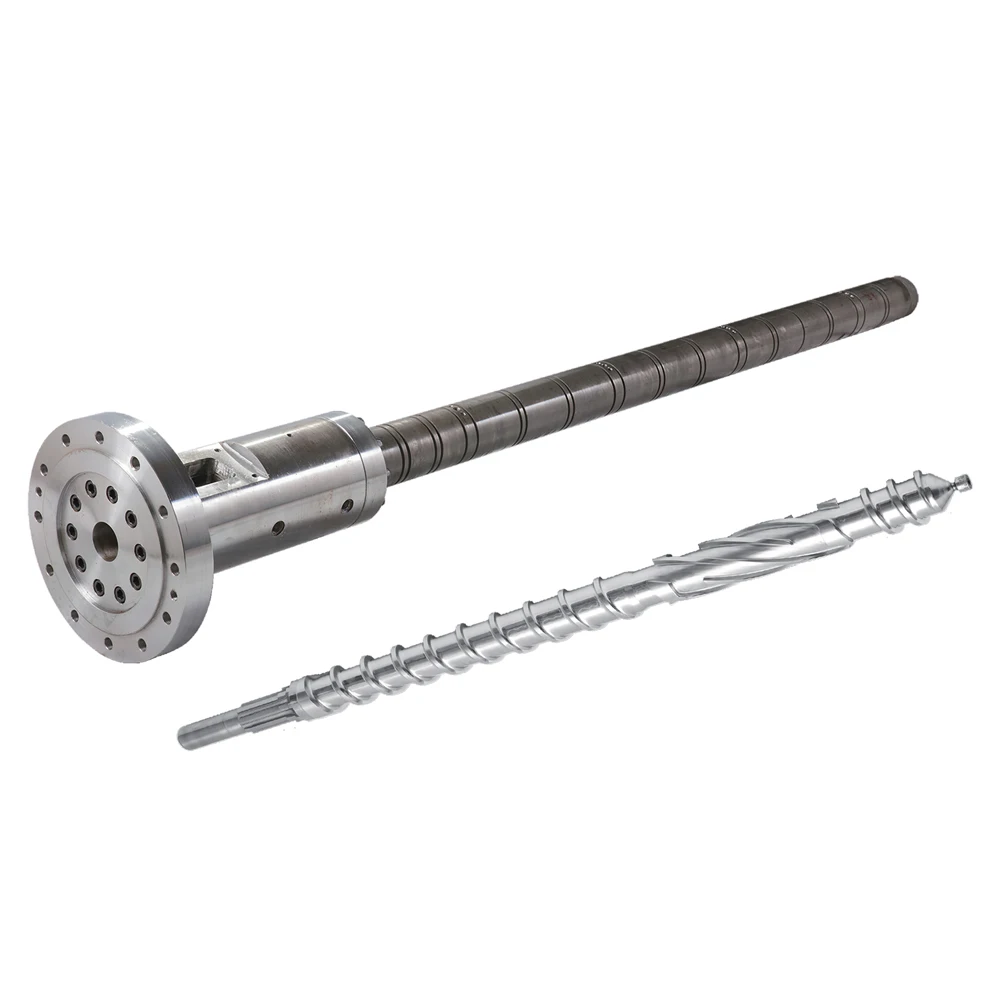

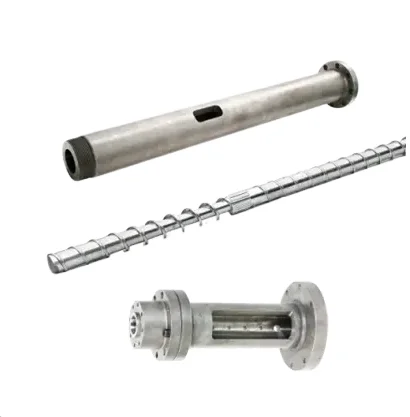

Nitrided Extrusion Screw
We can design and produce high performance extrusion screw to fit your application
*Material: High quality 38CrMoAlA 42CrMo
*Treatment: Nitriding,Bimetallic,Electroplating
*Diameter of Screw: Can be cusomtizedΦ15mm~ Φ300mm
*Screw Type: Vented type non-vented type, high-wear type,Barrier flight type, Mix type ect
*Suitable for: PP,PE,ABS,PVC,TPE ect
*Benefit: Improved product quality,increase plasticizing rate,minimize wear,boost output
*Material: High quality 38CrMoAlA 42CrMo
*Treatment: Nitriding,Bimetallic,Electroplating
*Diameter of Screw: Can be cusomtizedΦ15mm~ Φ300mm
*Screw Type: Vented type non-vented type, high-wear type,Barrier flight type, Mix type ect
*Suitable for: PP,PE,ABS,PVC,TPE ect
*Benefit: Improved product quality,increase plasticizing rate,minimize wear,boost output
Product | Material Base | Treatment | Technical Parameter | Application |
Screw | 38CrMoAlA | Nitriding | Tempering hardness: HB260-280 Nitriding hardness: HV950 Nitride layer depth: 0.4-0.6MM Brittleness :≤2.5 Surface finish Ra0.04 | used for ordinary acid-free low particle size and does not contain GF. Such as ABS\\PP\\PS, etc. |
Screw | 38CrMoAlA | Bimetallic Ni-based alloy | Alloy thickness:≥1.5mm Hardness:HRC53~56 Brittleness :≤2.5 Surface finish Ra0.04 | used for adding acid plastic with GF less than 30% |
Screw | 42CrMo | Bimetallic Ni-based alloy+ElectroPlating | Alloy thickness≥1.5mm ElectroPlating thickness : 0.03~0.0SMM Hardness: HRC52~55 | transparent material/ color mixing material |
Screw | Fully hard powder metallurgy steel | vacuum quenching prooess | Quenching hardness: HRC57-59, Electroplatable thickness: 0.03~0.05MM | suitable for engineering plastics with 35% GF or less, high temperature materials.PA+ GF/ LCP+ GF/High Temperature PC |
Screw | Full hard powder metallurgy steel | vacuum quenching prooess | Quenching hardness: HRC59~61 Thickness 0.005~0.01MM | suitable for engineering plastics with 45% GF or less |

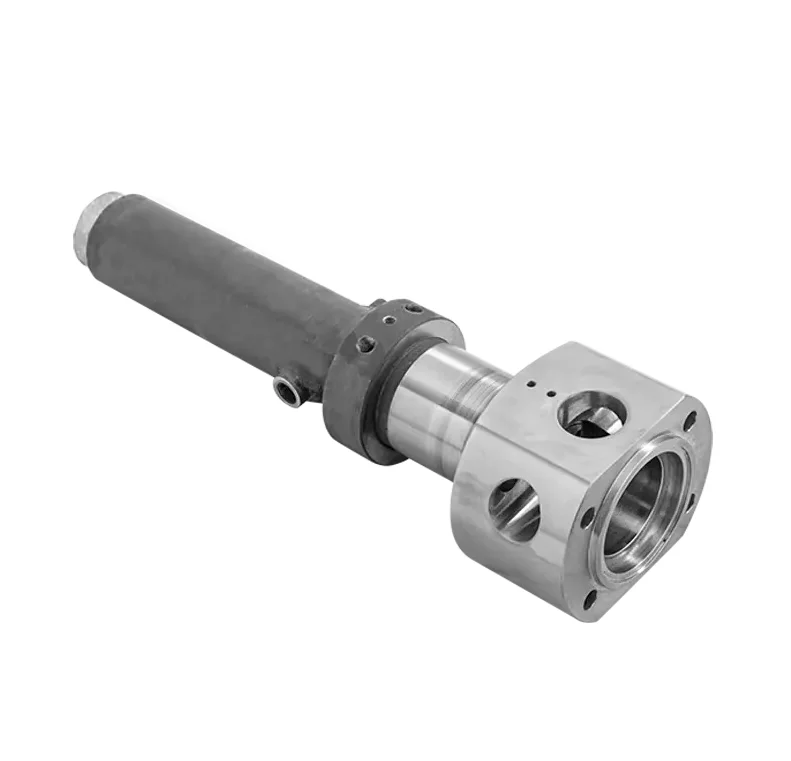

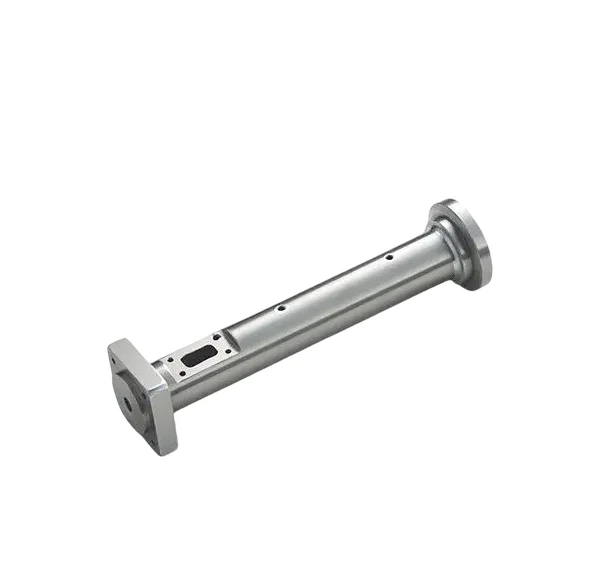

Nitrided Extrusion Barrel
Our Extrusion Barrel is are produced to the highest quality standards
*Material: High quality 38CrMoAlA 42CrMo
*Treatment: Nitriding,Bimetallic,Electroplating
*Diameter : Can be cusomtizedΦ20mm~ Φ300mm
*Suitable for plastic: PP,PE,ABS,AS,PS,PC,PET ect
*Benefit: Improved product quality,minimize wear,boost output
*Material: High quality 38CrMoAlA 42CrMo
*Treatment: Nitriding,Bimetallic,Electroplating
*Diameter : Can be cusomtizedΦ20mm~ Φ300mm
*Suitable for plastic: PP,PE,ABS,AS,PS,PC,PET ect
*Benefit: Improved product quality,minimize wear,boost output
Product | Material Base | Treatment | Technical Parameter | Application |
Barrel | 38CrMoAlA | Nitriding | tempering hardness :HB260-280 nitriding hardness: HV950 nitride layer depth :0.4-0.6MM, brittleness:≤ 2 | Commonly used for acid-free plastics with GF less than 10%, such as PP\\PS＼AS\\ABS\\TPU\\TPE |
Barrel | 38CrMoAlA | Bimetallic Fe-based alloy | Alloy thickness: 1.5-2MM Surface hardness:HRC60-65 | Commonly used for adding acid plastic with GF less than 30%,PC/PA |
Barrel | 38CrMoAlA | Bimetallic Ni-based alloy+15% tungsten carbide powder | Alloy thickness: l.5-2MM, Surface hardness HRC52~55 | Commonly used for adding acid plastic with GF less than 35%, PA/LCP/PBT |
Barrel | 38CrMoAlA | Bimetallic Ni-based alloy+25% tungsten carbide powder | Alloy thickness: l.5-2MM Surface hardness: HRC58~62 | generally used to add aci lastic PEEK/PPS/LCP/flame retardant |
FAQ
Q1. Are you a trading company or a manufacturer?
We are a BSCI&ISO-9001 certificated manufacturer.
Q2. Can I place the customized order for different sizes, colors, materials,packings….?
Yes, all the customized orders are welcomed.
Q3. Could I get a QC report before delivery?
Yes, the specific QC reports will be sent to you before delivery.
Q4. Can I get a lower price if I place a larger order?
Yes, the price will be modified according to your order quantities.
Q5. How to reach you for other questions?
Please feel free to contact us by email export@tongdaindustry.com
We are a BSCI&ISO-9001 certificated manufacturer.
Q2. Can I place the customized order for different sizes, colors, materials,packings….?
Yes, all the customized orders are welcomed.
Q3. Could I get a QC report before delivery?
Yes, the specific QC reports will be sent to you before delivery.
Q4. Can I get a lower price if I place a larger order?
Yes, the price will be modified according to your order quantities.
Q5. How to reach you for other questions?
Please feel free to contact us by email export@tongdaindustry.com
