Мостовой выпрямитель ампер, сварочный аппарат серии MDS
US $4.99-$9.99
Встроенный реле постоянного тока питания YEJ тормозной двигатель/конвертер/инвертор мост выпрямители KSZK-A для быстрого
- Категория: Rectifiers >>>
- Поставщик: Yueqing,Gagiya,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 12.17 $* | 13.86 $* |
| Aug-20-2025 | 12.23 $* | 13.21 $* |
| Jul-20-2025 | 10.73 $* | 11.75 $* |
| Jun-20-2025 | 12.12 $* | 13.72 $* |
| May-20-2025 | 10.80 $* | 11.8 $* |
| Apr-20-2025 | 11.43 $* | 12.10 $* |
| Mar-20-2025 | 11.72 $* | 12.96 $* |
| Feb-20-2025 | 11.86 $* | 12.35 $* |
| Jan-20-2025 | 11.16 $* | 12.38 $* |
Характеристики
FEATURES AT A GLANCE
1.Compact design of the plastic shell;
2. Small size, original components from Germany, suitable for frequent operation;
3. It can be installed in the junction box of electric machine;
4. It has the function of arc extinction to the arc spark generated by the DC side switch;
5. All the components are protected perfectly so as to make sure reliable and steady service for product;
(Quick brake mode is available and DC is cut off at the same time);
2. Small size, original components from Germany, suitable for frequent operation;
3. It can be installed in the junction box of electric machine;
4. It has the function of arc extinction to the arc spark generated by the DC side switch;
5. All the components are protected perfectly so as to make sure reliable and steady service for product;
(Quick brake mode is available and DC is cut off at the same time);
PRODUCT SPECIFICATIONS
The KZL and KSZL series rectifier supply researched and developed by ourselves applies advanced circuit design and electronic elements imported from Germany with exquisite process and perfect inspection.Therefore,it is guaranteed that the product can supply reliable DC power to electromagnetic coil (inductive load).Plenty practice has proved that our quality is at the leading position of worldwide market .This series products are mainly applied on power-off brakes of YEJ electric machine and other DC inductive load.
There are four types for KZL and KSZL series : half-wave rectifier supply, full-wave rectifier supply, rectifier supply for quick brake and rectifier supply for high-low voltage transfer
There are four types for KZL and KSZL series : half-wave rectifier supply, full-wave rectifier supply, rectifier supply for quick brake and rectifier supply for high-low voltage transfer
Model | Parameters | Remark | ||||
Input voltage (V AC) | Output voltage (V DC) | Rated current | ||||
KZL-060-010-02D | 220-270V | 99-121V | 1.5A 45℃ 0.8A 80℃ | Half wave rectifier supply | ||

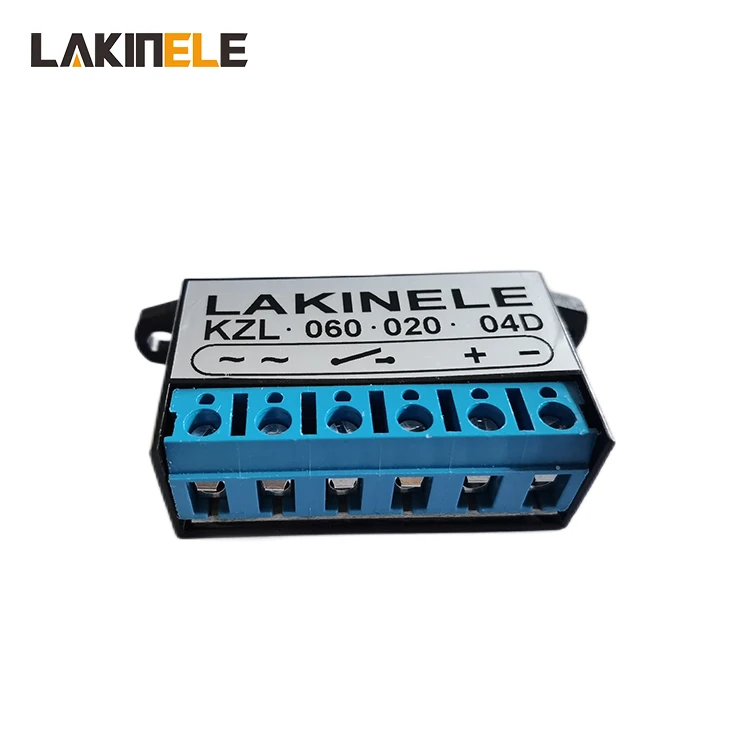

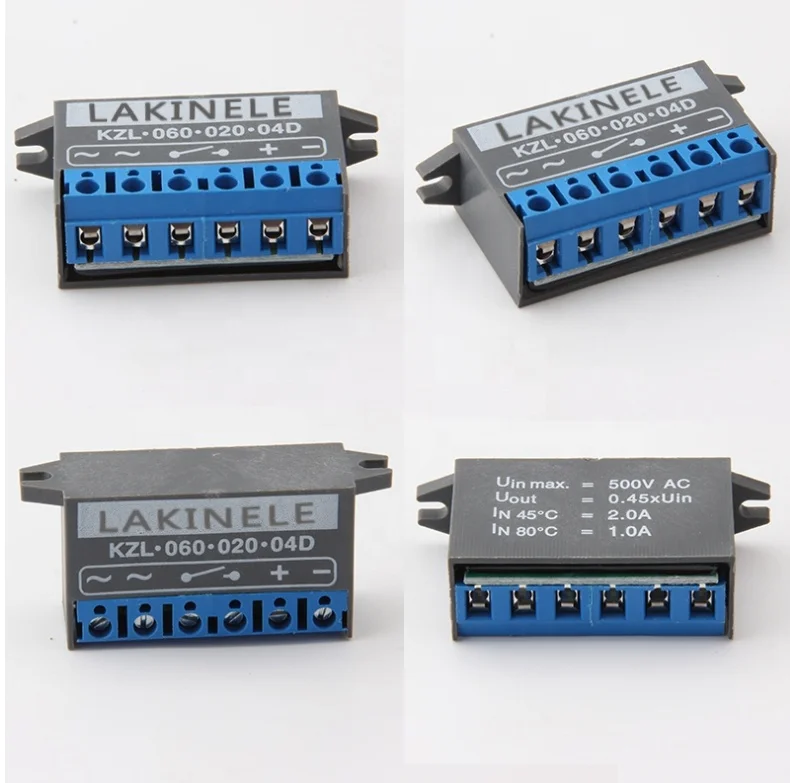

KZL-060-020-04D | 380-500V | 170-225V | 2A 45℃ 1.5A 80℃ | Half wave rectifier supply | ||
KZL-060-030-02D | 220-240V | 209-228V | 1.5A 45℃ 0.8A 80℃ | Full wave rectifier supply | ||
KSZL-A | 195-240V | 88-108V | 1.5A 45℃ 0.8A 80℃ | Rectifier supply for quick brake(built in high qulity replay) | ||
KSZL-B | 350-400V | 156-180V | 2A 45℃ 1.5A 80℃ | Rectifier supply for quick brake(built in high qulity replay) | ||

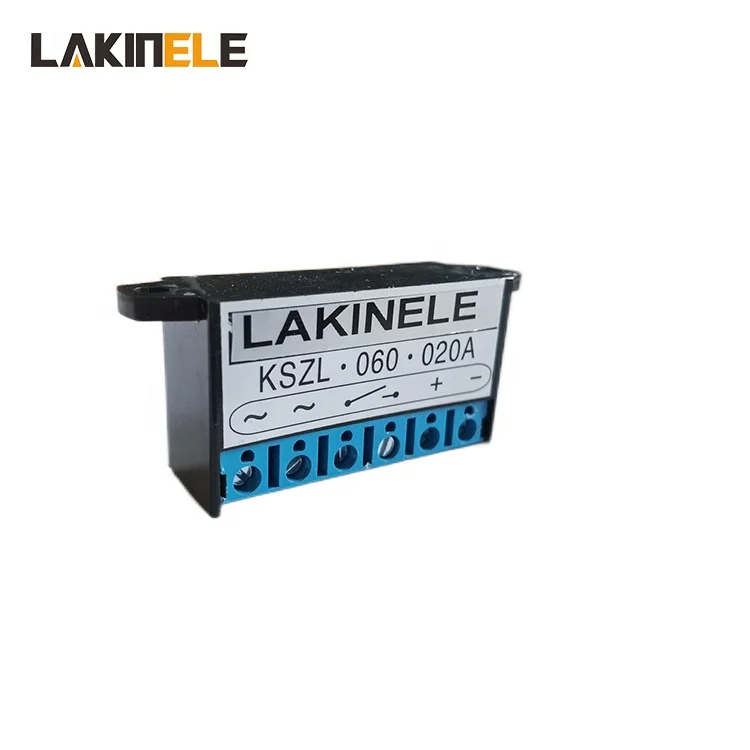

KSZL-020A | 220-240V | 88-108V | 1.2A 45℃ 0.7A 80℃ | Rectifier supply for quick brake | ||
KSZL-040B | 350-400V | 156-180V | 1A 45℃ 0.6A 80℃ | Rectifier supply for quick brake | ||
KSZL-030C | 220-240V | 209-228V | 1.2A 45℃ 0.7A 80℃ | Full Wave Rectifier supply for quick brake | ||
KZL-060-99 | 220-270V | 99-121V | 1.5A 45℃ 0.8A 80℃ | Half wave rectifier supply | ||
KZL-060-200 | 220-240V | 209-228V | 1.5A 45℃ 0.8A 80℃ | Full Wave Rectifier supply for quick brake | ||
KZL-060-400 | 380-500V | 170-225V | 1.5A 45℃ 0.8A 80℃ | Full wave rectifier supply | ||
KZL-060-2GD | 220V/380V | 200V/360V | 1.5A 45℃ 1A 80℃ | Rectifier supply for high-low voltage transfer(only 1S transfer time) | ||
KSZL-24A | 195-240V | 88-108V | 1.5A 45℃ 0.8A 80℃ | Rectifier supply for quick brake | ||
KSZL-40B | 350-400V | 156-180V | 2A 45℃ 1.5A 80℃ | Rectifier supply for quick brake | ||
Product Process
Company Profile
FAQ
Q1: ARE YOU A MANUFACTURER OR TRADING COMPANY ?
A: We are a leading manufacturer of QUALITY electrical equipement with more than 10 years experience.
Q2: CAN I GET FREE SAMPLE BEFORE ORDER?
A: Free Sample is available, but the sample freight should be pay by you.The cost of sample will be refund after further order.
Q3. DO YOU HAVE ANY MOQ FOR TRIAL ORDER?
A: No MOQ requirement.
Q4: WHAT'S YOUR TERMS OF PAYMENT?
A: 30% T/T in advance,balance before shipment.
Q5: CAN YOU CUSTOMIZE MY PRODUCTS OR PUT MY LOGO ON YOUR PRODUCTS?
A: Yes, we offer OEM and ODM services. Please inform us formally before production.
Q6: WHAT'S THE LEAD TIME ?
A: Usually, sample orders takes 1-2 business days. For mass production, it largely depends on order quantity. Please let us know
your requirement, we will do our best to deliver the goods in time.
Q7: WHAT ABOUT THE SHIPPING METHODS?
A: For small or urgent orders, door-to door courier delivery like DHL, UPS, FedEx or TNT is recommended; for large orders, sea or
air transportation is recommended.
A: We are a leading manufacturer of QUALITY electrical equipement with more than 10 years experience.
Q2: CAN I GET FREE SAMPLE BEFORE ORDER?
A: Free Sample is available, but the sample freight should be pay by you.The cost of sample will be refund after further order.
Q3. DO YOU HAVE ANY MOQ FOR TRIAL ORDER?
A: No MOQ requirement.
Q4: WHAT'S YOUR TERMS OF PAYMENT?
A: 30% T/T in advance,balance before shipment.
Q5: CAN YOU CUSTOMIZE MY PRODUCTS OR PUT MY LOGO ON YOUR PRODUCTS?
A: Yes, we offer OEM and ODM services. Please inform us formally before production.
Q6: WHAT'S THE LEAD TIME ?
A: Usually, sample orders takes 1-2 business days. For mass production, it largely depends on order quantity. Please let us know
your requirement, we will do our best to deliver the goods in time.
Q7: WHAT ABOUT THE SHIPPING METHODS?
A: For small or urgent orders, door-to door courier delivery like DHL, UPS, FedEx or TNT is recommended; for large orders, sea or
air transportation is recommended.
