Original WSX 1.5KW 2KW Fiber Laser Hand Held Welding Joint ND18A For Fiber Laser Welding Machine Metal Welding





Product Features:

1.The internal design is dexterous and has a good interactive control system, which expands the tolerance range of processing parts and weld width, solves the disadvantage of small light spot, and improves the weld forming.

2.It is light in shape and comfortable in grip with ergonomic design method. It is easy to master and operate.

3.With multiple safety alarms, the light will be automatically locked after the workpiece is removed, with high safety.

4.The welding seam is beautiful and fast, and there is no need to polish after welding.

5.It can be equipped with wire nozzle components and copper nozzles with various angles to meet the welding requirements of different products.





Product parameters

maximum power	1500W 2000W
Collimating focal length	50mm
Focal length	150mm 180MM
Adjustable format	0-4mm
weight	1.0KG
QBH Connector Type	QBH

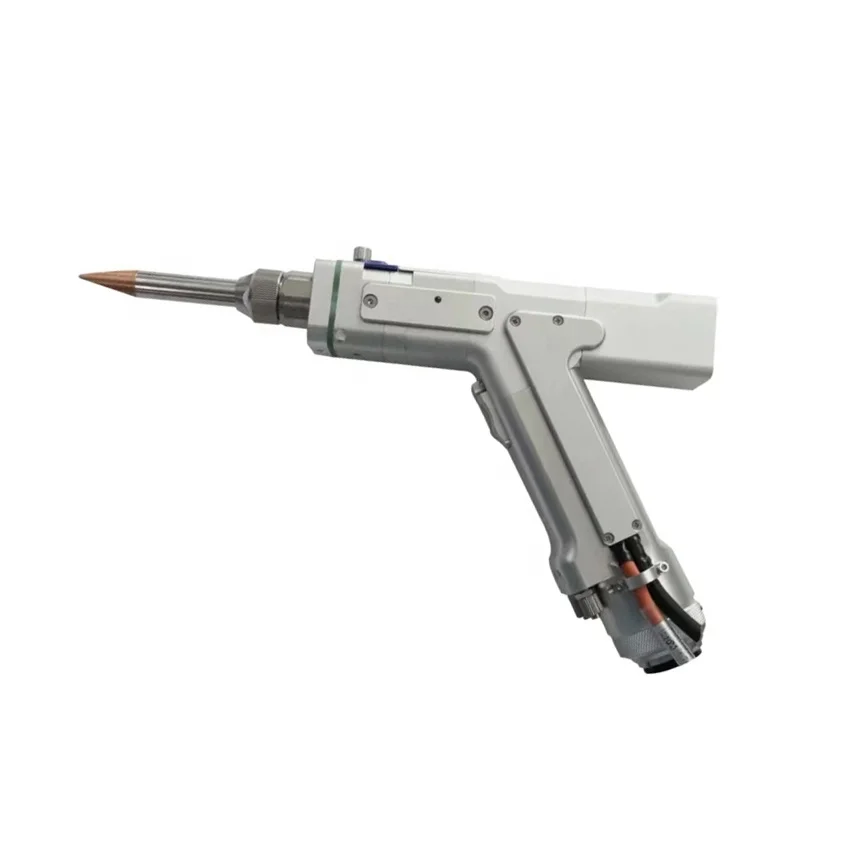

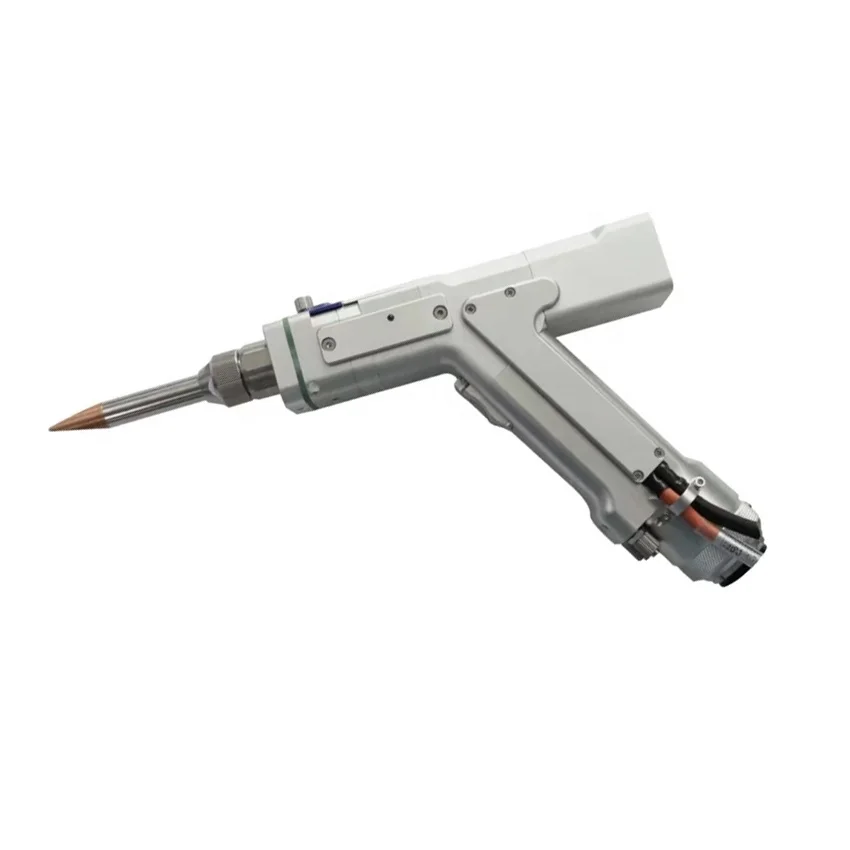

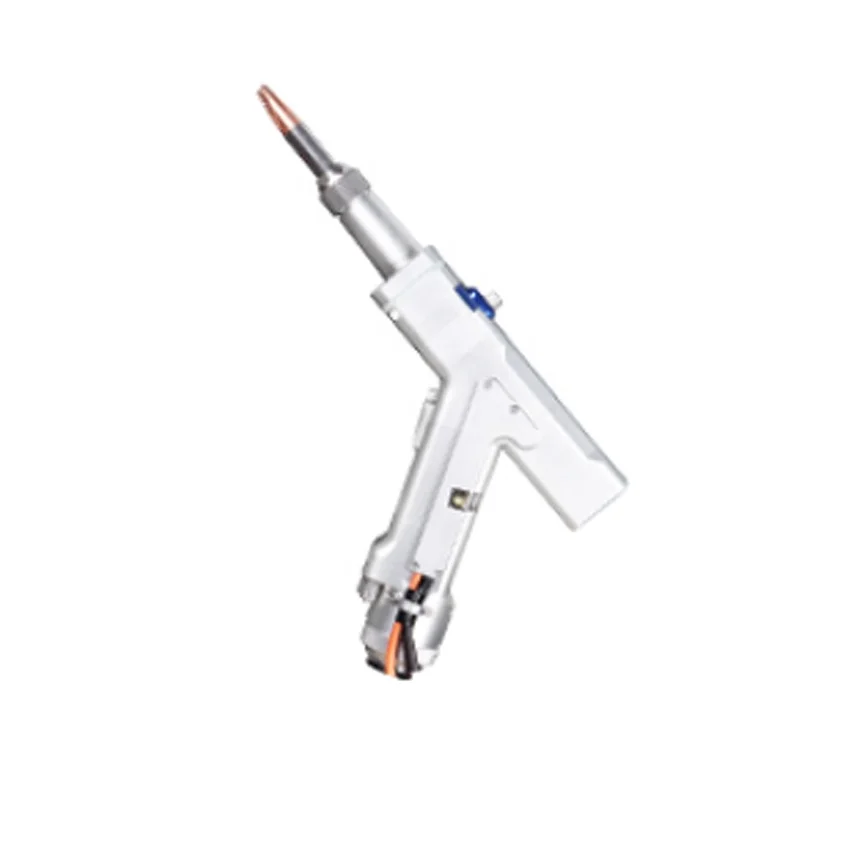

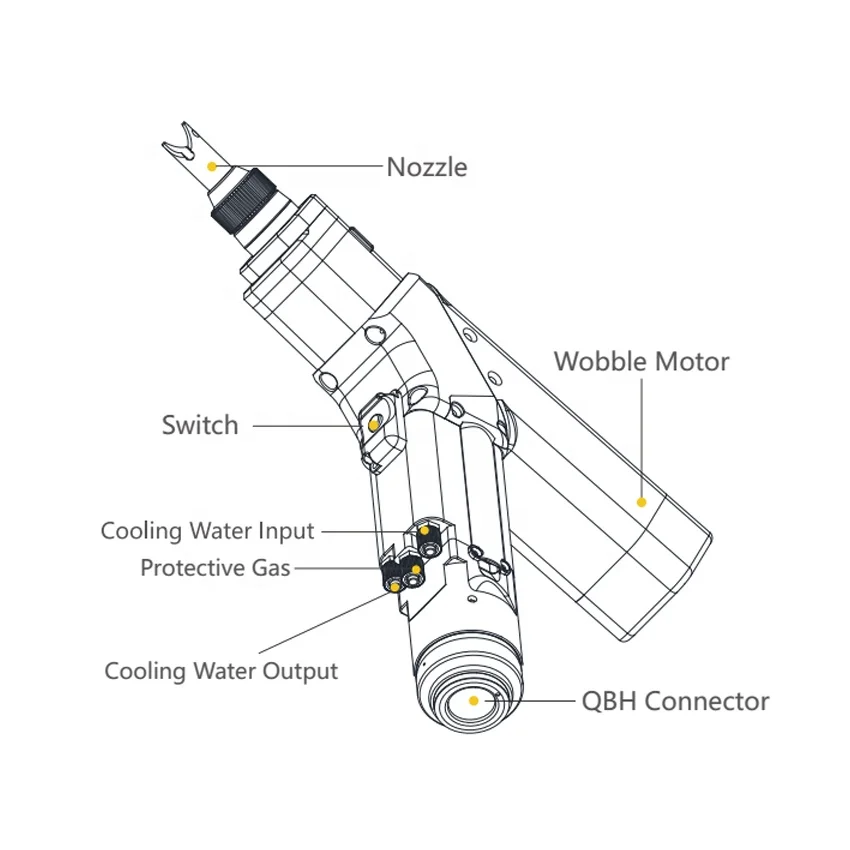

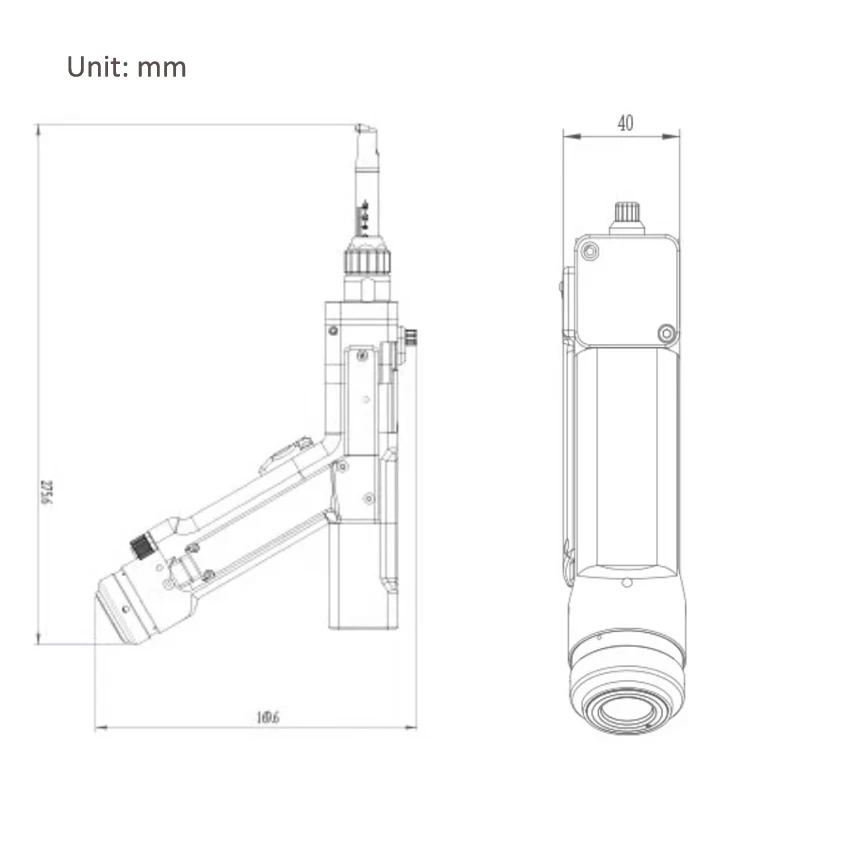

   Product Image







FAQ

(1) Q:What is a fiber laser handheld welding machine and what can it do?

 A:This is a new type of metal welding technology, which has low technical requirements for skilled workers. It only needs light grinding and polishing to produce beautiful effects, which is firm and reliable.

(2) Q:How big a product can the fiber laser hand-held welding machine weld?

A: Strictly speaking, the general optical fiber cable is 8-15 meters, and it can be welded within the diameter range.

(3) Q:What materials can be welded by the fiber laser hand-held welding machine

A: Fiber laser handheld welding machine can weld 0.4-5.0mm thick stainless steel, galvanized sheet, iron sheet, brass, aluminum and other metal materials

(3) Q:After using a handheld laser welding machine, how many skilled workers can one machine hold?

A:Answer: It is conservative to say that you can have 3 welding technicians, and you can have a 1-2 years welding master when you just get started. Of course, practice makes perfect, it depends on where your workers' comprehension ability can reach

(5) Q:How long is the warranty for the handheld laser welding machine

A:Two-year warranty for the laser, one-year warranty for the whole machine, and lifetime maintenance (Note: Consumables are not included)

(6) Q:Can laser welding with wire feed?

A: Yes, 0.8-1.0 for 1000 watts, 0.8-1.2 for 1500 watts (optional)
