Electronic equipment incremental rotary encoder high precision absolute encoder

I-Application of absolute encoder

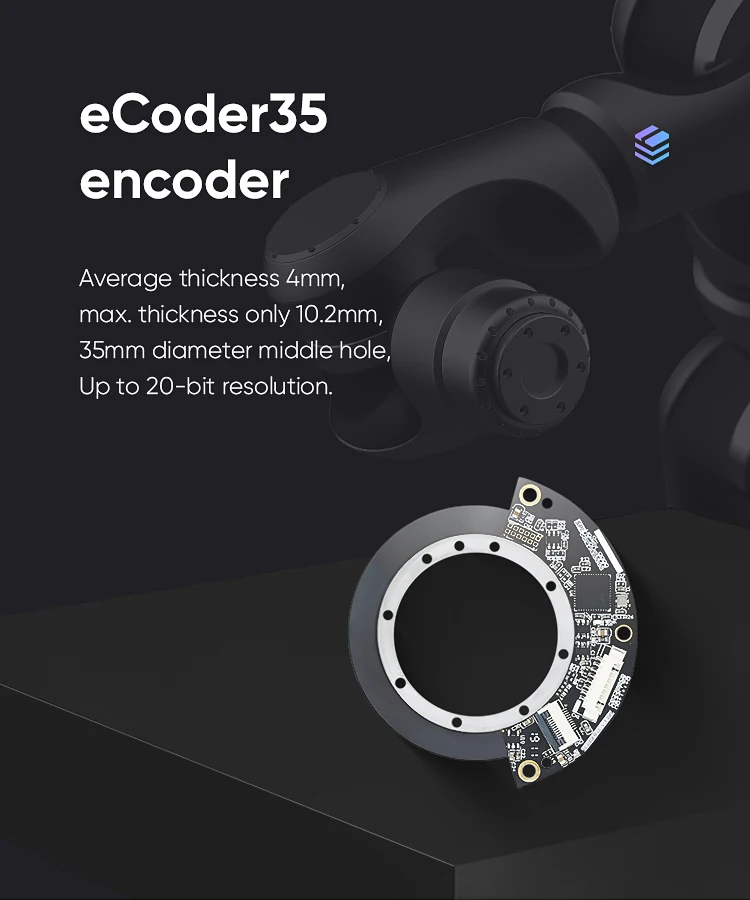

eCoder35 is a non-contact, high-performance off-axis multi-turn absolute, rotary encoder. Small size and light weight, the maximum thickness is only 10.2mm. 35mm diameter middle hole, can pass through mechanical structure, cable, gas path, etc. Suitable for robot joints, precision gearboxes, medical equipment and other fields. It is suitable for harsh environments such as oil pollution, vibration, high humidity, high temperature and low temperature.

II-Feature of absolute encoder

1.The average thickness is 4mm, the maximum thickness is only 10.2mm, and the volume is small.

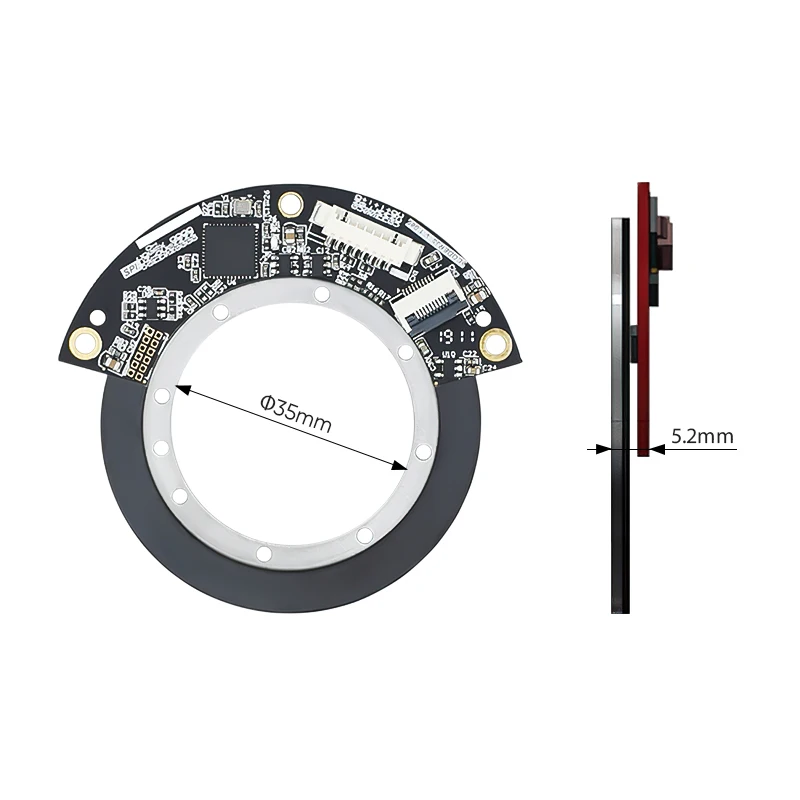

2.The diameter of the hole is up to 35mm, allowing to pass through mechanical structures, cables, air paths, etc.

3.Up to 20-bit resolution and 2^16 laps, true absolute position function

4.Programmable and stored point-by-point position compensation enables encoder accuracy to reach unprecedented heights, ±15"

5.No hysteresis, up to 12000RPM allowable speed.

6.Standard RS485 protocol, compatible with Tamagawa absolute encoder.

7.Built-in EEPROM programmable and saved zero position.

8.Custom precision support hubs are available.

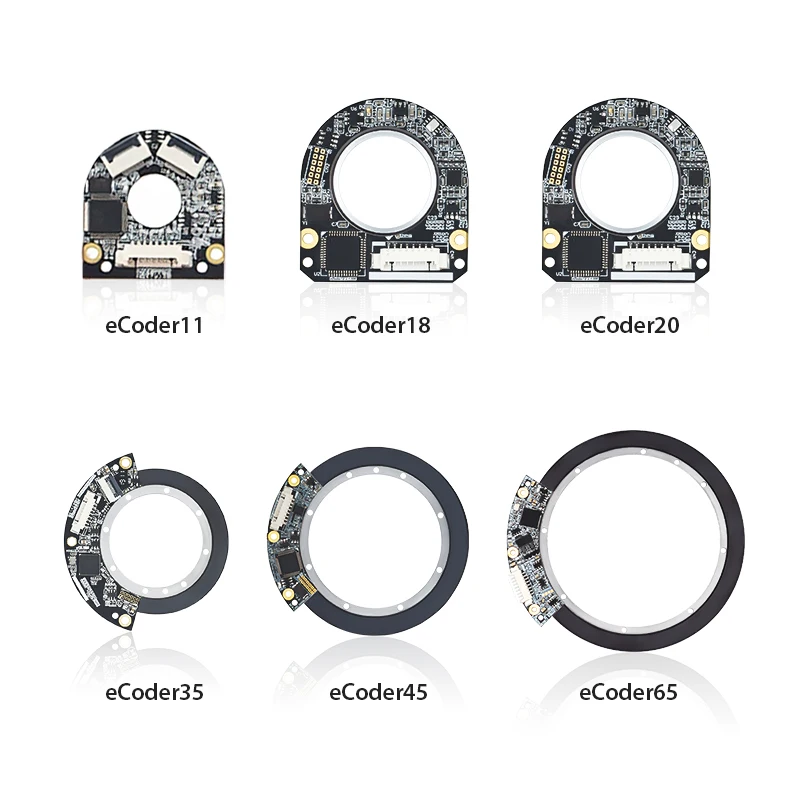

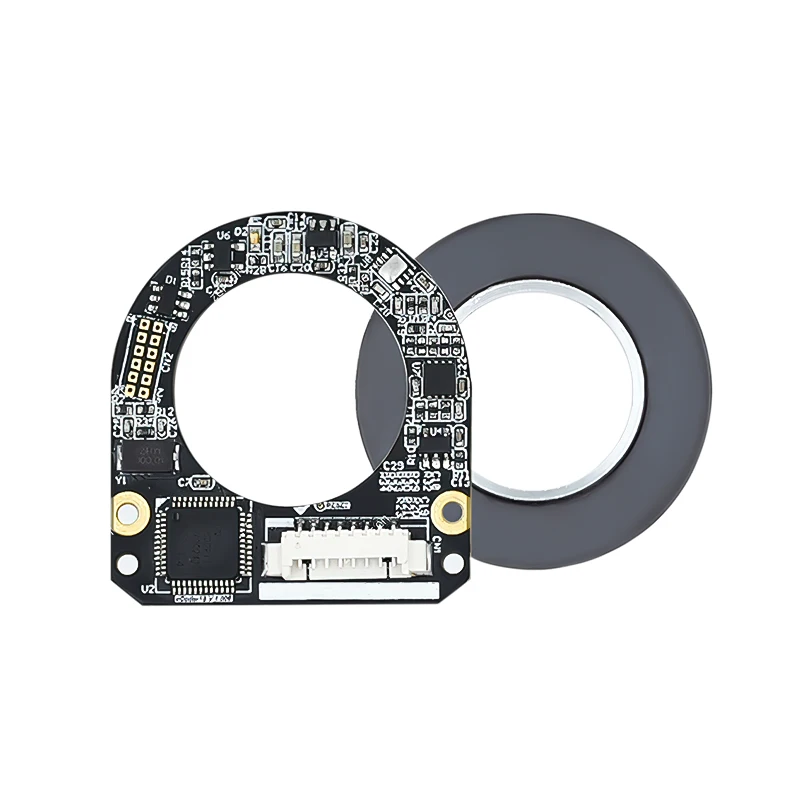

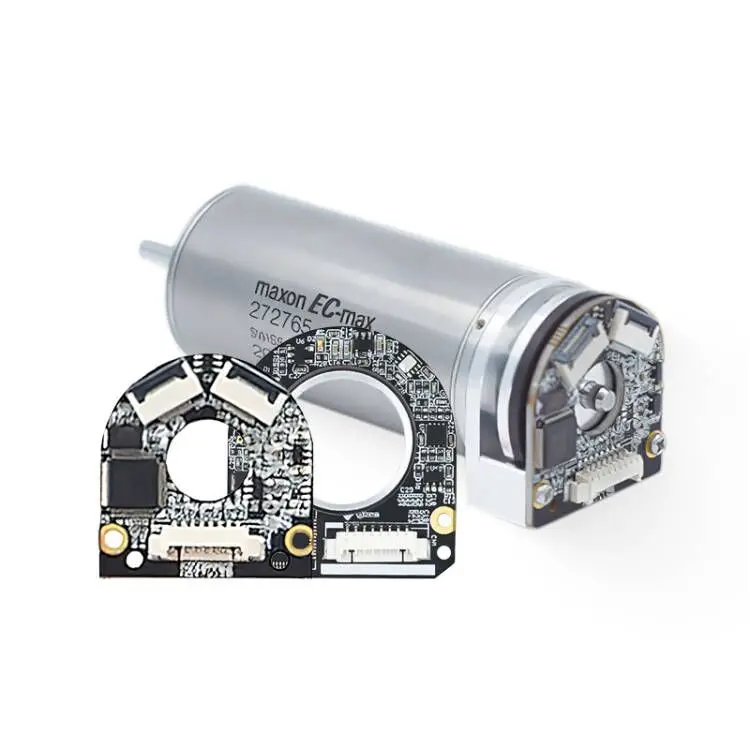

III-Detail pictures of absolute encoder
