Водонепроницаемый y-образный соединитель PV 2 в 1 t-образный
- Категория: Connectors & Terminals >>>
- Поставщик: Dongguan,Slocable,Photovoltaic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2.79 $* | 2.16 $* |
| Aug-18-2025 | 2.43 $* | 2.58 $* |
| Jul-18-2025 | 2.71 $* | 2.54 $* |
| Jun-18-2025 | 2.96 $* | 2.31 $* |
| May-18-2025 | 2.3 $* | 2.4 $* |
| Apr-18-2025 | 2.78 $* | 2.44 $* |
| Mar-18-2025 | 2.16 $* | 2.11 $* |
| Feb-18-2025 | 2.32 $* | 2.58 $* |
| Jan-18-2025 | 2.58 $* | 2.3 $* |
Характеристики

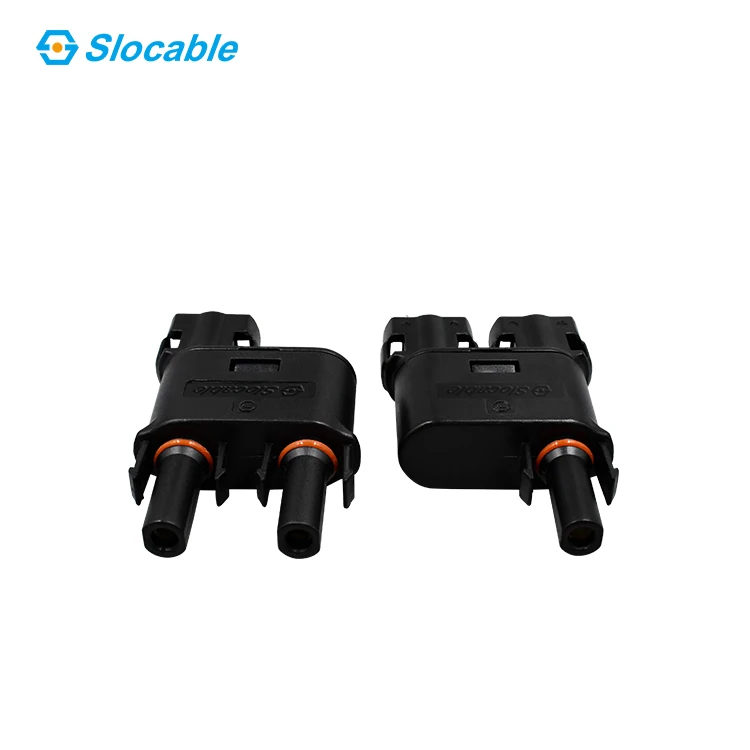

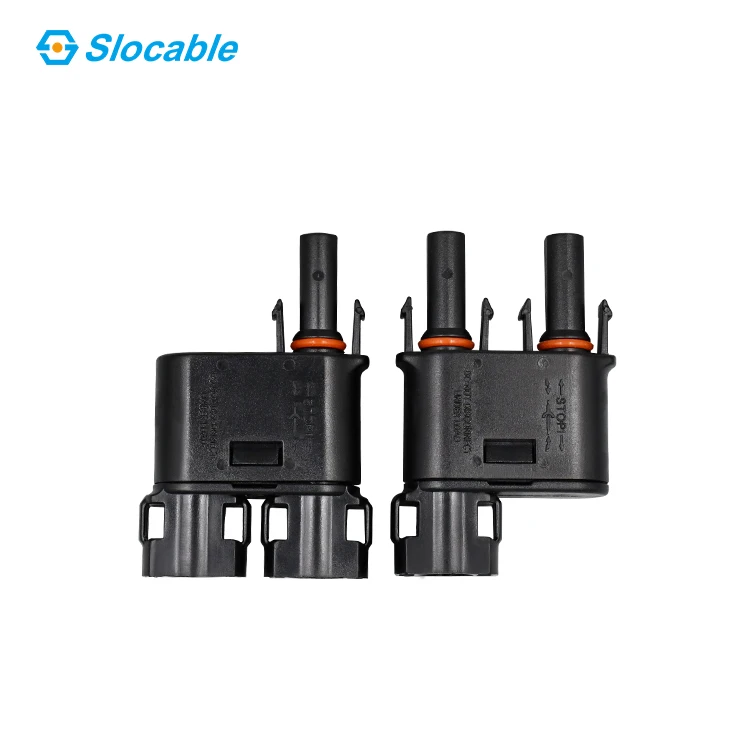

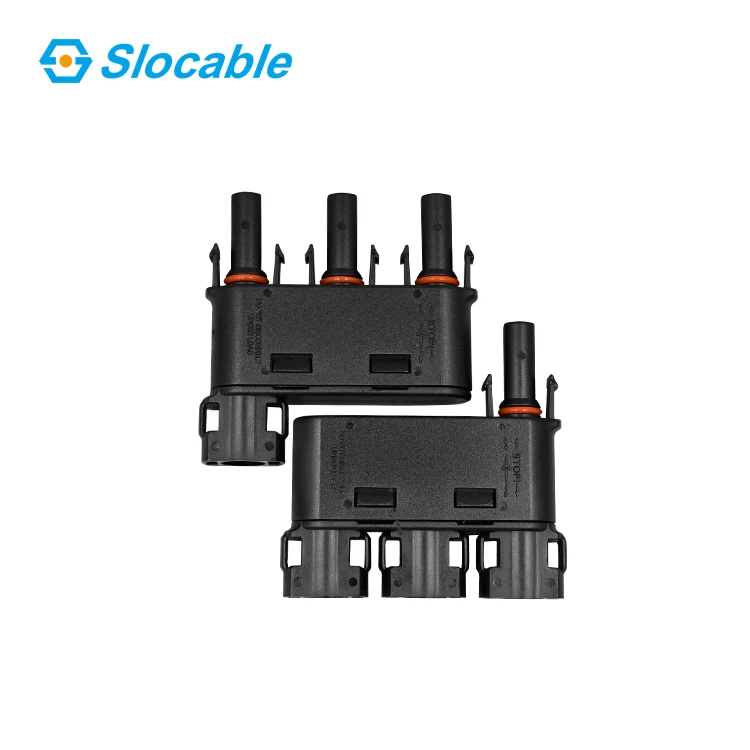

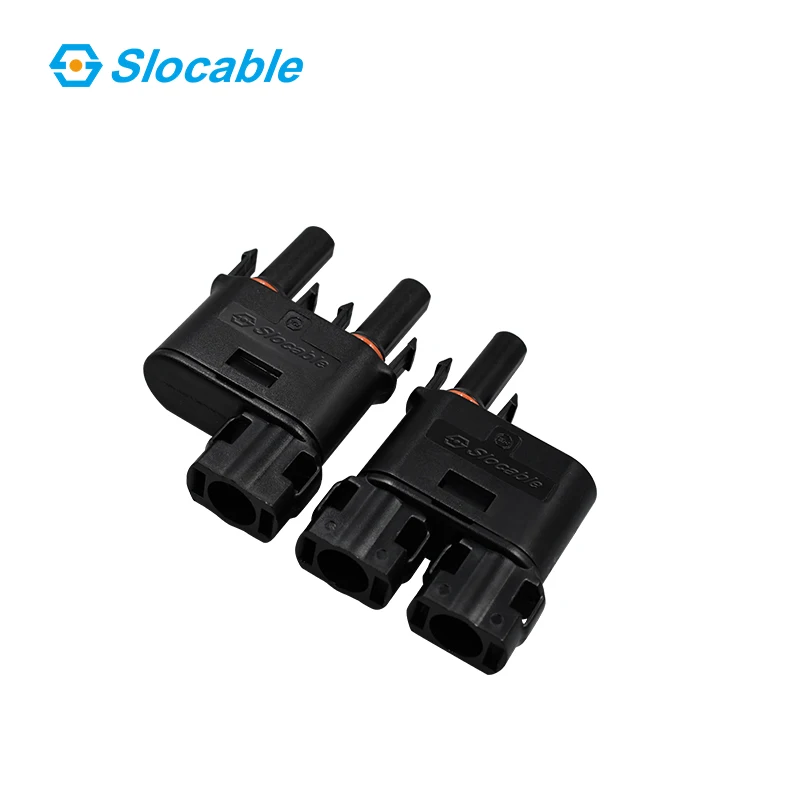

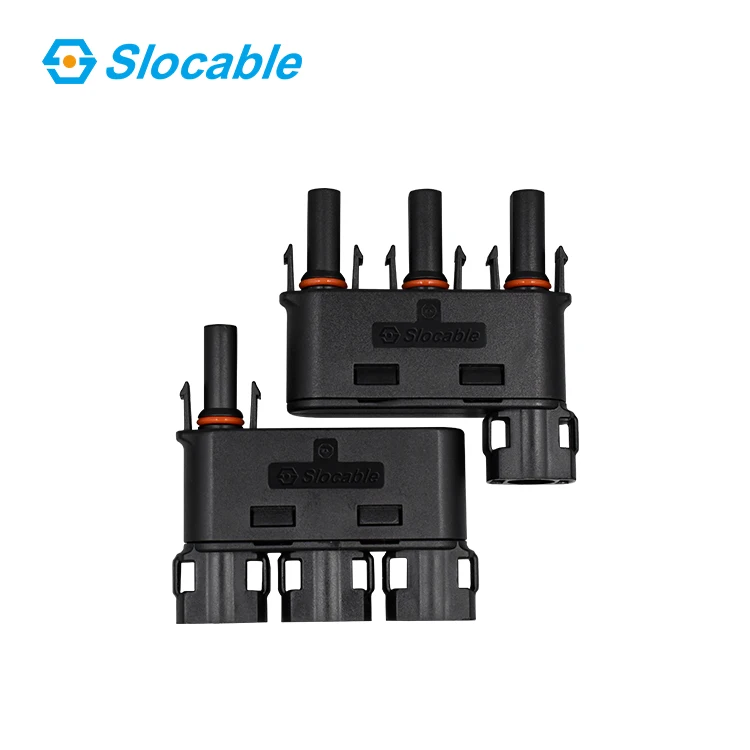

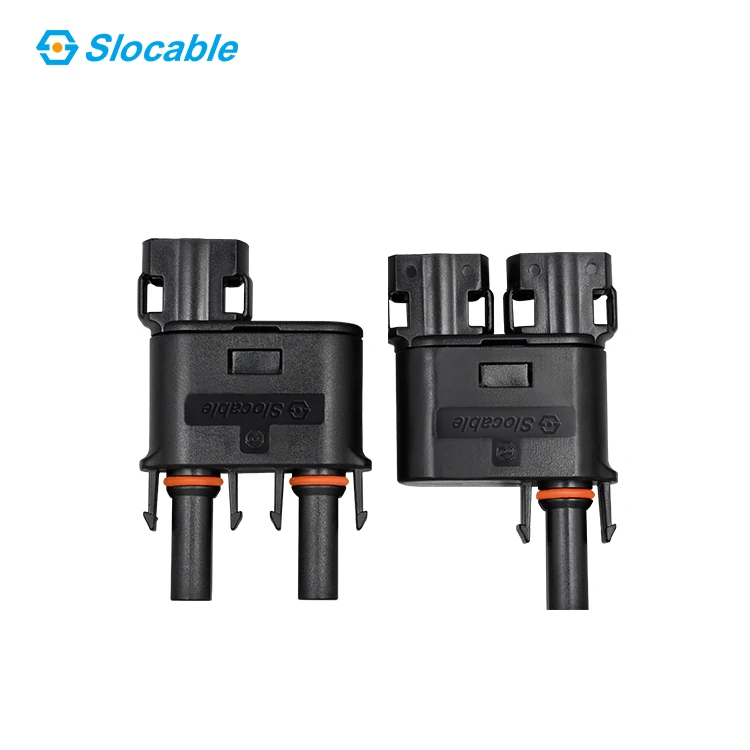

PV Waterproof 2 in 1out y branch connector t branch solar connector in SLOCABLE
Product Description
Advantages of Product
- Simple on-site processing.
- Mating safety provided by keyed housings.
- Mutiple plugging and unplugging cycles.
- Accomodates PV cable with deferent insulation diamaters.
- High current carrying capacity.
- TUV and CE approved.
- Crimp connection.
Technical Data
| Insulation material | PPO |
| Rated current | Max.50A |
| Rated voltage | 1000 /1500 V DC |
| Test voltage | 6KV(50HZ,1 min) |
| Contact resistance | <0.5mΩ |
| Contact material | Copper,Tinned |
| Degree of protection | IP2X/IP68 |
| Safety class | II |
| Overvoltage category/Pollution | CATIII/2 |
| Flame class | UL94-10 |
| Inserlation force | Max.50N |
| Withdrawal force | Min.50N |
| Ambient temperature range | -40 ~+90 ºC |
Advantages
Customer feedback
Company Information
Packaging & Shipping
FAQ
More details, please feel free to contact us. Many thanks!
