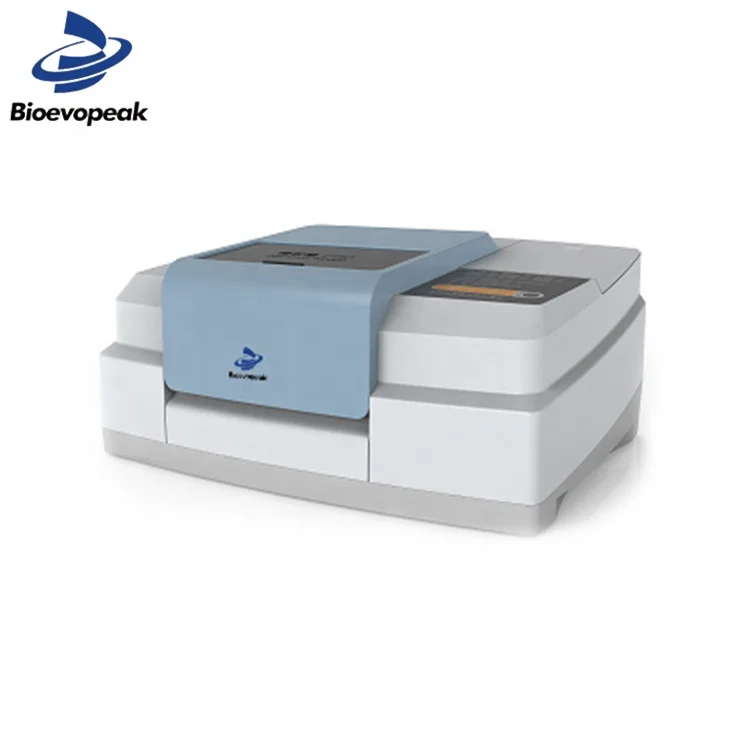

Инфракрасный спектрометр Bioevopeak

Description

It is wildly used by materials science, bio pharmaceutical, petrochemical, food safety and other industry analysis instruments, it’s also adopted by university laboratory for scientific research and teaching.

Features

Reliable optical system

1. The design integrates main components to an optical bench machined from a cast aluminum, accessories will be mounted by needle positioning, no need to adjust.

2. Sealed Michelson interferometer, combined with moisture proof beam splitter and bigger Moisture proof agent box to get 5 times moisture proof ability.

3. The temperature observation window adopts 7 degree forward design, which conforms to the principle of human engineering, easy to observe and convenient to replace the molecular sieve.

4. The design of push pull type sample bin can greatly reduce the interference of water and carbon dioxide in the air on the test results, and it’s designed larger to access various accessories.

5. Working power less than 30W, green environmental protection.Ø

High stable components

1. The sealing interferometer uses USA imported gold cube corner reflector with high reflectivity and angular accuracy.

2. With high performance long life ceramic light source imported from USA, the luminous efficiency is as high as 80%.

3. VCSEL laser imported from USA with high performance.

4. High sensitive DLATGS detector imported from USA.

5. It’s off axis mirror using SPDT cutting process, with excellent optical efficiency and system consistency.

6. The imported special steel rail, heavy load, low friction, ensure data stability and repeatability.

Powerful intelligent software

1. Intelligent human-computer interaction and operation guide design, you can quickly get started and skilled whether you have contacted the FTIR software.

2. Unique spectral data acquisition monitoring preview mode, land acquisition process.

3. Provide standard library of approximately 1800 spectra for free, include most common Compounds, drugs, oxides.

Usual optical parts:

	Znse Crystal ATR
	Sheet Mold Press the powder into a window in order to test. Diameter 13mm, thickness 0.1-0.5mm, without demoulding.
	Agate Mortar Grand solid sample into powder Diameter 70mm.
	Press(We suggest you buy it locally because it’s heavy)
	IR Oven Temperature 70~250℃
	Liquid Cell For liquid sample Kbr window, deliquescent,wavelength range 7000-400cm-1. Light transmittance range 2.5μm~25μm.

Q: How about quality of the goods?

A:

l All the running products comply with CE standards.

l Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.

l Well-known third-party testing service available, such as SGS, BV, and TUV, etc.

Q: What are your pre- and after-sales services?

A:

l Timely reply to pre-sales enquiries

l Real-time update of manufacturing and shipment status

l Contracted third-party maintenance company in over 60 countries

Assured availability of parts supply for 10 years at least

Q: Is OEM service available.

A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.

Q: How long is the lead time:

A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
